6-84 — BACK TRIM (#74481) — 12 parça

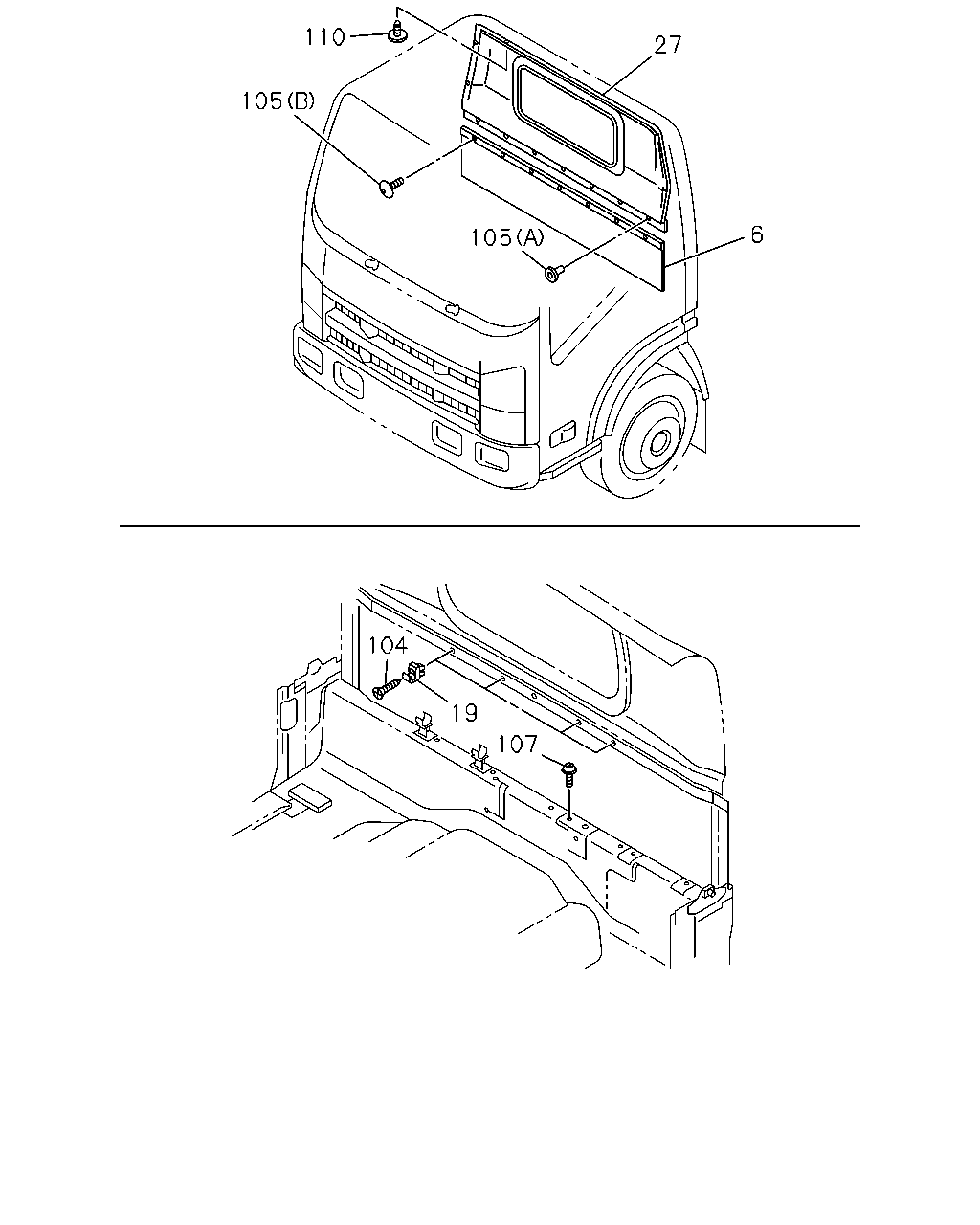

çizim 132198
110 27 105 6 105 104 19 107
BalonParca AdiParca NoAdetTipApplied Date A B
6 MAT; SILENCER,CAB BACK
THA 		8-97923-803-1 01 1 0803- ● ●
19 HOOK; RET
GRAY 		8-97406-042-0 04 1 0803- ● ●
27 COVER; TRIM,BACK
DARK GRAY 		8-97406-430-1 01 1 0803-1003 ● ●
27 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-430-2 01 1 1004-1104 ● ●
104 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 0803- ● ●
105 CLIP; BACK TRIM
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) GRAY 		8-97405-295-0 04 1 1004-1104 ● ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97405-295-0 04 1 1105- ● ●
105 CLIP; BACK TRIM
(A) 		8-98033-680-0 04 1 0803-1003 ● ●
105 CLIP; BACK TRIM
INTERIOR TRIM-FULL TRIMMING<WM3> (A) 		8-98033-680-0 04 1 1004-1104 ● ●
107 SCREW; BRKT
M6X16 		0-38050-616-0 01 1 0803- ● ●
110 CLIP; TRIM COVER
GRAY 		8-97406-433-0 04 1 0803-1003 ● ●
110 CLIP; TRIM COVER
INTERIOR TRIM-FULL TRIMMING<WM3> GRAY 		8-97406-433-0 04 1 1004-1104 ● ●
