◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#7448) — 42 parça

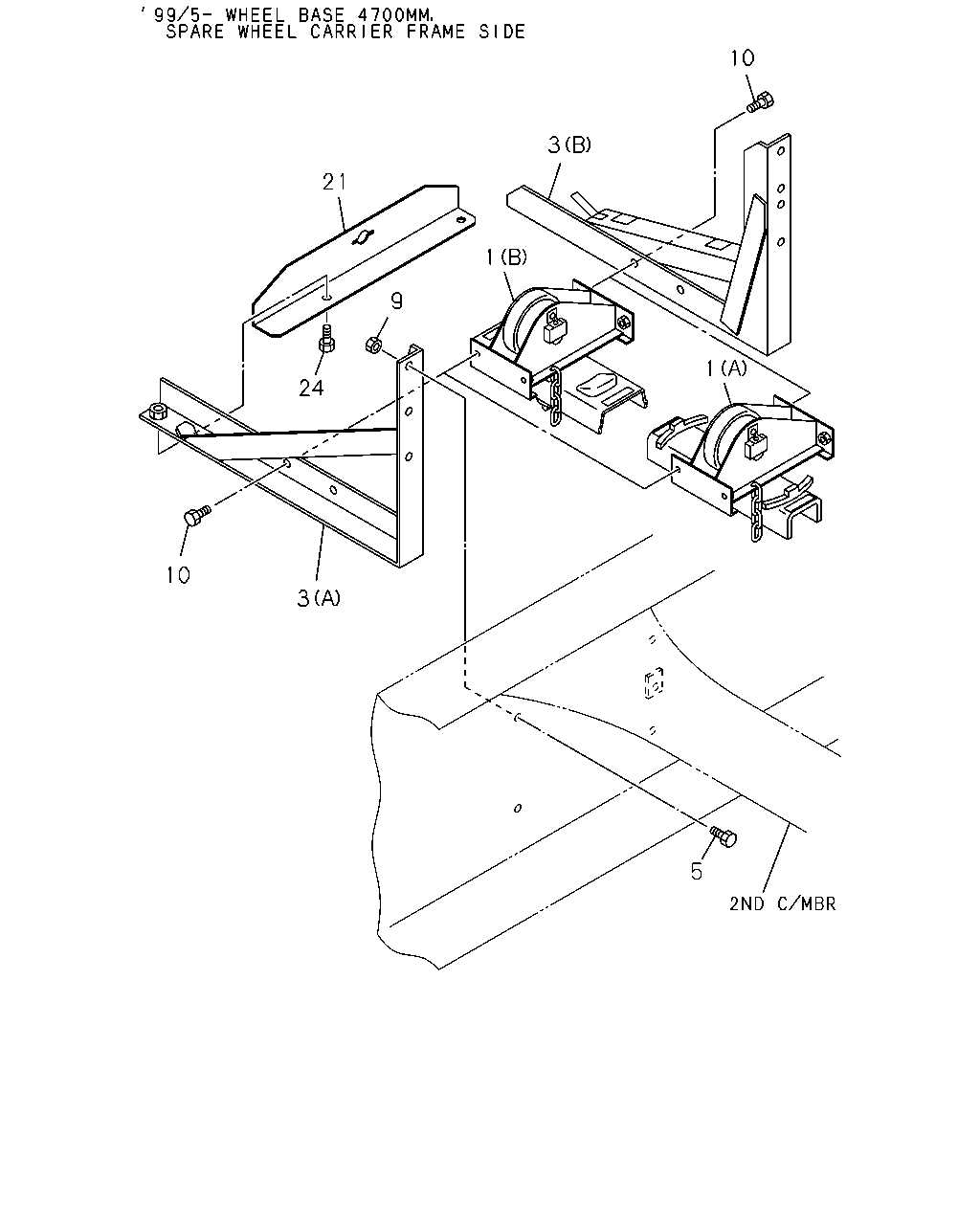

çizim 6525
10 3 21 1 9 1 24 10 3 5
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-210-1 02 1 9812-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-210-1 01 1 9812-9903
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) (A) 		1-53630-210-1 01 1 9904-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-210-1 01 1 9904-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9812-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9812-9903
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) (B) 		1-53630-208-1 01 1 9904-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9904-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B) 		1-53631-388-0 01 1 9905-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) 		1-53631-434-0 01 1 9905-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B) 		1-53631-389-0 01 1 9905-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) 		1-53631-393-0 01 1 9905-
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 9812-9904
5 BOLT; BRKT TO FRAME
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 9905-
5 BOLT; BRKT TO FRAME
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9905-
9 NUT; BRKT TO FRAME
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE 		0-91150-212-0 03 1 9905-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9812-
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-396-1 01 1 9812-9903
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> 		1-53631-396-1 01 1 9904-9904
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> 		1-53631-396-1 01 1 9905-
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53631-397-1 01 1 9904-9904
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53631-397-1 01 1 9905-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9905-
24 BOLT; SPARE TIRE
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28681-225-0 02 1 9905-
çizim 45119
5 1 21 10 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-210-1 02 1 9812-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-210-1 01 1 9812-9903
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) (A) 		1-53630-210-1 01 1 9904-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-210-1 01 1 9904-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9812-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9812-9903
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) (B) 		1-53630-208-1 01 1 9904-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9904-
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 9812-9904
5 BOLT; BRKT TO FRAME
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 9905-
5 BOLT; BRKT TO FRAME
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9905-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9812-
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-396-1 01 1 9812-9903
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> 		1-53631-396-1 01 1 9904-9904
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> 		1-53631-396-1 01 1 9905-
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53631-397-1 01 1 9904-9904
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53631-397-1 01 1 9905-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9905-
