◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#74477) — 15 parça

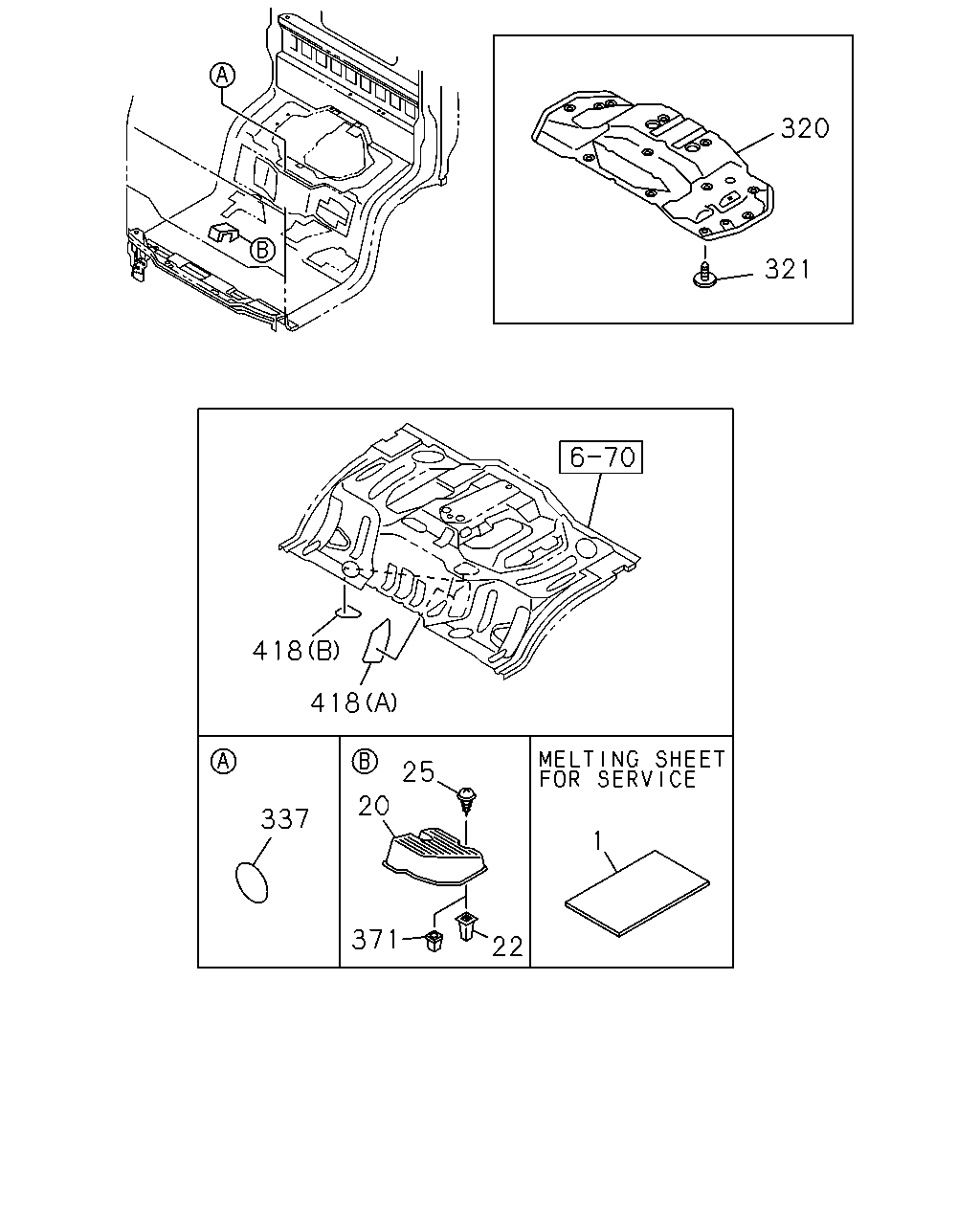

çizim 131940
320 321 418 418 25 20 337 1 371 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY THA 		8-94262-093-0 AR 1 0803- ● ●
20 REST; FOOT
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98032-754-0 01 1 0803-1104 ●
22 GROMMET; SCREW,FOOT REST
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> H=15 		8-94463-268-1 02 1 0803-1104 ●
25 SCREW; FOOT REST
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0803-1104 ●
320 INSULATOR; FLOOR,FRT
THA 		8-97924-156-0 01 1 0803-1405 ● ●
320 INSULATOR; FLOOR,FRT
THA 		8-98285-271-0 01 1 1406- ● ●
321 CLIP; INSULATOR,FLOOR
ID=6.2 L=11.4 THA 		8-97808-623-0 14 1 0803- ● ●
337 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 04 1 0803- ● ●
337 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 08 1 0803- ● ●
371 GROMMET; LOCATION HOLE
14.5X14.5 BLACK 		8-94279-714-0 02 1 0803- ●
371 GROMMET; LOCATION HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 14.5X14.5 BLACK 		8-94279-714-0 02 1 0803- ●
418 SEAL; PROTECTOR
(B) THA 		8-98138-274-1 01 1 0812- ● ●
418 SEAL; PROTECTOR
(B) THA 		8-98138-275-1 01 1 0812- ● ●
418 SEAL; PROTECTOR
(A) THA 		8-98090-191-1 01 1 0803- ● ●
418 SEAL; PROTECTOR
(A) THA 		8-98090-192-1 01 1 0803- ● ●
