◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#74476) — 8 parça

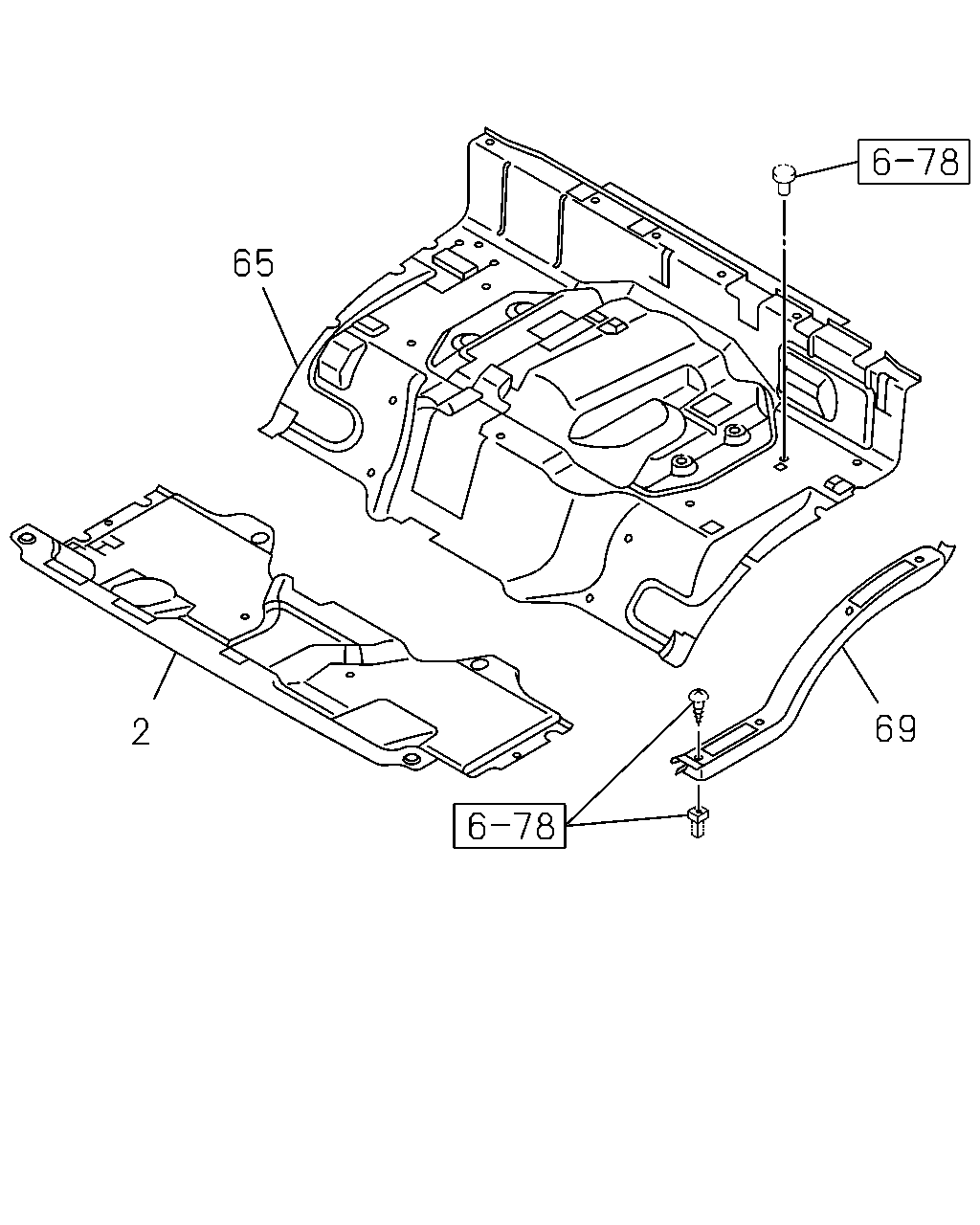

çizim 132123
65 69 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
THA 		8-97923-792-0 01 1 0803-1104 ●
2 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97923-792-0 01 1 0803-1104 ●
2 MAT; FLOOR
THA 		8-97925-469-0 01 1 1105- ● ●
2 MAT; FLOOR
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97923-793-0 01 1 0803-1104 ●
65 MAT ASM; SILENCER,CAB FLOOR
THA 		8-97923-795-2 01 1 0803-1104 ● ●
65 MAT ASM; SILENCER,CAB FLOOR
THA 		8-97925-470-0 01 1 1105- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0803- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
