Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#74472) — 55 parça

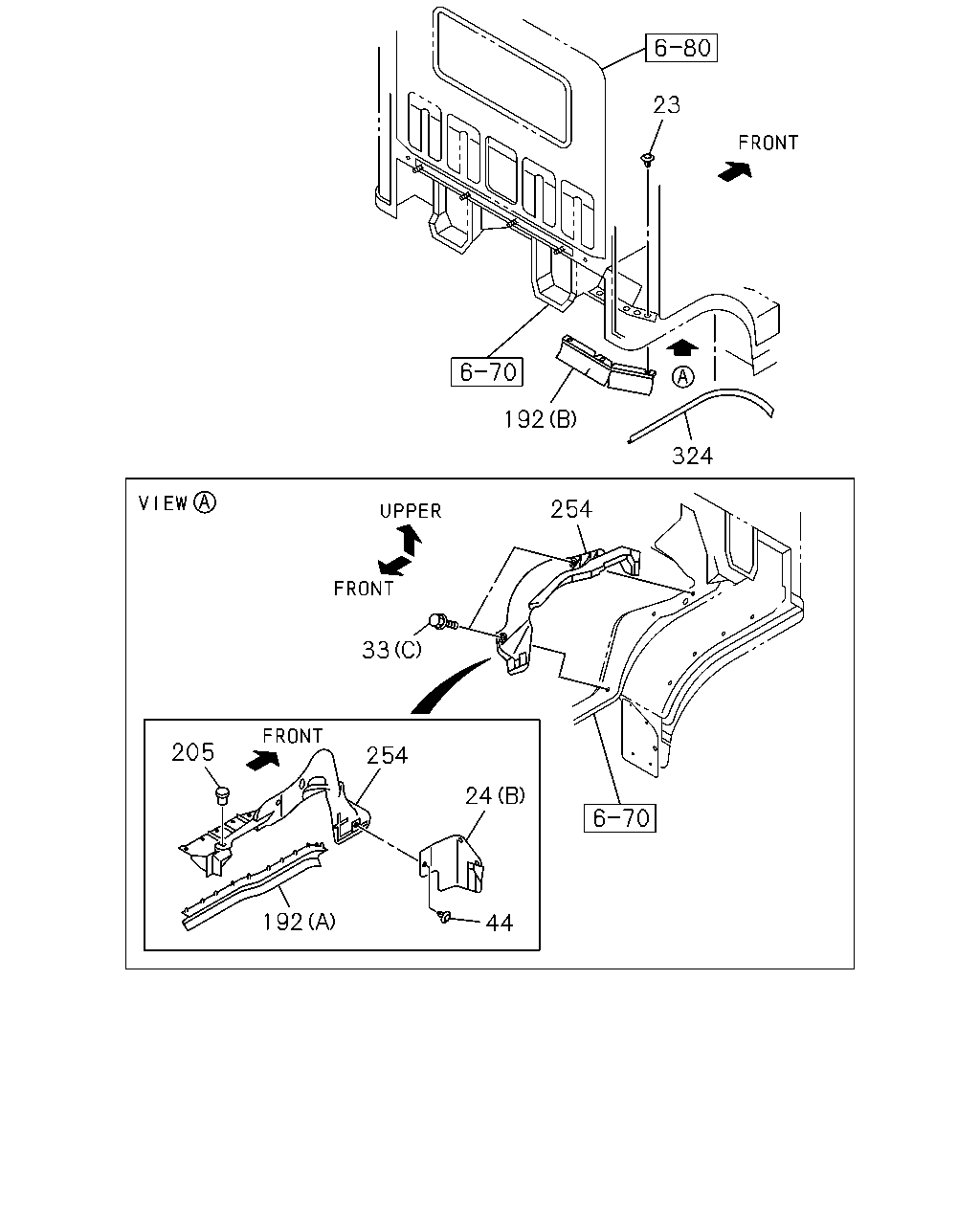

23 192 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	06	1	0803-	●	●
24	PLATE; MUD COVER (A)	8-98004-031-1	02	1	0803-	●	●
24	PLATE; MUD COVER (B)	8-98069-060-0	02	1	0803-0910	●	●
24	PLATE; MUD COVER (B)	8-98154-261-0	02	1	0911-	●	●
33	BOLT; MUD COVER (A) M6X20 FLANGE THA	0-28050-620-0	08	1	0803-1209	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0803-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98016-982-0	04	1	0803-0804	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0805-	●	●
44	CLIP; ANCHOR OD=16 L=11	1-76378-155-0	06	1	0803-	●	●
192	SEAL; MUD COVER (B) THA	8-98022-785-2	02	1	0803-1106	●	●
192	SEAL; MUD COVER (B)	8-98192-388-0	02	1	1107-	●	●
192	SEAL; MUD COVER (A)	8-98022-756-1	01	1	0803-	●	●
192	SEAL; MUD COVER (A)	8-98022-755-1	01	1	0803-	●	●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0803-	●	●
254	COVER; MUD,VALANCE	8-98022-769-2	01	1	0803-0804	●	●
254	COVER; MUD,VALANCE	8-98115-264-0	01	1	0805-	●	●
254	COVER; MUD,VALANCE	8-98022-768-2	01	1	0803-0804	●	●
254	COVER; MUD,VALANCE	8-98115-263-0	01	1	0805-	●	●
324	PROTECTOR; FRT FENDER	8-98022-786-2	02	1	0803-	●	●

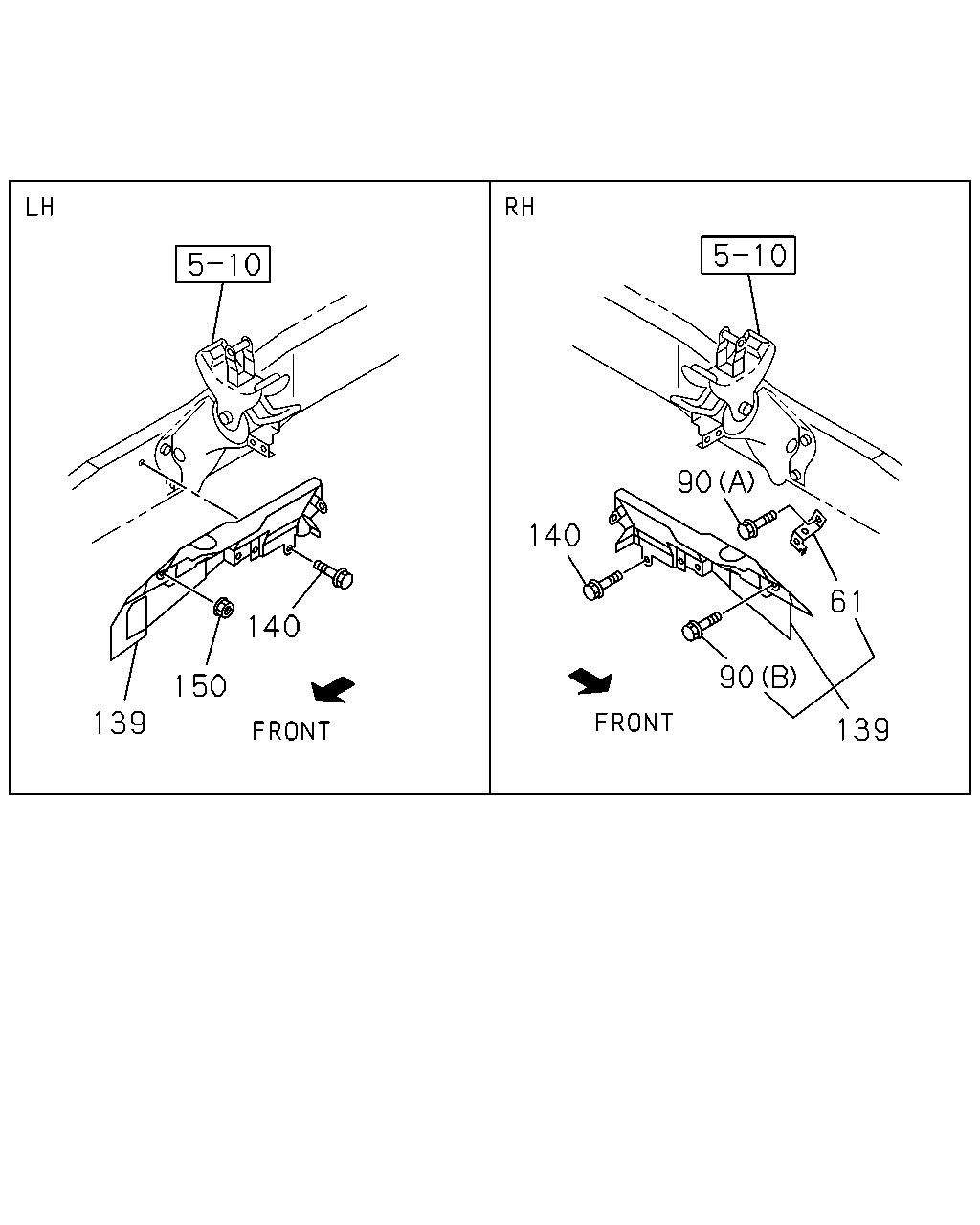

139 140 150 90 140 90 61 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER	8-98033-140-0	01	1	0803-	●	●
90	BOLT; COVER (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0803-	●	●
90	BOLT; COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0803-	●	●
139	PANEL; SIDE	8-97385-590-3	01	1	0803-	●	●
139	PANEL; SIDE	8-98053-670-1	01	1	0803-	●	●
140	BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	02	1	0803-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	01	1	0803-	●	●

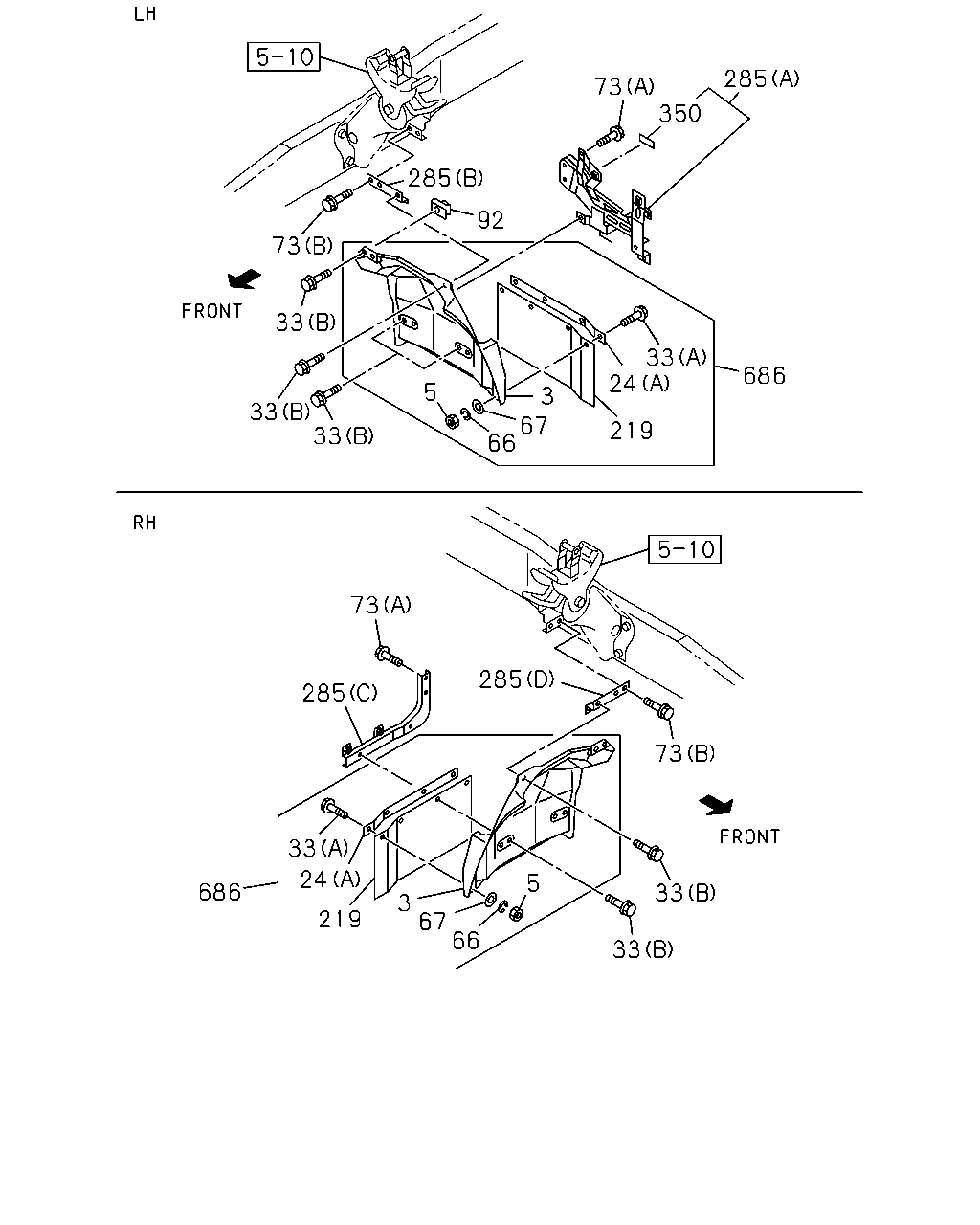

285 73 350 285 92 73 33 33 24 686 5 3 33 33 67 66 219 73 285 285 73 33 24 5 686 33 3 67 66 219 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR	8-98004-030-4	01	1	0803-	●	●
3	GUARD; MUD,RR	8-98054-793-3	01	1	0803-	●	●
5	NUT; FLAP RUBBER M6 THA	0-91110-506-0	08	1	0803-1209	●	●
5	NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1210-	●	●
24	PLATE; MUD COVER (A)	8-98004-031-1	02	1	0803-	●	●
24	PLATE; MUD COVER (B)	8-98069-060-0	02	1	0803-0910	●	●
24	PLATE; MUD COVER (B)	8-98154-261-0	02	1	0911-	●	●
33	BOLT; MUD COVER (A) M6X20 FLANGE THA	0-28050-620-0	08	1	0803-1209	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0803-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98016-982-0	04	1	0803-0804	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0805-	●	●
66	WASHER; LK ID=6.1	0-91510-606-0	08	1	0803-1209	●	●
67	WASHER; PL ID=6.4	0-91610-606-0	08	1	0803-1209	●	●
73	BOLT; MUD COVER BRKT (A) M10X25 FLANGE THA	0-28651-025-0	04	1	0803-1207	●	●
73	BOLT; MUD COVER BRKT (A) M10X25 FLANGE THA	0-28651-025-0	04	1	1208-	●	●
73	BOLT; MUD COVER BRKT (B) M8X25 FLANGE THA	0-28650-825-0	04	1	0803-1207	●	●
73	BOLT; MUD COVER BRKT (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1208-	●	●
92	NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	0803-	●	●
219	FLAP; MUD GUARD	8-98010-741-1	02	1	0803-	●	●
285	BRACKET; MUD COVER (B) THA	8-98038-865-1	01	1	0803-	●	●
285	BRACKET; MUD COVER (A)	8-98082-272-0	01	1	0803-	●	●
285	BRACKET; MUD COVER (C)	8-98001-316-1	01	1	0803-0809	●	●
285	BRACKET; MUD COVER (C)	8-98131-079-0	01	1	0810-	●	●
285	BRACKET; MUD COVER (D)	8-98059-689-0	01	1	0803-	●	●
350	PROTECTOR; EDGE,MUD COVER L=80	5-22439-006-0	01	1	0803-	●	●
686	FLAP ASM; MUD	8-98001-302-6	01	1	0803-	●	●
686	FLAP ASM; MUD	8-98048-568-5	01	1	0803-	●	●
