6-30 — FRONT DOOR AND HINGE (#74467) — 22 parça

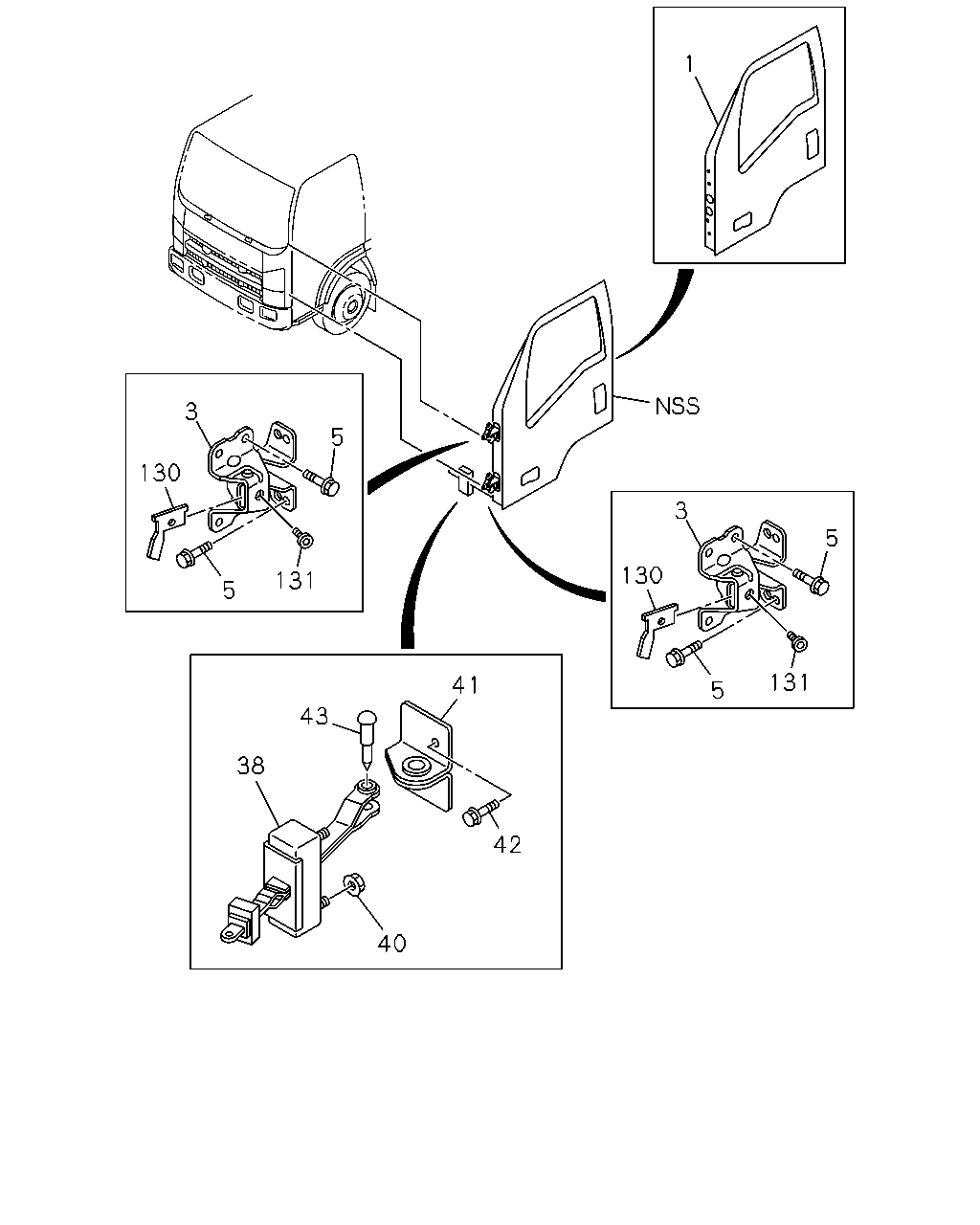

çizim 131157
1 3 5 130 3 5 130 131 5 131 41 5 43 38 42 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87> THA 		8-98075-726-1 01 1 1004-1104 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87> THA 		8-98075-727-1 01 1 1004-1104 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98084-119-0 01 1 0803-1003 ● ●
1 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> 		8-98084-119-0 01 1 1004-1104 ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98075-729-0 01 1 1105- ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98084-118-0 01 1 0803-1003 ● ●
1 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> 		8-98084-118-0 01 1 1004-1104 ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98075-728-0 01 1 1105- ● ●
3 HINGE; DOOR FRT 8-98038-293-0 04 1 0803-1104 ● ●
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1105- ● ●
5 BOLT; HINGE
M8X20 FLANGE 		8-98049-756-0 20 1 0803- ● ●
38 CHECKER ASM; DOOR 8-98031-730-5 02 1 0803-1104 ● ●
38 CHECKER ASM; DOOR 8-98029-417-5 02 1 1105-1203 ● ●
38 CHECKER ASM; DOOR 8-98208-189-1 02 1 1204-1508 ● ●
38 CHECKER ASM; DOOR 8-98296-601-0 02 1 1509- ● ●
40 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 0803-1012 ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1101- ● ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 0803- ● ●
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 0803- ● ●
43 PIN 8-98037-152-2 02 1 0803- ● ●
130 STOPPER; HINGE 8-98038-299-1 04 1 1105- ● ●
131 BOLT; DOOR STOPPER
M10X11 		8-98039-593-1 04 1 1105- ● ●
