6-01 — FRONT BUMPER (#74462) — 16 parça

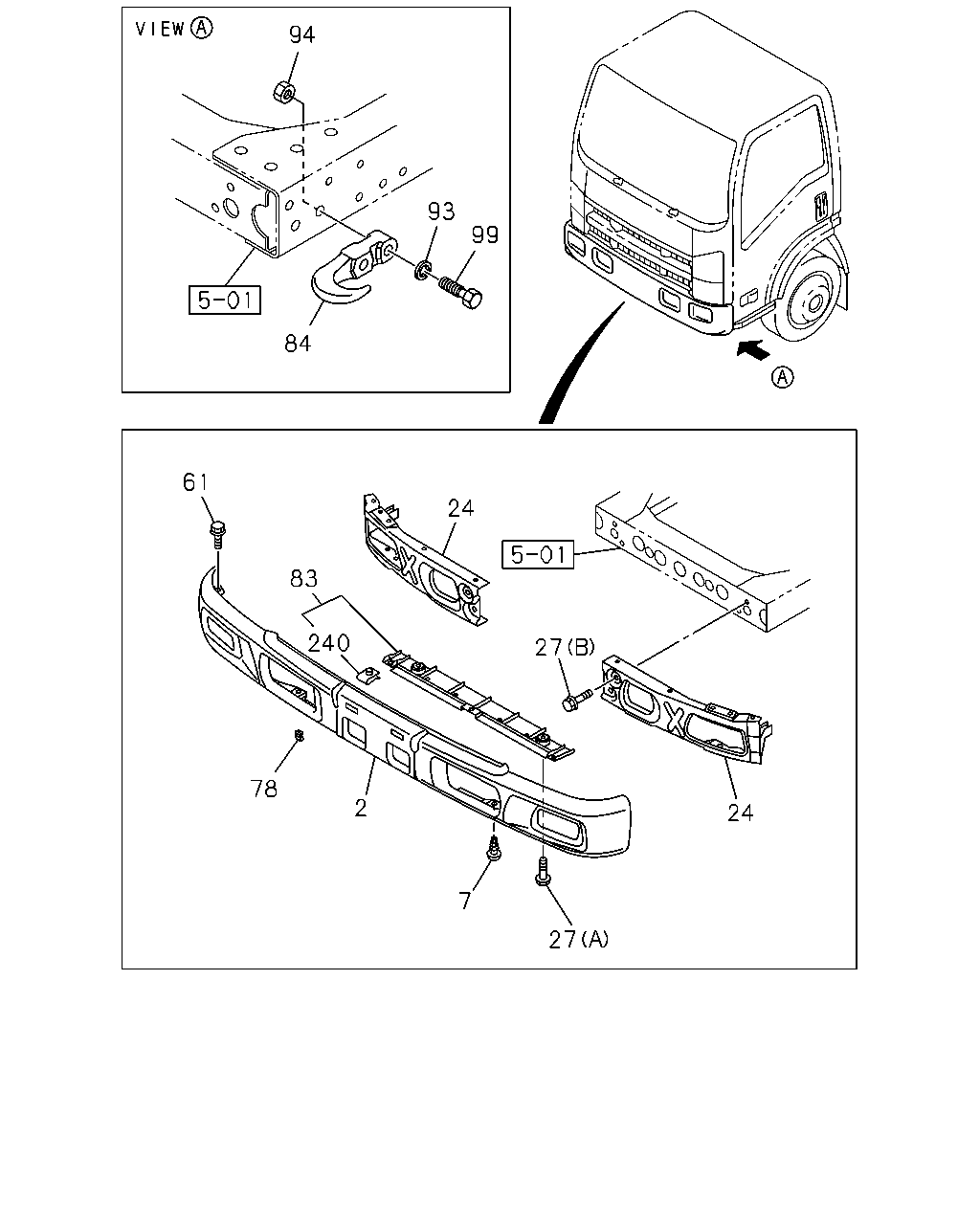

çizim 125973
94 93 99 84 61 24 83 240 27 78 2 24 7 27
BalonParca AdiParca NoAdetTipApplied Date A B
2 BUMPER; FRT,CENTER
PRIMER THA 		8-98055-077-2 01 1 0803- ● ●
7 SCREW; FRT BUMPER
M6X20 TAPPING 		8-98082-975-0 03 1 0803- ● ●
24 BAR; FRT BUMPER 8-98025-212-4 01 1 0803- ● ●
24 BAR; FRT BUMPER 8-98025-211-4 01 1 0803- ● ●
27 BOLT; BUMPER TO BACK BAR
(A) M8X20 W/PL WASHER THA 		8-98031-841-0 02 1 0803- ● ●
27 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 0803- ● ●
61 BOLT; BACK BAR
M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 0803- ● ●
78 NUT; SPIRE
M6 		8-98029-416-0 02 1 0803- ● ●
83 GUIDE; AIR,FRT BUMPER 8-98045-450-0 01 1 0803- ● ●
84 HOOK 8-97387-665-0 01 1 0803- ● ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0803- ● ●
94 NUT; HOOK
M14 THA 		0-91110-514-0 01 1 0803- ● ●
99 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0803-1001 ● ●
99 BOLT; HOOK
M14X55 		0-10956-455-0 02 1 1002-1103 ● ●
99 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1104- ● ●
240 NUT; AIR GUIDE,FRT BUMPER 1-71996-035-1 03 1 0803- ● ●
