5-30 — SPARE TIRE CARRIER AND COVER (#74461) — 31 parça

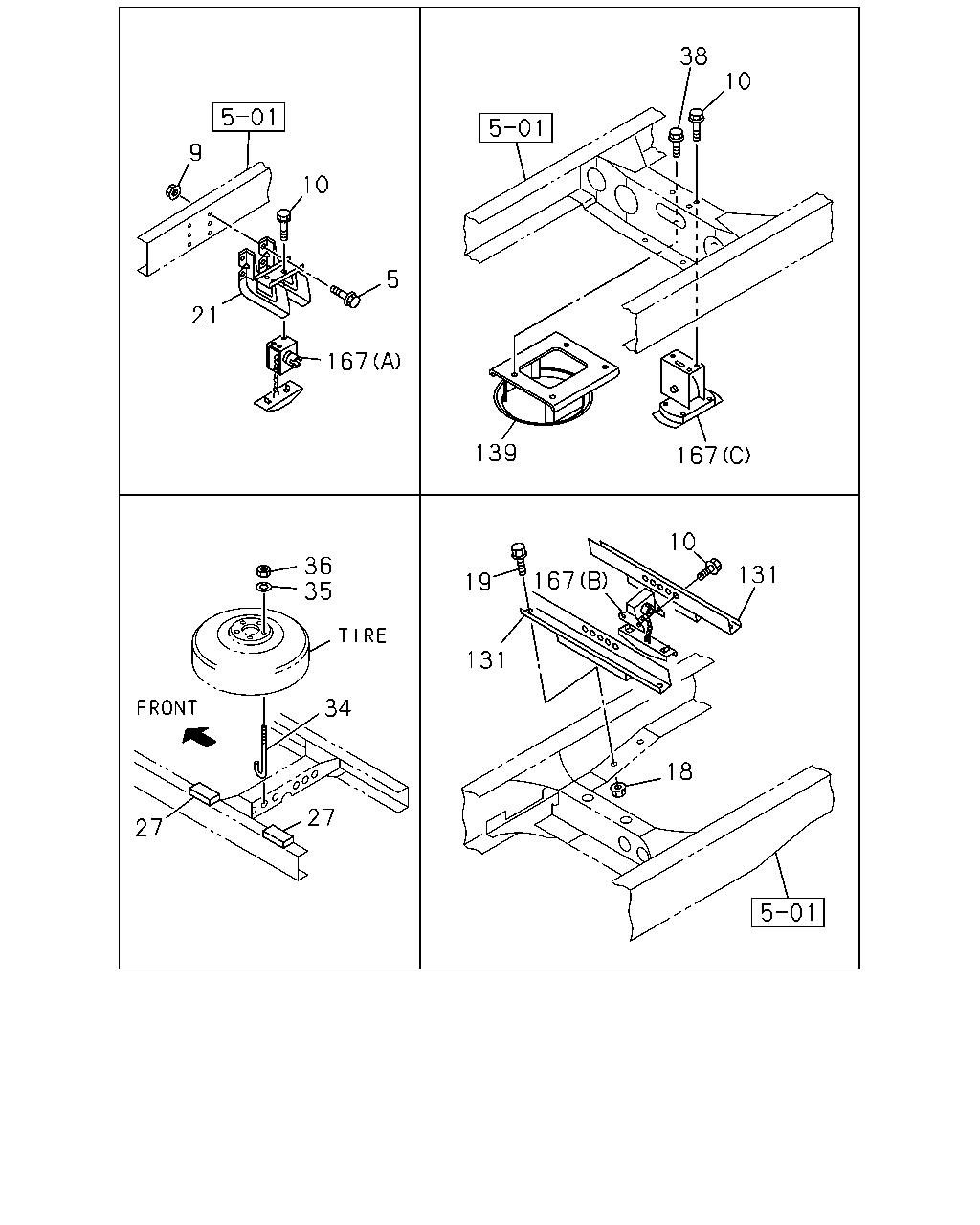

çizim 126141
38 10 9 10 5 21 167 139 167 10 36 35 131 167 19 131 34 18 27 27
BalonParca AdiParca NoAdetTipApplied Date A B
5 BOLT; BRKT TO FRAME
EXC. SINGLE RR TIRE<6TD> M10X25 FLANGE THA 		0-28051-025-0 04 1 1208- ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10X25 FLANGE THA 		0-28051-025-0 04 1 1208- ●
5 BOLT; BRKT TO FRAME
EXC. SINGLE RR TIRE<6TD> M10X25 FLANGE THA 		0-28051-025-0 04 1 0803-1207 ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10X25 FLANGE THA 		0-28051-025-0 04 1 0803-1207 ●
9 NUT; BRKT TO FRAME
EXC. SINGLE RR TIRE<6TD> M10 FLANGE THA 		0-91180-110-0 04 1 1208- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10 FLANGE THA 		0-91180-110-0 04 1 1208- ●
9 NUT; BRKT TO FRAME
EXC. SINGLE RR TIRE<6TD> M10 FLANGE THA 		0-91180-110-0 04 1 0803-1207 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10 FLANGE THA 		0-91180-110-0 04 1 0803-1207 ●
10 BOLT; TIRE HANGER
M8X20 FLANGE THA 		0-28650-820-0 03 1 1208- ●
10 BOLT; TIRE HANGER
WHEEL BASE 3300MM<33W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M8X25 FLANGE THA 		0-28650-825-0 04 1 1208- ●
10 BOLT; TIRE HANGER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0803-1207 ●
10 BOLT; TIRE HANGER
WHEEL BASE 3300MM<33W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M8X25 FLANGE THA 		0-28650-825-0 04 1 0803-1207 ●
18 NUT; MEMBER
WHEEL BASE 3300MM<33W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10 FLANGE THA 		0-91180-110-0 04 1 1208- ●
18 NUT; MEMBER
WHEEL BASE 3300MM<33W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10 FLANGE THA 		0-91180-110-0 04 1 0803-1207 ●
19 BOLT; C/MBR
WHEEL BASE 3300MM<33W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10X30 FLANGE THA 		0-28651-030-0 04 1 1208- ●
19 BOLT; C/MBR
WHEEL BASE 3300MM<33W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10X30 FLANGE THA 		0-28651-030-0 04 1 0803-1207 ●
21 BRACKET; SPARE TIRE HANGER
EXC. SINGLE RR TIRE<6TD> 		8-98036-085-2 01 1 0803- ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM<24W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 		8-98036-085-2 01 1 0803- ●
27 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10 		8-94341-284-0 03 1 0803- ●
34 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305 		8-94441-189-0 01 1 0803-1209 ●
34 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330 		8-98226-501-0 01 1 1210- ●
35 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> ID=12.5 OD=54 		8-94466-483-0 01 1 0803- ●
36 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12 THA 		0-91110-512-0 01 1 0803- ●
38 BOLT; STOPPER
SINGLE RR TIRE<6TD> M8X20 FLANGE THA 		0-28650-820-0 04 1 1208- ●
38 BOLT; STOPPER
SINGLE RR TIRE<6TD> M8X20 FLANGE THA 		0-28650-820-0 04 1 0803-1207 ●
131 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM<33W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 		8-98035-825-3 02 1 0803- ●
139 STOPPER; SPARE TIRE
SINGLE RR TIRE<6TD> 		8-98107-563-2 01 1 0803- ●
167 HANGER; TIRE
SINGLE RR TIRE<6TD> (C) 		8-94380-175-1 01 1 0803- ●
167 HANGER; TIRE
EXC. SINGLE RR TIRE<6TD> (A) 		8-94382-875-1 01 1 0803- ●
167 HANGER; TIRE
WHEEL BASE 2400MM<24W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-94382-875-1 01 1 0803- ●
167 HANGER; TIRE
WHEEL BASE 3300MM<33W> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) 		8-98036-384-0 01 1 0803- ●
