5-01 — FRAME AND OTHER PARTS (#74457) — 151 parça

173 173 105 105 215 215 103 103 147 147 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BRACKET; RR SPR,FRT (A)	8-98034-042-0	02	1	1107-	●
101	BRACKET; RR SPR,FRT (A)	8-98034-042-0	02	1	0803-1106	●
101	BRACKET; RR SPR,FRT WHEEL BASE 3300MM<33W> (B)	8-97042-245-1	02	1	0803-		●
101	BRACKET; RR SPR,FRT WHEEL BASE 2400MM<24W> (B)	8-97034-156-1	02	1	0803-		●
103	STOPPER; SUB SPR WHEEL BASE 3300MM<33W> (B)	8-97223-748-0	02	1	1210-		●
103	STOPPER; SUB SPR WHEEL BASE 3300MM<33W> (A)	8-97223-750-0	02	1	1210-		●
103	STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0803-1209		●
103	STOPPER; SUB SPR WHEEL BASE 2400MM<24W> (B)	8-97223-748-0	02	1	1210-		●
103	STOPPER; SUB SPR (A)	8-97223-750-0	02	1	0803-1209		●
103	STOPPER; SUB SPR WHEEL BASE 2400MM<24W> (A)	8-97223-750-0	02	1	1210-		●
105	BRACKET; RR SPR,RR (A)	8-98031-058-0	01	1	0803-	●
105	BRACKET; RR SPR,RR (A)	8-98031-059-0	01	1	0803-	●
105	BRACKET; RR SPR,RR WHEEL BASE 3300MM<33W> (B)	8-98032-488-0	01	1	1210-		●
105	BRACKET; RR SPR,RR WHEEL BASE 3300MM<33W> (B)	8-98032-489-0	01	1	1210-		●
105	BRACKET; RR SPR,RR (B)	8-98032-488-0	01	1	0803-1209		●
105	BRACKET; RR SPR,RR WHEEL BASE 2400MM<24W> (B)	8-98032-488-0	01	1	1210-		●
105	BRACKET; RR SPR,RR (B)	8-98032-489-0	01	1	0803-1209		●
105	BRACKET; RR SPR,RR WHEEL BASE 2400MM<24W> (B)	8-98032-489-0	01	1	1210-		●
147	RUBBER; SUB SPRING WHEEL BASE 3300MM<33W>	8-97254-387-0	04	1	1210-		●
147	RUBBER; SUB SPRING	8-97254-387-0	04	1	0803-1209		●
147	RUBBER; SUB SPRING WHEEL BASE 2400MM<24W>	8-97254-387-0	04	1	1210-		●
173	STIFFENER; RR SPRING (B) THA	8-98012-947-3	02	1	1107-1209		●
173	STIFFENER; RR SPRING WHEEL BASE 2400MM<24W> (B) THA	8-98012-947-3	02	1	1210-		●
173	STIFFENER; RR SPRING WHEEL BASE 3300MM<33W> (B) THA	8-98012-947-3	02	1	1210-		●
173	STIFFENER; RR SPRING (B) THA	8-98012-947-3	02	1	0803-1106		●
173	STIFFENER; RR SPRING WHEEL BASE 2400MM<24W> (A)	8-98012-948-2	02	1	0803-		●
215	BUSHING; BRKT,RR SPRING WHEEL BASE 3300MM<33W> THA	8-97184-699-1	04	1	1210-		●
215	BUSHING; BRKT,RR SPRING THA	8-97184-699-1	04	1	0803-1209		●
215	BUSHING; BRKT,RR SPRING WHEEL BASE 2400MM<24W> THA	8-97184-699-1	04	1	1210-		●

130 24 51 165 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1209-	●
24	BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1209-	●
24	BRACKET; FRT SPR,FRT WHEEL BASE 3300MM<33W>	8-98029-126-0	01	1	1210-		●
24	BRACKET; FRT SPR,FRT WHEEL BASE 3300MM<33W>	8-98029-127-0	01	1	1210-		●
24	BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	0803-1106	●	●
24	BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1107-1209		●
24	BRACKET; FRT SPR,FRT WHEEL BASE 2400MM<24W>	8-98029-126-0	01	1	1210-		●
24	BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	0803-1106	●	●
24	BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1107-1209		●
24	BRACKET; FRT SPR,FRT WHEEL BASE 2400MM<24W>	8-98029-127-0	01	1	1210-		●
39	BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1107-	●
39	BRACKET; FRT SPR,RR WHEEL BASE 3300MM<33W>	8-94258-091-0	02	1	1210-		●
39	BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0803-1106	●	●
39	BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1107-1209		●
39	BRACKET; FRT SPR,RR WHEEL BASE 2400MM<24W>	8-94258-091-0	02	1	1210-		●
51	BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1107-	●
51	BRACKET; ENG SUPPORT,OUTER WHEEL BASE 3300MM<33W>	8-98038-962-3	02	1	1210-		●
51	BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	0803-1106	●	●
51	BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1107-1209		●
51	BRACKET; ENG SUPPORT,OUTER WHEEL BASE 2400MM<24W>	8-98038-962-3	02	1	1210-		●
130	MEMBER; CROSS,END WHEEL BASE 3300MM<33W> THA	8-97924-353-0	01	1	0803-1106		●
130	MEMBER; CROSS,END WHEEL BASE 3300MM<33W> THA	8-97924-353-0	01	1	1209-		●
165	BRACKET; RAD STAY	8-98000-886-0	01	1	0803-	●
165	BRACKET; RAD STAY WHEEL BASE 3300MM<33W>	8-98000-886-0	01	1	1210-		●
165	BRACKET; RAD STAY	8-98000-886-0	01	1	1107-1209		●
165	BRACKET; RAD STAY WHEEL BASE 2400MM<24W>	8-98000-886-0	01	1	1210-		●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 60 176 62 118 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BOLT; BRKT TO FRAME M10X40 FLANGE	0-28661-040-0	12	1	1209-	●
40	BOLT; BRKT TO FRAME WHEEL BASE 3300MM<33W> M8X20 FLANGE THA	0-28050-820-0	02	1	0803-		●
60	BOLT; MBR M10X30	0-20851-030-0	04	1	1107-	●
60	BOLT; MBR WHEEL BASE 3300MM<33W> M10X30	0-20851-030-0	04	1	1210-		●
60	BOLT; MBR M10X30	0-20851-030-0	04	1	0803-1106	●	●
60	BOLT; MBR M10X30	0-20851-030-0	04	1	1107-1209		●
60	BOLT; MBR WHEEL BASE 2400MM<24W> M10X30	0-20851-030-0	04	1	1210-		●
62	NUT; MBR WHEEL BASE 2400MM<24W> M10 FLANGE THA	0-91180-210-0	12	1	1210-		●
62	NUT; MBR M10 FLANGE THA	0-91180-210-0	04	1	0803-1209	●	●
62	NUT; MBR M10 FLANGE THA	0-91180-210-0	04	1	1210-	●
62	NUT; MBR WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-210-0	04	1	1210-		●
67	NUT; C/MBR WHEEL BASE 2400MM<24W> M10 FLANGE THA	0-91180-210-0	12	1	1210-		●
67	NUT; C/MBR M10 FLANGE THA	0-91180-210-0	04	1	0803-1209	●	●
67	NUT; C/MBR M10 FLANGE THA	0-91180-210-0	04	1	1210-	●
67	NUT; C/MBR WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-210-0	04	1	1210-		●
118	NUT; STOPPER WHEEL BASE 3300MM<33W> M8 LOCK NUT	0-91370-008-0	02	1	1210-		●
118	NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0803-1209		●
118	NUT; STOPPER WHEEL BASE 2400MM<24W> M8 LOCK NUT	0-91370-008-0	02	1	1210-		●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE THA	0-28051-030-0	08	1	1107-	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM<33W> M10X30 FLANGE THA	0-28051-030-0	08	1	1210-		●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE THA	0-28051-030-0	08	1	0803-1106	●	●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE THA	0-28051-030-0	08	1	1107-1209		●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM<24W> M10X30 FLANGE THA	0-28051-030-0	08	1	1210-		●
376	RIVET; FRAME (A) D8X20 TAPER END	9-06750-820-0	AR	1	0803-	●	●
376	RIVET; FRAME (B) D8X22 TAPER END	9-06750-822-0	AR	1	0803-	●	●
376	RIVET; FRAME (C) D8X26 TAPER END	9-06750-826-0	AR	1	0803-	●	●
376	RIVET; FRAME (D) D10X22 TAPER END	9-06751-022-0	AR	1	0803-	●	●
376	RIVET; FRAME (E) D10X24 TAPER END	9-06751-024-0	AR	1	0803-	●	●
376	RIVET; FRAME (F) D10X26 TAPER END	9-06751-026-0	AR	1	0803-	●	●
376	RIVET; FRAME (G) D10X28 TAPER END	9-06751-028-0	AR	1	0803-	●	●
376	RIVET; FRAME (H) D10X30 TAPER END	9-06751-030-0	AR	1	0803-	●	●
376	RIVET; FRAME (I) D10X32 TAPER END	9-06751-032-0	AR	1	0803-	●	●
376	RIVET; FRAME (J) M10X34 TAPER END	9-06751-034-0	AR	1	0803-	●	●
376	RIVET; FRAME (K) D10X36 TAPER END	9-06751-036-0	AR	1	0803-	●	●
376	RIVET; FRAME (L) D12X30 TAPER END	9-06751-230-0	AR	1	0803-	●	●
376	RIVET; FRAME (M) D12X32 TAPER END	9-06751-232-0	AR	1	0803-	●	●
376	RIVET; FRAME (N) D12X34 TAPER END	9-06751-234-0	AR	1	0803-	●	●
376	RIVET; FRAME (O) D12X36 TAPER END	9-06751-236-0	AR	1	0803-	●	●

75 75 345 75 345 75 198 198 198 198 198 198 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	GUSSET; 5TH C/MBR (A) THA	8-97924-487-0	01	1	0803-	●
75	GUSSET; 5TH C/MBR (A) THA	8-97924-488-0	01	1	0803-	●
75	GUSSET; 5TH C/MBR (B) THA	8-97924-345-0	04	1	0803-		●
139	MEMBER; CROSS,6TH (B) THA	8-97924-349-0	01	1	0803-	●
139	MEMBER; CROSS,6TH (A) THA	8-97924-348-0	01	1	0803-		●
198	GUSSET; 6TH C/MBR (B) THA	8-97924-352-0	02	1	0803-1104	●
198	GUSSET; 6TH C/MBR (C) THA	8-97925-670-0	01	1	1105-	●
198	GUSSET; 6TH C/MBR (C) THA	8-97925-671-0	01	1	1105-	●
198	GUSSET; 6TH C/MBR (A) RH UPPER & LH LOWER THA	8-97924-489-0	02	1	0803-		●
198	GUSSET; 6TH C/MBR (A) RH LOWER & LH UPPER THA	8-97924-490-0	02	1	0803-		●
345	MEMBER; CROSS,5TH THA	8-97924-344-0	01	1	0803-	●	●

140 140 140 217 217 217 356 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
140	BRACKET; S/ABS,RR (A)	8-98006-174-0	02	1	0803-	●
140	BRACKET; S/ABS,RR WHEEL BASE 3300MM<33W> (B)	8-98006-176-0	01	1	1210-		●
140	BRACKET; S/ABS,RR WHEEL BASE 3300MM<33W> (C)	8-98006-180-0	01	1	1210-		●
140	BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	0803-1209		●
140	BRACKET; S/ABS,RR WHEEL BASE 2400MM<24W> (B)	8-98006-176-0	01	1	1210-		●
140	BRACKET; S/ABS,RR (C)	8-98006-180-0	01	1	0803-1209		●
140	BRACKET; S/ABS,RR WHEEL BASE 2400MM<24W> (C)	8-98006-180-0	01	1	1210-		●
217	BRACKET; HELPER RUBBER,RR SPRING (A)	8-97163-899-1	02	1	0803-	●
217	BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2400MM<24W> (B) THA	8-97202-417-0	02	1	0803-		●
217	BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 3300MM<33W> (C)	8-98006-210-0	02	1	0803-		●
356	BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	1107-	●
356	BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	1107-	●
356	BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	0803-1106	●
356	BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM<24W> (B)	8-98062-611-1	01	1	0803-1106		●
356	BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM<24W> (B)	8-98062-611-1	01	1	1107-		●
356	BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	0803-1106	●
356	BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM<24W> (A)	8-98062-610-1	01	1	0803-1106		●
356	BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM<24W> (A)	8-98062-610-1	01	1	1107-		●

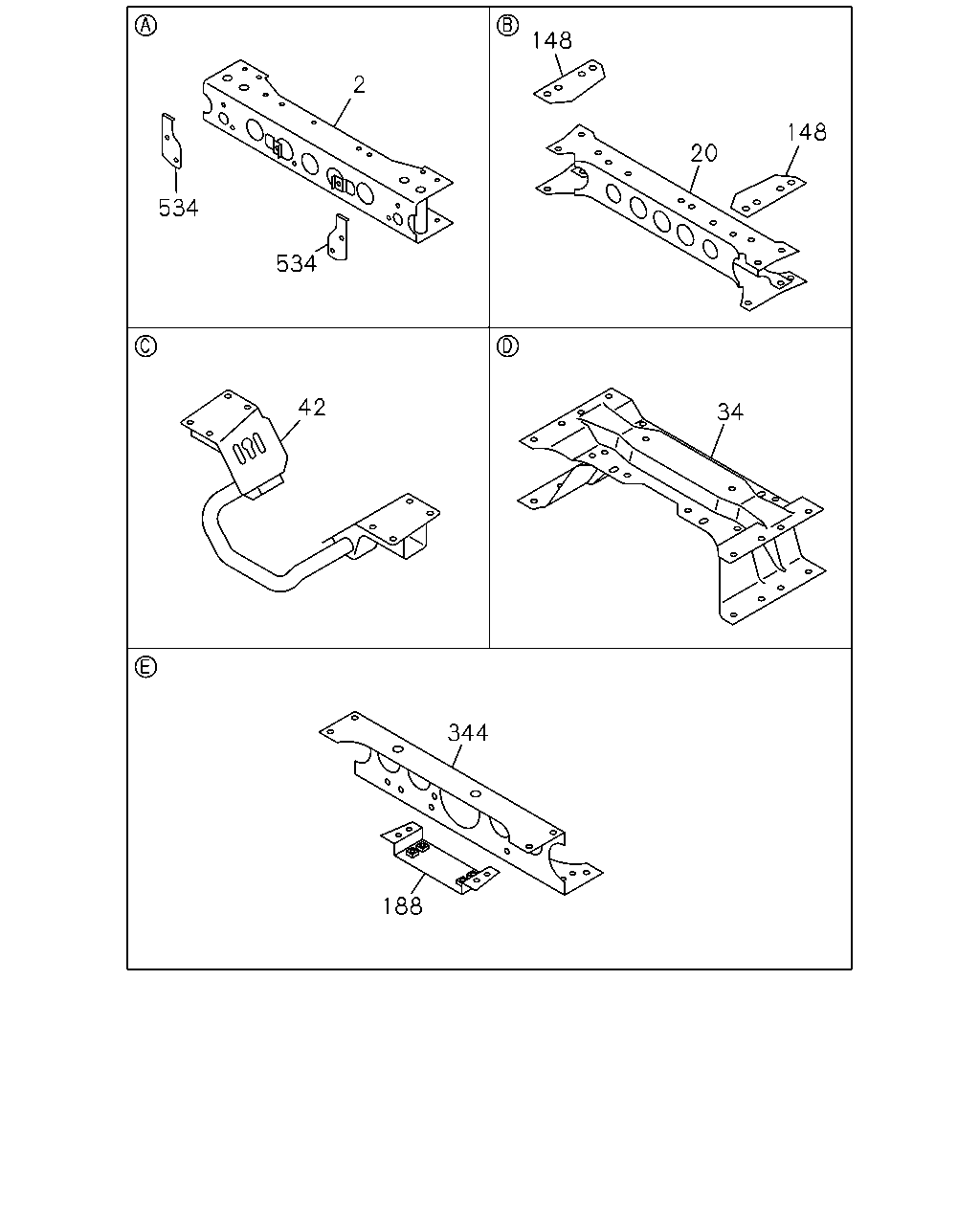

148 2 148 20 534 534 42 34 344 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST THA	8-97924-339-2	01	1	0803-	●	●
20	MEMBER; CROSS,2ND THA	8-98088-281-1	01	1	0803-	●	●
34	MEMBER; CROSS,3RD	8-98081-959-0	01	1	1107-	●
34	MEMBER; CROSS,3RD	8-98081-959-0	01	1	0803-1106	●
34	MEMBER; CROSS,3RD WHEEL BASE 2400MM<24W>	8-98081-959-0	01	1	0803-1106		●
34	MEMBER; CROSS,3RD WHEEL BASE 2400MM<24W>	8-98081-959-0	01	1	1107-		●
34	MEMBER; CROSS,3RD WHEEL BASE 3300MM<33W>	8-97384-743-1	01	1	0803-		●
42	MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	0803-	●	●
148	SPACER; C/MBR	8-98081-958-0	04	1	1107-	●
148	SPACER; C/MBR	8-98081-958-0	04	1	0803-1106	●
148	SPACER; C/MBR WHEEL BASE 2400MM<24W>	8-98081-958-0	04	1	0803-1106		●
148	SPACER; C/MBR WHEEL BASE 2400MM<24W>	8-98081-958-0	04	1	1107-		●
188	BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM<33W> THA	8-97083-157-1	01	1	0803-1208		●
188	BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM<33W> THA	8-97083-157-1	02	1	1209-		●
344	MEMBER; CROSS,4TH WHEEL BASE 3300MM<33W> THA	8-97924-343-0	01	1	0803-		●
534	BRACKET; BACK BAR	8-98061-413-0	01	1	1107-	●
534	BRACKET; BACK BAR	8-98061-414-0	01	1	1107-	●
534	BRACKET; BACK BAR WHEEL BASE 3300MM<33W>	8-98061-413-0	01	1	1210-		●
534	BRACKET; BACK BAR WHEEL BASE 3300MM<33W>	8-98061-414-0	01	1	1210-		●
534	BRACKET; BACK BAR	8-98061-413-0	01	1	0803-1106	●	●
534	BRACKET; BACK BAR	8-98061-413-0	01	1	1107-1209		●
534	BRACKET; BACK BAR WHEEL BASE 2400MM<24W>	8-98061-413-0	01	1	1210-		●
534	BRACKET; BACK BAR	8-98061-414-0	01	1	0803-1106	●	●
534	BRACKET; BACK BAR	8-98061-414-0	01	1	1107-1209		●
534	BRACKET; BACK BAR WHEEL BASE 2400MM<24W>	8-98061-414-0	01	1	1210-		●

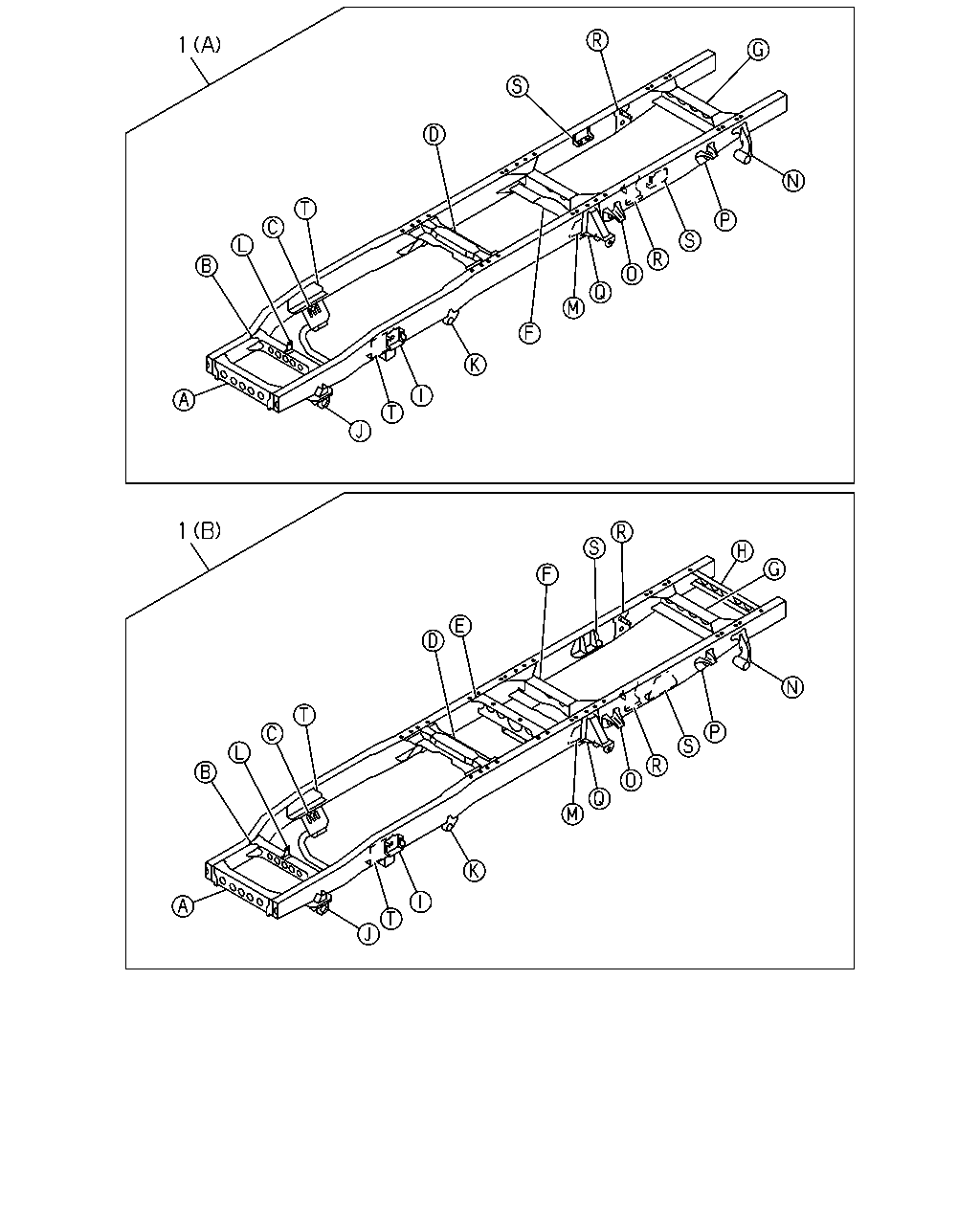

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FRAME ASM (A) THA	8-97924-375-2	01	1	0803-1104	●
1	FRAME ASM (A) THA	8-97925-666-1	01	1	1105-	●
1	FRAME ASM WHEEL BASE 2400MM<24W> (A) THA	8-97924-374-4	01	1	0803-		●
1	FRAME ASM WHEEL BASE 3300MM<33W> (B) THA	8-97924-372-3	01	1	0803-		●
