4-80 — ROAD WHEEL (#74456) — 80 parça

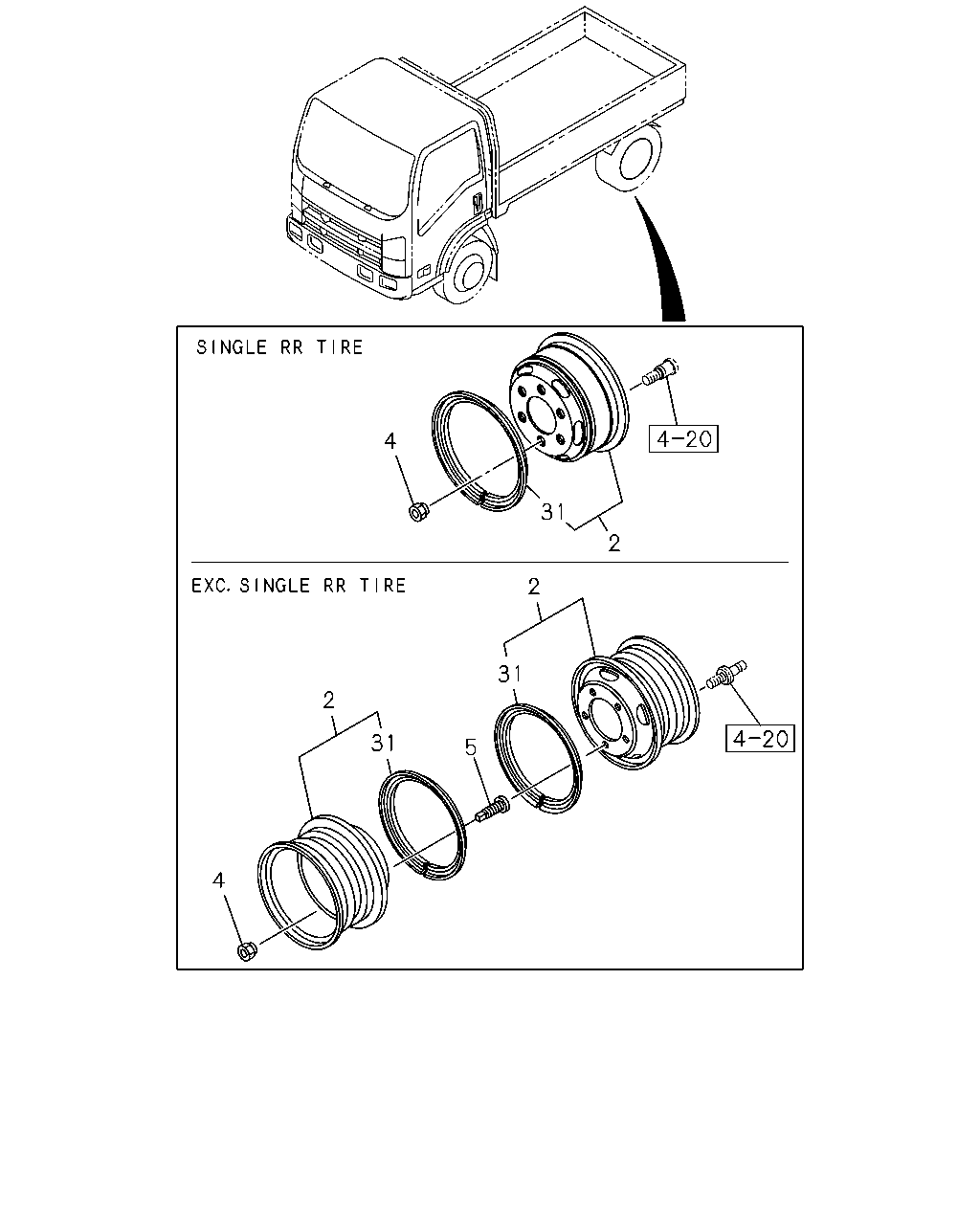

4 31 2 2 31 2 31 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-125<CVP> SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	01	1	0911-	●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-125<CVP> FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	04	1	0911-	●
2	WHEEL; DISC FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-25<CTH>, FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	01	1	0803-0902	●
2	WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	01	1	0903-	●
2	WHEEL; DISC FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-25<CTH>, FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	04	1	0803-0902	●
2	WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	04	1	0903-	●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H>,FRT&RR 7R-15-8 5.5FX15-115<57H> SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	01	1	0803-0902		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H> SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	01	1	0903-		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H>,FRT&RR 7R-15-8 5.5FX15-115<57H> FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	06	1	0803-0902		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H> FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	06	1	0903-		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	01	1	0803-0902		●
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	01	1	0903-0910		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	01	1	0911-		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	06	1	0803-0902		●
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	06	1	0903-0910		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	06	1	0911-		●
4	NUT; WHEEL,RR AXLE SINGLE RR TIRE<6TD> M14 LH THREAD	8-98007-906-0	06	1	0803-	●
4	NUT; WHEEL,RR AXLE SINGLE RR TIRE<6TD> M14 RH THREAD	8-98007-905-0	06	1	0803-	●
4	NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE<6TD> M27 LH THREAD	8-98007-825-0	05	1	0803-	●
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0803-		●
4	NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE<6TD> M27 RH THREAD	8-98007-824-0	05	1	0803-	●
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0803-		●
5	NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE<6TD> OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0803-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0803-		●
5	NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE<6TD> OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0803-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0803-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-125<CVP> FRONT,REAR 16X5.50F STAMP, BLACK THA	8-94135-601-0	04	1	0911-	●
31	RING; SIDE,DISC WHEEL FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-25<CTH>, FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 15X5.50F STAMP, BLACK THA	8-94135-599-0	04	1	0803-0902	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 15X5.50F STAMP, BLACK THA	8-94135-599-0	04	1	0903-	●
31	RING; SIDE,DISC WHEEL FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-25<CTH>, FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 15X5.50F STAMP, BLACK THA	8-94135-599-0	01	1	0803-0902	●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H>,FRT&RR 7R-15-8 5.5FX15-115<57H> SPARE 15X5.50F STAMP, BLACK THA	8-94135-599-0	01	1	0803-0902		●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 15X5.50F STAMP, BLACK THA	8-94135-599-0	01	1	0903-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H> SPARE 15X5.50F STAMP, BLACK THA	8-94135-599-0	01	1	0903-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H>,FRT&RR 7R-15-8 5.5FX15-115<57H> FRONT,REAR 15X5.50F STAMP, BLACK THA	8-94135-599-0	06	1	0803-0902		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H> FRONT,REAR 15X5.50F STAMP, BLACK THA	8-94135-599-0	06	1	0903-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0803-0902		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0903-0910		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-125<CVP> SPARE 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0911-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0911-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 16X5.50F STAMP, BLACK THA	8-94135-601-0	06	1	0803-0902		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 16X5.50F STAMP, BLACK THA	8-94135-601-0	06	1	0903-0910		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 16X5.50F STAMP, BLACK THA	8-94135-601-0	06	1	0911-		●

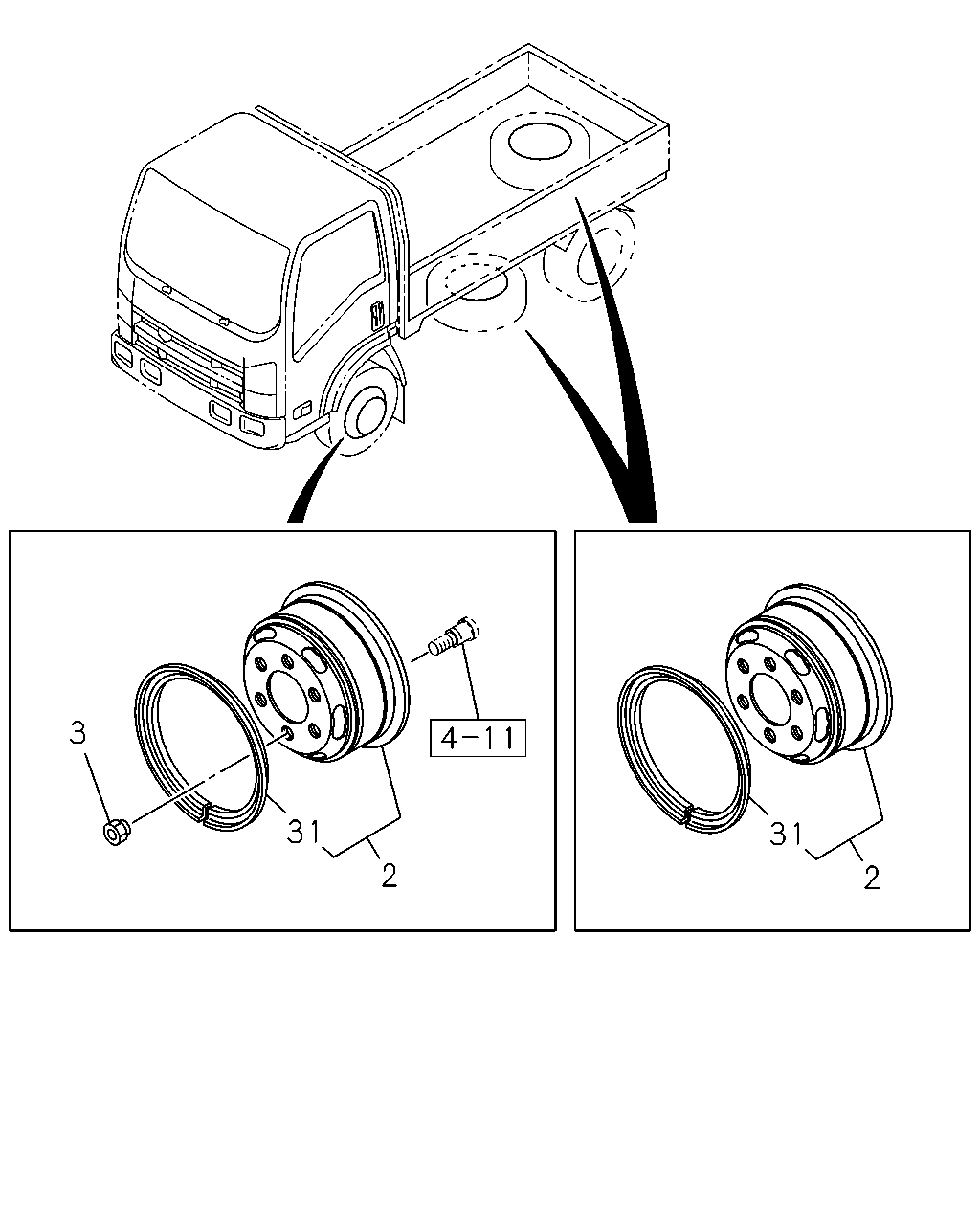

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-125<CVP> SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	01	1	0911-	●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-125<CVP> FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	04	1	0911-	●
2	WHEEL; DISC FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-25<CTH>, FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	01	1	0803-0902	●
2	WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	01	1	0903-	●
2	WHEEL; DISC FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-25<CTH>, FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	04	1	0803-0902	●
2	WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	04	1	0903-	●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H>,FRT&RR 7R-15-8 5.5FX15-115<57H> SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	01	1	0803-0902		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H> SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	01	1	0903-		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H>,FRT&RR 7R-15-8 5.5FX15-115<57H> FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	06	1	0803-0902		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H> FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	06	1	0903-		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	01	1	0803-0902		●
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	01	1	0903-0910		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	01	1	0911-		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	06	1	0803-0902		●
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	06	1	0903-0910		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE THA	8-94378-330-1	06	1	0911-		●
3	NUT; WHEEL,FRT AXLE SINGLE RR TIRE<6TD> M14 LH THREAD	8-98007-906-0	06	1	0803-	●
3	NUT; WHEEL,FRT AXLE SINGLE RR TIRE<6TD> M14 RH THREAD	8-98007-905-0	06	1	0803-	●
3	NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE<6TD> M18 LH THREAD	8-98007-908-0	05	1	0803-	●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0803-		●
3	NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE<6TD> M18 RH THREAD	8-98007-907-0	05	1	0803-	●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0803-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-125<CVP> FRONT,REAR 16X5.50F STAMP, BLACK THA	8-94135-601-0	04	1	0911-	●
31	RING; SIDE,DISC WHEEL FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-25<CTH>, FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 15X5.50F STAMP, BLACK THA	8-94135-599-0	04	1	0803-0902	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 15X5.50F STAMP, BLACK THA	8-94135-599-0	04	1	0903-	●
31	RING; SIDE,DISC WHEEL FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-25<CTH>, FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 15X5.50F STAMP, BLACK THA	8-94135-599-0	01	1	0803-0902	●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H>,FRT&RR 7R-15-8 5.5FX15-115<57H> SPARE 15X5.50F STAMP, BLACK THA	8-94135-599-0	01	1	0803-0902		●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 15X5.50F STAMP, BLACK THA	8-94135-599-0	01	1	0903-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H> SPARE 15X5.50F STAMP, BLACK THA	8-94135-599-0	01	1	0903-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H>,FRT&RR 7R-15-8 5.5FX15-115<57H> FRONT,REAR 15X5.50F STAMP, BLACK THA	8-94135-599-0	06	1	0803-0902		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H> FRONT,REAR 15X5.50F STAMP, BLACK THA	8-94135-599-0	06	1	0903-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0803-0902		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0903-0910		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-125<CVP> SPARE 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0911-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0911-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 16X5.50F STAMP, BLACK THA	8-94135-601-0	06	1	0803-0902		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 16X5.50F STAMP, BLACK THA	8-94135-601-0	06	1	0903-0910		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR 16X5.50F STAMP, BLACK THA	8-94135-601-0	06	1	0911-		●
