◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#74453) — 22 parça

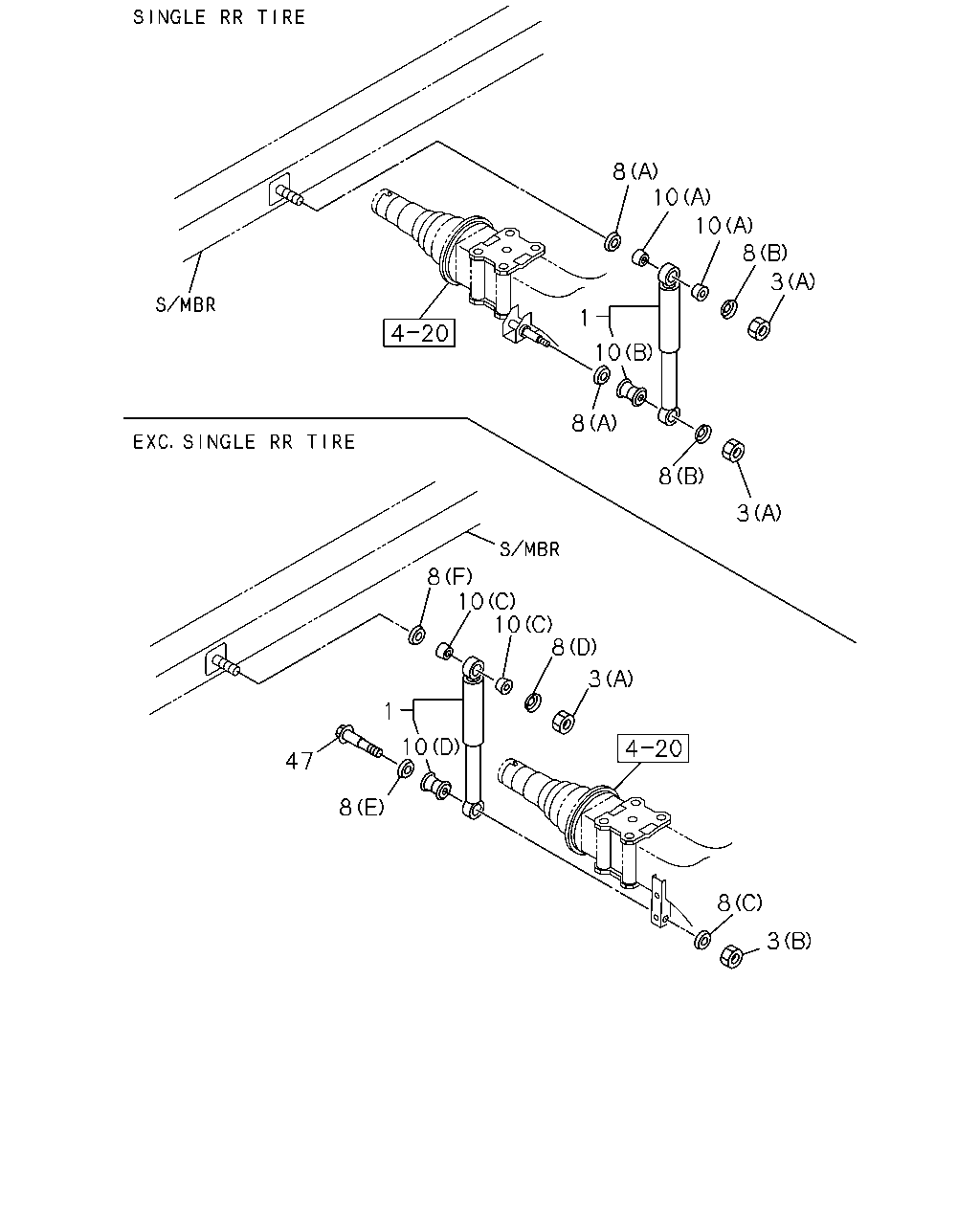

çizim 124678
8 10 10 8 3 1 10 8 8 3 8 10 10 8 3 1 10 47 8 8 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR
SINGLE RR TIRE<6TD> THA 		8-97924-228-0 02 1 0803- ●
1 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD<V4T> THA 		8-97253-651-2 02 1 0803-1506 ●
1 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD<V4T> THA 		8-98316-233-0 02 1 1507- ●
1 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD<V4T> BEST VALUE PARTS THA 		5-87610-132-0 02 1 0803-1506 ●
3 NUT; S/ABS
SINGLE RR TIRE<6TD> (A) M12 THA 		0-91110-512-0 04 1 0803- ●
3 NUT; S/ABS
EXC. SINGLE RR TIRE<6TD> (A) M14 THA 		0-91110-514-0 02 1 0803- ●
3 NUT; S/ABS
(A) M14 THA 		0-91110-514-0 02 1 0803- ●
3 NUT; S/ABS
REAR WIDE TREAD<V4T> (B) M16 THA 		0-91111-516-0 02 1 0803- ●
8 WASHER; S/ABS
SINGLE RR TIRE<6TD> (A) ID=16.5 		9-51679-021-0 04 1 0803- ●
8 WASHER; S/ABS
SINGLE RR TIRE<6TD> (B) ID=12.5 		9-51679-022-0 04 1 0803- ●
8 WASHER; S/ABS
EXC. SINGLE RR TIRE<6TD> (D) ID=15 		8-97360-056-0 02 1 0803- ●
8 WASHER; S/ABS
(D) ID=15 		8-97360-056-0 02 1 0803- ●
8 WASHER; S/ABS
EXC. SINGLE RR TIRE<6TD> (F) ID=20.0 		8-97360-057-0 02 1 0803- ●
8 WASHER; S/ABS
(F) ID=20.0 		8-97360-057-0 02 1 0803- ●
8 WASHER; S/ABS
REAR WIDE TREAD<V4T> (E) ID=16.4 		8-97360-118-0 02 1 0803- ●
8 WASHER; S/ABS
REAR WIDE TREAD<V4T> (C) ID=16.5 		8-98011-489-0 02 1 0803- ●
10 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE<6TD> (A) KYB THA 		8-94132-727-1 04 1 0803- ●
10 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE<6TD> (B) TOKICO THA 		8-94224-694-0 02 1 0803- ●
10 BUSHING; RUBBER,S/ABS
EXC. SINGLE RR TIRE<6TD> (C) TOKICO THA 		9-51631-014-0 04 1 0803- ●
10 BUSHING; RUBBER,S/ABS
(C) TOKICO THA 		9-51631-014-0 04 1 0803- ●
10 BUSHING; RUBBER,S/ABS
REAR WIDE TREAD<V4T> (D) TOKICO THA 		8-94382-149-0 02 1 0803- ●
47 PIN; S/ABS SETTING
REAR WIDE TREAD<V4T> 		8-97316-972-0 02 1 0803- ●
