10796 - EXZ LHD FUEL TANK 400L
▶
5 - Frame, Cab Mounting
▶
5-16 - OIL PUMP; CAB TILT
▶
5-16 — OIL PUMP; CAB TILT
(#7445) — 85 parça
◀

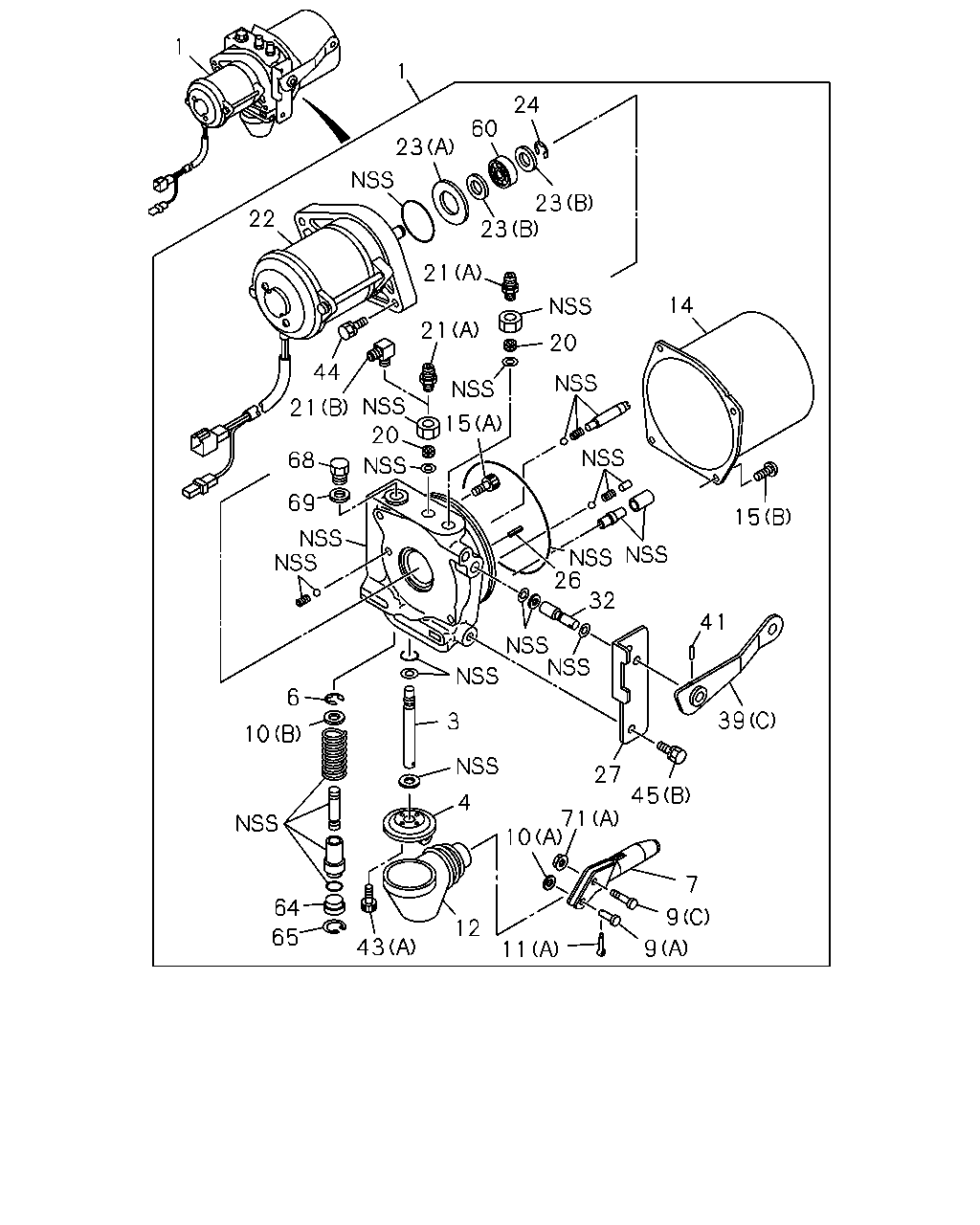

[516A] COMPONENT;OIL PUMP (50 parça)

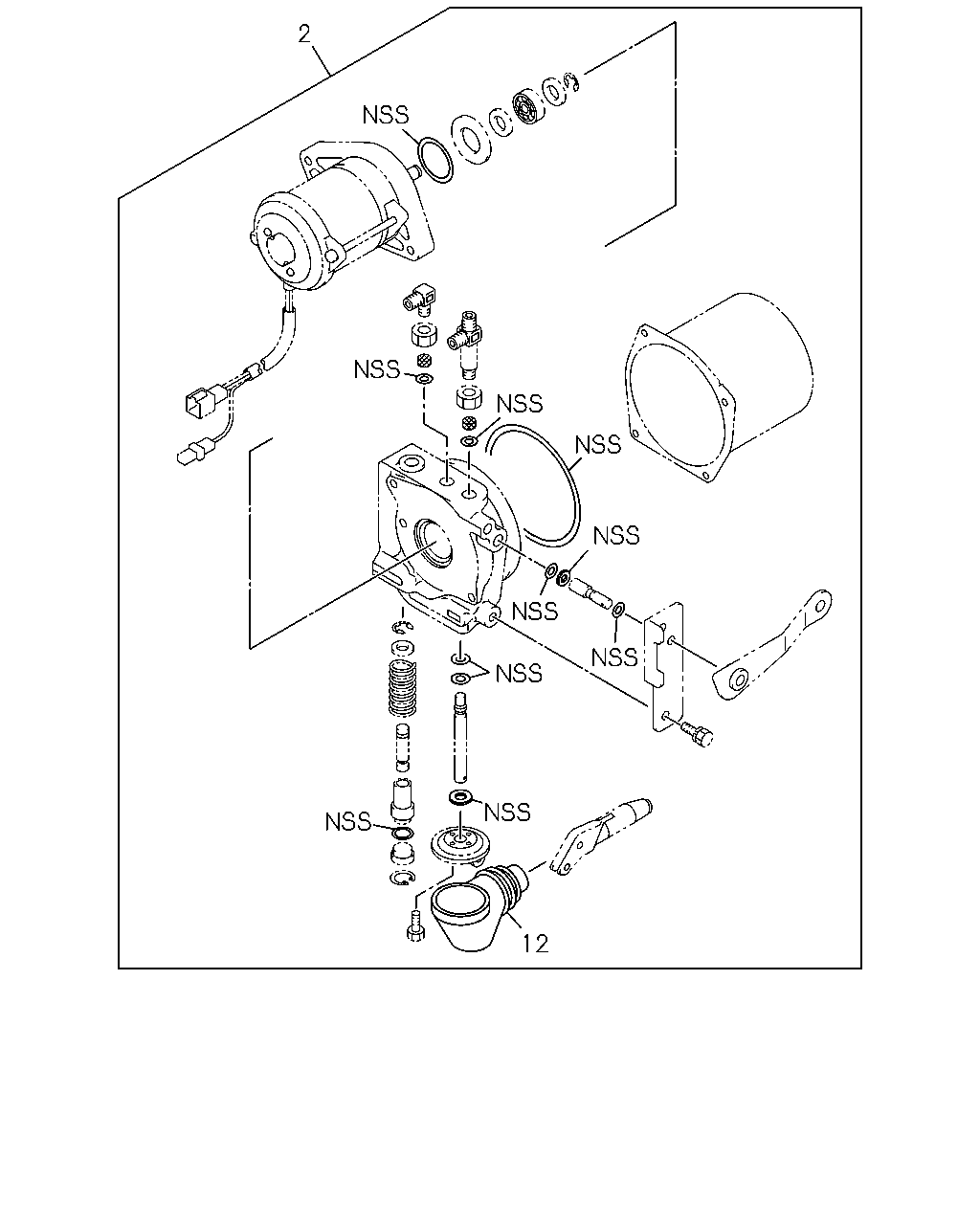

[516A] REPAIR KIT;OIL PUMP (2 parça)

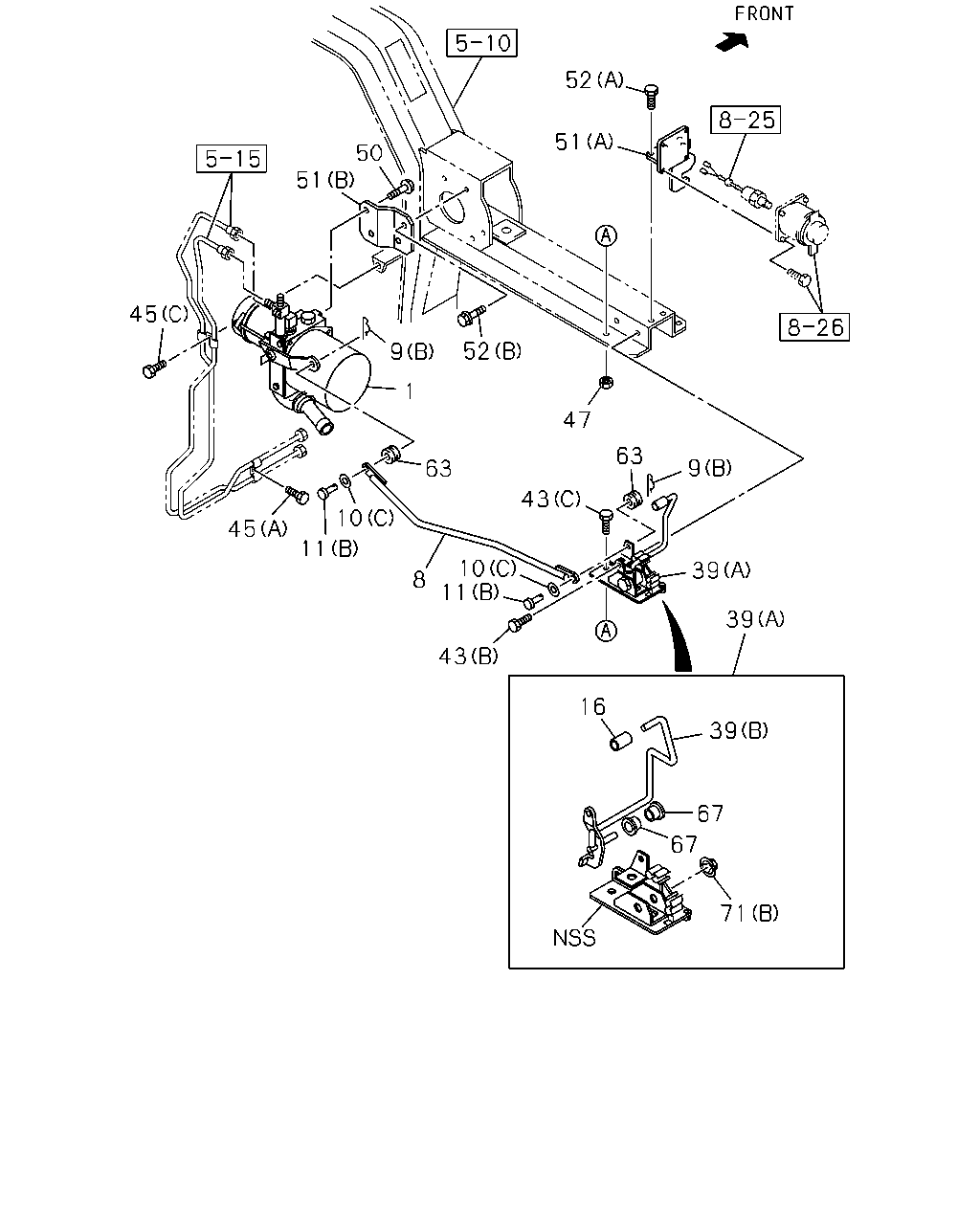

[516A] LEVER ASM AND OIL PUMP FIXING (33 parça)
▶
1
24
60
23
23
23
22
21
14
21
20
15
20
44
26
32
68
69
15
41
39
6
3
10
27
45
71
10
4
7
9
9
64
65
12
43
11
1
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP; OIL,CAB TILT
1-53458-661-1
01
1
9812-9902
1
PUMP; OIL,CAB TILT
1-53458-921-0
01
1
9903-9910
1
PUMP; OIL,CAB TILT
1-53458-965-0
01
1
9911-
3
PISTON; MANUAL
1-53458-842-0
01
1
9812-
4
BRACKET; OIL PUMP
1-53458-566-0
01
1
9812-
6
RING; SNAP
1-53458-411-0
01
1
9812-
7
SOCKET; OIL PUMP
1-53458-724-1
01
1
9812-
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
9812-
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
9812-
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
9812-
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
9812-
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
9812-
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
9-09160-708-0
02
1
9812-
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
9812-
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
9-08223-817-0
02
1
9812-
12
BOOT; OIL PUMP
1-53458-560-0
01
1
9812-
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
9812-
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
9812-
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
9812-
20
FILTER; OIL PUMP
1-53458-048-0
02
1
9812-
21
CONNECTOR; OIL PUMP
(A)
1-53458-562-0
01
1
9812-9902
21
CONNECTOR; OIL PUMP
(A),(B) M12
1-53458-941-0
02
1
9903-9910
21
CONNECTOR; OIL PUMP
(A) M12
1-53458-941-0
01
1
9911-
21
CONNECTOR; OIL PUMP
(B)
1-53458-563-0
01
1
9812-9902
21
CONNECTOR; OIL PUMP
(B)
1-53457-026-0
01
1
9911-
22
MOTOR; OIL PUMP
1-53458-731-0
01
1
9812-
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
9812-
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
9812-
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
9812-
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
9812-
27
COVER; OIL PUMP
1-53458-725-0
01
1
9812-
32
VALVE; OIL PUMP
1-53458-569-0
01
1
9812-
39
LEVER; OIL PUMP
(C)
1-53458-723-0
01
1
9812-
39
LEVER; OIL PUMP
(A)
1-53458-779-1
01
1
9812-
39
LEVER; OIL PUMP
(B)
1-53458-872-0
01
1
9812-
41
PIN; SPR,LEVER
1-53458-019-0
01
1
9812-
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28680-820-0
01
1
9812-
43
BOLT; LEVER
(C) M10X25 FLANGE
0-28681-025-0
01
1
9812-
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
9812-
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
9812-
45
BOLT; COVER
(A) M8X20 FLANGE
0-28680-820-0
01
1
9812-
45
BOLT; COVER
(C) M8X25 FLANGE
0-28680-825-0
01
1
9812-
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
9812-
60
BEARING; OIL PUMP
1-53458-423-0
01
1
9812-
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
9812-
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
9812-
68
PLUG; FILLER
1-53458-428-0
01
1
9812-
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
9812-
71
NUT; PUSH
(A)
1-53458-845-0
01
1
9812-
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
9812-
2
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL PUMP
1-85579-058-0
01
1
9812-
12
BOOT; OIL PUMP
1-53458-560-0
01
1
9812-
52
50
51
51
45
52
9
1
47
63
9
63
43
10
45
11
10
11
39
8
39
43
16
39
67
67
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP; OIL,CAB TILT
1-53458-661-1
01
1
9812-9902
1
PUMP; OIL,CAB TILT
1-53458-921-0
01
1
9903-9910
1
PUMP; OIL,CAB TILT
1-53458-965-0
01
1
9911-
8
LINK; OIL PUMP
1-53458-664-0
01
1
9812-9903
8
LINK; OIL PUMP
1-53458-929-0
01
1
9904-
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
9812-
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
9812-
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
9812-
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
9812-
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
9812-
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
9-09160-708-0
02
1
9812-
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
9812-
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
9-08223-817-0
02
1
9812-
16
CAP
ID=9.0
8-94207-303-0
01
1
9812-
39
LEVER; OIL PUMP
(C)
1-53458-723-0
01
1
9812-
39
LEVER; OIL PUMP
(A)
1-53458-779-1
01
1
9812-
39
LEVER; OIL PUMP
(B)
1-53458-872-0
01
1
9812-
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28680-820-0
01
1
9812-
43
BOLT; LEVER
(C) M10X25 FLANGE
0-28681-025-0
01
1
9812-
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
9812-
45
BOLT; COVER
(A) M8X20 FLANGE
0-28680-820-0
01
1
9812-
45
BOLT; COVER
(C) M8X25 FLANGE
0-28680-825-0
01
1
9812-
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
9812-
47
NUT; LEVER
M10 FLANGE
0-91150-210-0
01
1
9812-
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28081-016-0
02
1
9812-
51
BRACKET; OIL PUMP
(B)
1-53458-666-0
01
1
9812-
51
BRACKET; OIL PUMP
(A)
1-53458-781-0
01
1
9812-
52
BOLT; BRKT
(A) M8X20 FLANGE
0-28680-820-0
02
1
9812-
52
BOLT; BRKT
(B) M10X25 FLANGE
0-28681-025-0
02
1
9812-
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
9812-
67
BUSHING
T=6 OD=17.5
9-33659-249-0
02
1
9812-
71
NUT; PUSH
(A)
1-53458-845-0
01
1
9812-
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
9812-
