4-50 — FRONT SUSPENSION (#74449) — 43 parça

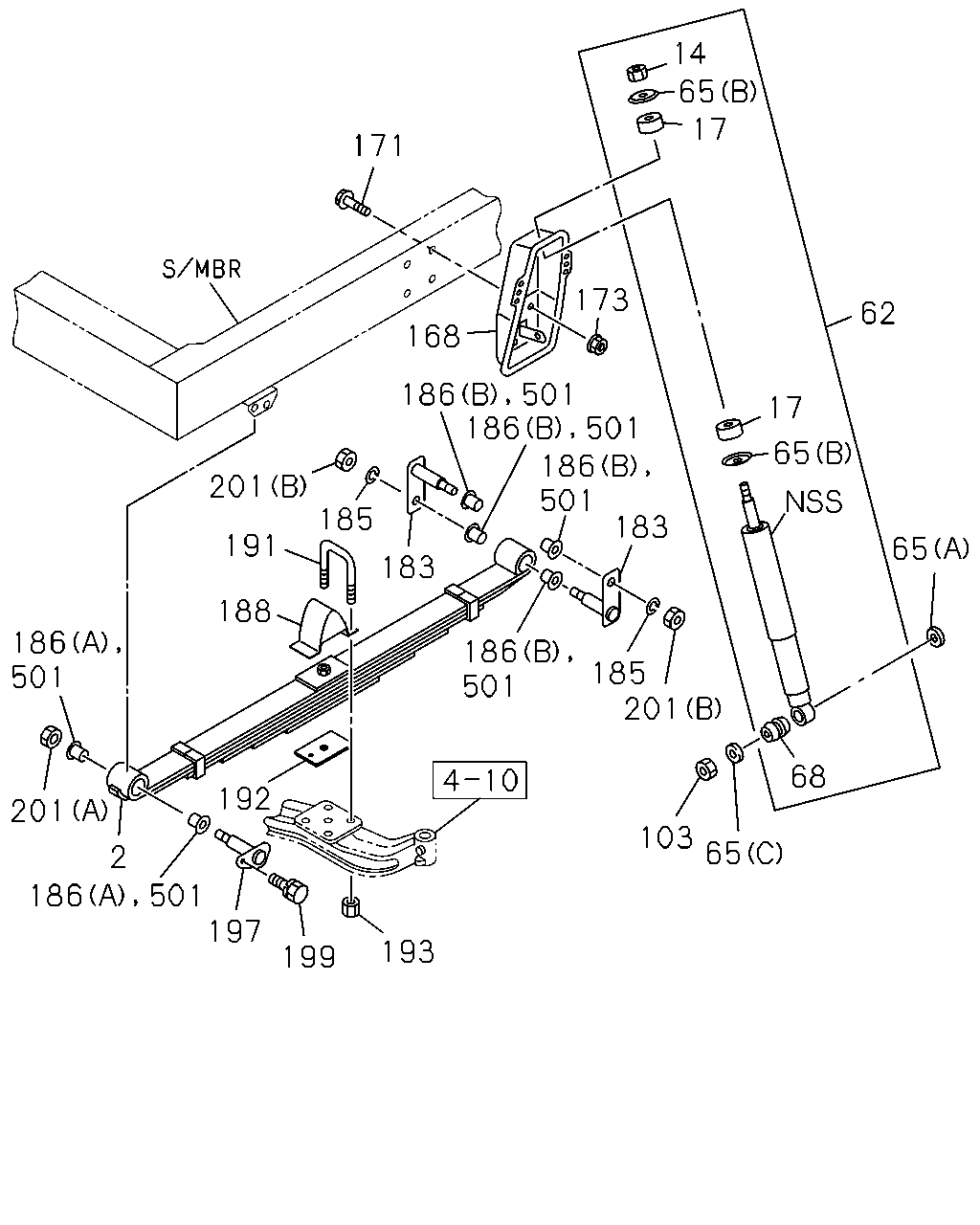

çizim 124077
14 65 17 171 173 62 168 186 501 17 65 201 185 183 191 65 183 188 186 501 186 501 185 201 68 192 201 103 65 2 186 501 197 193 199 186 501 186 501
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SINGLE RR TIRE<6TD> 6-LEAF THA 		8-98079-885-0 01 1 0803- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SINGLE RR TIRE<6TD> 6-LEAF THA 		8-98079-887-0 01 1 0803- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON<RPT> REAR WIDE TREAD<V4T> 6-LEAF THA 		8-98001-533-0 01 1 0803- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON<RPT> REAR WIDE TREAD<V4T> 6-LEAF THA 		8-98079-881-0 01 1 0803- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON<RPW> REAR WIDE TREAD<V4T> 8-LEAF THA 		8-98079-926-0 01 1 0803- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON<RPW> REAR WIDE TREAD<V4T> 8-LEAF THA 		8-98079-961-0 01 1 0803- ●
14 NUT; S/ABS,UPR
M10 THA 		8-94317-772-0 02 1 0803- ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO THA 		9-51631-603-0 04 1 0803- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98085-709-1 02 1 0803-1506 ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98316-235-0 02 1 1507- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS THA 		5-87610-159-0 02 1 0803-1506 ● ●
65 WASHER; S/ABS
(A) ID=17 OD=32 		9-09164-616-0 02 1 0803-1011 ● ●
65 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ●
65 WASHER; S/ABS
(B) ID=10.5 OD=38 THA 		9-51631-062-0 04 1 0803- ● ●
65 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 0803- ● ●
68 BUSHING; S/ABS
TOKICO THA 		8-94224-694-0 02 1 0803- ● ●
103 NUT; S/ABS TO LWR LINK
M12 		0-91111-512-0 02 1 0803- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98002-081-0 01 1 0803- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98039-597-0 01 1 0803- ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE THA 		0-28651-030-0 08 1 0803-1206 ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE THA 		0-28651-030-0 08 1 1207- ● ●
173 NUT; S/ABS
M10 FLANGE THA 		0-91180-210-0 08 1 0803-1206 ● ●
173 NUT; S/ABS
M10 FLANGE THA 		0-91180-210-0 08 1 1207- ● ●
183 SHACKLE; FRT SUSP 8-98034-341-0 04 1 0803- ● ●
185 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 0803- ● ●
186 BUSHING; SHACKLE
(B) THA 		8-97925-208-0 08 1 0803-1003 ● ●
186 BUSHING; SHACKLE
(A) 		8-97259-495-0 04 1 0803-1010 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 0803- ● ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> REAR L=105 THA 		8-97304-074-1 02 1 0803- ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> FRONT L=115 THA 		8-97304-075-1 02 1 0803- ●
191 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=105 THA 		8-97304-074-1 04 1 0803- ●
191 U-BOLT; FRT SPR
G.V.W. 5.0-5.5TON<RPT> L=105 THA 		8-97304-074-1 04 1 0803- ●
191 U-BOLT; FRT SPR
G.V.W. 6.5-7.0TON<RPW> L=125 		8-97304-076-1 04 1 0803- ●
192 PIECE; DIST
SINGLE RR TIRE<6TD> 		8-94249-413-1 02 1 0803- ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0803- ● ●
197 PIN; FRT SPR,FRT 8-97261-861-0 02 1 0803-1010 ● ●
197 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1011- ● ●
199 BOLT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0803-1206 ● ●
199 BOLT
M10X25 FLANGE THA 		0-28651-025-0 02 1 1207- ● ●
201 NUT; PIN LK
(B) M16 THA 		0-91110-516-0 04 1 1207- ● ●
201 NUT; PIN LK
(B) M16 THA 		0-91110-516-0 04 1 0803-1206 ● ●
201 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 02 1 0803- ● ●
501 BUSHING; LEAF SPR,FRT
THA 		8-97925-208-0 12 1 1011- ● ●
