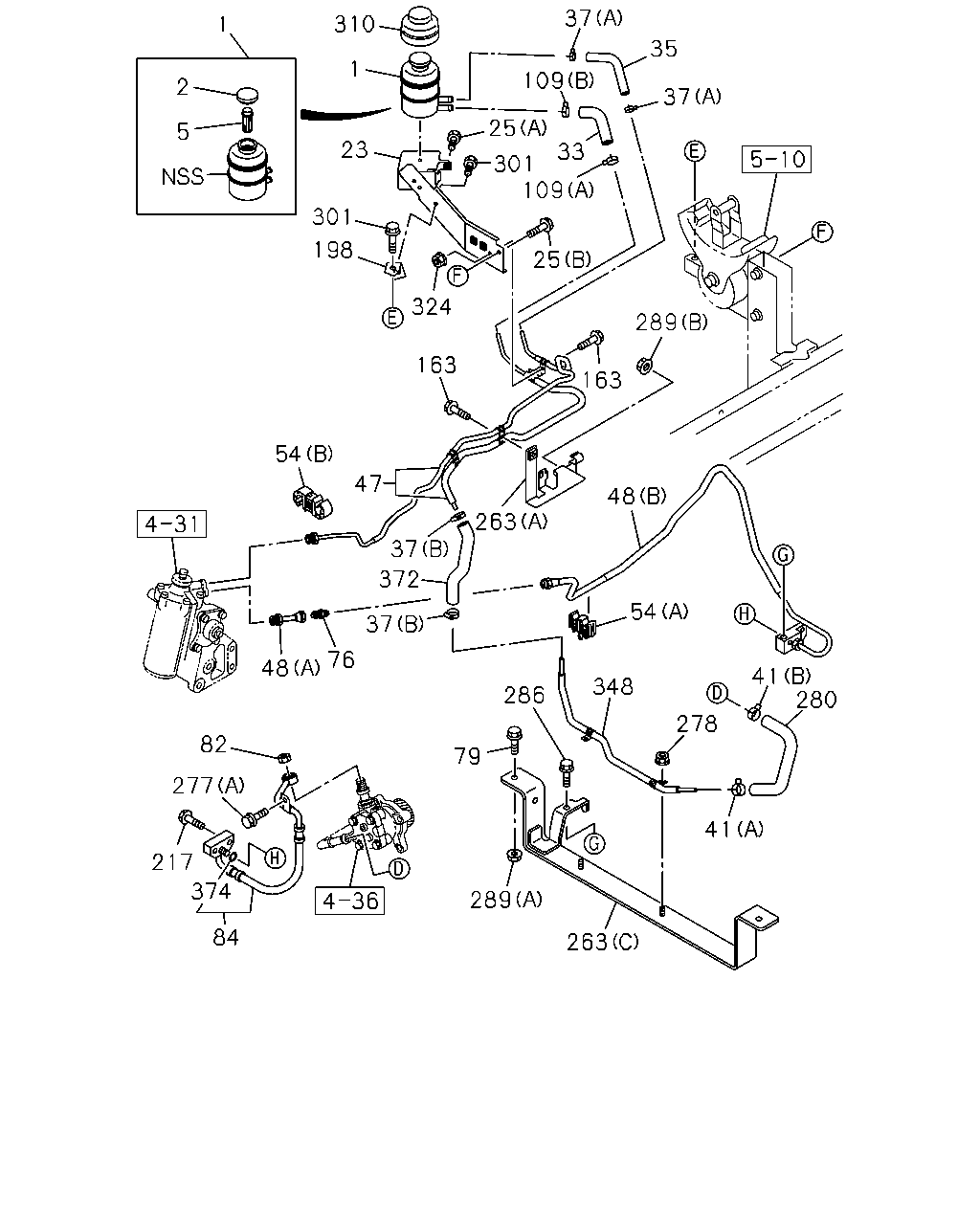

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#74445) — 112 parça

1 2 5 310 1 23 301 198 324 163 54 47 37 372 37 79 76 48 54 289 263 25 109 37 35 37 301 33 109 25 289 163 82 263 84 277 348 278 374 217 277 41 280 41 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0803-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0803-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0803-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0803-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1208-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0803-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	0803-1207	●	●
33	HOSE; RUBBER,POWER STRG THA	8-98054-267-0	01	1	1208-	●	●
33	HOSE; RUBBER,POWER STRG THA	8-98054-267-0	01	1	0803-1207	●	●
35	HOSE; RETURN,P/S TANK	8-98054-264-0	01	1	0803-1011	●	●
35	HOSE; RETURN,P/S TANK	8-98054-265-0	01	1	1012-	●	●
37	CLIP; HOSE,P/S (A) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
37	CLIP; HOSE,P/S (A) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (B) ID=21 THA	8-94242-034-0	02	1	0803-0911	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	0912-	●	●
41	CLIP; HOSE,P/S (B) ID=21 THA	8-94242-034-0	01	1	0803-0911	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	0912-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0803-	●	●
47	PIPE; RETURN	8-98054-227-0	01	1	0803-1011	●	●
47	PIPE; RETURN THA	8-98173-325-0	01	1	1012-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) THA	8-98041-027-0	01	1	0803-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B) THA	8-98250-105-0	01	1	1401-	●	●
54	CLIP; OIL PIPE (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0803-	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0805-	●	●
76	UNION; OIL PIPE M16 L=42	0-92123-010-0	01	1	0803-	●	●
79	BOLT; BRKT M12X30 FLANGE THA	0-28651-230-0	02	1	0803-	●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0803-	●	●
84	HOSE; FLEX,P/S	8-98032-376-4	01	1	0803-1312	●	●
84	HOSE; FLEX,P/S THA	8-98250-111-0	01	1	1401-	●	●
109	CLIP; RUBBER HOSE (A) ID=21 THA	8-94242-034-0	01	1	0803-0911	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0803-1003	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0803-	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0803-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE THA	0-28650-635-0	02	1	0803-	●	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0803-	●	●
263	BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	0803-1312	●	●
263	BRACKET; P/S PIPE (C)	8-98250-108-0	01	1	1401-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	0803-1312	●	●
277	BOLT; HOSE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	01	1	0803-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	0803-0803	●	●
278	NUT; HOSE CLIP M8 FLANGE THA	0-91180-108-0	03	1	0803-0804	●	●
278	NUT; HOSE CLIP M8 FLANGE THA	0-91180-108-0	02	1	0805-	●	●
280	HOSE; P/S OIL PUMP,INL THA	8-98041-245-2	01	1	0803-	●	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE THA	0-28650-830-0	01	1	0803-	●	●
289	NUT; BRKT,POWER STRG (B) M8 FLANGE THA	0-91180-108-0	01	1	0803-	●	●
289	NUT; BRKT,POWER STRG (A) M12 FLANGE THA	0-91180-112-0	01	1	0803-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE THA	0-28650-825-0	02	1	0803-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0803-	●	●
324	NUT; OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	0803-	●	●
348	PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	0803-1312	●	●
348	PIPE; OIL,P/S PRESS THA	8-98250-107-0	01	1	1401-	●	●
372	HOSE; RUBBER	8-98054-269-0	01	1	0803-1312	●	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●
374	GASKET; HOSE,P/S THA	8-98139-036-0	01	1	0803-	●	●

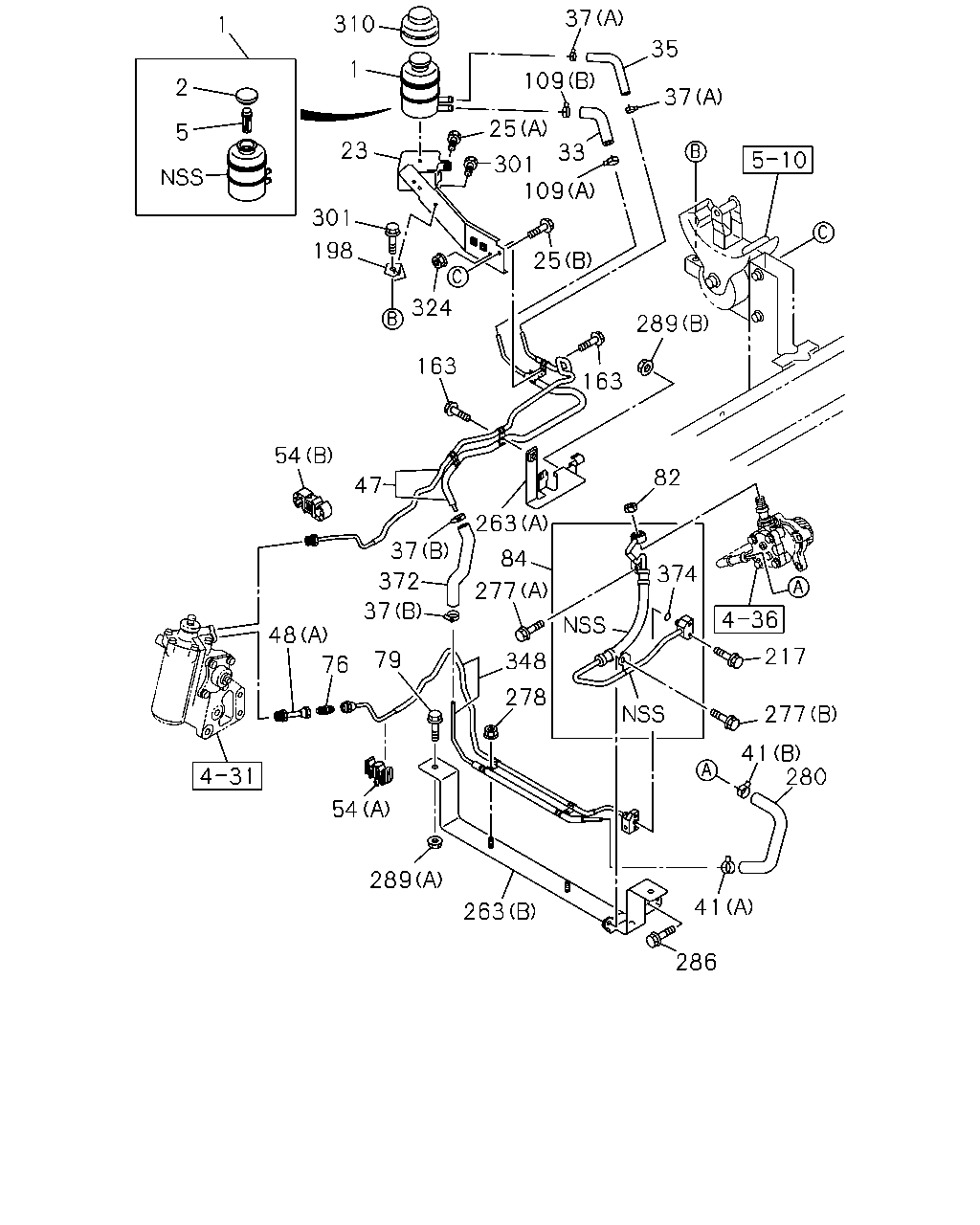

1 310 2 5 301 23 198 324 37 37 35 109 1 163 25 25 301 33 109 289 163 48 54 41 280 278 348 79 286 37 37 372 54 47 48 82 277 217 374 84 289 263 41 76 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0803-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0803-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0803-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0803-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1208-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0803-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	0803-1207	●	●
33	HOSE; RUBBER,POWER STRG THA	8-98054-267-0	01	1	1208-	●	●
33	HOSE; RUBBER,POWER STRG THA	8-98054-267-0	01	1	0803-1207	●	●
35	HOSE; RETURN,P/S TANK	8-98054-264-0	01	1	0803-1011	●	●
35	HOSE; RETURN,P/S TANK	8-98054-265-0	01	1	1012-	●	●
37	CLIP; HOSE,P/S (A) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
37	CLIP; HOSE,P/S (A) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (B) ID=21 THA	8-94242-034-0	02	1	0803-0911	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	0912-	●	●
41	CLIP; HOSE,P/S (B) ID=21 THA	8-94242-034-0	01	1	0803-0911	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	0912-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0803-	●	●
47	PIPE; RETURN	8-98054-227-0	01	1	0803-1011	●	●
47	PIPE; RETURN THA	8-98173-325-0	01	1	1012-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) THA	8-98041-027-0	01	1	0803-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B) THA	8-98250-105-0	01	1	1401-	●	●
54	CLIP; OIL PIPE (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0803-	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0805-	●	●
76	UNION; OIL PIPE M16 L=42	0-92123-010-0	01	1	0803-	●	●
79	BOLT; BRKT M12X30 FLANGE THA	0-28651-230-0	02	1	0803-	●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0803-	●	●
84	HOSE; FLEX,P/S	8-98032-376-4	01	1	0803-1312	●	●
84	HOSE; FLEX,P/S THA	8-98250-111-0	01	1	1401-	●	●
109	CLIP; RUBBER HOSE (A) ID=21 THA	8-94242-034-0	01	1	0803-0911	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0803-1003	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0803-	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0803-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE THA	0-28650-635-0	02	1	0803-	●	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0803-	●	●
263	BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	0803-1312	●	●
263	BRACKET; P/S PIPE (C)	8-98250-108-0	01	1	1401-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	0803-1312	●	●
277	BOLT; HOSE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	01	1	0803-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	0803-0803	●	●
278	NUT; HOSE CLIP M8 FLANGE THA	0-91180-108-0	03	1	0803-0804	●	●
278	NUT; HOSE CLIP M8 FLANGE THA	0-91180-108-0	02	1	0805-	●	●
280	HOSE; P/S OIL PUMP,INL THA	8-98041-245-2	01	1	0803-	●	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE THA	0-28650-830-0	01	1	0803-	●	●
289	NUT; BRKT,POWER STRG (B) M8 FLANGE THA	0-91180-108-0	01	1	0803-	●	●
289	NUT; BRKT,POWER STRG (A) M12 FLANGE THA	0-91180-112-0	01	1	0803-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE THA	0-28650-825-0	02	1	0803-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0803-	●	●
324	NUT; OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	0803-	●	●
348	PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	0803-1312	●	●
348	PIPE; OIL,P/S PRESS THA	8-98250-107-0	01	1	1401-	●	●
372	HOSE; RUBBER	8-98054-269-0	01	1	0803-1312	●	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●
374	GASKET; HOSE,P/S THA	8-98139-036-0	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
