◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#74443) — 34 parça

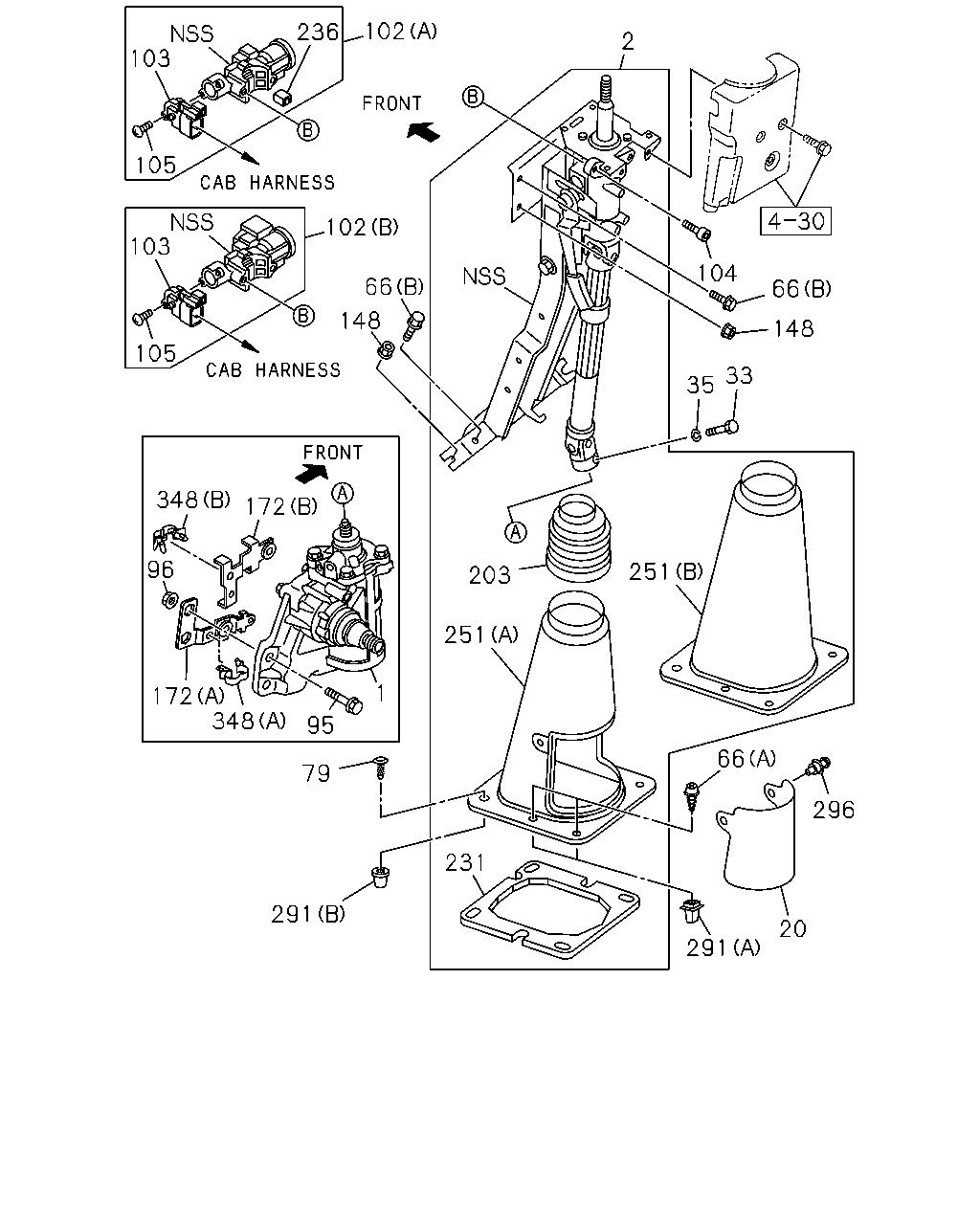

çizim 122935
102 236 103 2 105 103 102 104 66 66 148 148 105 33 35 348 172 96 251 203 251 1 172 348 95 66 79 296 231 291 20 291
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98110-217-1 01 1 0803-1010 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98101-297-3 01 1 1011- ● ●
2 SHAFT ASM; STRG
BLACK 		8-97405-355-6 01 1 0803-1007 ● ●
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK 		8-97418-801-2 01 1 1008- ● ●
20 COVER; STRG SHAFT
BLACK 		8-97405-159-0 01 1 0803-1007 ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0803- ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 THA 		0-91510-808-0 01 1 0803- ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1201- ● ●
66 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 0803- ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0803-1112 ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201- ● ●
79 CLIP; STRG COLUMN COVER
L=19 BLACK 		8-94363-776-0 02 1 0803- ● ●
95 BOLT; STRG UNIT
M12X47 FLANGE 		8-98055-055-0 04 1 0803- ● ●
96 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 02 1 0803- ● ●
102 LOCK ASM; STRG
(A) 		8-97387-036-0 01 1 0803-1110 ● ●
102 LOCK ASM; STRG
(B) 		8-98006-150-0 01 1 1111- ● ●
103 SWITCH; IGNITION
THA 		8-98045-349-0 01 1 0803- ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0803- ● ●
105 SCREW; IGN SW
THA 		8-98045-346-0 02 1 0803- ● ●
148 NUT; COLUMN TO BRKT
M8 W/DISHED WASHER 		8-97329-625-0 03 1 0803- ● ●
172 BRACKET; STRG
(B) 		8-98055-061-0 01 1 0803- ● ●
172 BRACKET; STRG
(A) 		8-98078-803-0 01 1 0803- ● ●
203 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 0803-1007 ● ●
203 BOOT; STRG COLUMN LWR
MANUAL TILT CAB<RWZ> 		8-98137-331-0 01 1 1008- ● ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 0803-1007 ● ●
231 SEAL; RUBBER,STRG COLUMN
MANUAL TILT CAB<RWZ> 		8-98137-329-0 01 1 1008- ● ●
236 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 0803-1110 ● ●
251 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 0803-1007 ● ●
251 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97418-804-0 01 1 1008- ● ●
291 GROMMET; STRG SHAFT COVER
(A) H=15 		8-94463-268-1 04 1 0803- ● ●
291 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 0803- ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0803-1007 ● ●
348 CLIP; BRKT,STRG
(A) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0803- ● ●
348 CLIP; BRKT,STRG
(B) ID=5-12 L=22 		1-09709-288-0 01 1 0803- ● ●
