Sayfa 4-25 - Isuzu EPC

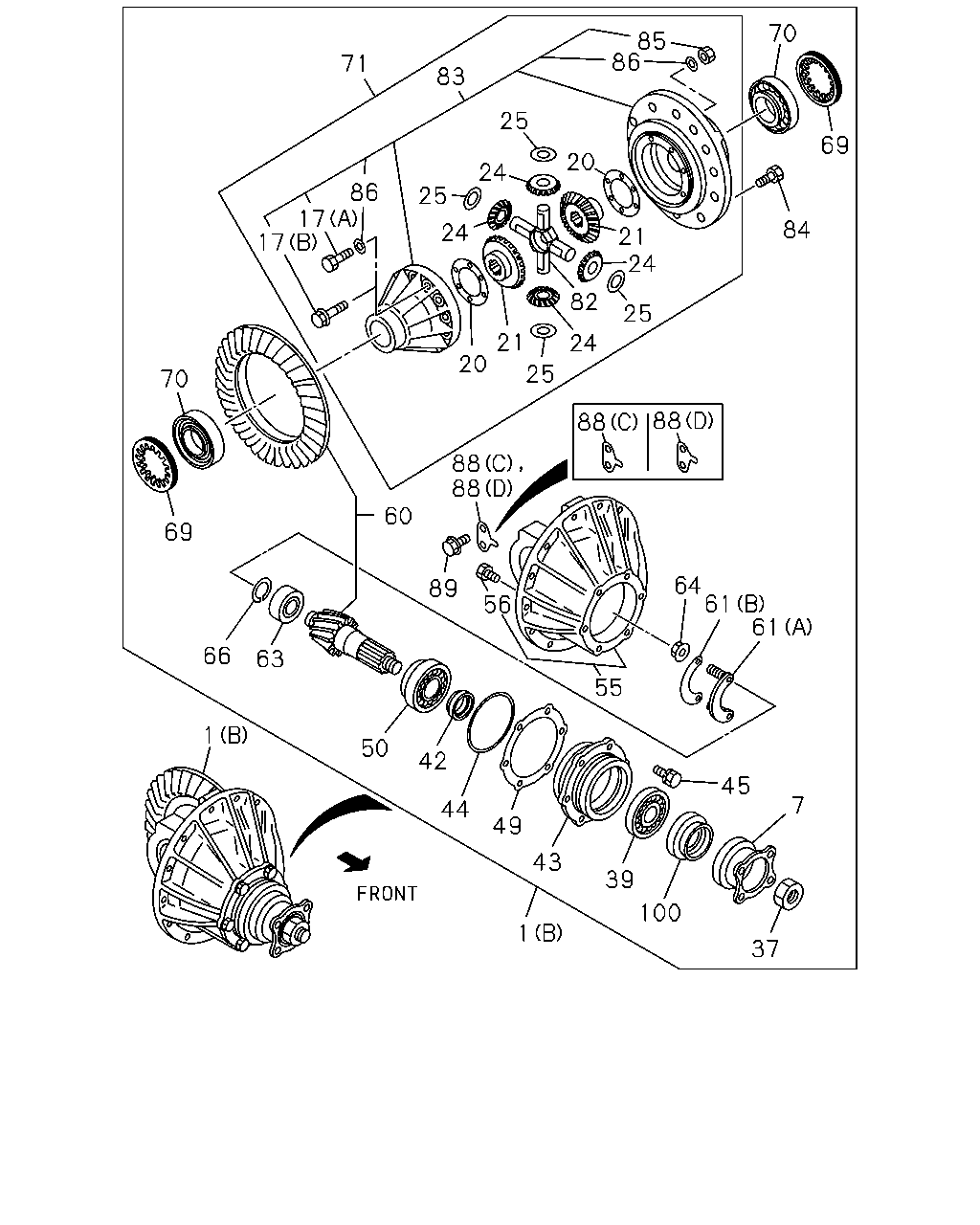

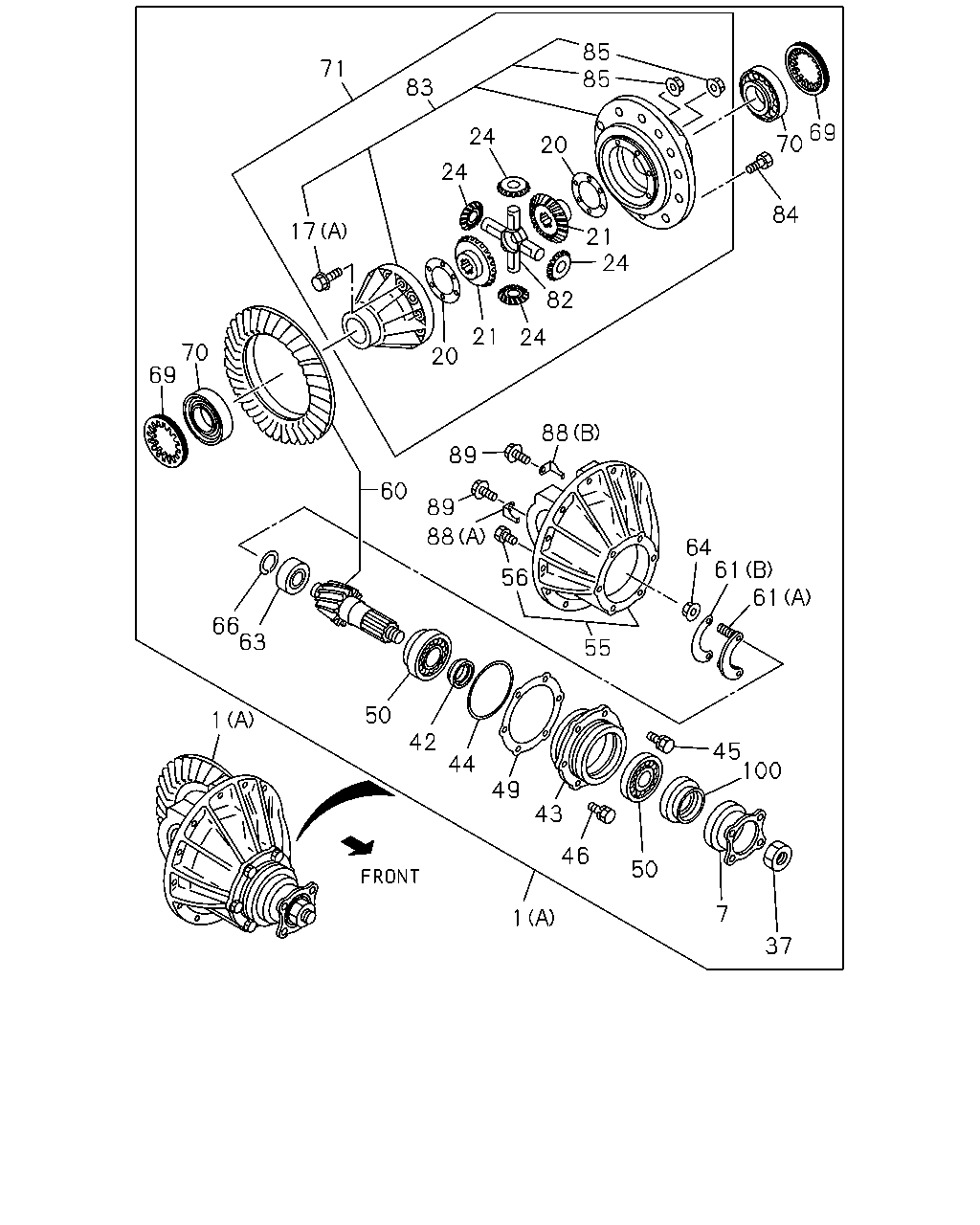

4-25 — REAR FINAL DRIVE (#74441) — 296 parça

1 1 37 7 50 46 43 49 44 42 50 63 66 100 45 61 61 64 55 56 88 89 88 89 60 84 69 70 24 21 82 24 21 20 20 85 85 24 24 83 71 17 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR (A) 41/10	8-98015-135-0	01	1	0803-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM<G73> (A) 43/9	8-98015-138-0	01	1	0803-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> (B) 41/9	8-97388-707-0	01	1	0803-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> (B) 43/8	8-98065-942-0	01	1	0803-		●
7	FLANGE; FINAL	8-94477-723-4	01	1	0803-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM<G73>	8-94477-723-4	01	1	0803-		●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM<6CP>	8-97073-802-2	01	1	0803-		●
17	BOLT; DIFF CAGE SETTING (A) M10X75 FLANGE	8-97232-161-0	12	1	0803-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> (A) M10X75 FLANGE	8-97232-161-0	12	1	0803-		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> (A) M12X90	8-97047-295-0	12	1	0803-1208		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> (B) M12X90	8-98219-448-0	12	1	1209-		●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0803-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM<G73> T=1.40	9-41562-601-0	02	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.80	1-41562-073-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.90	1-41562-074-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.00	1-41562-075-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.10	1-41562-076-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.20	1-41562-077-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.30	1-41562-078-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.40	1-41562-079-0	AR	1	0803-		●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	0803-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=20	8-97362-599-1	02	1	0803-		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=16	1-41561-093-0	02	1	0803-1004		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=16	8-98165-935-0	02	1	1005-		●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0803-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=10	8-98015-202-0	04	1	0803-		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=10	1-41551-024-0	04	1	0803-1004		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=10	1-41551-050-0	04	1	1005-		●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0803-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM<G73> M24 FLANGE	8-94329-526-1	01	1	0803-		●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM<6CP> M30 FLANGE	8-97047-146-0	01	1	0803-		●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0803-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM<G73> L=19.6	9-41219-603-1	01	1	0803-		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-097-0	01	1	0803-		●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0803-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73>	8-94400-890-0	01	1	0803-		●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-098-0	01	1	0803-		●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0803-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73>	9-09720-505-0	01	1	0803-		●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97048-053-0	01	1	0803-		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0803-0909	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	0-50051-238-0	05	1	0803-0909		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	0-50071-240-0	06	1	0803-0909		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0803-0909	●
46	BOLT REAR AXLE HEAVY DUTY 292MM<G73> M14X35 W/LK WASHER	0-50051-435-0	01	1	0803-0909		●
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●
46	BOLT REAR AXLE HEAVY DUTY 292MM<G73> M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.10	8-94401-335-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.12	8-94401-336-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.14	8-94401-337-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.16	8-94401-338-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.18	8-94401-339-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.20	8-94401-340-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.12	8-97047-298-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.15	8-97047-299-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.20	8-97047-300-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.25	8-97048-418-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.50	8-97048-419-0	AR	1	0803-		●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	0803-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> JTEKT	5-09812-062-1	02	1	0803-		●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	0803-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> NSK	5-09812-063-0	02	1	0803-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK	1-09812-041-2	01	1	0803-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	1-09812-042-1	01	1	0803-		●
55	CARRIER; DIFF	8-97307-760-0	01	1	0803-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97307-760-0	01	1	0803-		●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM<6CP>	8-97094-637-0	01	1	0803-		●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0803-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM<G73> M14X80	8-94365-377-3	04	1	0803-		●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM<6CP> M14X95 FLANGE	1-09070-027-0	04	1	0803-		●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	0803-1311	●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM<G73> 43/9	8-97319-157-0	01	1	0803-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> 41/9	8-97078-635-1	01	1	0803-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> 43/8	8-98043-095-0	01	1	0803-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0803-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (A) W/STUD	5-41227-001-0	01	1	0803-		●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0803-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (B)	9-41227-601-0	01	1	0803-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (A) W/STUD	8-97047-149-0	01	1	0803-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (B)	8-97047-150-0	01	1	0803-		●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0803-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> NSK	5-09810-008-1	01	1	0803-		●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0803-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> JTEKT	8-97107-548-0	01	1	0803-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> NSK	8-97047-296-0	01	1	0803-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	8-97047-928-0	01	1	0803-		●
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	0803-	●	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0803-	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM<G73>	9-09752-002-0	01	1	0803-		●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-297-0	01	1	0803-		●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0803-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> M110 H=10	5-41121-001-0	02	1	0803-		●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M115 H=20	1-41121-039-0	02	1	0803-		●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0803-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> NSK	9-00093-602-0	02	1	0803-		●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0803-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-1	01	1	0803-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM<G73>	8-98015-181-1	01	1	0803-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-97047-099-4	01	1	0803-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-97047-100-4	01	1	0803-		●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0803-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM<G73>	5-41521-008-0	01	1	0803-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-035-2	01	1	0803-1004		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-062-0	01	1	1005-1309		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-035-2	01	1	1310-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-035-2	01	1	1310-		●
83	CAGE ASM; DIFF	8-97319-398-1	01	1	0803-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97319-398-1	01	1	0803-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-97047-101-2	01	1	0803-1208		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-98219-705-0	01	1	1209-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-97047-117-2	01	1	0803-1208		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-98219-707-0	01	1	1209-		●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0803-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM<G73> M14X25	8-97318-938-1	12	1	0803-		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> M16X30	8-97047-147-0	12	1	0803-		●
85	NUT; DIFF CAGE SETTING M10 FLANGE THA	0-91180-210-0	12	1	0803-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10 FLANGE THA	0-91180-210-0	12	1	0803-		●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M12	8-97065-214-0	12	1	0803-		●
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0803-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (A)	8-97027-281-0	AR	1	0803-		●
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0803-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (B)	8-97027-282-0	AR	1	0803-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (D) T=2.3	8-97087-821-0	AR	1	0803-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (C) T=2.3	9-41124-015-0	AR	1	0803-		●
89	BOLT; LK PLATE M8X16 FLANGE THA	0-28050-816-0	02	1	0803-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM<G73> M8X16 FLANGE THA	0-28050-816-0	02	1	0803-		●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM<6CP> M8X16 FLANGE THA	0-28050-816-0	04	1	0803-		●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0803-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> OD=103	8-94408-083-0	01	1	0803-		●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NOK	1-09625-484-1	01	1	0803-		●

71 83 85 86 70 69 84 20 21 24 25 82 21 20 24 25 25 24 25 24 86 17 17 70 69 88 88 88 88 60 89 56 64 61 61 55 45 7 37 100 39 43 49 44 42 50 1 1 63 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR (A) 41/10	8-98015-135-0	01	1	0803-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM<G73> (A) 43/9	8-98015-138-0	01	1	0803-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> (B) 41/9	8-97388-707-0	01	1	0803-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> (B) 43/8	8-98065-942-0	01	1	0803-		●
7	FLANGE; FINAL	8-94477-723-4	01	1	0803-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM<G73>	8-94477-723-4	01	1	0803-		●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM<6CP>	8-97073-802-2	01	1	0803-		●
17	BOLT; DIFF CAGE SETTING (A) M10X75 FLANGE	8-97232-161-0	12	1	0803-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> (A) M10X75 FLANGE	8-97232-161-0	12	1	0803-		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> (A) M12X90	8-97047-295-0	12	1	0803-1208		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> (B) M12X90	8-98219-448-0	12	1	1209-		●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0803-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM<G73> T=1.40	9-41562-601-0	02	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.80	1-41562-073-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.90	1-41562-074-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.00	1-41562-075-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.10	1-41562-076-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.20	1-41562-077-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.30	1-41562-078-0	AR	1	0803-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.40	1-41562-079-0	AR	1	0803-		●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	0803-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=20	8-97362-599-1	02	1	0803-		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=16	1-41561-093-0	02	1	0803-1004		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=16	8-98165-935-0	02	1	1005-		●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0803-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=10	8-98015-202-0	04	1	0803-		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=10	1-41551-024-0	04	1	0803-1004		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=10	1-41551-050-0	04	1	1005-		●
25	WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41552-020-0	04	1	0803-		●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0803-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM<G73> M24 FLANGE	8-94329-526-1	01	1	0803-		●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM<6CP> M30 FLANGE	8-97047-146-0	01	1	0803-		●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	5-09812-062-1	01	1	1002-		●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK	1-09812-026-0	01	1	0803-1002		●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK	5-09812-063-0	01	1	1003-		●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0803-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM<G73> L=19.6	9-41219-603-1	01	1	0803-		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-097-0	01	1	0803-		●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0803-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73>	8-94400-890-0	01	1	0803-		●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-098-0	01	1	0803-		●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0803-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73>	9-09720-505-0	01	1	0803-		●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97048-053-0	01	1	0803-		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0803-0909	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	0-50051-238-0	05	1	0803-0909		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	0-50071-240-0	06	1	0803-0909		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.10	8-94401-335-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.12	8-94401-336-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.14	8-94401-337-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.16	8-94401-338-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.18	8-94401-339-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0803-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.20	8-94401-340-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.12	8-97047-298-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.15	8-97047-299-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.20	8-97047-300-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.25	8-97048-418-0	AR	1	0803-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.50	8-97048-419-0	AR	1	0803-		●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	0803-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> JTEKT	5-09812-062-1	02	1	0803-		●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	0803-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> NSK	5-09812-063-0	02	1	0803-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK	1-09812-041-2	01	1	0803-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	1-09812-042-1	01	1	0803-		●
55	CARRIER; DIFF	8-97307-760-0	01	1	0803-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97307-760-0	01	1	0803-		●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM<6CP>	8-97094-637-0	01	1	0803-		●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0803-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM<G73> M14X80	8-94365-377-3	04	1	0803-		●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM<6CP> M14X95 FLANGE	1-09070-027-0	04	1	0803-		●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	0803-1311	●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM<G73> 43/9	8-97319-157-0	01	1	0803-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> 41/9	8-97078-635-1	01	1	0803-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> 43/8	8-98043-095-0	01	1	0803-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0803-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (A) W/STUD	5-41227-001-0	01	1	0803-		●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0803-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (B)	9-41227-601-0	01	1	0803-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (A) W/STUD	8-97047-149-0	01	1	0803-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (B)	8-97047-150-0	01	1	0803-		●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0803-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> NSK	5-09810-008-1	01	1	0803-		●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0803-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> JTEKT	8-97107-548-0	01	1	0803-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> NSK	8-97047-296-0	01	1	0803-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	8-97047-928-0	01	1	0803-		●
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	0803-	●	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0803-	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM<G73>	9-09752-002-0	01	1	0803-		●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-297-0	01	1	0803-		●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0803-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> M110 H=10	5-41121-001-0	02	1	0803-		●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M115 H=20	1-41121-039-0	02	1	0803-		●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0803-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> NSK	9-00093-602-0	02	1	0803-		●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0803-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-1	01	1	0803-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM<G73>	8-98015-181-1	01	1	0803-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-97047-099-4	01	1	0803-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-97047-100-4	01	1	0803-		●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0803-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM<G73>	5-41521-008-0	01	1	0803-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-035-2	01	1	0803-1004		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-062-0	01	1	1005-1309		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-035-2	01	1	1310-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-035-2	01	1	1310-		●
83	CAGE ASM; DIFF	8-97319-398-1	01	1	0803-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97319-398-1	01	1	0803-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-97047-101-2	01	1	0803-1208		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-98219-705-0	01	1	1209-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-97047-117-2	01	1	0803-1208		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-98219-707-0	01	1	1209-		●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0803-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM<G73> M14X25	8-97318-938-1	12	1	0803-		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> M16X30	8-97047-147-0	12	1	0803-		●
85	NUT; DIFF CAGE SETTING M10 FLANGE THA	0-91180-210-0	12	1	0803-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10 FLANGE THA	0-91180-210-0	12	1	0803-		●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M12	8-97065-214-0	12	1	0803-		●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0803-1208		●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-		●
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0803-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (A)	8-97027-281-0	AR	1	0803-		●
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0803-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (B)	8-97027-282-0	AR	1	0803-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (D) T=2.3	8-97087-821-0	AR	1	0803-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (C) T=2.3	9-41124-015-0	AR	1	0803-		●
89	BOLT; LK PLATE M8X16 FLANGE THA	0-28050-816-0	02	1	0803-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM<G73> M8X16 FLANGE THA	0-28050-816-0	02	1	0803-		●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM<6CP> M8X16 FLANGE THA	0-28050-816-0	04	1	0803-		●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0803-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> OD=103	8-94408-083-0	01	1	0803-		●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NOK	1-09625-484-1	01	1	0803-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
