4-20 — REAR AXLE CASE AND SHAFT (#74440) — 164 parça

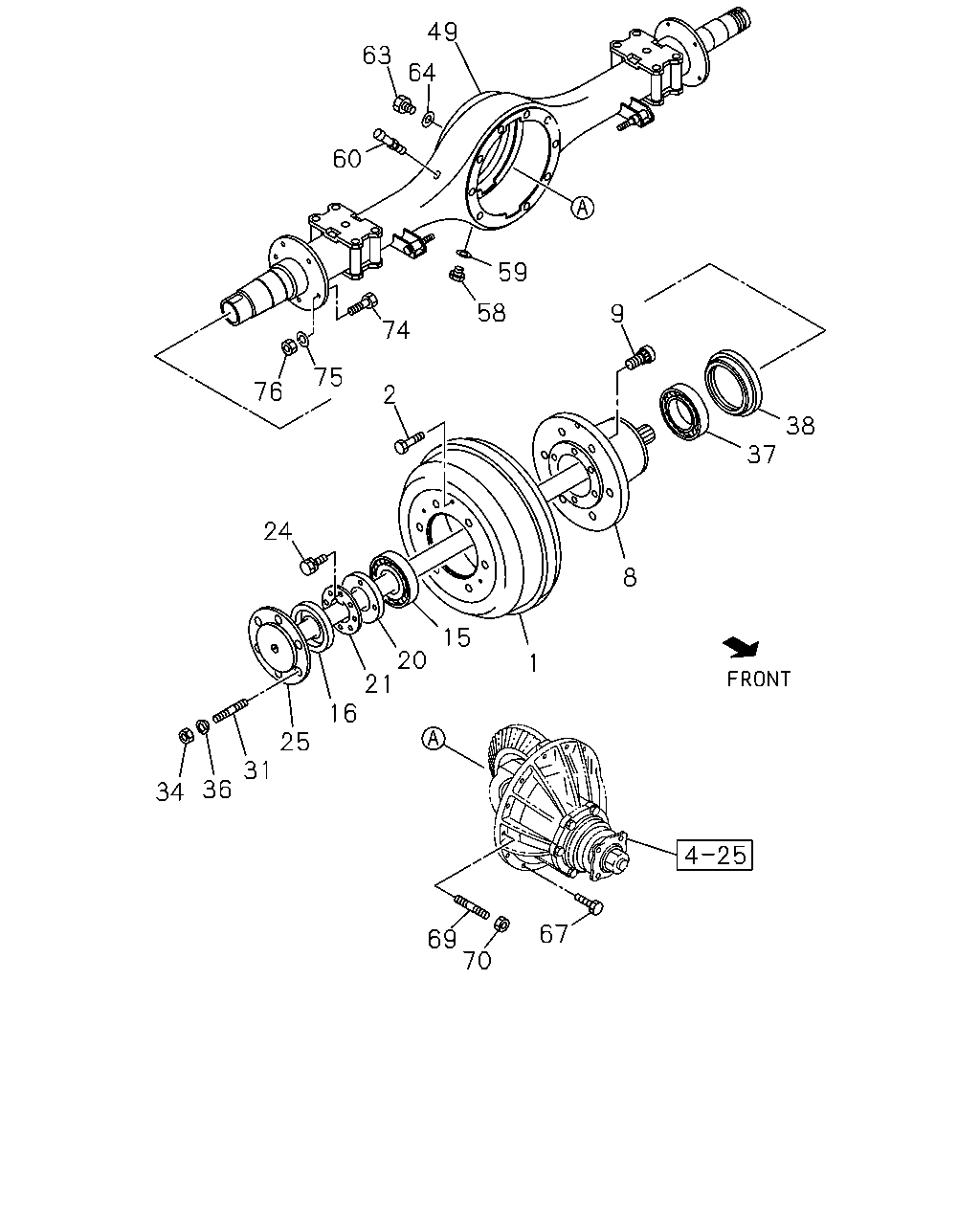

49 63 64 60 59 58 9 74 75 76 2 38 37 24 8 15 20 21 16 1 25 31 36 34 67 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR THA	8-97940-559-0	02	1	0803-	●
1	DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97940-560-0	02	1	0803-		●
1	DRUM; BRK,RR REAR AXLE HEAVY DUTY 320MM<6CP> THA	8-97940-561-0	02	1	0803-		●
2	BOLT; BRK DRUM M6X18	0-20800-618-0	02	1	0803-	●
8	HUB; RR AXLE THA	8-97940-278-0	02	1	0803-	●
8	HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97940-277-0	02	1	0803-		●
8	HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> THA	8-97940-279-0	02	1	0803-		●
9	PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	0803-	●
9	PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	0803-	●
9	PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0803-		●
9	PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0803-		●
15	BEARING; HUB OUTER,RR AXLE NSK THA	9-00093-082-0	02	1	1207-	●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> NSK THA	9-00093-082-0	02	1	1207-		●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA	9-00093-607-0	02	1	1207-		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS THA	5-87610-140-0	02	1	1207-	●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> BEST VALUE PARTS THA	5-87610-140-0	02	1	1207-		●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> BEST VALUE PARTS THA	5-87610-139-0	02	1	1207-		●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0803-1207	●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM<G73> TKK	8-94336-315-2	02	1	0803-1207		●
16	SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM<G73> NOK	8-98202-911-0	02	1	1208-		●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0803-1106	●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM<G73> NOK	8-94367-961-1	02	1	0803-1106		●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM<6CP> TKK	8-94336-317-2	02	1	0803-1207		●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM<6CP> NOK	8-98202-912-0	02	1	1208-		●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM<6CP> NOK	8-94367-960-1	02	1	0803-1106		●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0803-1303	●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM<G73> M52	8-97137-092-0	02	1	0803-1303		●
20	NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM<G73> M52	8-98236-850-0	02	1	1304-		●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 320MM<6CP> M55	8-97137-094-0	02	1	0803-		●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0803-	●
21	WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM<G73> ID=52	9-09853-214-0	02	1	0803-		●
21	WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 320MM<6CP> ID=55	9-09653-002-0	02	1	0803-		●
24	BOLT; LK WASHER M6X10 FLANGE THA	0-28050-610-0	04	1	0803-	●	●
25	SHAFT; AXLE,RR	8-94366-192-0	02	1	0803-	●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM<G73>	8-97032-496-0	02	1	0803-		●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM<6CP>	8-97126-893-0	02	1	0803-0804		●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM<6CP>	8-98098-425-0	02	1	0805-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0803-	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0803-		●
34	NUT; AXLE SHAFT M10 FLANGE THA	0-91180-210-0	12	1	0803-	●
34	NUT; AXLE SHAFT M10 FLANGE THA	0-91180-210-0	16	1	0803-		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0803-	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0803-		●
37	BEARING; HUB INNER,RR AXLE NSK THA	9-00093-081-0	02	1	0803-	●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> NSK THA	9-00093-081-0	02	1	0803-		●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA	9-00093-624-0	02	1	0803-		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS THA	5-87610-142-0	02	1	0803-	●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> BEST VALUE PARTS THA	5-87610-142-0	02	1	0803-		●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> BEST VALUE PARTS THA	5-87610-141-0	02	1	0803-		●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0803-	●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM<G73> TKK	8-94336-314-1	02	1	0803-		●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0803-	●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM<G73> NOK	8-94367-959-0	02	1	0803-		●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM<6CP> TKK	8-94336-316-1	02	1	0803-		●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM<6CP> NOK	8-94367-958-0	02	1	0803-		●
49	CASE; RR AXLE	8-98061-921-0	01	1	0803-	●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM<G73>	8-97032-861-5	01	1	0803-		●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97122-348-4	01	1	0803-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0803-	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24 THA	9-09571-416-0	01	1	0803-	●	●
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0803-	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0803-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30 THA	8-94462-734-0	01	1	0803-	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0803-0909	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X40 W/LK WASHER	0-50061-040-0	11	1	0803-0909		●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X40 W/LK WASHER	0-50061-040-0	07	1	0803-0909		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X40 W/LK WASHER	0-50561-040-0	07	1	0910-		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X50 W/LK WASHER	0-50061-050-0	04	1	0803-0909		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X50 W/LK WASHER	0-50561-050-0	04	1	0910-		●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0803-	●	●
70	NUT; CARRIER M10 FLANGE THA	0-91180-210-0	02	1	0803-	●	●
74	BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	0803-	●
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0803-		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	0-91510-810-0	12	1	0803-	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	12	1	0803-0809		●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2 THA	0-91510-612-0	12	1	0810-		●
76	NUT; RR BRK ASM SETTING M10 THA	0-91110-510-0	12	1	0803-	●
76	NUT; RR BRK ASM SETTING M12 THA	0-91110-512-0	12	1	0803-		●

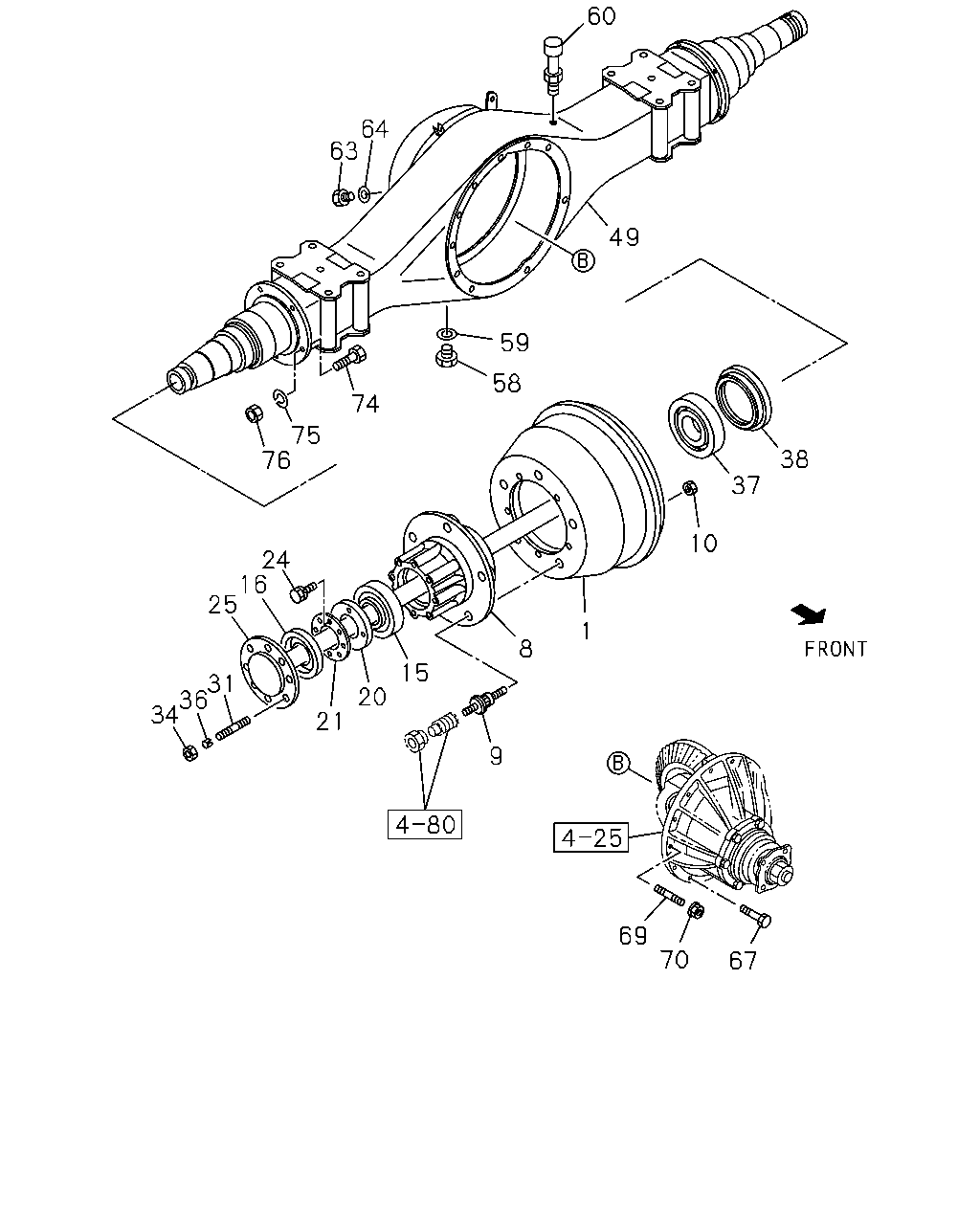

60 64 63 49 59 58 74 75 76 38 37 10 24 16 25 1 8 15 31 36 34 20 21 9 69 70 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR THA	8-97940-559-0	02	1	0803-	●
1	DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97940-560-0	02	1	0803-		●
1	DRUM; BRK,RR REAR AXLE HEAVY DUTY 320MM<6CP> THA	8-97940-561-0	02	1	0803-		●
8	HUB; RR AXLE THA	8-97940-278-0	02	1	0803-	●
8	HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97940-277-0	02	1	0803-		●
8	HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> THA	8-97940-279-0	02	1	0803-		●
9	PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	0803-	●
9	PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	0803-	●
9	PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0803-		●
9	PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0803-		●
10	NUT; WHEEL PIN,RR AXLE M20	0-91110-520-0	10	1	0803-		●
15	BEARING; HUB OUTER,RR AXLE NSK THA	9-00093-082-0	02	1	1207-	●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> NSK THA	9-00093-082-0	02	1	1207-		●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA	9-00093-607-0	02	1	1207-		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS THA	5-87610-140-0	02	1	1207-	●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> BEST VALUE PARTS THA	5-87610-140-0	02	1	1207-		●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> BEST VALUE PARTS THA	5-87610-139-0	02	1	1207-		●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0803-1207	●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM<G73> TKK	8-94336-315-2	02	1	0803-1207		●
16	SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM<G73> NOK	8-98202-911-0	02	1	1208-		●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0803-1106	●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM<G73> NOK	8-94367-961-1	02	1	0803-1106		●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM<6CP> TKK	8-94336-317-2	02	1	0803-1207		●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM<6CP> NOK	8-98202-912-0	02	1	1208-		●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM<6CP> NOK	8-94367-960-1	02	1	0803-1106		●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0803-1303	●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM<G73> M52	8-97137-092-0	02	1	0803-1303		●
20	NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM<G73> M52	8-98236-850-0	02	1	1304-		●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 320MM<6CP> M55	8-97137-094-0	02	1	0803-		●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0803-	●
21	WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM<G73> ID=52	9-09853-214-0	02	1	0803-		●
21	WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 320MM<6CP> ID=55	9-09653-002-0	02	1	0803-		●
24	BOLT; LK WASHER M6X10 FLANGE THA	0-28050-610-0	04	1	0803-	●	●
25	SHAFT; AXLE,RR	8-94366-192-0	02	1	0803-	●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM<G73>	8-97032-496-0	02	1	0803-		●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM<6CP>	8-97126-893-0	02	1	0803-0804		●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM<6CP>	8-98098-425-0	02	1	0805-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0803-	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0803-		●
34	NUT; AXLE SHAFT M10 FLANGE THA	0-91180-210-0	12	1	0803-	●
34	NUT; AXLE SHAFT M10 FLANGE THA	0-91180-210-0	16	1	0803-		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0803-	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0803-		●
37	BEARING; HUB INNER,RR AXLE NSK THA	9-00093-081-0	02	1	0803-	●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> NSK THA	9-00093-081-0	02	1	0803-		●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA	9-00093-624-0	02	1	0803-		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS THA	5-87610-142-0	02	1	0803-	●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> BEST VALUE PARTS THA	5-87610-142-0	02	1	0803-		●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> BEST VALUE PARTS THA	5-87610-141-0	02	1	0803-		●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0803-	●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM<G73> TKK	8-94336-314-1	02	1	0803-		●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0803-	●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM<G73> NOK	8-94367-959-0	02	1	0803-		●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM<6CP> TKK	8-94336-316-1	02	1	0803-		●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM<6CP> NOK	8-94367-958-0	02	1	0803-		●
49	CASE; RR AXLE	8-98061-921-0	01	1	0803-	●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM<G73>	8-97032-861-5	01	1	0803-		●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97122-348-4	01	1	0803-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0803-	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24 THA	9-09571-416-0	01	1	0803-	●	●
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0803-	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0803-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30 THA	8-94462-734-0	01	1	0803-	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0803-0909	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X40 W/LK WASHER	0-50061-040-0	11	1	0803-0909		●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X40 W/LK WASHER	0-50061-040-0	07	1	0803-0909		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X40 W/LK WASHER	0-50561-040-0	07	1	0910-		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X50 W/LK WASHER	0-50061-050-0	04	1	0803-0909		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X50 W/LK WASHER	0-50561-050-0	04	1	0910-		●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0803-	●	●
70	NUT; CARRIER M10 FLANGE THA	0-91180-210-0	02	1	0803-	●	●
74	BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	0803-	●
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0803-		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	0-91510-810-0	12	1	0803-	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	12	1	0803-0809		●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2 THA	0-91510-612-0	12	1	0810-		●
76	NUT; RR BRK ASM SETTING M10 THA	0-91110-510-0	12	1	0803-	●
76	NUT; RR BRK ASM SETTING M12 THA	0-91110-512-0	12	1	0803-		●
