5-15 — CAB MOUNTING; CAB SIDE (#7444) — 81 parça

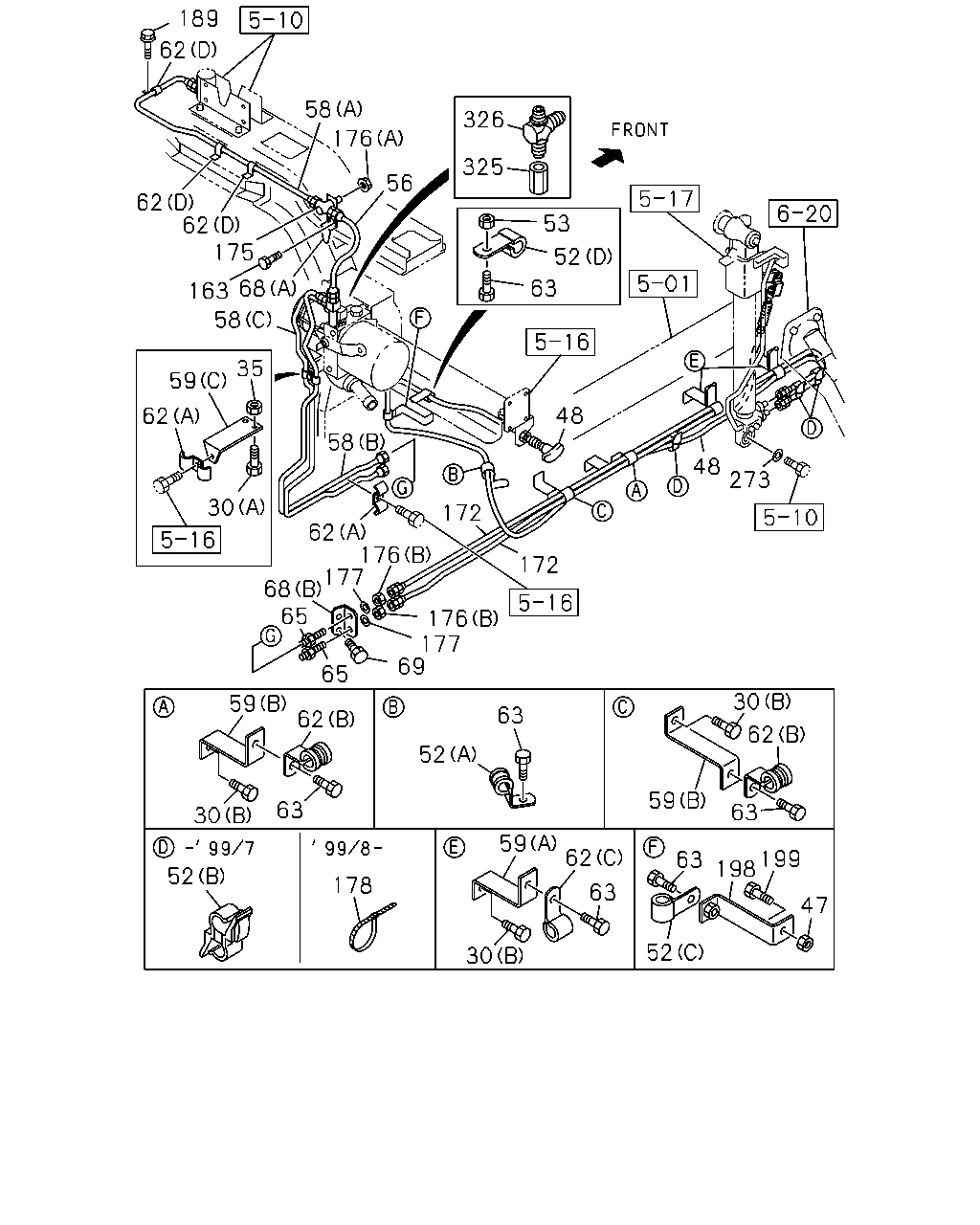

çizim 6729
189 62 58 326 176 325 56 62 62 175 53 52 63 68 163 58 35 59 48 62 58 48 273 30 172 62 176 177 68 65 172 176 177 69 65 30 59 63 62 62 52 59 63 63 30 59 62 199 198 63 52 178 63 47 52 30
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(A),(B) M8X25 FLANGE 		0-28680-825-0 06 1 9812-9903
30 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28680-825-0 04 1 9904-
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9904-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9812-
47 NUT; BRKT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9812-
48 CABLE ASM; CONT
L=2457 		1-62500-670-6 01 1 9812-9910
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 9911-
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9812-
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 02 1 9812-9907
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9908-
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 9812-
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 9812-
52 CLIP; CONT CABLE
EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9812-9907
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9812-
56 HOSE; FLEX,OIL PIPE
CAB UP +110MM<TGG> L=400 		1-09364-835-1 01 1 9812-9902
56 HOSE; FLEX,OIL PIPE
CAB UP +110MM<TGG> L=400 		1-09365-060-0 01 1 9903-
56 HOSE; FLEX,OIL PIPE
EXC. CAB UP +110MM<TGG> L=300 		1-09364-545-2 01 1 9812-9902
56 HOSE; FLEX,OIL PIPE
EXC. CAB UP +110MM<TGG> L=300 		1-09365-059-0 01 1 9903-
58 PIPE; OIL,POWER UNIT
(A) L=1390 		1-47428-967-0 01 1 9812-9902
58 PIPE; OIL,POWER UNIT
(B) L=1050 		1-49163-340-0 01 1 9903-9903
58 PIPE; OIL,POWER UNIT
(B) L=1054 		1-49164-150-0 01 1 9904-
58 PIPE; OIL,POWER UNIT
(B) L=1025 		1-47429-627-0 01 1 9812-9902
58 PIPE; OIL,POWER UNIT
(C) L=1116 		1-49163-346-0 01 1 9903-9903
58 PIPE; OIL,POWER UNIT
(C) L=1120 		1-49164-151-0 01 1 9904-9910
58 PIPE; OIL,POWER UNIT
(C) L=1006 		1-49165-034-0 01 1 9911-
58 PIPE; OIL,POWER UNIT
(C) L=997 		1-47429-806-0 01 1 9812-9902
58 PIPE; OIL,POWER UNIT
(A) L=1396 		1-49163-351-0 01 1 9903-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 9812-
59 BRACKET; CLIP
(B) L=90 		1-82699-856-0 02 1 9812-
59 BRACKET; CLIP
CAB UP +110MM<TGG> (A) 		1-47476-200-0 02 1 9812-
62 CLIP; OIL PIPE
(A) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 9812-9902
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9903-
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 9812-9905
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 9906-
62 CLIP; OIL PIPE
(C) ID=11X2 L=16 		9-09535-025-0 02 1 9812-9902
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 9903-
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 9812-9902
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 9903-
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20 		1-09700-604-0 03 1 9812-9902
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 9903-
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 9812-
65 UNION; OIL PIPE
M14 		9-09223-308-1 02 1 9812-9902
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 9903-
68 BRACKET; UNION
(B) 		1-47477-751-0 01 1 9812-9902
68 BRACKET; UNION
(B) 		1-47478-384-0 01 1 9903-
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 9812-
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9812-
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9812-
172 HOSE; FLEX,OIL TILT
L=1600 		1-09364-825-1 02 1 9812-9902
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 9903-
175 UNION; FLEX HOSE
M14 2WAY 		1-09654-176-2 01 1 9812-9902
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 9903-
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 9812-
176 NUT; UNION
(B) M14 		9-99111-414-0 02 1 9812-9902
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 9903-
177 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 02 1 9812-9902
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9903-
178 CLIP; FLEX HOSE
L=140 		5-09707-031-1 01 1 9908-
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 01 1 9812-
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 03 1 9812-
198 BRACKET; CABLE
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-46147-101-0 01 1 9812-
199 BOLT; BRKT
EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 01 1 9812-
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 9812-
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9903-
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9903-

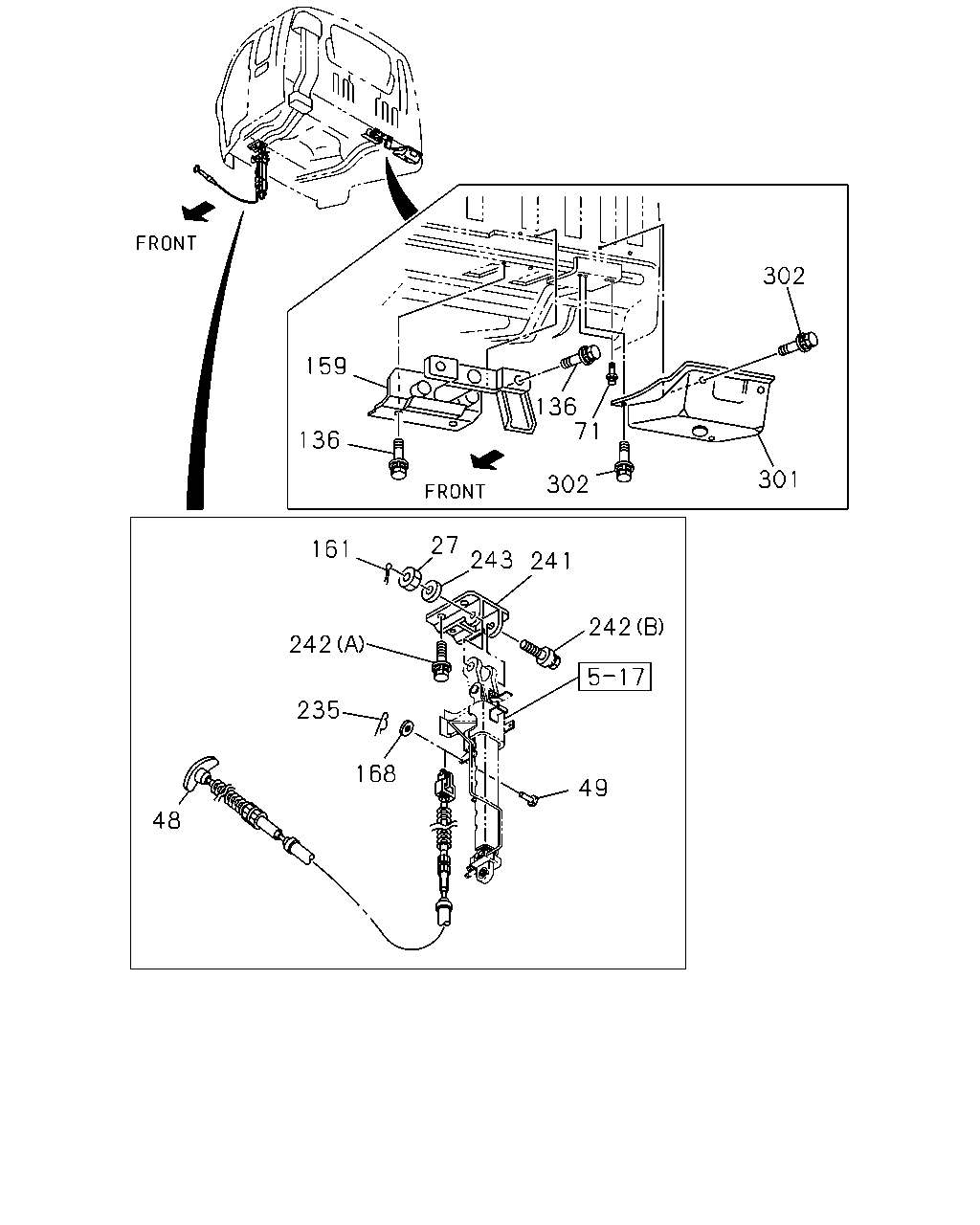

çizim 44294
302 159 136 71 136 301 302 27 161 243 241 242 242 235 168 49 48
BalonParca AdiParca NoAdetTipApplied Date
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 9812-
48 CABLE ASM; CONT
L=2457 		1-62500-670-6 01 1 9812-9910
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 9911-
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 9812-
71 BOLT
M10X25 W/LK&PL WASHER 		8-94279-220-0 02 1 9812-
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9812-
159 PIN 1-79717-627-1 01 1 9812-
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 9812-
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 9812-
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 9812-
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-660-0 01 1 9812-
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 9812-
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 9812-
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 9812-
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 9812-
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		8-94279-220-0 08 1 9812-
