Isuzu WW
▶
TRUCKS
▶
NLR
▶
51168 - NLR/NMR(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-10 - FRONT AXLE
▶
4-10 — FRONT AXLE
(#74438) — 56 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

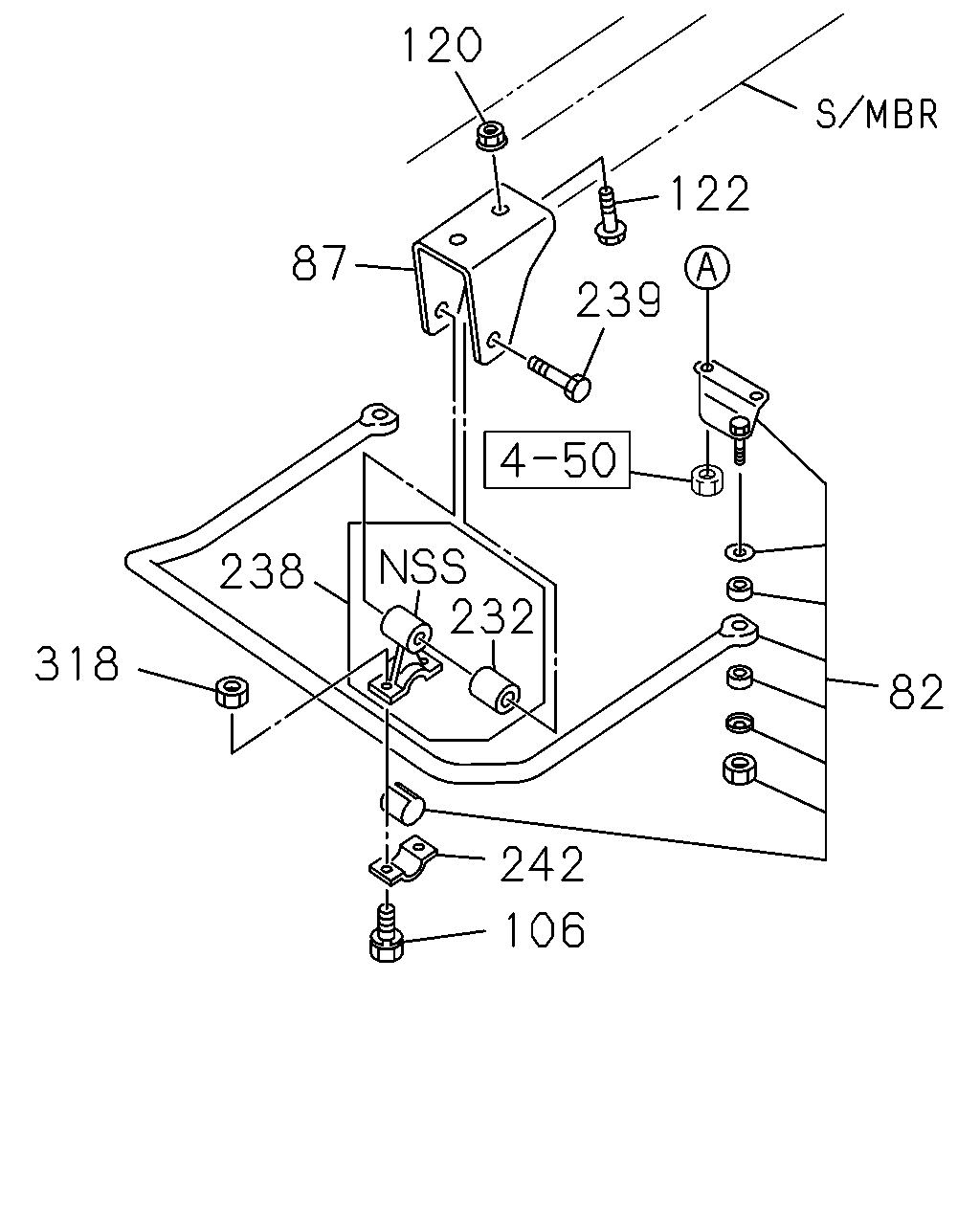

[410A] FRONT STABILIZER (11 parça)

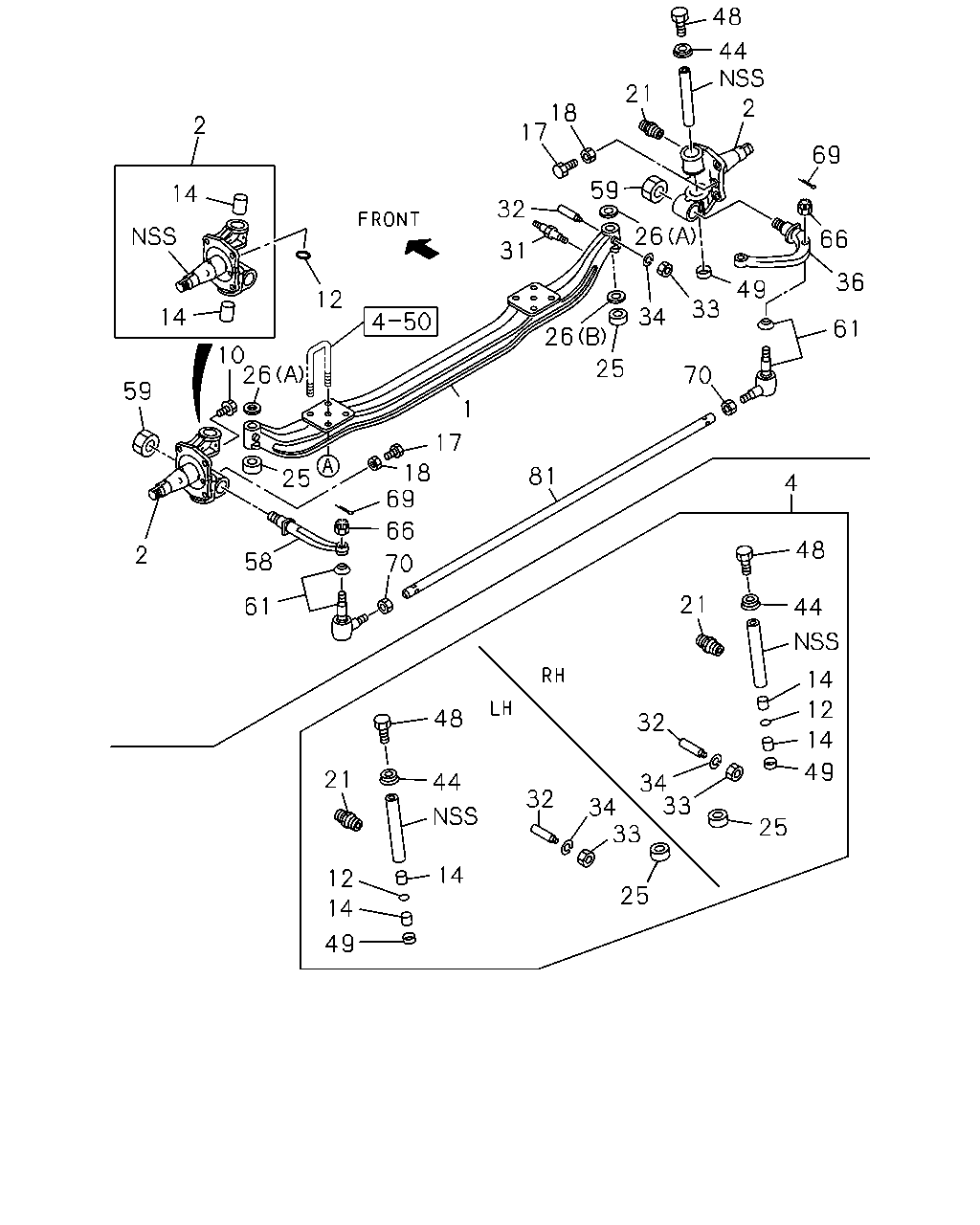

[410A] FRONT AXLE (45 parça)
▶
120
122
87
239
232
238
318
82
242
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
82
BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59>
8-98002-084-2
01
1
0803-
●
87
BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59>
8-98051-506-0
01
1
0803-
●
87
BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59>
8-98051-507-0
01
1
0803-
●
106
BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE THA
0-28651-025-0
04
1
0803-
●
120
NUT; STAB BAR BRKT
FRONT STABILIZER SHAFT<F59> M12 FLANGE THA
0-91180-212-0
04
1
0803-
●
122
BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M12X30 FLANGE THA
0-28661-230-0
04
1
0803-
●
232
BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59>
8-97239-911-0
02
1
0803-
●
238
ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59>
8-97239-908-0
02
1
0803-
●
239
BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE
0-28851-470-0
02
1
0803-
●
242
CAP; LINK ROD
FRONT STABILIZER SHAFT<F59>
8-94178-430-2
02
1
0803-
●
318
NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10 FLANGE THA
0-91180-210-0
04
1
0803-
●
48
44
2
21
18
17
2
69
59
4
32
26
66
31
26
36
49
12
33
34
14
61
10
26
25
70
59
1
17
18
69
81
25
4
66
48
2
58
70
21
61
44
14
12
48
32
14
49
21
44
34
33
32
34
33
25
14
12
25
14
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
AXLE; FRT
8-97262-000-4
01
1
0803-
●
●
2
KNUCKLE; FRT AXLE
8-97261-545-2
01
1
0803-
●
●
2
KNUCKLE; FRT AXLE
8-97261-546-2
01
1
0803-
●
●
4
KING PIN KIT
5-87832-220-2
01
1
0803-
●
●
10
PLUG; PLATE,KNUCKLE
8-97360-117-0
01
1
0803-
●
●
12
GASKET; KNUCKLE
8-98084-500-0
02
1
0803-
●
●
14
BUSHING; KING PIN
JBK
8-94127-925-2
04
1
0803-0809
●
●
14
BUSHING; KING PIN
DAIDO WO/NOTCH
8-94107-672-3
04
1
0803-
●
●
17
BOLT; STOPPER KNUCKLE
M12X27.5
8-98016-968-0
03
1
0803-1206
●
17
BOLT; STOPPER KNUCKLE
G.V.W. 6.5-7.0TON<RPW> M12X27.5
8-98016-968-0
03
1
0803-1206
●
17
BOLT; STOPPER KNUCKLE
M12X27.5
8-98016-968-0
03
1
1207-
●
17
BOLT; STOPPER KNUCKLE
G.V.W. 5.0-5.5TON<RPT> M12X24 EYE-BOLT
8-97360-059-0
03
1
0803-
●
17
BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT
8-97360-059-0
03
1
1207-
●
18
NUT; STOPPER BOLT,KNUCKLE
M12
0-91111-512-0
03
1
0803-
●
●
21
NIPPLE; GREASE,KING PIN
M6 STRAIGHT THA
0-90301-406-0
04
1
0803-
●
●
25
BEARING; THRUST,KING PIN
8-94248-883-3
01
1
0803-
●
●
25
BEARING; THRUST,KING PIN
8-97141-943-1
01
1
0803-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.50
8-94162-574-0
AR
1
0803-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.55
8-94162-575-0
AR
1
0803-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.60
8-94162-576-0
AR
1
0803-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.65
8-94162-577-0
AR
1
0803-
●
●
26
SHIM; KING PIN,BRG
(B) T=1.95
8-94168-490-0
01
1
0803-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.70
8-94174-352-0
AR
1
0803-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.80
8-94174-354-0
AR
1
0803-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.90
8-94174-356-0
AR
1
0803-
●
●
31
PIN; S/ABS,LWR
8-97141-944-0
02
1
0803-
●
●
32
BOLT; KEY,KING PIN
8-97141-945-2
02
1
0803-
●
●
33
NUT; KEY BOLT
M10 THA
0-91110-510-0
02
1
0803-
●
●
34
WASHER; LK,KEY BOLT
ID=10.2
0-91510-510-0
02
1
0803-
●
●
36
ARM; KNUCKLE
8-97253-712-3
01
1
0803-
●
●
44
COVER; KING PIN
OD=36
8-97360-023-0
02
1
0803-
●
●
48
BOLT; COVER
M10X12 FLANGE
0-28051-012-0
02
1
0803-
●
●
49
CAP; KNUCKLE
8-97360-024-0
02
1
0803-
●
●
58
ARM; TIE ROD
8-97138-303-0
01
1
0803-
●
●
59
NUT; TIE ROD ARM
8-97360-123-0
02
1
0803-
●
●
61
ROD END; TIE ROD
8-97142-101-1
01
1
0803-1309
●
●
61
ROD END; TIE ROD
8-97107-349-2
01
1
1310-
●
●
61
ROD END; TIE ROD
8-97255-705-0
01
1
0803-1309
●
●
61
ROD END; TIE ROD
8-98251-954-0
01
1
1310-
●
●
66
NUT; TIE ROD END
M16 SLOTTED
0-91116-516-0
02
1
0803-1204
●
●
66
NUT; TIE ROD END
M16 SLOTTED
8-98049-689-0
02
1
1205-
●
●
69
PIN; SPLIT,TIE ROD END
OD=3.7 L=20
0-81124-020-0
02
1
0803-
●
●
70
NUT; TIE ROD END
M20 LH THREAD
8-94254-726-0
01
1
0803-
●
●
70
NUT; TIE ROD END
M20
8-98043-530-0
01
1
0803-
●
●
81
ROD; TIE
8-97142-024-0
01
1
0803-
●
●
