Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#74435) — 308 parça

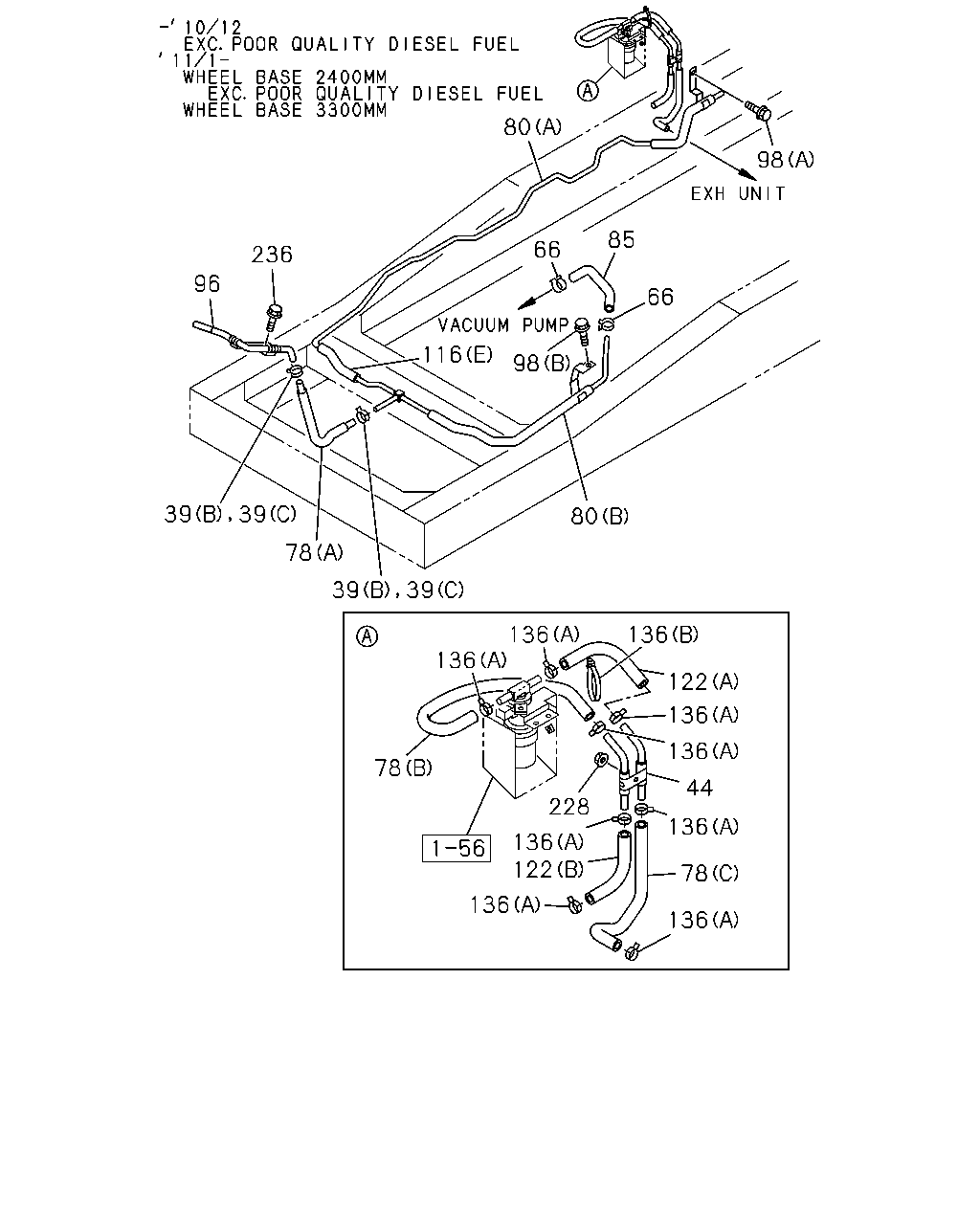

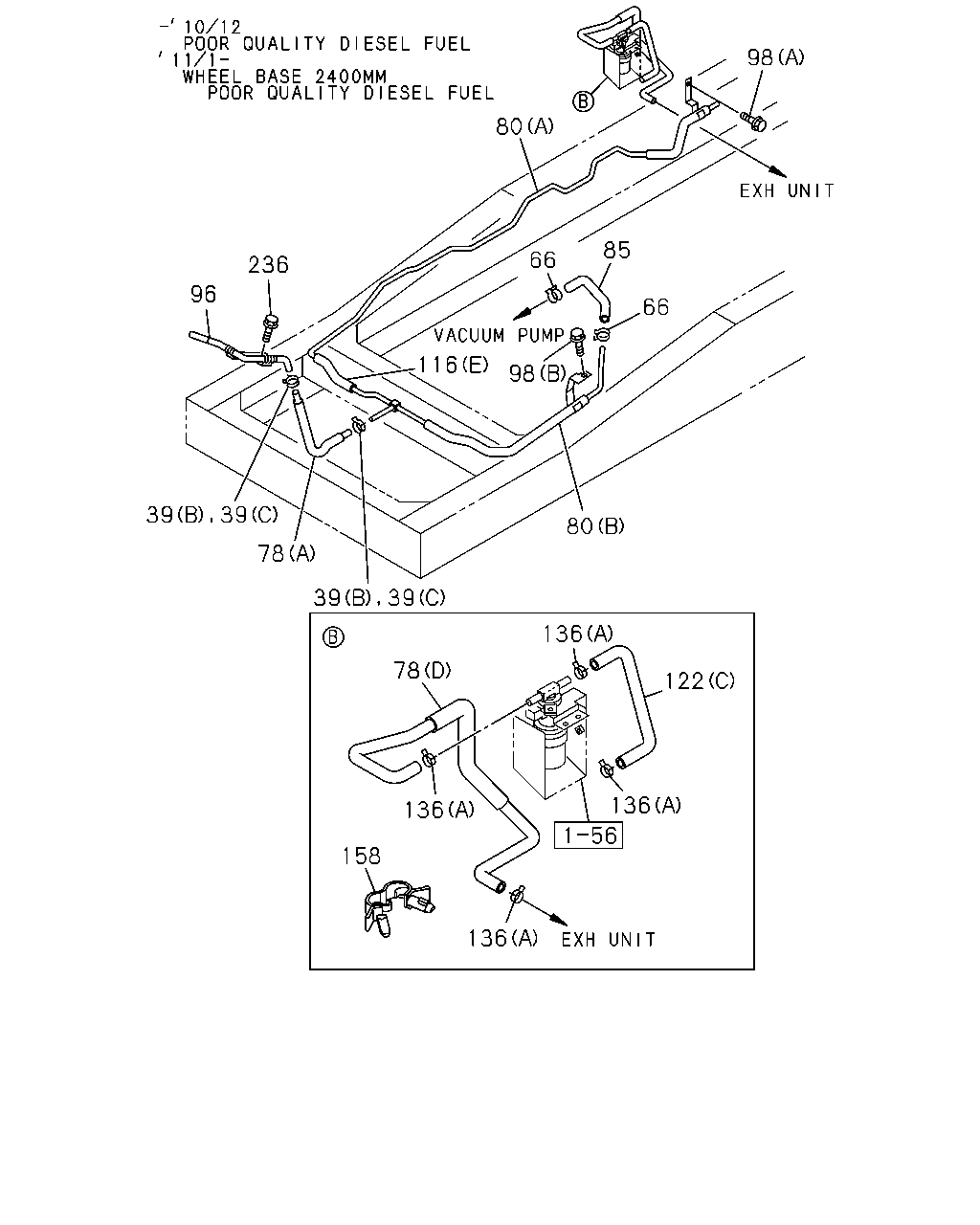

98 80 85 66 236 96 66 116 98 80 78 136 78 122 136 136 158 136 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC (C) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC (A) L=170.3 THA	1-09987-182-0	01	1	0803-	●	●
39	CLIP; HOSE,VAC (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-	●	●
66	CLIP; VAC HOSE,M/VAC ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
66	CLIP; VAC HOSE,M/VAC ID=16 THA	8-98008-098-0	02	1	0912-	●	●
78	HOSE; VAC,PIPE TO PIPE (A) THA	8-97389-745-1	01	1	1207-	●	●
78	HOSE; VAC,PIPE TO PIPE (A) THA	8-97389-745-1	01	1	0803-1206	●	●
78	HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-174-0	01	1	0803-1012	●	●
78	HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-174-0	01	1	1101-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-174-0	01	1	1101-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97924-420-1	01	1	0803-1012	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98042-691-2	01	1	0803-1012	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98042-691-2	01	1	1101-1104	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98042-691-2	01	1	1101-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM<33W> (C)	8-98042-691-2	01	1	1101-1104		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-98189-224-0	01	1	1105-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-98189-224-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM<33W> (B) THA	8-98189-224-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C) THA	8-98189-223-0	01	1	1105-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) THA	8-98189-223-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM<33W> (C) THA	8-98189-223-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97924-420-1	01	1	1101-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97924-420-1	01	1	1101-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM<33W> (B) THA	8-97924-420-1	01	1	1101-		●
80	PIPE; VAC,ENG SIDE (A) THA	8-98065-063-2	01	1	1207-	●
80	PIPE; VAC,ENG SIDE WHEEL BASE 2400MM<24W> (A) THA	8-98065-063-2	01	1	1207-		●
80	PIPE; VAC,ENG SIDE (B) THA	8-98064-345-2	01	1	1207-	●	●
80	PIPE; VAC,ENG SIDE WHEEL BASE 3300MM<33W> (A) THA	8-98056-002-2	01	1	1207-		●
80	PIPE; VAC,ENG SIDE (A) THA	8-98065-063-2	01	1	0803-1206	●
80	PIPE; VAC,ENG SIDE WHEEL BASE 2400MM<24W> (A) THA	8-98065-063-2	01	1	0803-1206		●
80	PIPE; VAC,ENG SIDE (B) THA	8-98064-345-2	01	1	0803-1206	●	●
80	PIPE; VAC,ENG SIDE WHEEL BASE 3300MM<33W> (A) THA	8-98056-002-2	01	1	0803-1206		●
85	HOSE; VAC,ENG SIDE	8-98092-071-0	01	1	0803-0804	●	●
85	HOSE; VAC,ENG SIDE THA	8-97924-679-0	01	1	0805-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP THA	8-98039-736-1	01	1	1207-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP THA	8-98039-736-1	01	1	0803-1206	●	●
98	BOLT; VAC PIPE FIX (B) M8X20 FLANGE THA	0-28650-820-0	01	1	0803-	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97389-674-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (D)	8-97389-689-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (B) THA	8-97924-102-1	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A) THA	8-98094-547-0	01	1	0803-	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98076-068-1	01	1	0803-1012	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98076-068-1	01	1	1101-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98076-068-1	01	1	1101-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-421-0	01	1	0803-1012	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98042-689-2	01	1	0803-1012	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98042-689-2	01	1	1101-1104	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98042-689-2	01	1	1101-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM<33W> (B)	8-98042-689-2	01	1	1101-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-98189-222-0	01	1	1105-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-98189-222-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM<33W> (A) THA	8-98189-222-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-98189-226-0	01	1	1105-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-98189-226-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM<33W> (B) THA	8-98189-226-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-421-1	01	1	1101-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-421-1	01	1	1101-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM<33W> (A) THA	8-97924-421-1	01	1	1101-		●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=140 THA	8-97920-656-0	01	1	0803-1012	●	●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=140 THA	8-97920-656-0	01	1	1101-	●
136	CLIP; VAC HOSE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=140 THA	8-97920-656-0	01	1	1101-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM<33W> (B) L=140 THA	8-97920-656-0	01	1	1101-		●
136	CLIP; VAC HOSE (A) ID=16 THA	8-94238-568-0	04	1	0803-0911	●	●
136	CLIP; VAC HOSE (A) ID=16 THA	8-98008-098-0	04	1	0912-	●	●
136	CLIP; VAC HOSE POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-94238-568-0	02	1	0803-0805	●	●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-94238-568-0	02	1	0806-0911	●	●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-98008-098-0	02	1	0912-1012	●	●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-98008-098-0	02	1	1101-	●
136	CLIP; VAC HOSE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-98008-098-0	02	1	1101-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM<33W> (A) ID=16 THA	8-98008-098-0	02	1	1101-		●
158	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=18-24 L=14.5	1-09709-298-0	01	1	1101-	●
158	CLIP; HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> ID=18-24 L=14.5	1-09709-298-0	01	1	1101-		●
236	BOLT; PIPE M6X12 FLANGE THA	0-28050-612-0	01	1	1207-	●	●
236	BOLT; PIPE M6X12 FLANGE THA	0-28050-612-0	01	1	0803-1206	●	●

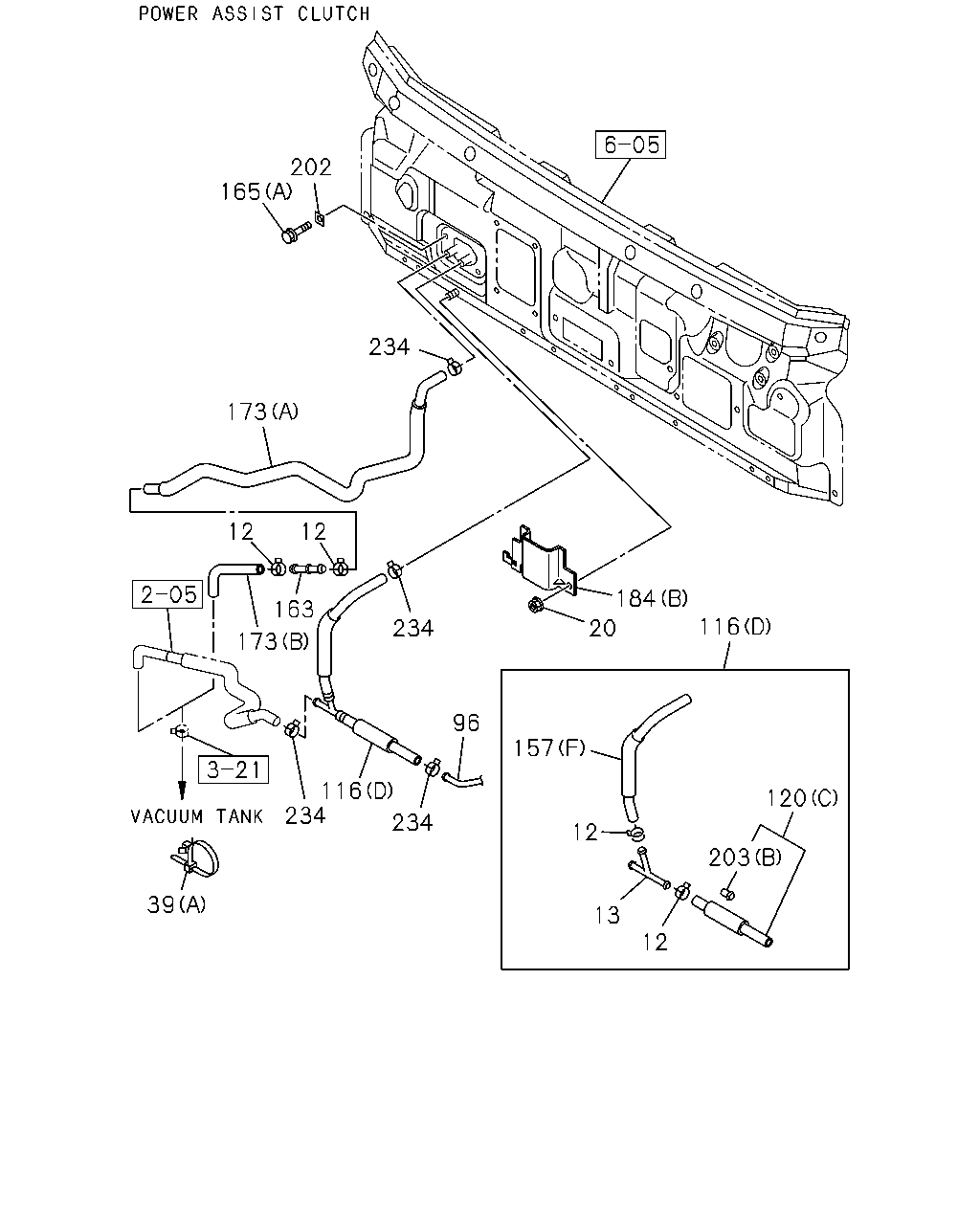

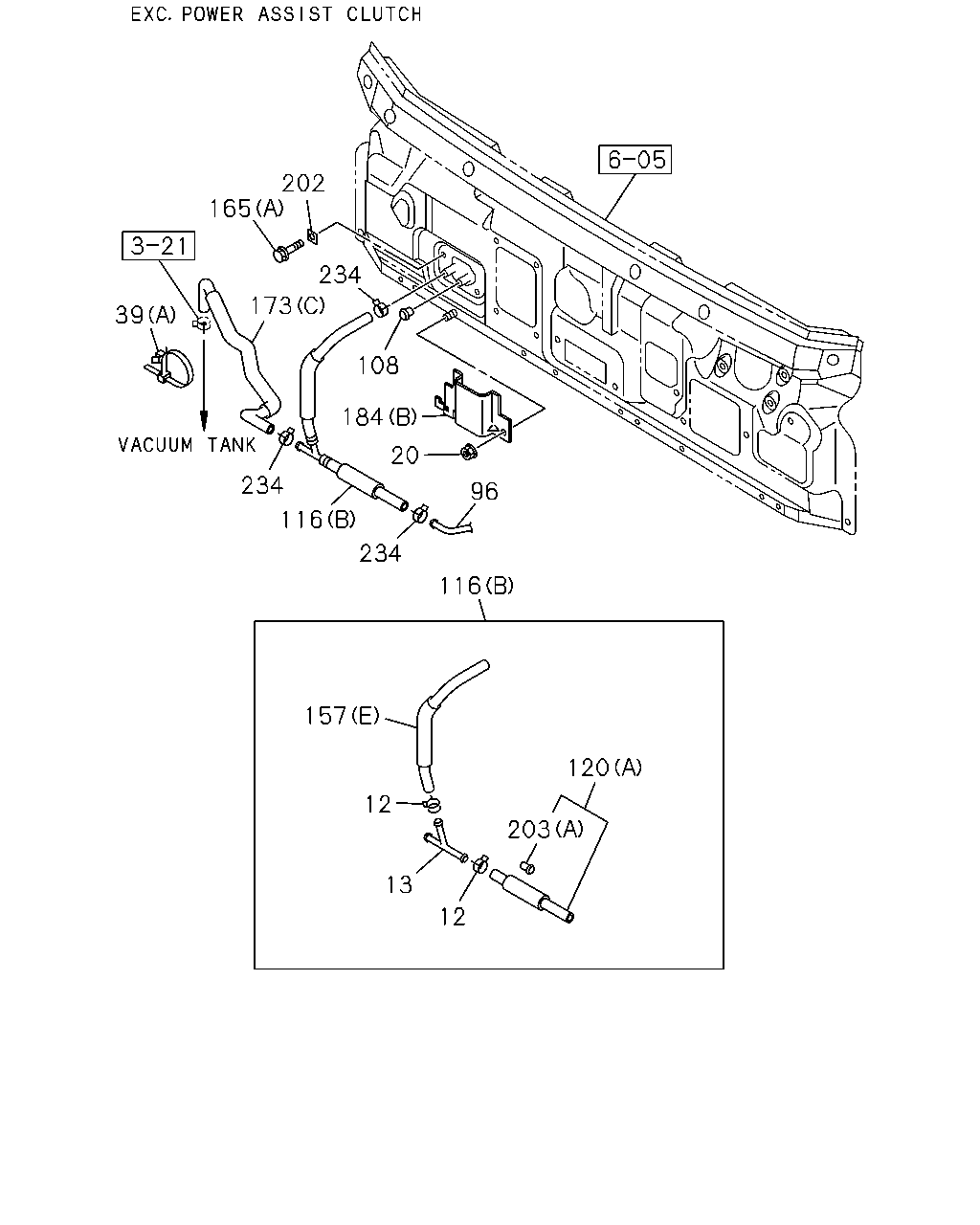

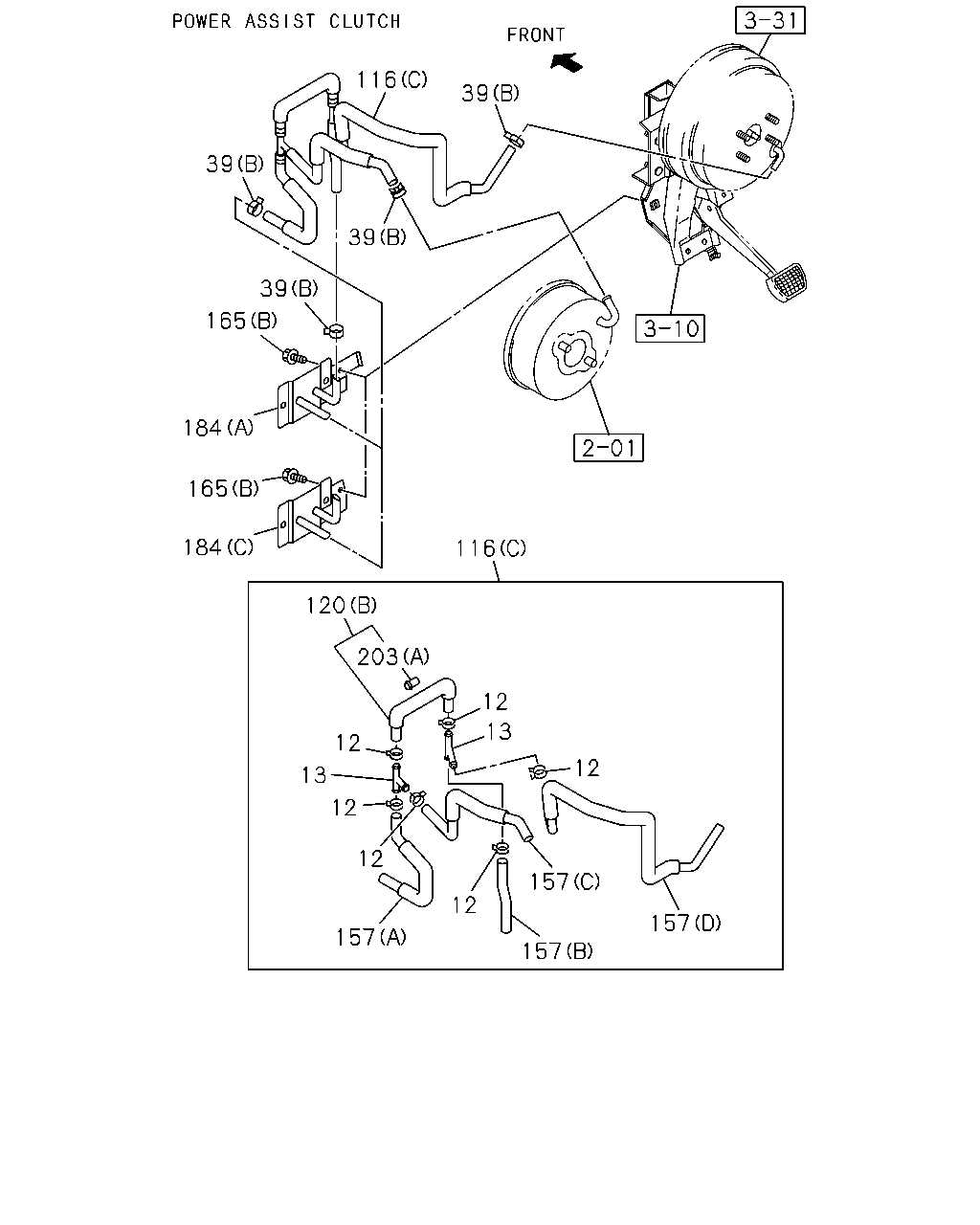

116 39 39 39 39 165 184 165 184 116 120 203 12 13 12 12 13 12 12 157 12 157 157 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> ID=15.5 THA	8-98008-097-0	08	1	0803-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA	8-98008-097-0	02	1	0803-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> THA	8-98035-106-0	03	1	0803-	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> THA	8-98035-106-0	01	1	0803-0809	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> THA	8-98035-106-0	03	1	0810-	●	●
39	CLIP; HOSE,VAC (C) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC (A) L=170.3 THA	1-09987-182-0	01	1	0803-	●	●
39	CLIP; HOSE,VAC (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97389-674-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (D)	8-97389-689-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (B) THA	8-97924-102-1	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A) THA	8-98094-547-0	01	1	0803-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH<S2T> (C)	8-97389-695-2	01	1	0803-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH<S2T> (B)	8-98027-352-3	01	1	0803-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97389-696-2	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (F)	8-98017-168-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (D)	8-98027-350-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (C)	8-98027-351-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (B)	8-98027-353-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (A)	8-98027-354-2	01	1	0803-	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH<S2T> (E)	8-98022-868-3	01	1	0803-	●	●
165	BOLT; BRKT (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0803-0909	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-	●	●
184	BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0803-1001	●	●
184	BRACKET; UNION FIX (C)	8-98155-345-0	01	1	1002-1103	●	●
184	BRACKET; UNION FIX (C)	8-98183-467-1	01	1	1104-	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL<6WC> (B)	8-98017-628-1	01	1	0803-	●	●
203	VALVE; CHECK (A) THA	8-94386-540-0	01	1	0803-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94104-021-0	01	1	0803-	●	●

80 98 85 66 236 96 66 116 98 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC (C) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC (A) L=170.3 THA	1-09987-182-0	01	1	0803-	●	●
39	CLIP; HOSE,VAC (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-	●	●
44	PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97924-419-0	01	1	0803-	●	●
66	CLIP; VAC HOSE,M/VAC ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
66	CLIP; VAC HOSE,M/VAC ID=16 THA	8-98008-098-0	02	1	0912-	●	●
78	HOSE; VAC,PIPE TO PIPE (A) THA	8-97389-745-1	01	1	1207-	●	●
78	HOSE; VAC,PIPE TO PIPE (A) THA	8-97389-745-1	01	1	0803-1206	●	●
78	HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-174-0	01	1	0803-1012	●	●
78	HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-174-0	01	1	1101-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-174-0	01	1	1101-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97924-420-1	01	1	0803-1012	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98042-691-2	01	1	0803-1012	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98042-691-2	01	1	1101-1104	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98042-691-2	01	1	1101-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM<33W> (C)	8-98042-691-2	01	1	1101-1104		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-98189-224-0	01	1	1105-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-98189-224-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM<33W> (B) THA	8-98189-224-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C) THA	8-98189-223-0	01	1	1105-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) THA	8-98189-223-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM<33W> (C) THA	8-98189-223-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97924-420-1	01	1	1101-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97924-420-1	01	1	1101-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM<33W> (B) THA	8-97924-420-1	01	1	1101-		●
80	PIPE; VAC,ENG SIDE (A) THA	8-98065-063-2	01	1	1207-	●
80	PIPE; VAC,ENG SIDE WHEEL BASE 2400MM<24W> (A) THA	8-98065-063-2	01	1	1207-		●
80	PIPE; VAC,ENG SIDE (B) THA	8-98064-345-2	01	1	1207-	●	●
80	PIPE; VAC,ENG SIDE WHEEL BASE 3300MM<33W> (A) THA	8-98056-002-2	01	1	1207-		●
80	PIPE; VAC,ENG SIDE (A) THA	8-98065-063-2	01	1	0803-1206	●
80	PIPE; VAC,ENG SIDE WHEEL BASE 2400MM<24W> (A) THA	8-98065-063-2	01	1	0803-1206		●
80	PIPE; VAC,ENG SIDE (B) THA	8-98064-345-2	01	1	0803-1206	●	●
80	PIPE; VAC,ENG SIDE WHEEL BASE 3300MM<33W> (A) THA	8-98056-002-2	01	1	0803-1206		●
85	HOSE; VAC,ENG SIDE	8-98092-071-0	01	1	0803-0804	●	●
85	HOSE; VAC,ENG SIDE THA	8-97924-679-0	01	1	0805-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP THA	8-98039-736-1	01	1	1207-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP THA	8-98039-736-1	01	1	0803-1206	●	●
98	BOLT; VAC PIPE FIX (B) M8X20 FLANGE THA	0-28650-820-0	01	1	0803-	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97389-674-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (D)	8-97389-689-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (B) THA	8-97924-102-1	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A) THA	8-98094-547-0	01	1	0803-	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98076-068-1	01	1	0803-1012	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98076-068-1	01	1	1101-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98076-068-1	01	1	1101-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-421-0	01	1	0803-1012	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98042-689-2	01	1	0803-1012	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98042-689-2	01	1	1101-1104	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98042-689-2	01	1	1101-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM<33W> (B)	8-98042-689-2	01	1	1101-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-98189-222-0	01	1	1105-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-98189-222-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM<33W> (A) THA	8-98189-222-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-98189-226-0	01	1	1105-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-98189-226-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM<33W> (B) THA	8-98189-226-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-421-1	01	1	1101-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-421-1	01	1	1101-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM<33W> (A) THA	8-97924-421-1	01	1	1101-		●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=140 THA	8-97920-656-0	01	1	0803-1012	●	●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=140 THA	8-97920-656-0	01	1	1101-	●
136	CLIP; VAC HOSE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=140 THA	8-97920-656-0	01	1	1101-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM<33W> (B) L=140 THA	8-97920-656-0	01	1	1101-		●
136	CLIP; VAC HOSE (A) ID=16 THA	8-94238-568-0	04	1	0803-0911	●	●
136	CLIP; VAC HOSE (A) ID=16 THA	8-98008-098-0	04	1	0912-	●	●
136	CLIP; VAC HOSE POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-94238-568-0	02	1	0803-0805	●	●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-94238-568-0	02	1	0806-0911	●	●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-98008-098-0	02	1	0912-1012	●	●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-98008-098-0	02	1	1101-	●
136	CLIP; VAC HOSE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=16 THA	8-98008-098-0	02	1	1101-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM<33W> (A) ID=16 THA	8-98008-098-0	02	1	1101-		●
228	NUT; PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE THA	0-91180-106-0	01	1	1101-	●
228	NUT; PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE THA	0-91180-106-0	01	1	1101-		●
228	NUT; PIPE WHEEL BASE 3300MM<33W> M6 FLANGE THA	0-91180-106-0	01	1	1101-		●
228	NUT; PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE THA	0-91180-106-0	01	1	0803-1012	●	●
228	NUT; PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE THA	0-91180-106-0	01	1	1101-	●
228	NUT; PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE THA	0-91180-106-0	01	1	1101-		●
228	NUT; PIPE WHEEL BASE 3300MM<33W> M6 FLANGE THA	0-91180-106-0	01	1	1101-		●
236	BOLT; PIPE M6X12 FLANGE THA	0-28050-612-0	01	1	1207-	●	●
236	BOLT; PIPE M6X12 FLANGE THA	0-28050-612-0	01	1	0803-1206	●	●

39 116 165 39 184 165 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC (C) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC (A) L=170.3 THA	1-09987-182-0	01	1	0803-	●	●
39	CLIP; HOSE,VAC (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97389-674-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (D)	8-97389-689-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (B) THA	8-97924-102-1	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A) THA	8-98094-547-0	01	1	0803-	●	●
165	BOLT; BRKT (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0803-0909	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-	●	●
184	BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0803-1001	●	●
184	BRACKET; UNION FIX (C)	8-98155-345-0	01	1	1002-1103	●	●
184	BRACKET; UNION FIX (C)	8-98183-467-1	01	1	1104-	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL<6WC> (B)	8-98017-628-1	01	1	0803-	●	●

202 165 234 173 12 12 184 163 116 234 20 173 96 157 116 234 120 234 12 203 39 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> ID=15.5 THA	8-98008-097-0	08	1	0803-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA	8-98008-097-0	02	1	0803-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> THA	8-98035-106-0	03	1	0803-	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> THA	8-98035-106-0	01	1	0803-0809	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> THA	8-98035-106-0	03	1	0810-	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA	0-91180-106-0	01	1	1208-	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA	0-91180-106-0	01	1	0803-1207	●	●
39	CLIP; HOSE,VAC (C) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC (A) L=170.3 THA	1-09987-182-0	01	1	0803-	●	●
39	CLIP; HOSE,VAC (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP THA	8-98039-736-1	01	1	1207-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP THA	8-98039-736-1	01	1	0803-1206	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97389-674-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (D)	8-97389-689-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (B) THA	8-97924-102-1	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A) THA	8-98094-547-0	01	1	0803-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH<S2T> (C)	8-97389-695-2	01	1	0803-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH<S2T> (B)	8-98027-352-3	01	1	0803-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97389-696-2	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (F)	8-98017-168-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (D)	8-98027-350-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (C)	8-98027-351-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (B)	8-98027-353-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (A)	8-98027-354-2	01	1	0803-	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH<S2T> (E)	8-98022-868-3	01	1	0803-	●	●
163	JOINT; VAC HOSE POWER ASSIST CLUTCH<S2T>	8-97353-668-0	01	1	0803-	●	●
165	BOLT; BRKT (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0803-0909	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> (A)	8-98055-936-1	01	1	0803-1012	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> (B)	8-98121-941-0	01	1	1101-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> (B)	8-98055-937-1	01	1	0803-1012	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> (A)	8-98121-940-0	01	1	1101-	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH<S2T> (C)	8-98022-870-1	01	1	0803-1009	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH<S2T> (C) THA	8-98107-558-0	01	1	1010-	●	●
184	BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0803-1001	●	●
184	BRACKET; UNION FIX (C)	8-98155-345-0	01	1	1002-1103	●	●
184	BRACKET; UNION FIX (C)	8-98183-467-1	01	1	1104-	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL<6WC> (B)	8-98017-628-1	01	1	0803-	●	●
202	SEAL	8-97856-616-0	02	1	0803-	●	●
203	VALVE; CHECK (A) THA	8-94386-540-0	01	1	0803-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94104-021-0	01	1	0803-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH<S2T> ID=16 THA	8-94238-568-0	04	1	0803-	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA	8-94238-568-0	03	1	0803-	●	●

202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> ID=15.5 THA	8-98008-097-0	08	1	0803-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA	8-98008-097-0	02	1	0803-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> THA	8-98035-106-0	03	1	0803-	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> THA	8-98035-106-0	01	1	0803-0809	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> THA	8-98035-106-0	03	1	0810-	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA	0-91180-106-0	01	1	1208-	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA	0-91180-106-0	01	1	0803-1207	●	●
39	CLIP; HOSE,VAC (C) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC (A) L=170.3 THA	1-09987-182-0	01	1	0803-	●	●
39	CLIP; HOSE,VAC (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0912-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16 THA	8-94238-568-0	02	1	0803-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP THA	8-98039-736-1	01	1	1207-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP THA	8-98039-736-1	01	1	0803-1206	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH<S2T>	9-09956-353-0	01	1	0803-	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97389-674-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (D)	8-97389-689-3	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (B) THA	8-97924-102-1	01	1	0803-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A) THA	8-98094-547-0	01	1	0803-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH<S2T> (C)	8-97389-695-2	01	1	0803-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH<S2T> (B)	8-98027-352-3	01	1	0803-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97389-696-2	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (F)	8-98017-168-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (D)	8-98027-350-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (C)	8-98027-351-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (B)	8-98027-353-3	01	1	0803-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH<S2T> (A)	8-98027-354-2	01	1	0803-	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH<S2T> (E)	8-98022-868-3	01	1	0803-	●	●
165	BOLT; BRKT (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0803-0909	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> (A)	8-98055-936-1	01	1	0803-1012	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> (B)	8-98121-941-0	01	1	1101-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> (B)	8-98055-937-1	01	1	0803-1012	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> (A)	8-98121-940-0	01	1	1101-	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH<S2T> (C)	8-98022-870-1	01	1	0803-1009	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH<S2T> (C) THA	8-98107-558-0	01	1	1010-	●	●
184	BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0803-1001	●	●
184	BRACKET; UNION FIX (C)	8-98155-345-0	01	1	1002-1103	●	●
184	BRACKET; UNION FIX (C)	8-98183-467-1	01	1	1104-	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL<6WC> (B)	8-98017-628-1	01	1	0803-	●	●
202	SEAL	8-97856-616-0	02	1	0803-	●	●
203	VALVE; CHECK (A) THA	8-94386-540-0	01	1	0803-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94104-021-0	01	1	0803-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH<S2T> ID=16 THA	8-94238-568-0	04	1	0803-	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA	8-94238-568-0	03	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
