3-55 — BRAKE PIPING; OIL,REAR (#74433) — 12 parça

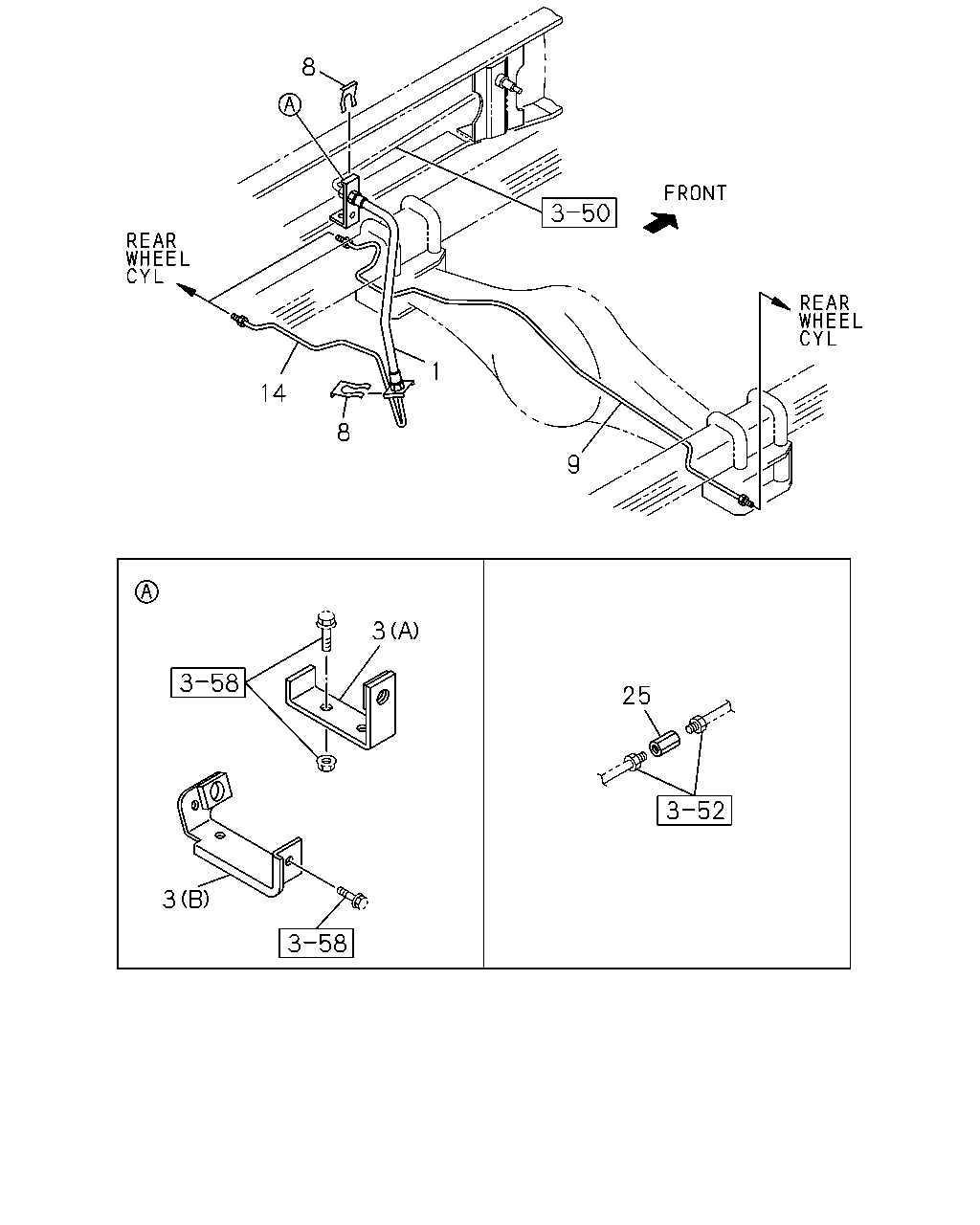

çizim 119682
8 1 14 8 9 3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=370 THA 		8-97035-574-0 01 1 0803- ● ●
3 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE<6TD> (B) 		8-97251-436-0 01 1 0803- ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE<6TD> (A) 		8-97205-198-0 01 1 0803- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 0803- ●
8 CLIP; RR BRK 8-97360-054-0 02 1 0803- ● ●
9 PIPE; BRK,RR AXLE
THA 		8-98021-864-0 01 1 0803- ●
9 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> THA 		8-98067-256-0 01 1 0803- ●
9 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> THA 		8-98021-873-0 01 1 0803- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
THA 		8-98021-860-0 01 1 0803- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM<G73> THA 		8-98067-255-0 01 1 0803- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM<6CP> THA 		8-98021-872-0 01 1 0803- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0803- ● ●
