Isuzu WW
▶
TRUCKS
▶
NLR
▶
51168 - NLR/NMR(THAILAND)
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#74431) — 17 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

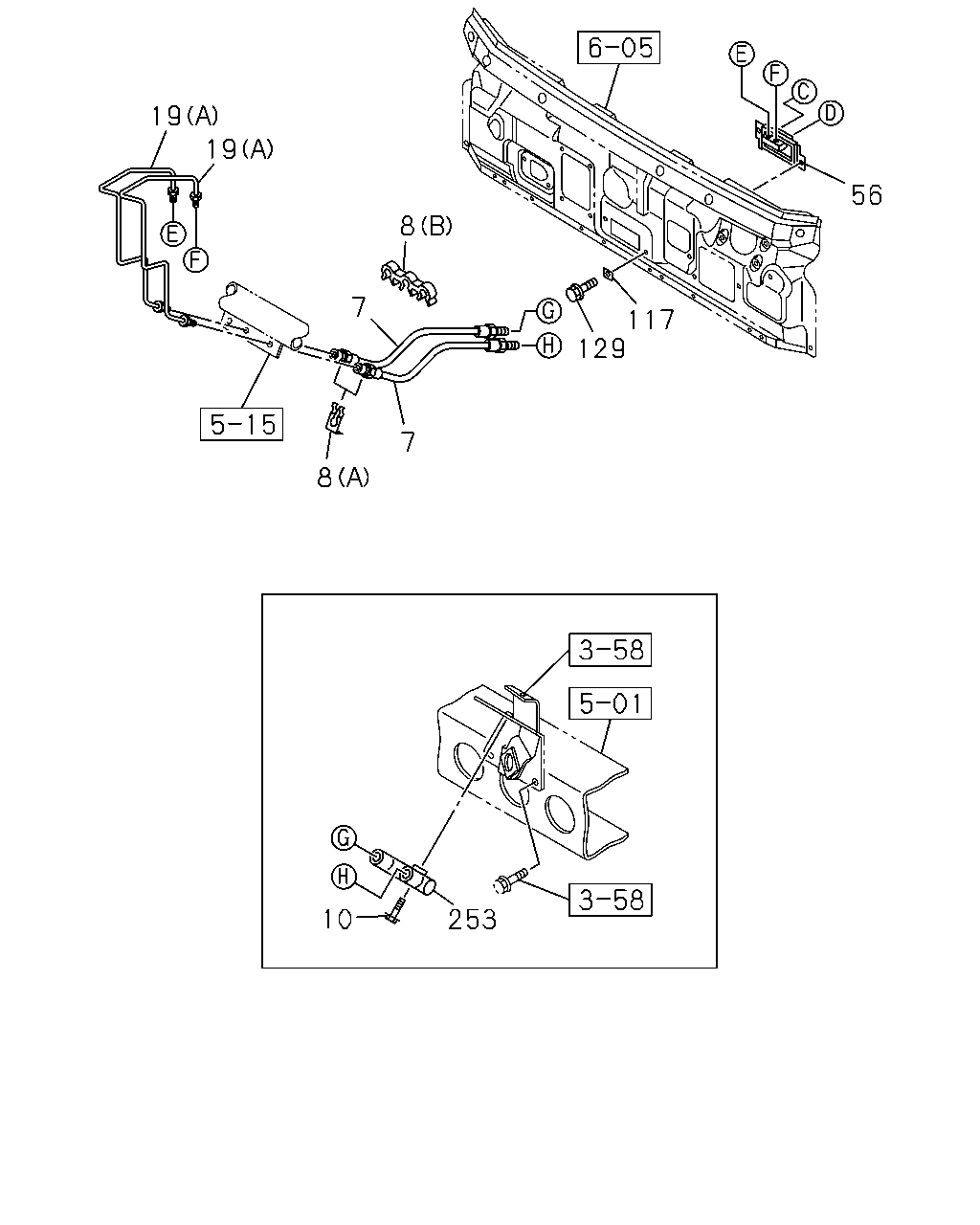

[350A] CAB OUTSIDE (12 parça)

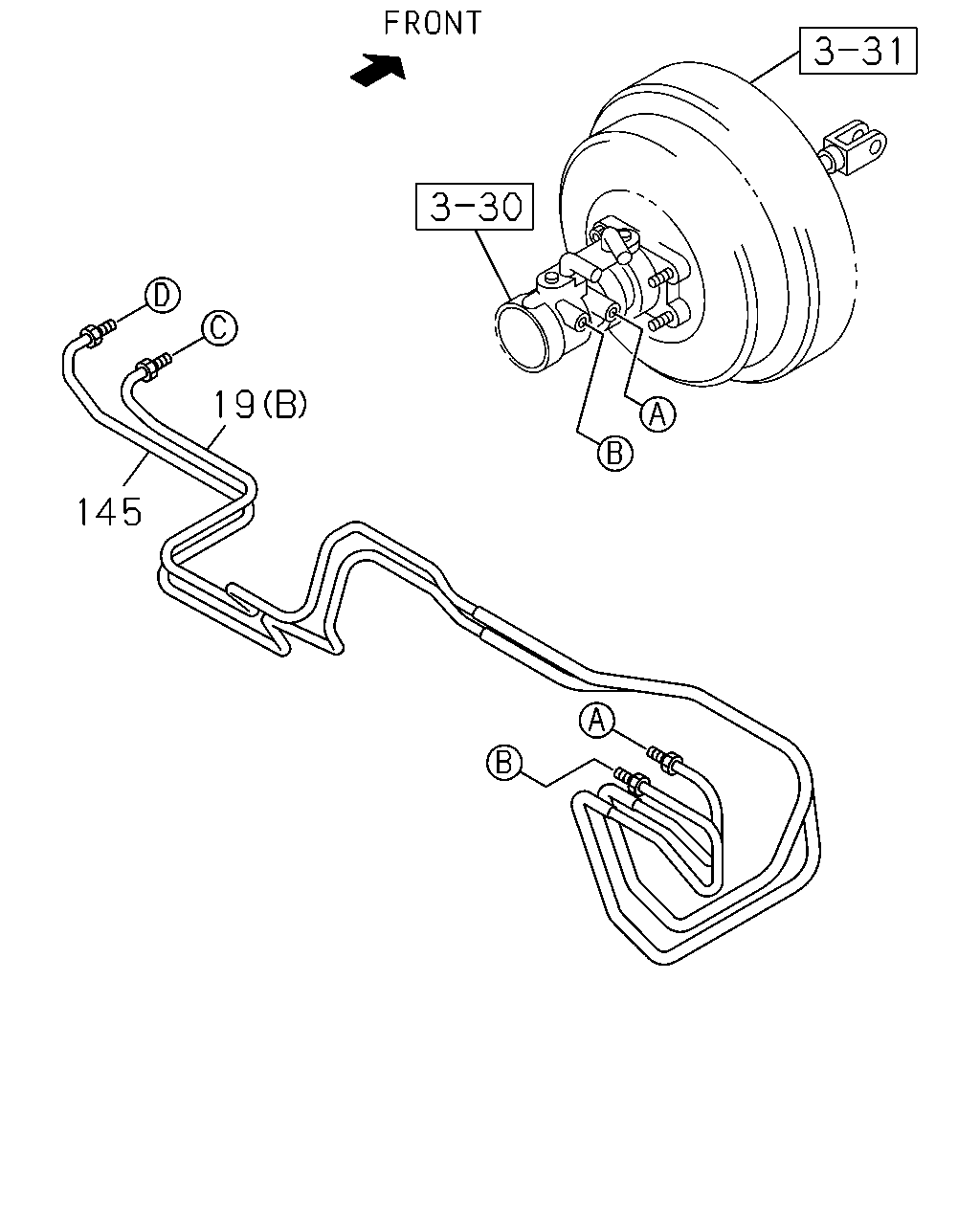

[350A] CAB INSIDE (5 parça)
▶
19
19
56
8
7
117
129
7
8
10
253
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
8-98033-732-0
02
1
0803-
●
●
8
CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0803-
●
●
8
CLIP; FLEX HOSE,CABLE SIDE
(B)
8-98056-614-0
01
1
0803-
●
●
10
BOLT; JOINT
M6X40 FLANGE
0-28650-640-0
01
1
0803-
●
●
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
1208-
●
●
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
0803-1207
●
●
19
PIPE; BRK,M/CYL TO UNION
(A) THA
8-98012-095-1
02
1
0803-
●
●
56
BRACKET; UNION,BRK
8-97389-281-1
01
1
0803-1005
●
●
56
BRACKET; UNION,BRK
8-98154-264-1
01
1
1006-
●
●
117
SEAL; UNION,BRK PIPE JOINT
8-97856-616-0
02
1
0803-
●
●
129
BOLT; BRKT
M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
0803-
●
●
253
JOINT
5-47456-009-1
01
1
0803-
●
●
19
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
1208-
●
●
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
0803-1207
●
●
19
PIPE; BRK,M/CYL TO UNION
(A) THA
8-98012-095-1
02
1
0803-
●
●
145
PIPE; BRK,METERING VLV TO UNION
THA
8-97389-295-3
01
1
1208-
●
●
145
PIPE; BRK,METERING VLV TO UNION
THA
8-97389-295-3
01
1
0803-1207
●
●
