Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#7443) — 299 parça

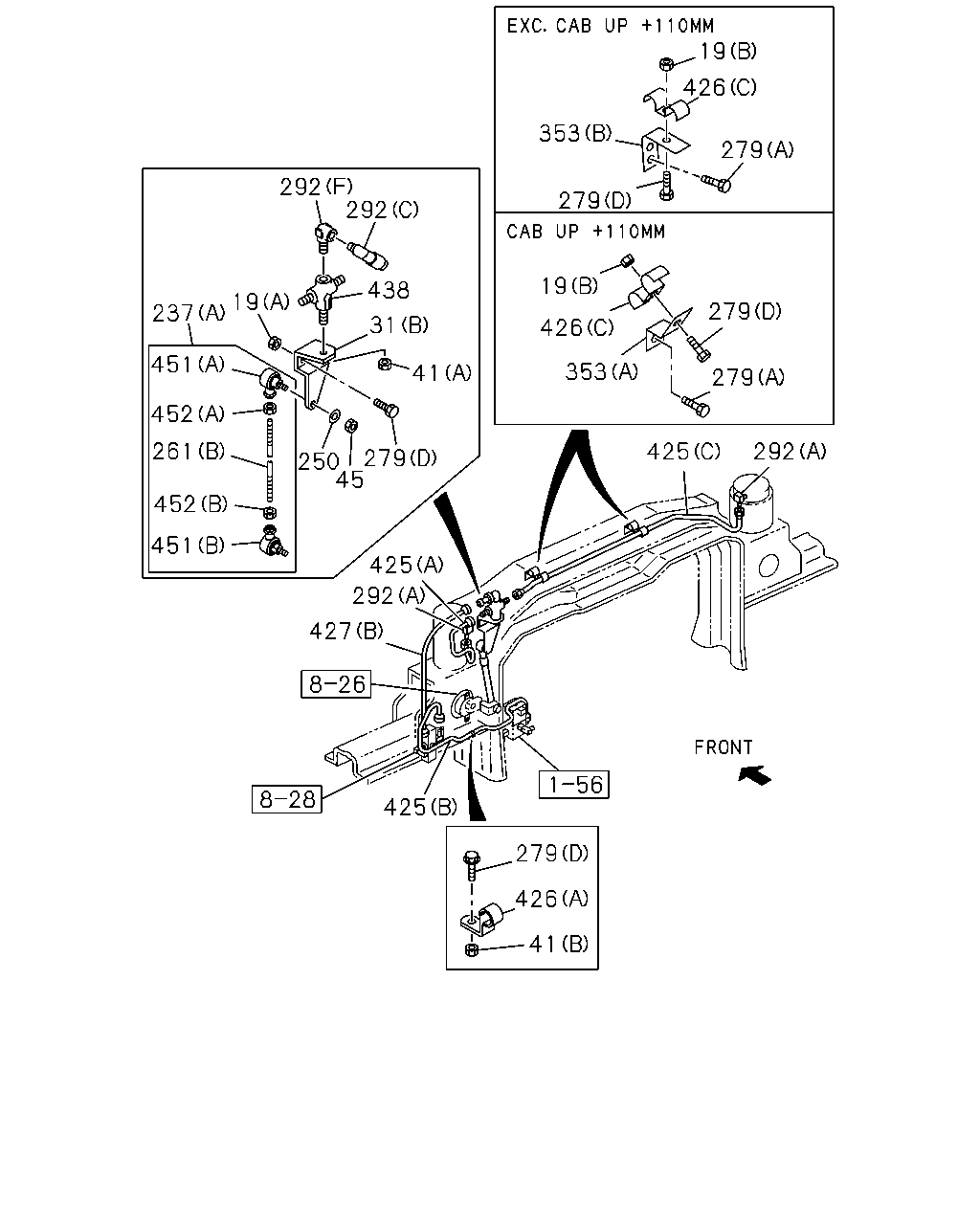

19 426 353 279 292 292 279 19 438 19 279 237 31 426 451 353 41 279 452 261 292 425 250 279 45 452 451 425 292 427 425 279 426 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	NUT FULL FLOATING CAB(W16) (A) M8 FLANGE	0-91150-108-0	02	1	9812-
19	NUT FULL FLOATING CAB(W16) (B) M8	9-09110-508-0	02	1	9812-
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9812-
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-0	01	1	9812-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-0	01	1	9812-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-0	01	1	9812-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9812-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	9812-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9812-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9812-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9812-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9812-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9812-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-507-0	01	1	9812-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-514-0	01	1	9812-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9812-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (G) M8X25 FLANGE	0-28680-825-0	03	1	9902-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9812-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9812-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9812-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	9812-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9812-
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9812-9902
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-
353	BRACKET CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A)	1-47478-232-0	02	1	9812-
353	BRACKET FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=55	1-47475-304-0	02	1	9812-
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C) L=1376	1-49119-625-0	01	1	9812-
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=831	1-49121-297-0	01	1	9812-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=375	1-49116-899-0	01	1	9812-9904
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=357	1-49121-862-0	01	1	9905-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C) L=1353	1-49116-898-0	01	1	9812-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=776	1-49121-296-0	01	1	9812-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9812-
426	CLIP FULL FLOATING CAB(W16) (C) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9812-9904
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 H=20 L=20	5-09700-351-0	02	1	9812-
426	CLIP FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	9812-9905
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	9906-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9812-
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9812-9904
427	TUBE FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9812-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	9812-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9812-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9812-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9812-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	9812-

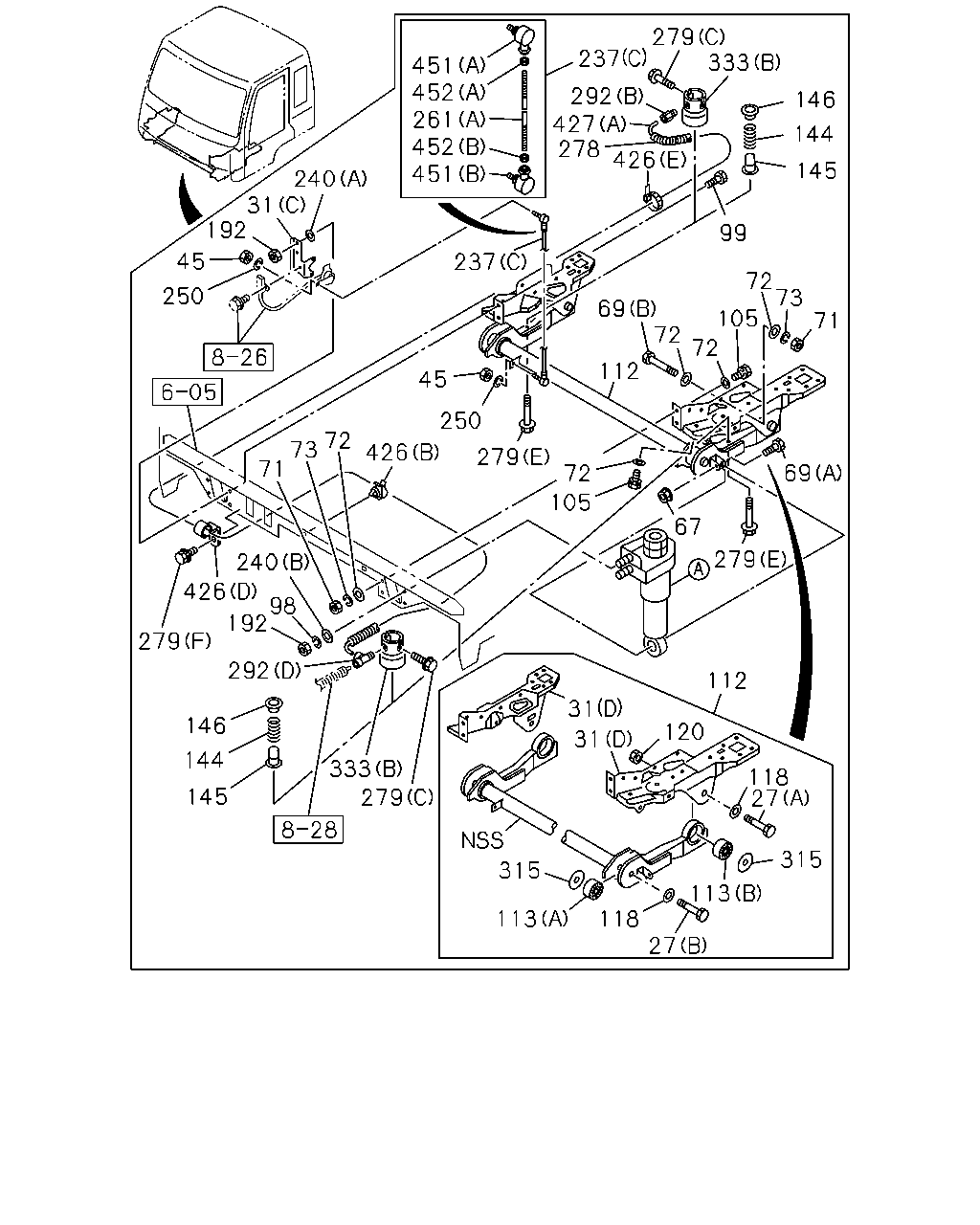

279 333 237 451 452 261 45 451 292 427 278 146 144 426 145 240 31 192 99 45 237 72 73 250 69 72 105 71 72 112 45 250 72 73 71 426 279 69 72 105 67 279 240 426 98 192 279 292 112 31 146 120 31 144 333 279 118 27 145 315 315 113 118 27 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	9812-
27	BOLT; BUSHING (A) M18X100	9-91066-800-0	02	1	9812-0104
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X100	9-91066-800-0	02	1	0105-0105
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	0105-0105
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0106-
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9812-
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-0	01	1	9812-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-0	01	1	9812-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-0	01	1	9812-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9812-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9812-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9812-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9812-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	9812-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	9812-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	9812-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	9812-
99	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9812-
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	15	1	9812-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-569-6	01	1	9812-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-567-6	01	1	9812-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	9812-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	9812-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	9812-
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	9812-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	9812-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	9812-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	9812-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	9812-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9812-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9812-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9812-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9812-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9812-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9812-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9812-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-507-0	01	1	9812-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-514-0	01	1	9812-
278	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9812-9905
278	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9812-9905
278	COVER FULL FLOATING CAB(W16) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9812-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (G) M8X25 FLANGE	0-28680-825-0	03	1	9902-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9812-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9812-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9812-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	9812-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9812-
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9812-9902
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	9812-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-1	02	1	9812-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-1	02	1	9812-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9812-
426	CLIP FULL FLOATING CAB(W16) (C) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9812-9904
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 H=20 L=20	5-09700-351-0	02	1	9812-
426	CLIP FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	9812-9905
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	9906-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9812-
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9812-9904
427	TUBE FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9812-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9812-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9812-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9812-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	9812-

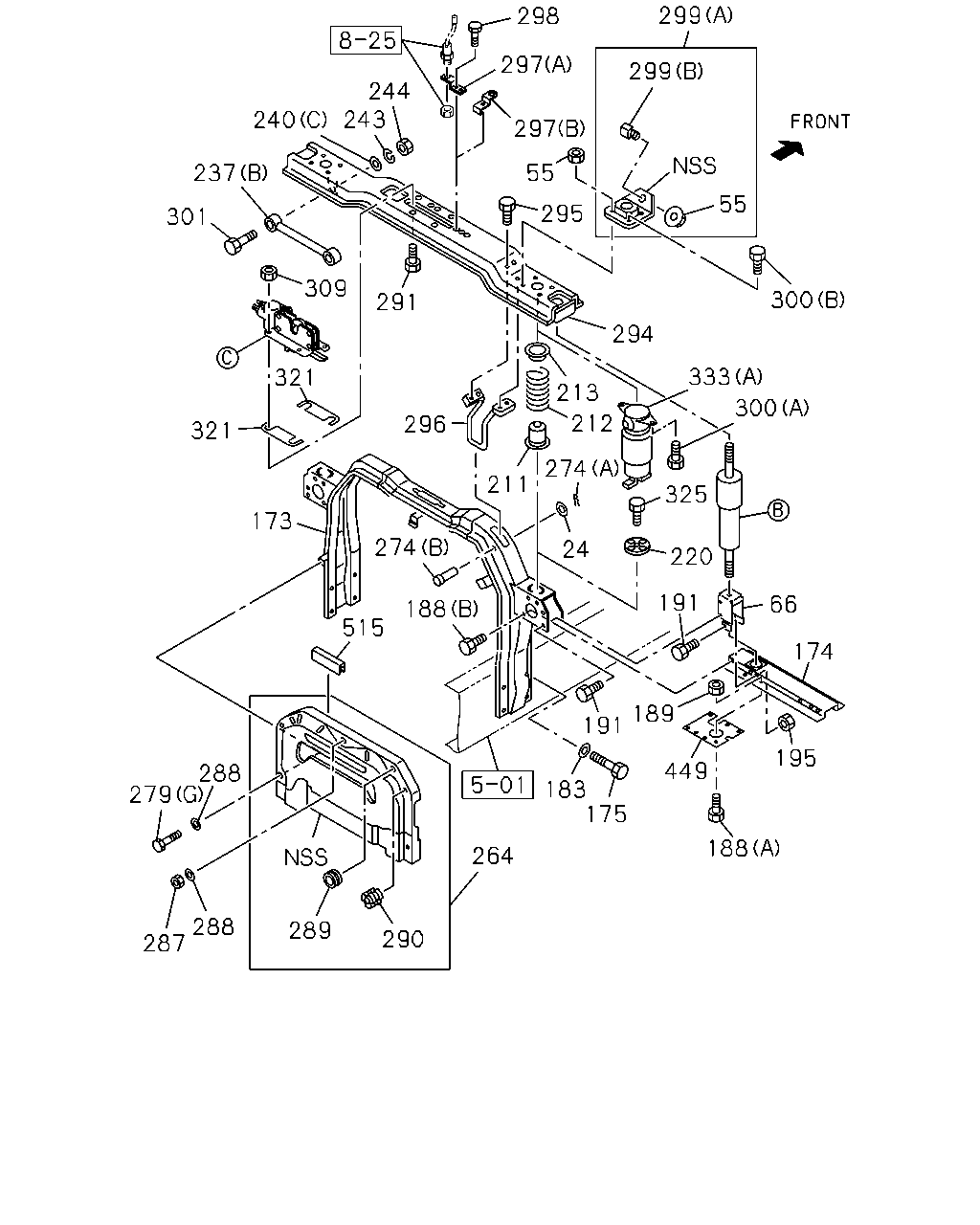

299 298 297 299 244 243 240 297 55 237 55 295 301 309 300 291 294 333 321 213 300 212 296 321 211 274 325 173 274 24 220 191 66 188 515 174 189 191 195 449 288 183 175 279 188 264 288 287 289 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	WASHER; PL ID=12.5	9-09160-512-0	01	1	9812-
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	9812-
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-755-1	01	1	9812-
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-786-0	01	1	9812-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-594-0	01	1	9812-9903
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-612-2	01	1	9904-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-595-0	01	1	9812-9903
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-614-2	01	1	9904-
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-564-0	01	1	9812-9903
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-617-0	01	1	9904-9904
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-622-2	01	1	9905-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-570-0	01	1	9812-9903
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-616-0	01	1	9904-9904
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-621-1	01	1	9905-
174	OUTRIGGER	1-53456-277-3	01	1	9812-
174	OUTRIGGER	1-53456-278-3	01	1	9812-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9812-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	9812-
188	BOLT; OUTRIGGER (B) M10X25 FLANGE	0-28681-025-0	08	1	9812-
188	BOLT; OUTRIGGER SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (A) M10X20 FLANGE	0-28681-020-0	08	1	9812-
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X20 FLANGE	0-28681-020-0	04	1	9812-
189	NUT; OUTRIGGER SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	08	1	9812-
189	NUT; OUTRIGGER CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	04	1	9812-
191	BOLT; BRKT FIX CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	07	1	9812-
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	9812-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	9812-
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	9812-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	9812-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	9812-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9812-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9812-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9812-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9812-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9812-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9812-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	9812-
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	9812-
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53193-618-0	01	1	9812-
274	PIN (A)	1-09987-158-1	01	1	9812-
274	PIN (B) OD=12 L=72	9-08234-272-0	01	1	9812-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9812-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (G) M8X25 FLANGE	0-28680-825-0	03	1	9902-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9812-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9812-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9812-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	9812-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9812-
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9812-
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	04	1	9812-
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9812-
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9812-
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	9812-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-2	01	1	9812-9903
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	9904-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-740-2	01	1	9812-9903
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	9904-
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28680-820-0	04	1	9812-
296	STOPPER; UPR	1-53458-382-0	01	1	9812-
297	BRACKET; LIMIT SW (A)	1-53458-348-0	01	1	9812-9901
297	BRACKET; LIMIT SW (B)	1-53458-782-0	01	1	9902-
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9812-9901
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9902-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	9812-
299	RUBBER; MTG (A)	1-53366-156-0	02	1	9812-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28080-816-0	04	1	9812-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9812-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) (B) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9812-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	9812-
309	NUT M10 FLANGE	0-91150-210-0	04	1	9812-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	9812-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	9812-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-1	02	1	9812-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-1	02	1	9812-
449	BRACKET; OUTRIGGER SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG>	1-53456-279-0	02	1	8912-
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>	1-53456-279-0	01	1	9812-
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=150	1-76710-004-0	02	1	9812-0103
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=150	1-76710-004-0	01	1	0104-
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=300	1-76710-006-0	01	1	0104-

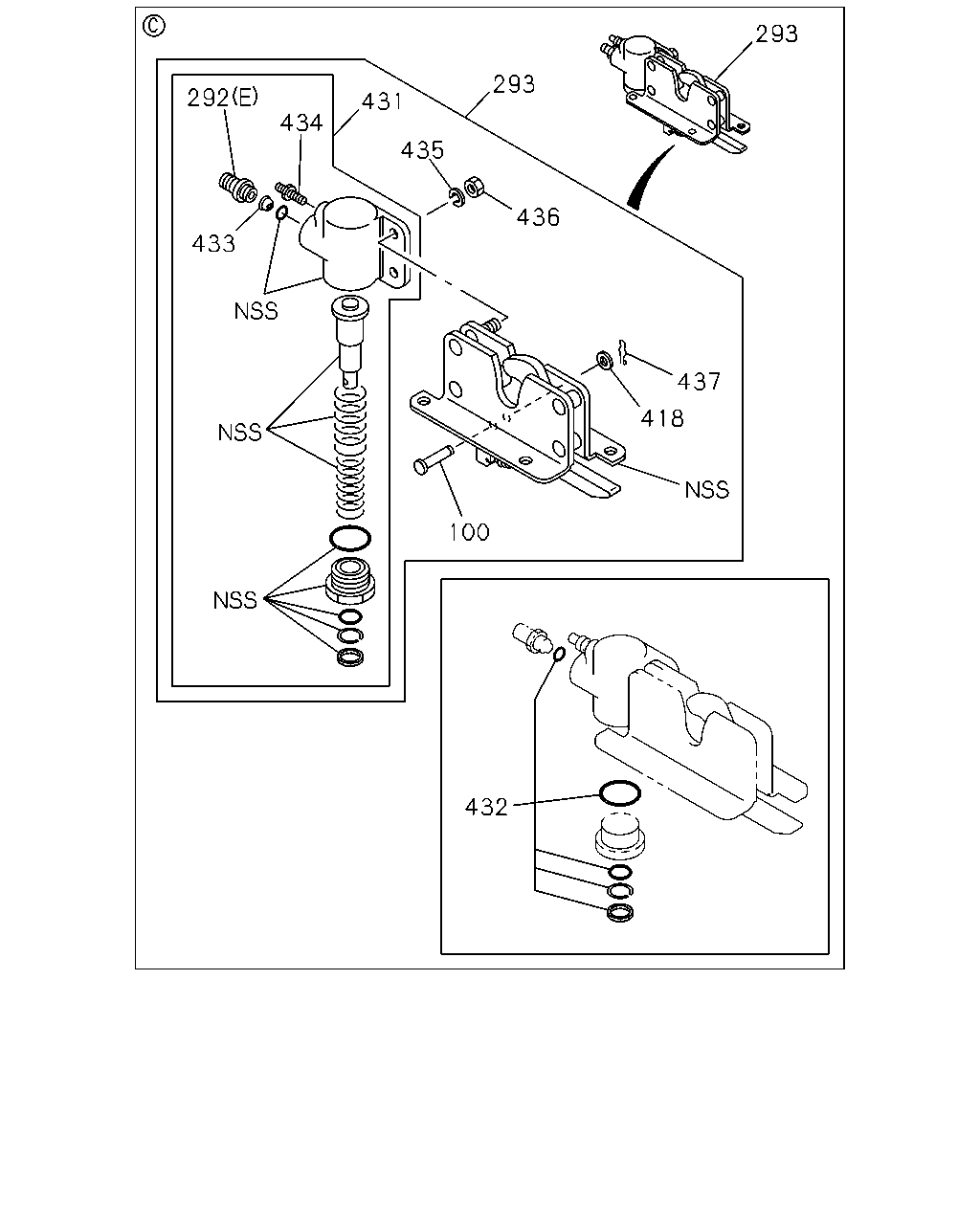

293 293 292 431 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	9812-
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9812-9902
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9812-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9812-9902
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9903-
418	WASHER; PL,PIN	1-53458-059-0	01	1	9812-
431	CYLINDER; AIR,RATCH	1-53458-539-0	01	1	9812-9902
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	9903-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	9812-
433	FILTER; AIR CYL	1-53458-048-0	01	1	9812-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	9812-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	9812-
436	NUT; AIR CYL	1-53458-528-0	02	1	9812-
437	PIN; SNAP	1-53458-526-0	01	1	9812-

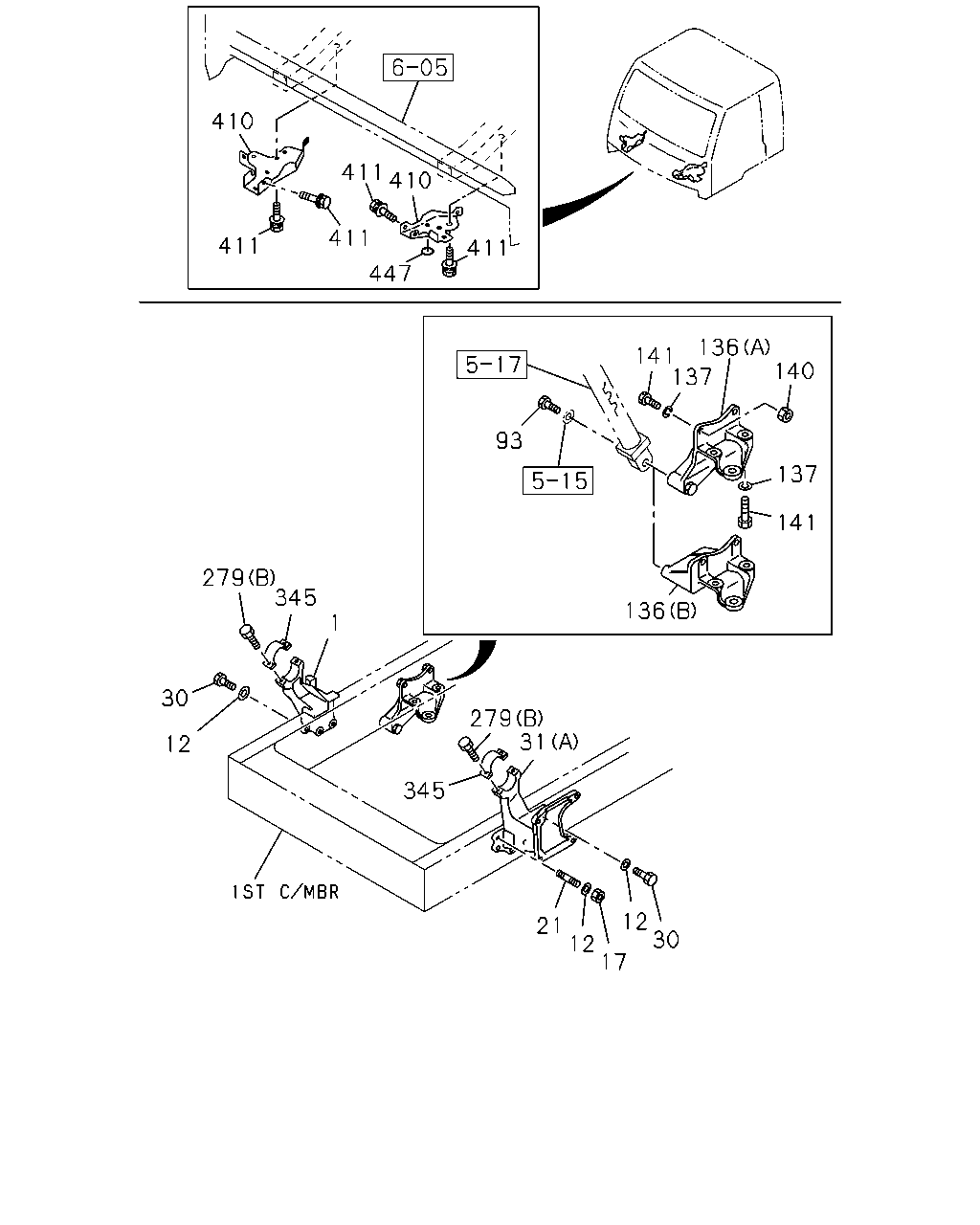

410 411 410 411 411 411 447 136 140 141 137 93 137 141 279 345 136 1 30 279 31 12 345 12 30 21 12 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB UP +110MM<TGG>	1-53453-306-1	01	1	9812-
1	BRACKET; CAB MTG EXC. CAB UP +110MM<TGG>	1-53453-275-1	01	1	9812-
12	WASHER; LK,BRKT CAB UP +110MM<TGG> ID=16.2	1-09503-223-0	11	1	9812-
12	WASHER; LK,BRKT EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	11	1	9812-
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	9812-
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	9-99110-514-0	01	1	9812-
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> M16X50 L=74	1-09300-117-0	01	1	9812-
21	STUD; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14X48 L=75	1-09300-094-0	01	1	9812-
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> M16X45	9-92061-645-0	10	1	9812-
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> M14X45	9-92061-445-0	10	1	9812-
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9812-
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9812-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-0	01	1	9812-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-0	01	1	9812-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-0	01	1	9812-
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	9812-
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28681-020-0	01	1	9812-
136	BRACKET; OIL CYL (B)	1-53458-903-0	01	1	9812-9901
136	BRACKET; OIL CYL 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B)	1-53458-903-0	01	1	9902-9909
136	BRACKET; OIL CYL TRANSMISSION-ZF 16S221 OD(Y1U) EXC. CAB UP +110MM<TGG> (B)	1-53458-903-0	01	1	9910-9910
136	BRACKET; OIL CYL CAB UP +110MM<TGG> (B)	1-53458-903-0	01	1	9911-
136	BRACKET; OIL CYL 6WA1 TC-S(56L) (A)	1-53458-653-0	01	1	9905-9906
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	9812-9909
137	WASHER; PL,BRKT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	04	1	9910-9910
137	WASHER; PL,BRKT CAB UP +110MM<TGG> ID=15	9-09651-069-0	04	1	9911-
140	NUT; BRKT M14	9-99110-514-0	02	1	9812-9909
140	NUT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. CAB UP +110MM<TGG> M14	9-99110-514-0	02	1	9910-9910
140	NUT; BRKT CAB UP +110MM<TGG> M14	9-99110-514-0	02	1	9911-
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	9812-9909
141	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. CAB UP +110MM<TGG> M14X50	9-92061-450-0	04	1	9910-9910
141	BOLT; BRKT CAB UP +110MM<TGG> M14X50	9-92061-450-0	04	1	9911-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9812-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (G) M8X25 FLANGE	0-28680-825-0	03	1	9902-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9812-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9812-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9812-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	9812-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9812-
345	CAP; CAB	1-53458-336-3	02	1	9812-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	9812-
410	REINFORCEMENT; CAB TILT	1-62570-939-0	01	1	9812-
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9812-
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9812-
447	SEAL OD=25 BLACK	1-76798-019-0	02	1	9812-

202 202 203 204 205 204 203 201 203 204 205 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9812-
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	9812-
202	NUT; S/ABS (B) M10	9-09110-410-0	04	1	9812-
202	NUT; S/ABS (C) M10	9-09111-410-0	06	1	9812-
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	9812-
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	9812-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9812-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9812-

202 202 203 69 72 204 205 70 65 204 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9812-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9812-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9812-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	9812-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	9812-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	9812-
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	9812-
202	NUT; S/ABS (B) M10	9-09110-410-0	04	1	9812-
202	NUT; S/ABS (C) M10	9-09111-410-0	06	1	9812-
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	9812-
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	9812-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9812-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
