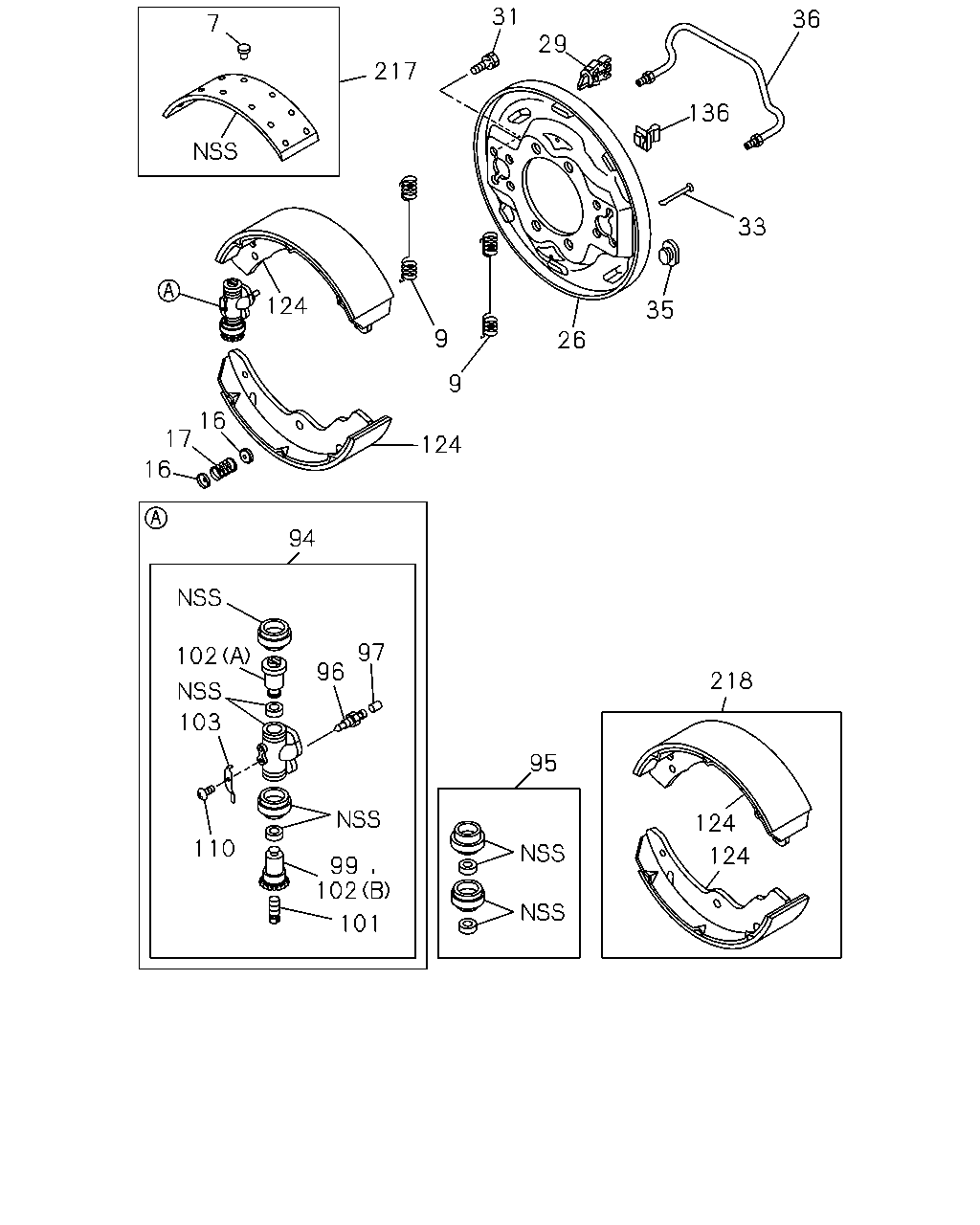

3-05 — REAR WHEEL BRAKE (#74424) — 77 parça

31 36 7 29 217 136 33 124 35 9 26 9 16 17 124 16 94 97 102 96 218 103 95 124 110 124 99 102 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	RIVET; LINING,RR BRK REAR AXLE HEAVY DUTY 320MM<6CP>	1-09732-029-0	40	1	0803-	●
9	SPRING; RETURN,BRK SHOE	8-97078-739-0	04	1	0803-		●
9	SPRING; RETURN,BRK SHOE REAR AXLE HEAVY DUTY 292MM<G73>	8-97078-739-0	04	1	0803-	●
9	SPRING; RETURN,BRK SHOE REAR AXLE HEAVY DUTY 320MM<6CP>	5-09583-118-0	04	1	0803-	●
16	CUP; SHOE HOLDING	9-47162-033-0	08	1	0803-		●
16	CUP; SHOE HOLDING REAR AXLE HEAVY DUTY 292MM<G73>	9-47162-033-0	08	1	0803-	●
16	CUP; SHOE HOLDING REAR AXLE HEAVY DUTY 320MM<6CP>	9-47165-096-0	08	1	0803-	●
17	SPRING; SHOE HOLD DOWN	9-09940-989-1	04	1	0803-		●
17	SPRING; SHOE HOLD DOWN REAR AXLE HEAVY DUTY 292MM<G73>	9-09940-989-1	04	1	0803-	●
17	SPRING; SHOE HOLD DOWN REAR AXLE HEAVY DUTY 320MM<6CP>	5-09580-101-1	04	1	0803-	●
26	PLATE; BACK,RR BRK	8-97093-935-0	01	1	0803-		●
26	PLATE; BACK,RR BRK	8-97093-934-0	01	1	0803-		●
26	PLATE; BACK,RR BRK REAR AXLE HEAVY DUTY 292MM<G73>	8-97078-680-0	01	1	0803-	●
26	PLATE; BACK,RR BRK REAR AXLE HEAVY DUTY 292MM<G73>	8-97078-679-0	01	1	0803-	●
26	PLATE; BACK,RR BRK REAR AXLE HEAVY DUTY 320MM<6CP>	8-97078-608-0	01	1	0803-	●
26	PLATE; BACK,RR BRK REAR AXLE HEAVY DUTY 320MM<6CP>	8-97078-607-0	01	1	0803-	●
29	CLIP; PIPE,BRK	8-94128-307-0	02	1	0803-		●
29	CLIP; PIPE,BRK REAR AXLE HEAVY DUTY 292MM<G73>	8-94128-307-0	02	1	0803-	●
29	CLIP; PIPE,BRK REAR AXLE HEAVY DUTY 320MM<6CP>	8-94128-306-0	02	1	0803-	●
31	BOLT; RR WHEEL CYL	5-09030-036-1	16	1	0803-		●
31	BOLT; RR WHEEL CYL REAR AXLE HEAVY DUTY 292MM<G73>	5-09030-036-1	16	1	0803-	●
31	BOLT; RR WHEEL CYL REAR AXLE HEAVY DUTY 320MM<6CP>	8-97078-643-0	16	1	0803-	●
33	PIN; SHOE HOLD DOWN	9-47162-607-0	04	1	0803-		●
33	PIN; SHOE HOLD DOWN REAR AXLE HEAVY DUTY 292MM<G73>	9-47162-607-0	04	1	0803-	●
33	PIN; SHOE HOLD DOWN REAR AXLE HEAVY DUTY 320MM<6CP>	5-47162-001-0	04	1	0803-	●
35	GROMMET; CHECK HOLE	8-94344-919-0	02	1	0803-		●
35	GROMMET; CHECK HOLE REAR AXLE HEAVY DUTY 292MM<G73>	8-94344-919-0	02	1	0803-	●
35	GROMMET; CHECK HOLE REAR AXLE HEAVY DUTY 320MM<6CP>	8-94171-287-0	02	1	0803-	●
36	PIPE; OIL,RR BRK THA	8-97940-695-0	02	1	0803-		●
36	PIPE; OIL,RR BRK REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97940-695-0	02	1	0803-	●
36	PIPE; OIL,RR BRK REAR AXLE HEAVY DUTY 320MM<6CP> THA	8-97940-696-0	02	1	0803-	●
94	CYLINDER; WHEEL,RR BRK	8-97179-337-0	02	1	0803-		●
94	CYLINDER; WHEEL,RR BRK FRONT	8-97179-335-0	01	1	0803-		●
94	CYLINDER; WHEEL,RR BRK REAR	8-97179-336-0	01	1	0803-		●
94	CYLINDER; WHEEL,RR BRK REAR AXLE HEAVY DUTY 292MM<G73>	8-97139-842-0	02	1	0803-	●
94	CYLINDER; WHEEL,RR BRK REAR AXLE HEAVY DUTY 292MM<G73> FRONT	8-97139-840-0	01	1	0803-	●
94	CYLINDER; WHEEL,RR BRK REAR AXLE HEAVY DUTY 292MM<G73> REAR	8-97139-841-0	01	1	0803-	●
94	CYLINDER; WHEEL,RR BRK REAR AXLE HEAVY DUTY 320MM<6CP> ID=30.16(1 3/16")	8-97139-817-0	02	1	0803-	●
94	CYLINDER; WHEEL,RR BRK REAR AXLE HEAVY DUTY 320MM<6CP> FRONT ID=30.16(1 3/16")	8-97139-814-0	01	1	0803-	●
94	CYLINDER; WHEEL,RR BRK REAR AXLE HEAVY DUTY 320MM<6CP> REAR ID=30.16(1 3/16")	8-97139-816-0	01	1	0803-	●
95	CUP SET; RR WHEEL CYL	5-87831-625-0	01	1	0803-		●
95	CUP SET; RR WHEEL CYL REAR AXLE HEAVY DUTY 292MM<G73>	5-87831-621-0	01	1	0803-	●
95	CUP SET; RR WHEEL CYL REAR AXLE HEAVY DUTY 320MM<6CP>	5-87831-598-0	02	1	0803-	●
96	SCREW; BLEEDER,RR BRK	8-98050-476-0	01	1	0803-	●	●
97	CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	0803-	●	●
99	PISTON; RR WHEEL CYL	8-97081-149-0	03	1	0803-		●
99	PISTON; RR WHEEL CYL REAR AXLE HEAVY DUTY 292MM<G73>	8-97078-698-0	03	1	0803-	●
99	PISTON; RR WHEEL CYL REAR AXLE HEAVY DUTY 320MM<6CP>	8-94414-700-1	03	1	0803-	●
101	SCREW; ADJ,RR WHEEL CYL	8-97078-623-0	04	1	0803-		●
101	SCREW; ADJ,RR WHEEL CYL REAR AXLE HEAVY DUTY 292MM<G73>	8-97078-623-0	04	1	0803-	●
101	SCREW; ADJ,RR WHEEL CYL REAR AXLE HEAVY DUTY 320MM<6CP>	8-94414-702-0	04	1	0803-	●
102	PISTON; REAR WHEEL CYL (A) D=22.22	8-94128-533-1	04	1	0803-		●
102	PISTON; REAR WHEEL CYL REAR AXLE HEAVY DUTY 292MM<G73> (A) D=25.4	8-94128-531-1	04	1	0803-	●
102	PISTON; REAR WHEEL CYL REAR AXLE HEAVY DUTY 320MM<6CP> (A) D=30.16	8-94414-701-1	04	1	0803-0810	●
102	PISTON; REAR WHEEL CYL REAR AXLE HEAVY DUTY 320MM<6CP> (A)	8-97078-045-0	04	1	0811-	●
102	PISTON; REAR WHEEL CYL (B)	8-97081-149-0	01	1	0803-		●
102	PISTON; REAR WHEEL CYL REAR AXLE HEAVY DUTY 292MM<G73> (B)	8-97078-698-0	01	1	0803-	●
102	PISTON; REAR WHEEL CYL REAR AXLE HEAVY DUTY 320MM<6CP> (B)	8-94414-700-1	01	1	0803-	●
103	SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	0803-1401	●	●
103	SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	1402-		●
103	SPRING; LK,RR WHEEL CYL,ADJ REAR AXLE HEAVY DUTY 292MM<G73>	8-94128-486-0	04	1	1402-	●
103	SPRING; LK,RR WHEEL CYL,ADJ REAR AXLE HEAVY DUTY 320MM<6CP>	8-94128-486-0	04	1	0803-	●
110	SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	0803-1401	●	●
110	SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	1402-		●
110	SCREW; LOCK SPRING,RR WHEEL CYL REAR AXLE HEAVY DUTY 292MM<G73>	8-94128-727-0	04	1	1402-	●
110	SCREW; LOCK SPRING,RR WHEEL CYL REAR AXLE HEAVY DUTY 320MM<6CP>	8-94128-727-0	04	1	0803-	●
124	SHOE ASM; BRK,RR	8-97035-085-1	04	1	0803-		●
124	SHOE ASM; BRK,RR REAR AXLE HEAVY DUTY 292MM<G73>	8-97035-085-1	04	1	0803-	●
124	SHOE ASM; BRK,RR REAR AXLE HEAVY DUTY 320MM<6CP>	8-97287-778-0	04	1	0803-	●
136	GROMMET	9-09956-640-0	04	1	0803-		●
136	GROMMET REAR AXLE HEAVY DUTY 292MM<G73>	9-09956-640-0	04	1	0803-	●
136	GROMMET REAR AXLE HEAVY DUTY 320MM<6CP>	9-09756-034-0	04	1	0803-	●
217	LINING KIT; RR BRK REAR AXLE HEAVY DUTY 320MM<6CP>	5-87831-801-0	01	1	0803-	●
217	LINING KIT; RR BRK REAR AXLE HEAVY DUTY 320MM<6CP> BEST VALUE PARTS	5-87610-121-0	01	1	0803-	●
218	SHOE KIT; BRK,RR	5-87832-045-0	01	1	0803-		●
218	SHOE KIT; BRK,RR REAR AXLE HEAVY DUTY 292MM<G73>	5-87832-045-0	01	1	0803-	●
218	SHOE KIT; BRK,RR REAR AXLE HEAVY DUTY 320MM<6CP>	5-87832-047-0	01	1	0803-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
