2-85 — POWER TAKE OFF CONTROL (#74422) — 69 parça

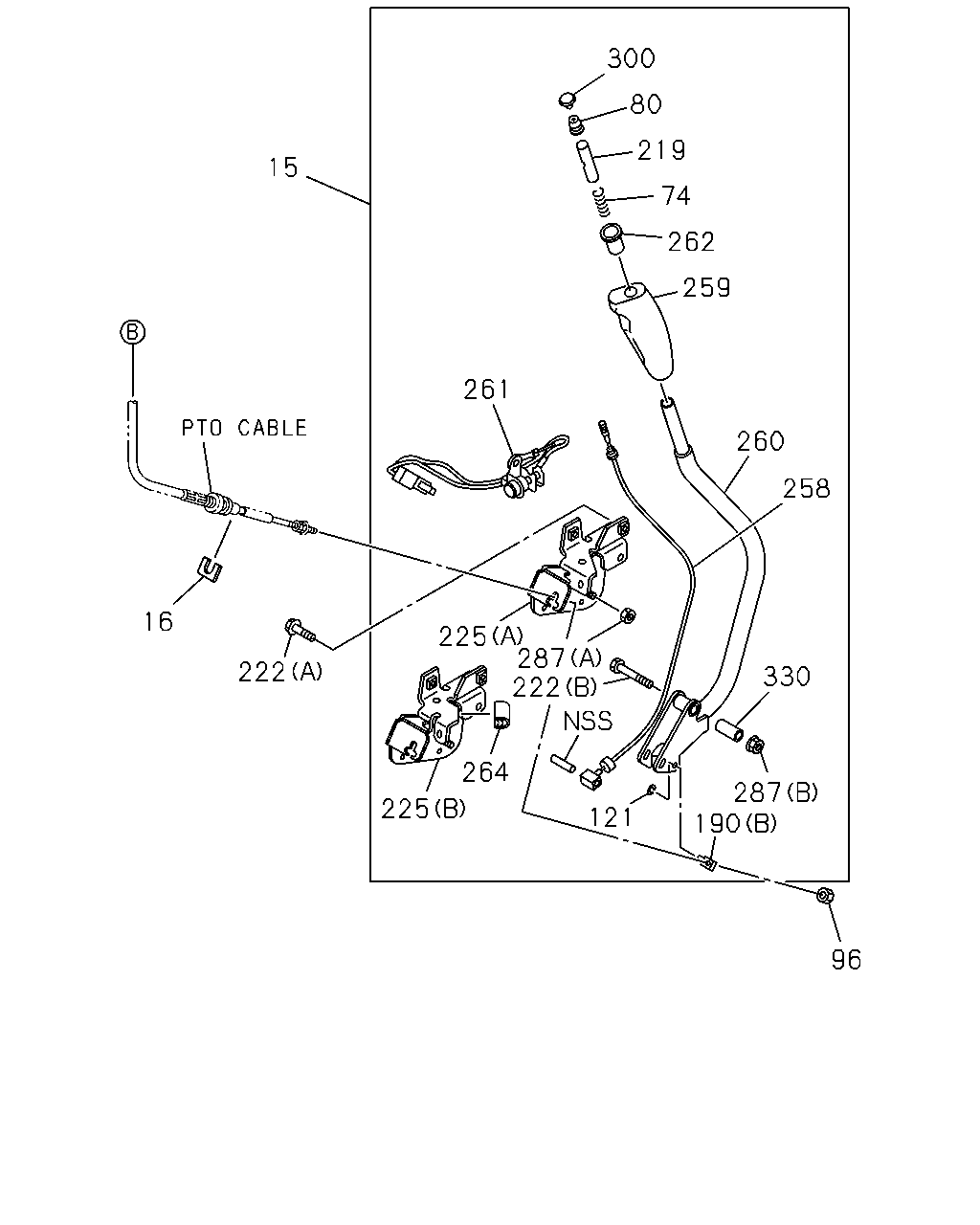

300 80 219 74 262 259 260 258 330 287 190 121 225 264 222 225 287 222 16 15 261 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98029-208-6	01	1	0803-1006	●	●
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL<6WC>	8-98029-208-7	01	1	1007-1204	●	●
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL<6WC>	8-98199-362-0	01	1	1205-	●	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98050-126-0	01	1	0803-	●	●
74	SPRING; RETURN,CONT LEVER PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98029-874-0	01	1	0803-1006	●	●
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL<6WC>	8-98029-874-0	01	1	1007-	●	●
80	COVER; CONT LEVER PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97122-741-0	01	1	0803-1006	●	●
80	COVER; CONT LEVER PTO MANUAL CONTROL<6WC>	8-97122-741-0	01	1	1007-	●	●
96	NUT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M6 THA	0-91110-506-0	01	1	0803-	●	●
121	RING; SNAP PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=4	0-91805-504-0	01	1	0803-1006	●	●
121	RING; SNAP PTO MANUAL CONTROL<6WC> ID=4	0-91805-504-0	01	1	1007-	●	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66> (A)	8-94366-842-2	01	1	0803-	●	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (B)	8-98029-878-0	01	1	0803-1006	●	●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL<6WC> (B)	8-98029-878-0	01	1	1007-	●	●
219	KNOB; LEVER PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97122-736-0	01	1	0803-1006	●	●
219	KNOB; LEVER PTO MANUAL CONTROL<6WC>	8-97122-736-0	01	1	1007-	●	●
222	BOLT; LEVER PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (B) M8X60	0-10855-860-0	01	1	0803-1006	●	●
222	BOLT; LEVER PTO MANUAL CONTROL<6WC> (B) M8X60	0-10855-860-0	01	1	1007-	●	●
222	BOLT; LEVER PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (A) M8X20 FLANGE THA	0-28650-820-0	03	1	0803-1006	●	●
222	BOLT; LEVER PTO MANUAL CONTROL<6WC> (A) M8X20 FLANGE THA	0-28650-820-0	03	1	1007-	●	●
225	BRACKET; CONT LEVER PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (A)	8-98029-873-2	01	1	0803-1006	●	●
225	BRACKET; CONT LEVER PTO MANUAL CONTROL<6WC> (A)	8-98029-873-3	01	1	1007-1204	●	●
225	BRACKET; CONT LEVER PTO MANUAL CONTROL<6WC> (B)	8-98152-960-1	01	1	1205-	●	●
258	CABLE; DUMP CONT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98029-877-1	01	1	0803-1006	●	●
258	CABLE; DUMP CONT PTO MANUAL CONTROL<6WC>	8-98029-877-1	01	1	1007-	●	●
259	GRIP; CONT LEVER PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97141-653-0	01	1	0803-1006	●	●
259	GRIP; CONT LEVER PTO MANUAL CONTROL<6WC>	8-97141-653-0	01	1	1007-	●	●
260	LEVER; DUMP CONT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98030-057-2	01	1	0803-1006	●	●
260	LEVER; DUMP CONT PTO MANUAL CONTROL<6WC>	8-98030-057-2	01	1	1007-	●	●
261	SWITCH; DUMP CONT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98081-918-0	01	1	0803-1006	●	●
261	SWITCH; DUMP CONT PTO MANUAL CONTROL<6WC>	8-98081-918-0	01	1	1007-	●	●
262	RETAINER; SPRING PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97129-397-0	01	1	0803-1006	●	●
262	RETAINER; SPRING PTO MANUAL CONTROL<6WC>	8-97129-397-0	01	1	1007-	●	●
264	PROTECTOR; EDGE PTO MANUAL CONTROL<6WC>	8-98211-652-0	01	1	1205-	●	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (A) M6 THA	0-91110-506-0	01	1	0803-1006	●	●
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL<6WC> (A) M6 THA	0-91110-506-0	01	1	1007-	●	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (B) M8 FLANGE THA	0-91180-208-0	01	1	0803-1006	●	●
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL<6WC> (B) M8 FLANGE THA	0-91180-208-0	01	1	1007-	●	●
300	CAP; KNOB PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97122-740-0	01	1	0803-1006	●	●
300	CAP; KNOB PTO MANUAL CONTROL<6WC>	8-97122-740-0	01	1	1007-	●	●
330	COLOR; DUMP CONT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98049-802-0	01	1	0803-1006	●	●
330	COLOR; DUMP CONT PTO MANUAL CONTROL<6WC>	8-98049-802-0	01	1	1007-	●	●

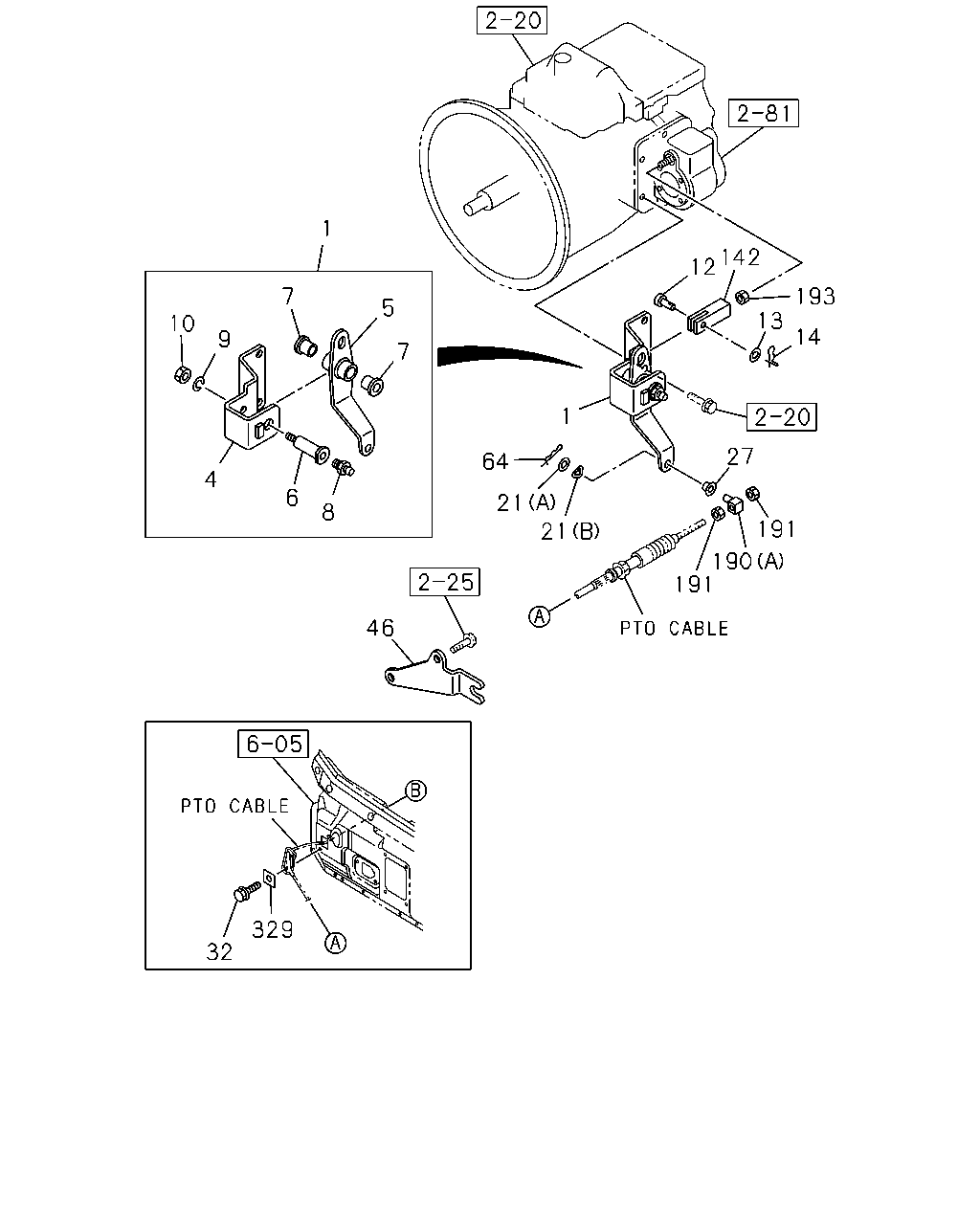

1 142 12 193 7 5 13 10 14 9 7 1 27 64 4 6 21 21 8 191 190 191 46 329 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98032-714-0	01	1	0803-1107	●	●
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98150-089-1	01	1	1108-	●	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98032-717-0	01	1	0803-1107	●	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98150-099-1	01	1	1108-	●	●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98032-718-0	01	1	0803-	●	●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98032-720-0	01	1	0803-1107	●	●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98150-101-0	01	1	1108-	●	●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	5-33659-053-0	02	1	0803-	●	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M6 STRAIGHT THA	0-90301-406-0	01	1	0803-	●	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8.2 THA	0-91510-508-0	01	1	0803-	●	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 THA	0-91110-508-0	01	1	0803-	●	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98031-692-0	01	1	0803-	●	●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=12.5 OD=22	0-91610-512-0	01	1	0803-	●	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97581-216-0	01	1	0803-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22 THA	0-91614-708-0	01	1	0803-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0803-	●	●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94367-367-0	01	1	0803-	●	●
32	BOLT; CLIP,CABLE PTO MANUAL CONTROL<6WC> M6X16 FLANGE	0-28060-616-0	02	1	0803-	●	●
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98032-829-2	01	1	0803-	●	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0803-	●	●
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98031-691-0	01	1	0803-	●	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66> (A)	8-94366-842-2	01	1	0803-	●	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (B)	8-98029-878-0	01	1	0803-1006	●	●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL<6WC> (B)	8-98029-878-0	01	1	1007-	●	●
191	NUT; BOSS PTO TRANSMISSION SIDE<V66> M6 THA	0-91110-506-0	02	1	0803-	●	●
193	NUT PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M12	0-91111-512-0	01	1	0803-	●	●
329	SEAL PTO MANUAL CONTROL<6WC>	8-97856-616-0	02	1	0803-	●	●
