2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#74421) — 48 parça

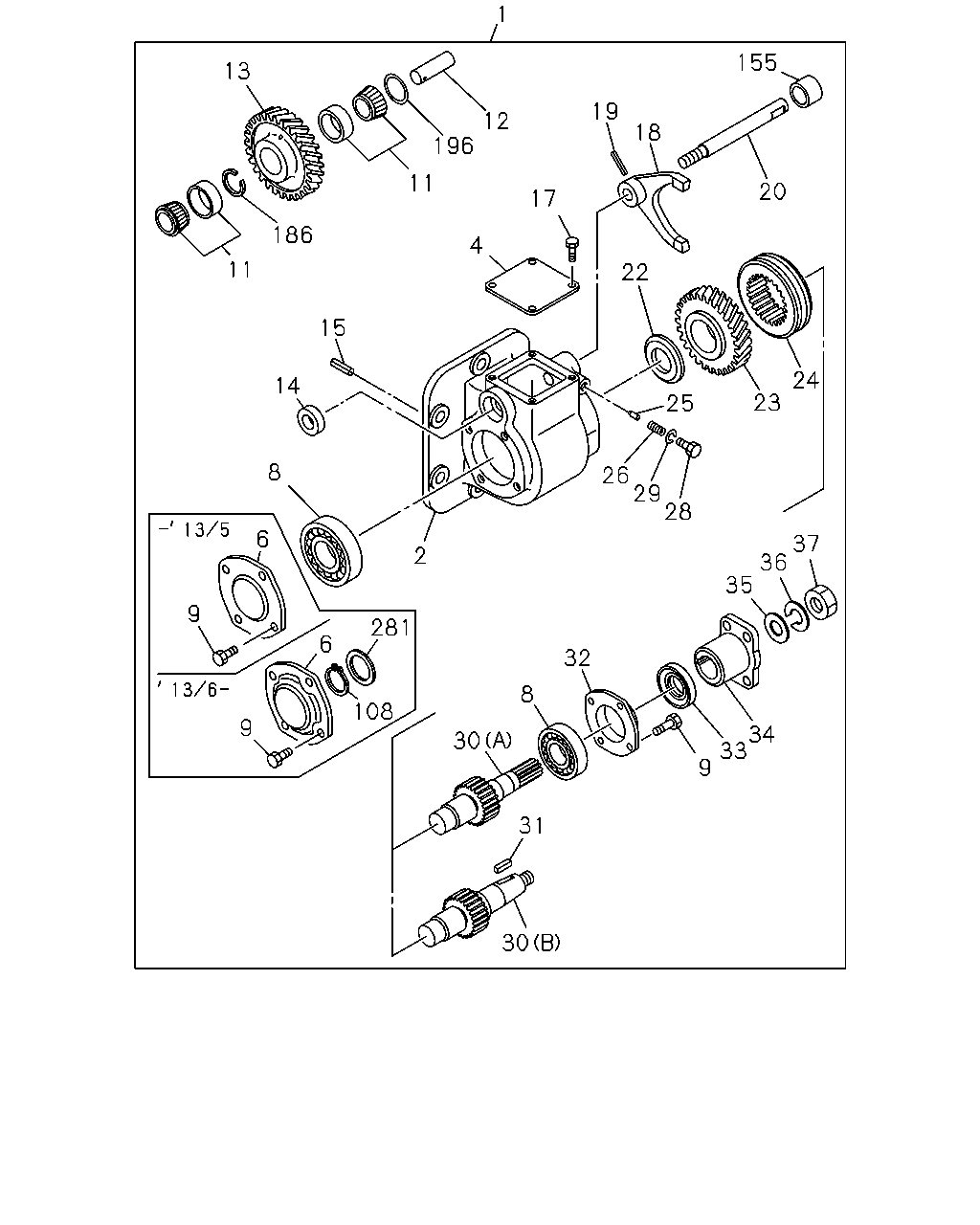

çizim 185622
30 31 30 8 32 9 33 34 35 36 37 28 29 26 25 23 24 22 18 19 20 155 1 12 196 11 4 17 13 186 11 15 14 8 2 281 108 6 9 9 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IDENTIFICATION=YG 		8-97286-908-7 01 1 0803-1210 ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IDENTIFICATION=YG 		8-98223-523-0 01 1 1211-1305 ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IDENTIFICATION=YG 		8-98233-783-1 01 1 1306- ● ●
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97308-689-2 01 1 0803-1409 ● ●
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98282-381-0 01 1 1410- ● ●
4 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98046-613-0 01 1 0803- ● ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98046-612-0 01 1 0803-1305 ● ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98233-778-0 01 1 1306- ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=25 OD=62 		8-94343-031-1 02 1 0803- ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X20 FLANGE THA 		0-28050-820-0 08 1 0803- ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NSK 		8-97106-734-0 02 1 0803- ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		9-38211-606-0 01 1 0803- ● ●
13 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=31 		8-97308-700-0 01 1 0803- ● ●
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98028-789-0 01 1 0803- ● ●
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=16 		9-09878-613-0 01 1 0803- ● ●
17 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X20 FLANGE THA 		0-28050-820-0 04 1 0803- ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97224-702-0 01 1 0803- ● ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=25 OD=5 		8-94135-771-0 01 1 0803- ● ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98046-623-0 01 1 0803- ● ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		9-38245-603-1 01 1 0803- ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=27 		8-97308-714-0 01 1 0803-0805 ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=27 		8-98120-609-0 01 1 0806- ● ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97231-316-1 01 1 0803- ● ●
25 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-94169-071-0 01 1 0803- ● ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		9-09940-380-0 01 1 0803- ● ●
28 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 		8-98038-424-0 01 1 0803- ● ●
29 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8.2 THA 		0-91510-808-0 01 1 0803- ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-97118-183-1 01 1 0803-1210 ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		8-98223-518-0 01 1 1211-1305 ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		8-98233-777-0 01 1 1306- ● ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=25 		8-98068-088-0 01 1 1211- ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97305-794-0 01 1 0803- ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-38159-007-0 01 1 0803- ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98046-624-0 01 1 0803-1210 ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98223-519-0 01 1 1211- ● ●
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=15 		0-91610-514-0 01 1 0803- ● ●
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=14.2 		0-91510-814-0 01 1 0803- ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M14 		0-91111-514-0 01 1 0803- ● ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=23.2 		9-09180-025-0 01 1 1306- ● ●
155 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98037-770-0 01 1 0803- ● ●
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97106-730-0 01 1 0803- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.50 		8-97106-724-0 02 1 0803- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.60 		8-97106-725-0 02 1 0803- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.65 		8-97106-726-0 02 1 0803- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.70 		8-97106-727-0 02 1 0803- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.80 		8-97106-728-0 02 1 0803- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.85 		8-97106-729-0 02 1 0803- ● ●
281 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.85 		8-97106-729-0 01 1 1306- ● ●
