◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#7442) — 237 parça

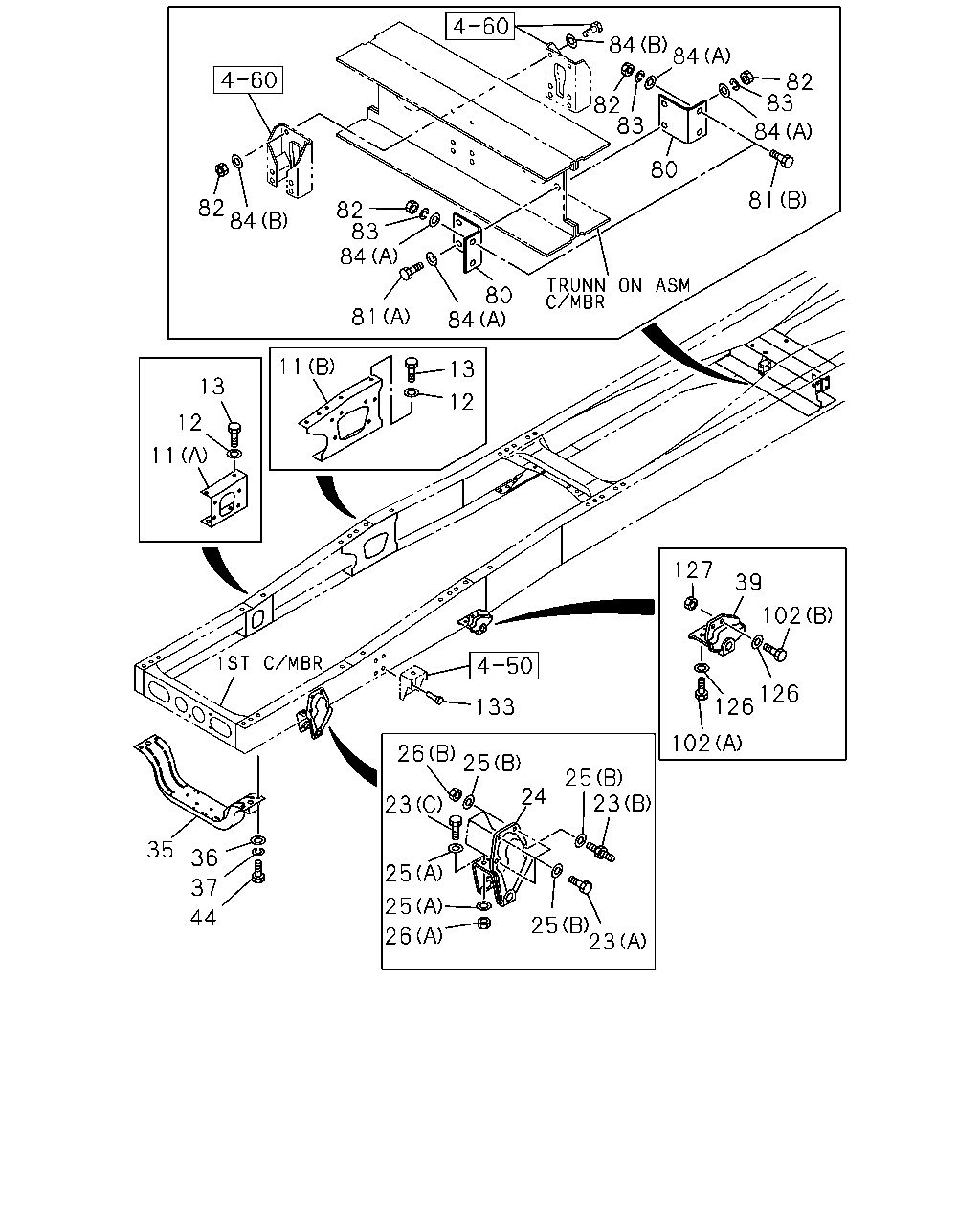

çizim 8529
84 84 82 83 82 83 84 80 81 82 84 82 83 84 80 84 81 11 13 13 12 12 11 127 39 102 126 126 133 102 26 25 25 23 24 23 35 36 25 37 25 44 25 23 26
BalonParca AdiParca NoAdetTipApplied Date A B
11 BRACKET; ENG MTG
(A) 		1-53219-778-0 01 1 9812-9901 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) 		1-53219-778-0 01 1 9902-9909 ● ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) 		1-53219-778-0 01 1 9910-9910 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) 		1-53219-778-0 01 1 9910-9910 ●
11 BRACKET; ENG MTG
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53219-778-0 01 1 9911-9912 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (A) 		1-53219-778-0 01 1 9911-9912 ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-778-0 01 1 0001- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-942-0 01 1 9812-9901 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) 		1-53219-942-0 01 1 9902-9909 ● ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) 		1-53219-942-0 01 1 9910-9910 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) 		1-53219-942-0 01 1 9910-9910 ●
11 BRACKET; ENG MTG
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53219-942-0 01 1 9911-9912 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (B) 		1-53219-942-0 01 1 9911-9912 ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (B) 		1-53219-942-1 01 1 0001- ● ●
11 BRACKET; ENG MTG
(A) 		1-53219-777-0 01 1 9812-9901 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) 		1-53219-777-0 01 1 9902-9909 ● ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) 		1-53219-777-0 01 1 9910-9910 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) 		1-53219-777-0 01 1 9910-9910 ●
11 BRACKET; ENG MTG
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53219-777-0 01 1 9911-9912 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (A) 		1-53219-777-0 01 1 9911-9912 ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-777-0 01 1 0001- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-941-0 01 1 9812-9901 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) 		1-53219-941-0 01 1 9902-9909 ● ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) 		1-53219-941-0 01 1 9910-9910 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) 		1-53219-941-0 01 1 9910-9910 ●
11 BRACKET; ENG MTG
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53219-941-0 01 1 9911-9912 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (B) 		1-53219-941-0 01 1 9911-9912 ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (B) 		1-53219-941-0 01 1 0001- ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (A) 		1-53219-472-1 01 1 9905-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (B) 		1-53219-966-0 01 1 9905-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (A) 		1-53219-471-0 01 1 9905-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (B) 		1-53219-965-0 01 1 9905-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 04 1 9812-9909 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> ID=15 		9-09651-069-0 04 1 9910-9910 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ID=15 		9-09651-069-0 04 1 9910-9910 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> ID=15 		9-09651-069-0 04 1 9911-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ID=15 		9-09651-069-0 04 1 9911-9912 ●
12 WASHER; PL,BRKT,ENG MTG
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 04 1 0001- ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 04 1 9812-9909 ● ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> M14X40 		9-92061-440-0 04 1 9910-9910 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> M14X40 		9-92061-440-0 04 1 9910-9910 ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> M14X40 		9-92061-440-0 04 1 9911-9912 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> M14X40 		9-92061-440-0 04 1 9911-9912 ●
13 BOLT; BRKT,ENG MTG
CAB UP +110MM<TGG> M14X40 		9-92061-440-0 04 1 0001- ● ●
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9812-9909 ● ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9910-9910 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9910-9910 ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9911-9912 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9911-9912 ●
23 BOLT; BRKT,SPR
CAB UP +110MM<TGG> (B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 0001- ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 04 1 9812-9909 ● ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) M14X40 		9-92061-440-0 04 1 9910-9910 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) M14X40 		9-92061-440-0 04 1 9910-9910 ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M14X40 		9-92061-440-0 04 1 9911-9912 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (A) M14X40 		9-92061-440-0 04 1 9911-9912 ●
23 BOLT; BRKT,SPR
CAB UP +110MM<TGG> (A) M14X40 		9-92061-440-0 04 1 0001- ● ●
23 BOLT; BRKT,SPR
(C) M16X50 		9-92061-650-0 04 1 9812-9909 ● ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> (C) M16X50 		9-92061-650-0 04 1 9910-9910 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (C) M16X50 		9-92061-650-0 04 1 9910-9910 ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (C) M16X50 		9-92061-650-0 04 1 9911-9912 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (C) M16X50 		9-92061-650-0 04 1 9911-9912 ●
23 BOLT; BRKT,SPR
CAB UP +110MM<TGG> (C) M16X50 		9-92061-650-0 04 1 0001- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 9812-9909 ● ●
24 BRACKET; FRT SPR,FRT
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53351-220-0 01 1 9910-9910 ●
24 BRACKET; FRT SPR,FRT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53351-220-0 01 1 9910-9910 ●
24 BRACKET; FRT SPR,FRT
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53351-220-0 01 1 9911-9912 ●
24 BRACKET; FRT SPR,FRT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53351-220-0 01 1 9911-9912 ●
24 BRACKET; FRT SPR,FRT
CAB UP +110MM<TGG> 		1-53351-220-0 01 1 0001- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 9812-9909 ● ●
24 BRACKET; FRT SPR,FRT
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53351-219-0 01 1 9910-9910 ●
24 BRACKET; FRT SPR,FRT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53351-219-0 01 1 9910-9910 ●
24 BRACKET; FRT SPR,FRT
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53351-219-0 01 1 9911-9912 ●
24 BRACKET; FRT SPR,FRT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53351-219-0 01 1 9911-9912 ●
24 BRACKET; FRT SPR,FRT
CAB UP +110MM<TGG> 		1-53351-219-0 01 1 0001- ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 9812-9909 ● ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) ID=16.2 		1-09503-223-0 08 1 9910-9910 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) ID=16.2 		1-09503-223-0 08 1 9910-9910 ●
25 WASHER; PL,BRKT
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) ID=16.2 		1-09503-223-0 08 1 9911-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (A) ID=16.2 		1-09503-223-0 08 1 9911-9912 ●
25 WASHER; PL,BRKT
CAB UP +110MM<TGG> (A) ID=16.2 		1-09503-223-0 08 1 0001- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 9812-9909 ● ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 16 1 9910-9910 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 16 1 9910-9910 ●
25 WASHER; PL,BRKT
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=15 		9-09651-069-0 16 1 9911-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 16 1 9911-9912 ●
25 WASHER; PL,BRKT
CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 16 1 0001- ● ●
26 NUT; BRKT,SPR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M16 		9-99110-516-0 04 1 0001-0001 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. RR TIRE 12.00-20<98X> (A) M16 		9-99110-516-0 08 1 0001- ●
26 NUT; BRKT,SPR
(B) M14 		9-99110-514-0 08 1 9812-9909 ● ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) M14 		9-99110-514-0 08 1 9910-9910 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) M14 		9-99110-514-0 08 1 9910-9910 ●
26 NUT; BRKT,SPR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) M14 		9-99110-514-0 08 1 9911-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (B) M14 		9-99110-514-0 08 1 9911-9912 ●
26 NUT; BRKT,SPR
CAB UP +110MM<TGG> (B) M14 		9-99110-514-0 08 1 0001- ● ●
26 NUT; BRKT,SPR
(A) M16 		9-99110-516-0 08 1 9812-9909 ● ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) M16 		9-99110-516-0 08 1 9910-9910 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) M16 		9-99110-516-0 08 1 9910-9910 ●
26 NUT; BRKT,SPR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M16 		9-99110-516-0 08 1 9911-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (A) M16 		9-99110-516-0 08 1 9911-9912 ●
26 NUT; BRKT,SPR
CAB UP +110MM<TGG> (A) M16 		9-99110-516-0 08 1 0001-0001 ● ●
26 NUT; BRKT,SPR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M16 		9-99110-516-0 04 1 0001- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (A) M16 		9-99110-516-0 04 1 0001- ●
35 MEMBER; UNDER 1-53174-263-2 01 1 9812- ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 9812- ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 04 1 9812- ● ●
39 BRACKET; FRT SPR,RR 1-53352-147-0 01 1 9812-9909 ● ●
39 BRACKET; FRT SPR,RR
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53352-147-0 01 1 9910-9910 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53352-147-0 01 1 9910-9910 ●
39 BRACKET; FRT SPR,RR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53352-147-0 01 1 9911-9912 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53352-147-0 01 1 9911-9912 ●
39 BRACKET; FRT SPR,RR
CAB UP +110MM<TGG> 		1-53352-147-0 01 1 0001- ● ●
39 BRACKET; FRT SPR,RR 1-53352-146-0 01 1 9812-9909 ● ●
39 BRACKET; FRT SPR,RR
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53352-146-0 01 1 9910-9910 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53352-146-0 01 1 9910-9910 ●
39 BRACKET; FRT SPR,RR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53352-146-0 01 1 9911-9912 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53352-146-0 01 1 9911-9912 ●
39 BRACKET; FRT SPR,RR
CAB UP +110MM<TGG> 		1-53352-146-0 01 1 0001- ● ●
44 BOLT; UNDER MBR
M16X45 		9-92061-645-0 04 1 9812- ● ●
80 BRACKET; C/MBR 1-53167-081-5 04 1 9812-9912 ● ●
80 BRACKET; C/MBR 1-53167-610-0 04 1 0001- ● ●
81 BOLT; BRKT
(A) M14X55 		9-91066-455-0 04 1 9812- ● ●
81 BOLT; BRKT
(B) M14X38 		9-92061-438-0 08 1 9812- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 04 1 9812-9909 ● ●
82 NUT; BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> M14 		9-99110-514-0 04 1 9910-9910 ●
82 NUT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> M14 		9-99110-514-0 04 1 9910-9910 ●
82 NUT; BRKT
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> M14 		9-99110-514-0 04 1 9911-9912 ●
82 NUT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> M14 		9-99110-514-0 04 1 9911-9912 ●
82 NUT; BRKT
CAB UP +110MM<TGG> M14 		9-99110-514-0 04 1 0001- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 12 1 9812- ● ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 12 1 9812- ● ●
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		9-09164-514-0 16 1 9812- ● ●
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 08 1 9812-9909 ● ●
84 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 08 1 9910-9910 ●
84 WASHER; PL,BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 08 1 9910-9910 ●
84 WASHER; PL,BRKT
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=15 		9-09651-069-0 08 1 9911-9912 ●
84 WASHER; PL,BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 08 1 9911-9912 ●
84 WASHER; PL,BRKT
CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 08 1 0001- ● ●
102 BOLT; BRKT,RR SPR
(B) M14X40 		9-92061-440-0 04 1 9812-9909 ● ●
102 BOLT; BRKT,RR SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) M14X40 		9-92061-440-0 04 1 9910-9910 ●
102 BOLT; BRKT,RR SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (B) M14X40 		9-92061-440-0 04 1 9910-9910 ●
102 BOLT; BRKT,RR SPR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) M14X40 		9-92061-440-0 04 1 9911-9912 ●
102 BOLT; BRKT,RR SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (B) M14X40 		9-92061-440-0 04 1 9911-9912 ●
102 BOLT; BRKT,RR SPR
CAB UP +110MM<TGG> (B) M14X40 		9-92061-440-0 04 1 0001- ● ●
102 BOLT; BRKT,RR SPR
(A) M14X50 		9-92061-450-0 04 1 9812-9909 ● ●
102 BOLT; BRKT,RR SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) M14X50 		9-92061-450-0 04 1 9910-9910 ●
102 BOLT; BRKT,RR SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) M14X50 		9-92061-450-0 04 1 9910-9910 ●
102 BOLT; BRKT,RR SPR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M14X50 		9-92061-450-0 04 1 9911-9912 ●
102 BOLT; BRKT,RR SPR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (A) M14X50 		9-92061-450-0 04 1 9911-9912 ●
102 BOLT; BRKT,RR SPR
CAB UP +110MM<TGG> (A) M14X50 		9-92061-450-0 04 1 0001- ● ●
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 08 1 9812-9909 ● ●
126 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 9910-9910 ●
126 WASHER; PL,BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 9910-9910 ●
126 WASHER; PL,BRKT
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> ID=15 		9-09651-069-0 08 1 9911-9912 ●
126 WASHER; PL,BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 9911-9912 ●
126 WASHER; PL,BRKT
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 0001- ● ●
127 NUT; BRKT
CAB UP +110MM<TGG> M14 		9-99110-514-0 02 1 0001- ● ●
133 RIVET; BRKT
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9812-9909 ● ●
133 RIVET; BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9910-9910 ●
133 RIVET; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9910-9910 ●
133 RIVET; BRKT
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9911-9912 ●
133 RIVET; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9911-9912 ●
133 RIVET; BRKT
CAB UP +110MM<TGG> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0001- ● ●

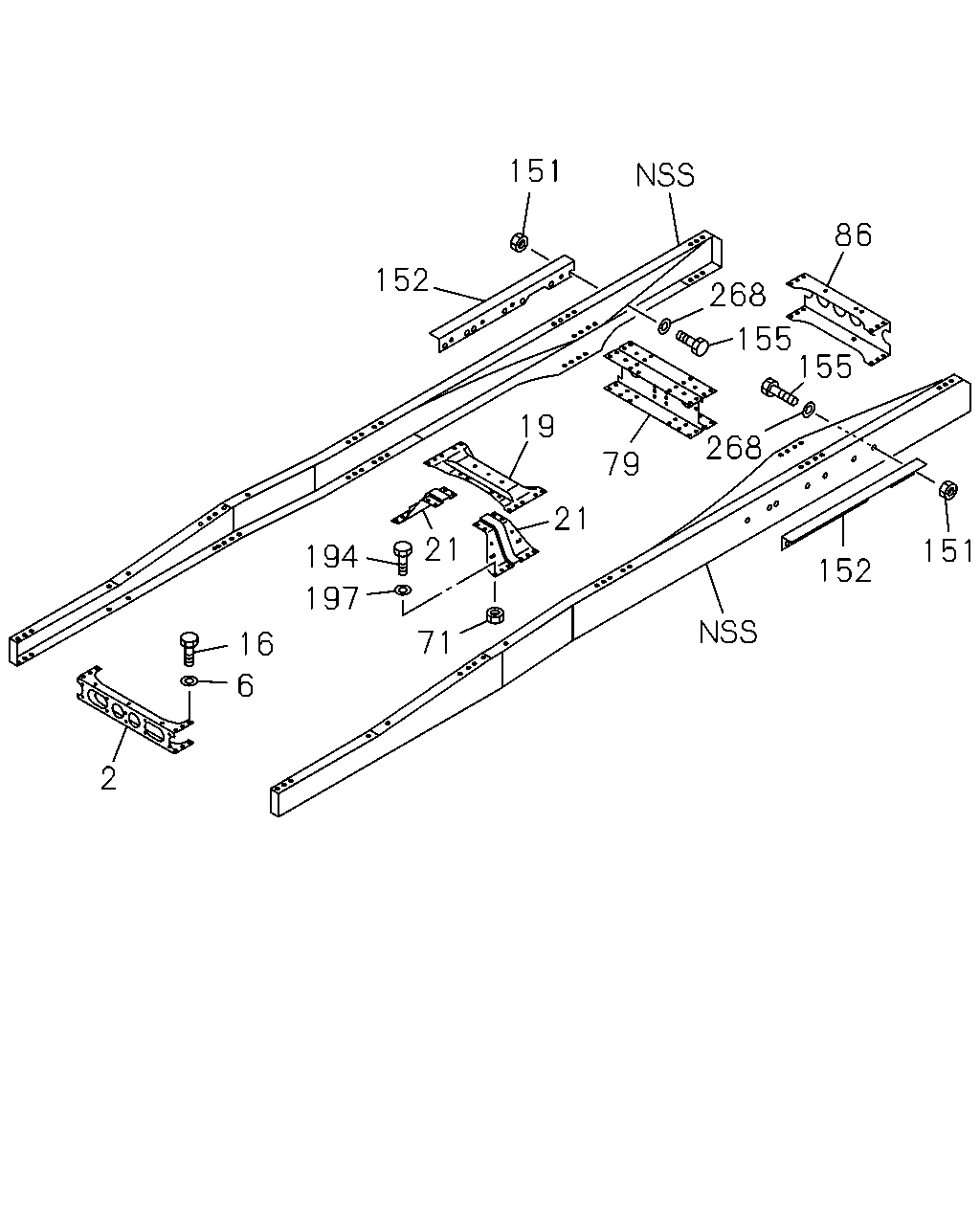

çizim 43173
151 86 152 268 155 155 268 19 79 21 21 151 194 152 197 71 16 6 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-526-3 01 1 9812-9904 ● ●
2 MEMBER; CROSS,1ST
6WA1 TC-S(56L) EXC. REINFORCEMENT BUMPER<VG7> 		1-53181-526-4 01 1 9905-9906 ● ●
2 MEMBER; CROSS,1ST
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) 		1-53181-526-4 01 1 9905-9906 ● ●
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 9907-9909 ● ●
2 MEMBER; CROSS,1ST
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53181-526-4 01 1 9910-9910 ●
2 MEMBER; CROSS,1ST
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53181-526-4 01 1 9910-9910 ●
2 MEMBER; CROSS,1ST
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53181-526-4 01 1 9911-9912 ●
2 MEMBER; CROSS,1ST
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53181-526-4 01 1 9911-9912 ●
2 MEMBER; CROSS,1ST
CAB UP +110MM<TGG> 		1-53181-526-4 01 1 0001- ● ●
2 MEMBER; CROSS,1ST
6WA1 TC-S(56L) REINFORCEMENT BUMPER<VG7> 		1-53181-710-1 01 1 9905-9906 ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9905- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9905- ● ●
19 MEMBER; CROSS,2ND 1-53174-231-1 01 1 9812-9909 ● ●
19 MEMBER; CROSS,2ND
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53174-231-1 01 1 9910-9910 ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53174-231-1 01 1 9910-9910 ●
19 MEMBER; CROSS,2ND
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53174-231-1 01 1 9911-9912 ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53174-231-1 01 1 9911-9912 ●
19 MEMBER; CROSS,2ND
CAB UP +110MM<TGG> 		1-53174-231-1 01 1 0001- ● ●
21 GUSSET; 2ND CROSS 1-53164-221-1 01 1 9812-9812 ● ●
21 GUSSET; 2ND CROSS 1-53164-227-0 01 1 9901-9909 ● ●
21 GUSSET; 2ND CROSS
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53164-227-0 01 1 9910-9910 ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53164-227-0 01 1 9910-9910 ●
21 GUSSET; 2ND CROSS
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53164-227-0 01 1 9911-9912 ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53164-227-0 01 1 9911-9912 ●
21 GUSSET; 2ND CROSS
CAB UP +110MM<TGG> 		1-53164-227-0 01 1 0001- ● ●
21 GUSSET; 2ND CROSS 1-53164-220-1 01 1 9812-9812 ● ●
21 GUSSET; 2ND CROSS 1-53164-226-0 01 1 9901-9909 ● ●
21 GUSSET; 2ND CROSS
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53164-226-0 01 1 9910-9910 ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53164-226-0 01 1 9910-9910 ●
21 GUSSET; 2ND CROSS
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53164-226-0 01 1 9911-9912 ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53164-226-0 01 1 9911-9912 ●
21 GUSSET; 2ND CROSS
CAB UP +110MM<TGG> 		1-53164-226-0 01 1 0001- ● ●
71 NUT; 2ND C/MBR
M14 		9-99110-514-0 08 1 9902-9909 ● ●
71 NUT; 2ND C/MBR
6WG1 TC-C(72L) CAB UP +110MM<TGG> M14 		9-99110-514-0 08 1 9910-9910 ●
71 NUT; 2ND C/MBR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> M14 		9-99110-514-0 08 1 9910-9910 ●
71 NUT; 2ND C/MBR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> M14 		9-99110-514-0 08 1 9911-9912 ●
71 NUT; 2ND C/MBR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> M14 		9-99110-514-0 08 1 9911-9912 ●
71 NUT; 2ND C/MBR
CAB UP +110MM<TGG> M14 		9-99110-514-0 08 1 0001- ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-738-0 01 1 9812-9907 ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-923-0 01 1 9908-9909 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53181-923-0 01 1 9910-9910 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53181-923-0 01 1 9910-9910 ●
79 MEMBER; CROSS,TRUNNION ASM
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53181-923-0 01 1 9911-9912 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53181-923-0 01 1 9911-9912 ●
79 MEMBER; CROSS,TRUNNION ASM
CAB UP +110MM<TGG> 		1-53181-923-0 01 1 0001- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53171-651-5 01 1 9812-9909 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53171-651-5 01 1 9910-9910 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-53171-651-5 01 1 9910-9910 ●
86 MEMBER; CROSS,RR SUSP RR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53171-651-5 01 1 9911-9912 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> 		1-53171-651-5 01 1 9911-9912 ●
86 MEMBER; CROSS,RR SUSP RR
CAB UP +110MM<TGG> 		1-53171-651-5 01 1 0001- ● ●
151 NUT; OUTRIGGER
M16 		9-99110-516-0 14 1 9812-9908 ● ●
151 NUT; OUTRIGGER
M16 		9-99110-516-0 28 1 9909- ● ●
152 OUTRIGGER 1-53456-303-0 01 1 9812-9908 ● ●
152 OUTRIGGER 1-53456-356-0 01 1 9909- ● ●
152 OUTRIGGER 1-53456-302-0 01 1 9812-9908 ● ●
152 OUTRIGGER 1-53456-355-0 01 1 9909- ● ●
155 BOLT; OUTRIGGER
M16X50 		0-20801-650-0 14 1 9812-9901 ● ●
155 BOLT; OUTRIGGER
M16X50 		9-92061-650-0 14 1 9902-9908 ● ●
155 BOLT; OUTRIGGER
M16X50 		9-92061-650-0 28 1 9909- ● ●
194 BOLT; 2ND C/MBR
M14X50 		9-92061-450-0 08 1 9902-9909 ● ●
194 BOLT; 2ND C/MBR
6WG1 TC-C(72L) CAB UP +110MM<TGG> M14X50 		9-92061-450-0 08 1 9910-9910 ●
194 BOLT; 2ND C/MBR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> M14X50 		9-92061-450-0 08 1 9910-9910 ●
194 BOLT; 2ND C/MBR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> M14X50 		9-92061-450-0 08 1 9911-9912 ●
194 BOLT; 2ND C/MBR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> M14X50 		9-92061-450-0 08 1 9911-9912 ●
194 BOLT; 2ND C/MBR
CAB UP +110MM<TGG> M14X50 		9-92061-450-0 08 1 0001- ● ●
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 08 1 9902-9909 ● ●
197 WASHER; PL,2ND C/MBR
6WG1 TC-C(72L) CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 9910-9910 ●
197 WASHER; PL,2ND C/MBR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 9910-9910 ●
197 WASHER; PL,2ND C/MBR
6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> ID=15 		9-09651-069-0 08 1 9911-9912 ●
197 WASHER; PL,2ND C/MBR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 9911-9912 ●
197 WASHER; PL,2ND C/MBR
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 0001- ● ●
268 WASHER; PL,OUTRIGGER
ID=17 		9-09160-516-0 14 1 9812-9901 ● ●
268 WASHER; PL,OUTRIGGER
ID=17 OD=30 		9-09851-935-0 14 1 9902-9908 ● ●
268 WASHER; PL,OUTRIGGER
ID=17 OD=30 		9-09851-935-0 28 1 9909- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
