2-30 — GEAR SHIFTER AND QUADRANT BOX (#74418) — 89 parça

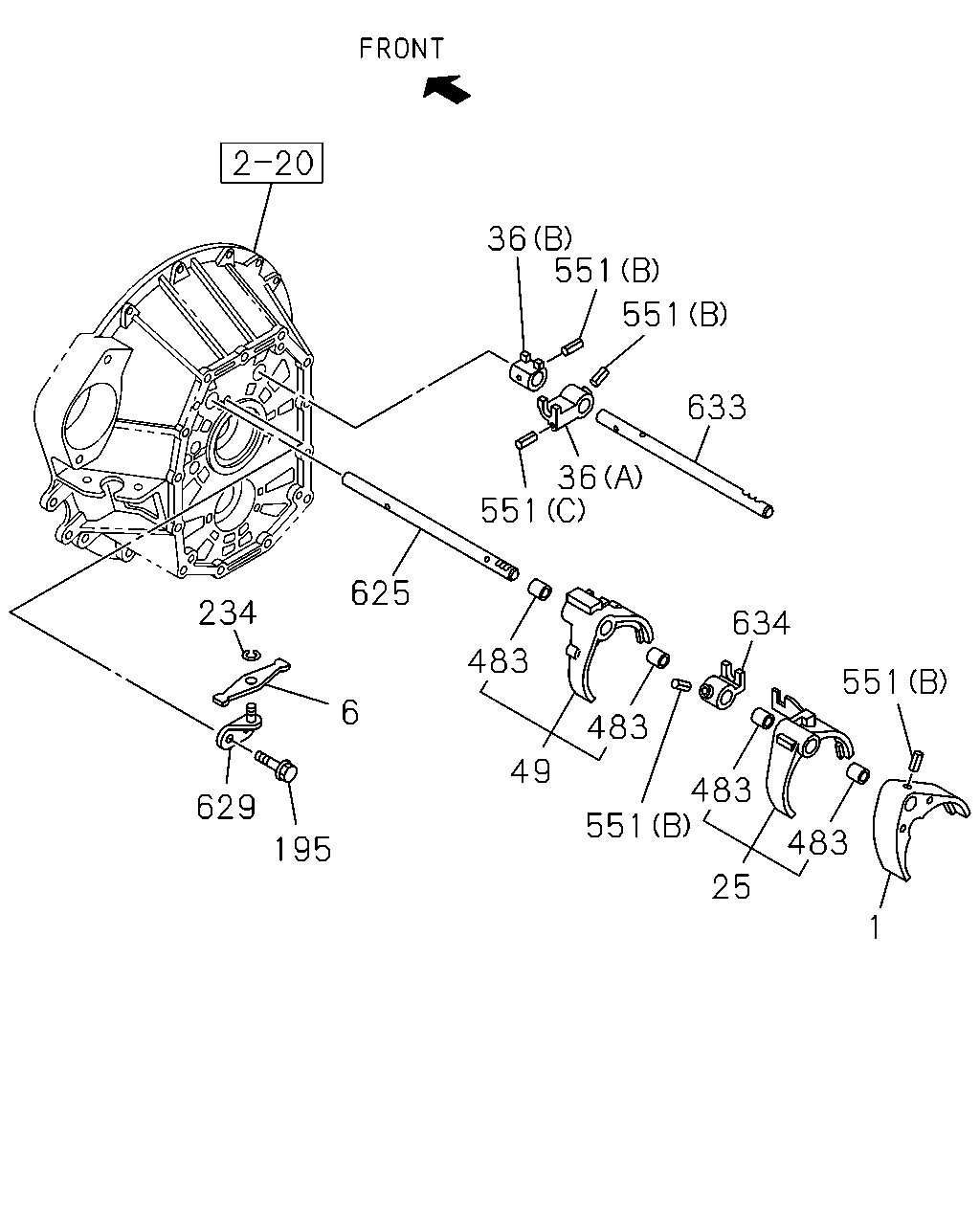

36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-320-2	01	1	0803-	●	●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-344-0	01	1	0803-	●
25	ARM; SHIFT,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97362-731-2	01	1	0803-1407	●	●
25	ARM; SHIFT,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98255-926-1	01	1	1408-	●	●
36	BLOCK; SHIFT,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97241-329-1	01	1	0803-	●
36	BLOCK; SHIFT,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97241-330-0	01	1	0803-	●
49	ARM; SHIFT,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97258-716-0	01	1	0803-	●
49	ARM; SHIFT,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97362-732-1	01	1	0803-		●
195	BOLT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X28 FLANGE REAMER	8-97365-375-0	02	1	0803-	●	●
234	RING; SNAP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=12	8-94460-357-0	01	1	0803-	●
234	RING; SNAP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=16.5	0-91800-618-0	01	1	0803-		●
483	BUSHING; SHIFT ARM TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-326-2	02	1	0803-	●	●
483	BUSHING; SHIFT ARM TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-326-2	02	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=25 OD=5	1-09748-032-0	01	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=32	8-97011-596-2	04	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) L=20	8-97241-340-0	01	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=32	8-97011-596-2	01	1	0803-		●
625	ROD; GEAR SHIFT,LOW,REV,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97362-741-0	01	1	0803-	●	●
629	BRIDGE; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97237-107-1	01	1	0803-	●
629	BRIDGE; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-345-1	01	1	0803-		●
633	ROD; GEAR SHIFT,4TH,5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97362-743-0	01	1	0803-	●
634	BLOCK; SHIFT,LOW,REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-327-1	01	1	0803-	●

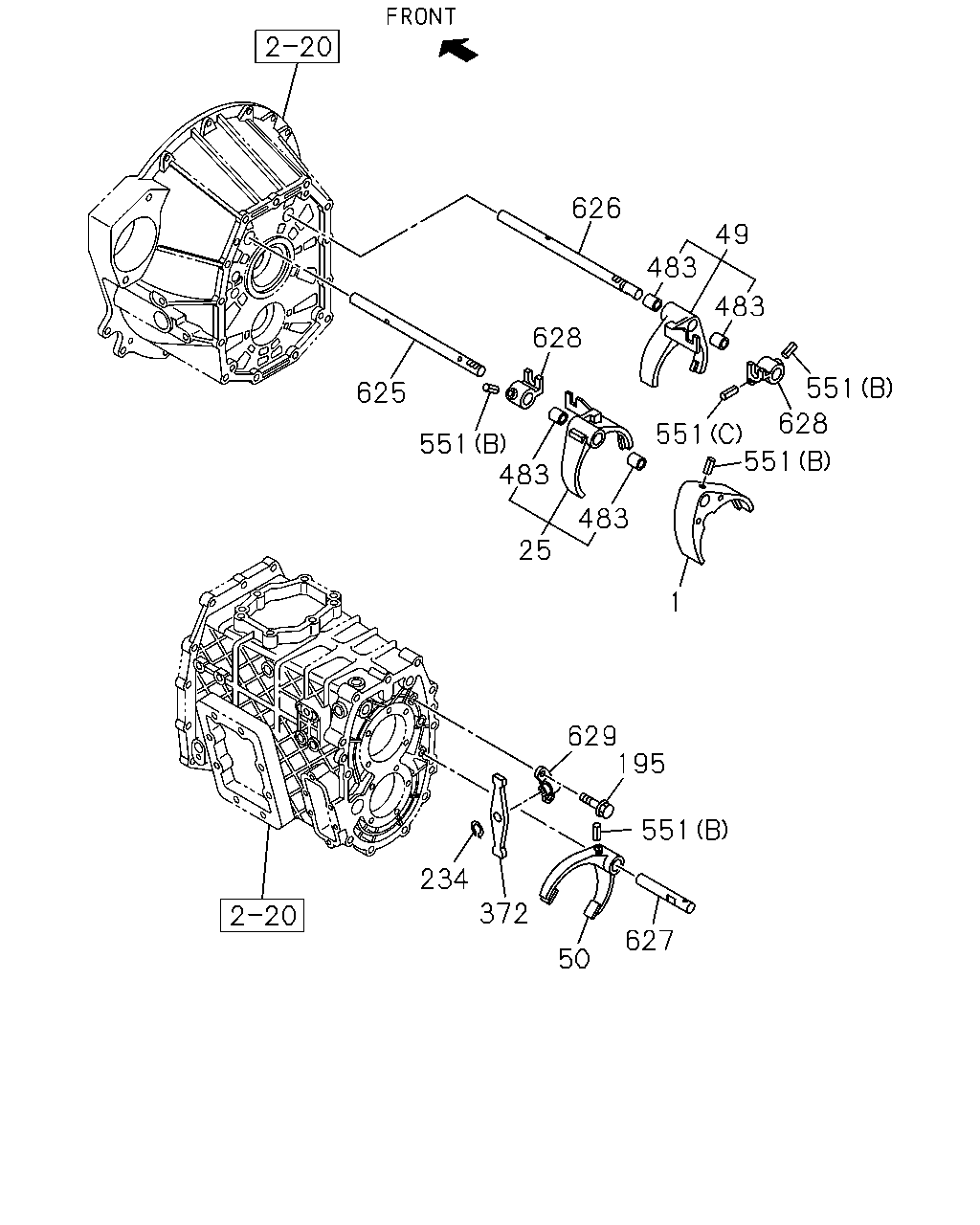

626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 629 195 551 234 372 627 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-320-2	01	1	0803-	●	●
25	ARM; SHIFT,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97362-731-2	01	1	0803-1407	●	●
25	ARM; SHIFT,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98255-926-1	01	1	1408-	●	●
49	ARM; SHIFT,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97258-716-0	01	1	0803-	●
49	ARM; SHIFT,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97362-732-1	01	1	0803-		●
50	ARM; SHIFT,6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-325-1	01	1	0803-		●
195	BOLT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X28 FLANGE REAMER	8-97365-375-0	02	1	0803-	●	●
234	RING; SNAP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=12	8-94460-357-0	01	1	0803-	●
234	RING; SNAP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=16.5	0-91800-618-0	01	1	0803-		●
372	LEVER; RELAY,6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-343-0	01	1	0803-		●
483	BUSHING; SHIFT ARM TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-326-2	02	1	0803-	●	●
483	BUSHING; SHIFT ARM TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-326-2	02	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=25 OD=5	1-09748-032-0	01	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=32	8-97011-596-2	04	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) L=20	8-97241-340-0	01	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=32	8-97011-596-2	01	1	0803-		●
625	ROD; GEAR SHIFT,LOW,REV,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97362-741-0	01	1	0803-	●	●
626	ROD; GEAR SHIFT,4TH,5TH & 6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97366-024-1	01	1	0803-		●
627	ROD; GEAR SHIFT,6TH SUB TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-339-0	01	1	0803-0805		●
627	ROD; GEAR SHIFT,6TH SUB TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98119-293-0	01	1	0806-		●
628	BLOCK; SHIFT,LOW,REV & 6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-327-1	02	1	0803-		●
629	BRIDGE; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97237-107-1	01	1	0803-	●
629	BRIDGE; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-345-1	01	1	0803-		●

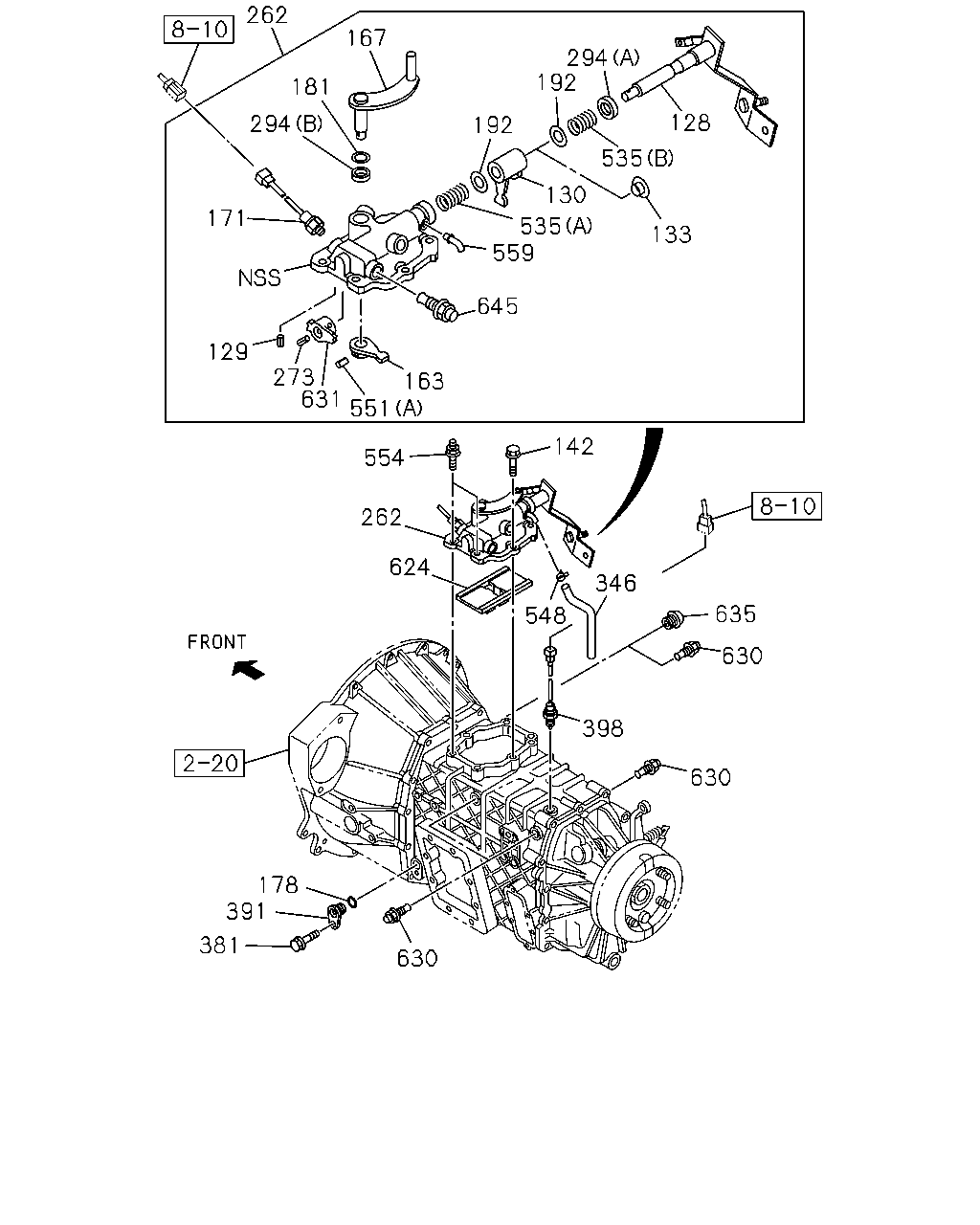

262 167 294 192 181 128 294 192 535 130 171 535 559 133 645 129 273 631 163 551 142 554 262 624 346 635 548 630 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
128	LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-725-0	01	1	0803-	●
128	LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97363-226-0	01	1	0803-		●
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=30 OD=4	1-09748-031-0	01	1	0803-	●	●
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97306-647-0	01	1	0803-	●	●
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-667-0	01	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X22 FLANGE	8-97365-376-0	04	1	0803-	●	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-663-0	01	1	0803-	●	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98039-436-0	01	1	0803-	●	●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98023-050-0	01	1	0803-1312	●	●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98242-172-1	01	1	1401-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-09567-113-0	01	1	0803-	●	●
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97367-327-0	01	1	0803-	●	●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-661-0	01	1	0803-	●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-661-0	02	1	0803-		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97362-753-2	01	1	0803-1312	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98241-002-1	01	1	1401-	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98021-591-1	01	1	0803-1312		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98240-993-1	01	1	1401-		●
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> D=4.2 L=25	8-97103-142-0	01	1	0803-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97305-662-0	01	1	0803-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97363-225-0	01	1	0803-	●	●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97309-855-0	01	1	0803-	●	●
381	BOLT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M6X16 FLANGE THA	0-28650-616-0	01	1	0803-	●	●
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97300-273-1	01	1	0803-	●	●
398	SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98023-050-0	01	1	0803-1106	●	●
398	SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98186-003-0	01	1	1107-1311	●	●
398	SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98256-418-0	01	1	1312-	●	●
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97323-771-0	01	1	0803-	●
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97323-772-0	01	1	0803-	●
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97305-659-0	01	1	0803-		●
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97305-660-0	01	1	0803-		●
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97031-674-0	01	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=25 OD=5	1-09748-032-0	01	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=32	8-97011-596-2	04	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) L=20	8-97241-340-0	01	1	0803-	●	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=32	8-97011-596-2	01	1	0803-		●
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X15,M8X25 L=49	8-97365-378-0	02	1	0803-	●	●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97358-318-0	01	1	0803-	●	●
624	PLATE; INTER LOCK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-317-3	01	1	0803-	●	●
630	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98019-536-0	03	1	0803-	●
630	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98019-536-0	04	1	0803-		●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-666-0	01	1	0803-	●	●
635	PLUG; DETENT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97380-892-0	01	1	0803-	●
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98019-536-0	01	1	0803-	●	●
