Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#74417) — 167 parça

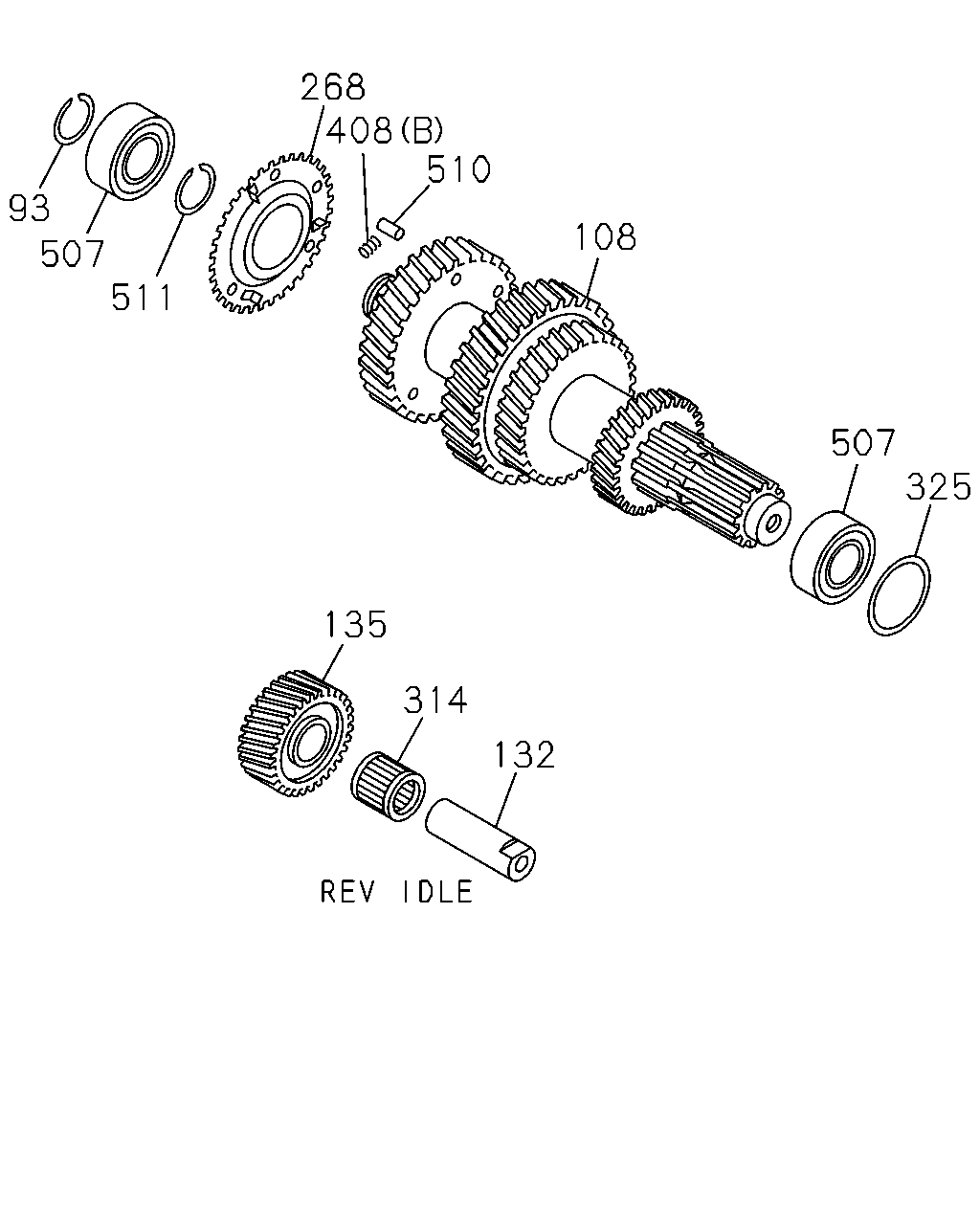

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=1.9	8-97254-734-0	01	1	0803-	●	●
93	RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=2.1	8-97254-740-0	01	1	0803-	●	●
93	RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=2.3	8-97254-742-0	01	1	0803-	●	●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45-49-33-20	8-97380-630-1	01	1	0803-	●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=47-39-33-20	8-97380-627-1	01	1	0803-		●
132	SHAFT; REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-655-0	01	1	0803-	●	●
135	GEAR; REV IDLER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=25	8-98031-869-1	01	1	0803-	●	●
268	PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97257-300-1	01	1	0803-	●
268	PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-684-1	01	1	0803-		●
314	BEARING; NEEDLE,REV GEAR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NSK	8-97253-114-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.29	8-97252-666-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.35	8-97252-667-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.41	8-97252-668-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.47	8-97252-669-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.53	8-97252-670-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.59	8-97252-671-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.65	8-97252-672-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.71	8-97252-673-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.77	8-97252-674-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.83	8-97252-675-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.89	8-97257-622-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.11	8-97306-188-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.17	8-97306-189-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.23	8-97306-190-0	01	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-94148-196-0	03	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97366-040-1	02	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97366-040-1	02	1	0803-		●
507	BEARING; COUNTER SHAFT,FRT & RR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-107-0	02	1	0803-	●	●
510	PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-08160-825-0	03	1	0803-	●	●
511	RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-767-0	01	1	0803-	●	●

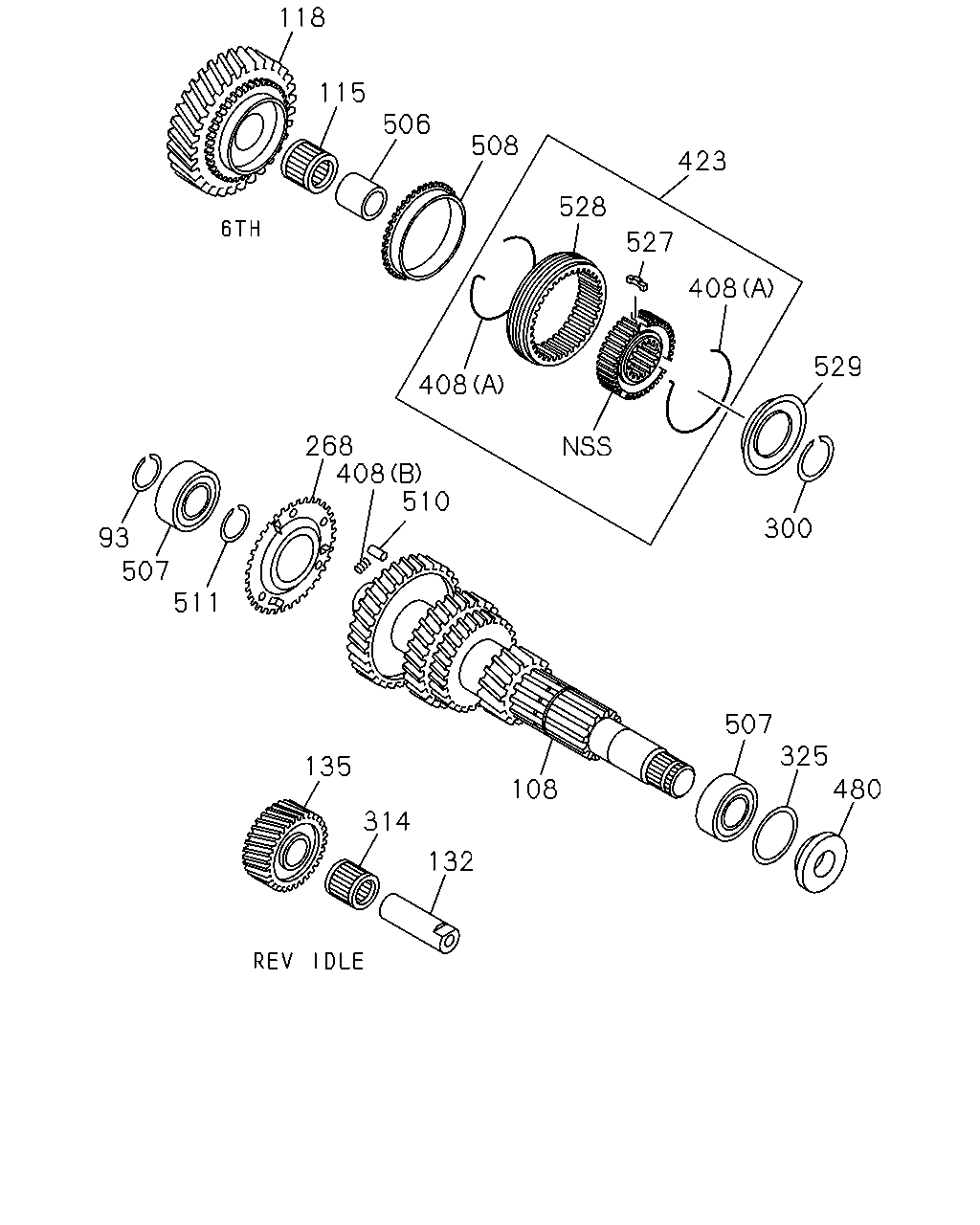

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=1.9	8-97254-734-0	01	1	0803-	●	●
93	RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=2.1	8-97254-740-0	01	1	0803-	●	●
93	RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=2.3	8-97254-742-0	01	1	0803-	●	●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45-49-33-20	8-97380-630-1	01	1	0803-	●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=47-39-33-20	8-97380-627-1	01	1	0803-		●
115	BEARING; NEEDLE,6TH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> OD=49.8	8-98286-084-0	01	1	1411-		●
115	BEARING; NEEDLE,6TH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> OD=49.75	8-97253-113-0	01	1	0803-		●
118	GEAR; 6TH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=50	8-97386-580-0	01	1	0803-		●
132	SHAFT; REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-655-0	01	1	0803-	●	●
135	GEAR; REV IDLER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=25	8-98031-869-1	01	1	0803-	●	●
268	PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97257-300-1	01	1	0803-	●
268	PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-684-1	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=1.7	8-97254-727-0	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=1.6	8-97365-617-0	01	1	0803-		●
314	BEARING; NEEDLE,REV GEAR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NSK	8-97253-114-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.29	8-97252-666-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.35	8-97252-667-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.41	8-97252-668-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.47	8-97252-669-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.53	8-97252-670-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.59	8-97252-671-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.65	8-97252-672-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.71	8-97252-673-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.77	8-97252-674-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.83	8-97252-675-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.89	8-97257-622-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.11	8-97306-188-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.17	8-97306-189-0	01	1	0803-	●	●
325	SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=62.7 T=2.23	8-97306-190-0	01	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-94148-196-0	03	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97366-040-1	02	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97366-040-1	02	1	0803-		●
423	SLEEVE & HUB ASM; 6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97367-022-0	01	1	0803-		●
480	WASHER; THRUST,6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-123-1	01	1	0803-		●
506	COLLAR; 6TH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-121-1	01	1	0803-		●
507	BEARING; COUNTER SHAFT,FRT & RR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-107-0	02	1	0803-	●	●
508	RING; BLOCK,6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97309-532-0	01	1	0803-		●
510	PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-08160-825-0	03	1	0803-	●	●
511	RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-767-0	01	1	0803-	●	●
527	INSERT; 6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-94448-202-2	03	1	0803-		●
528	SLEEVE; 6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-94421-871-1	01	1	0803-		●
529	PLATE; STOPPER,6TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97248-952-0	01	1	0803-		●

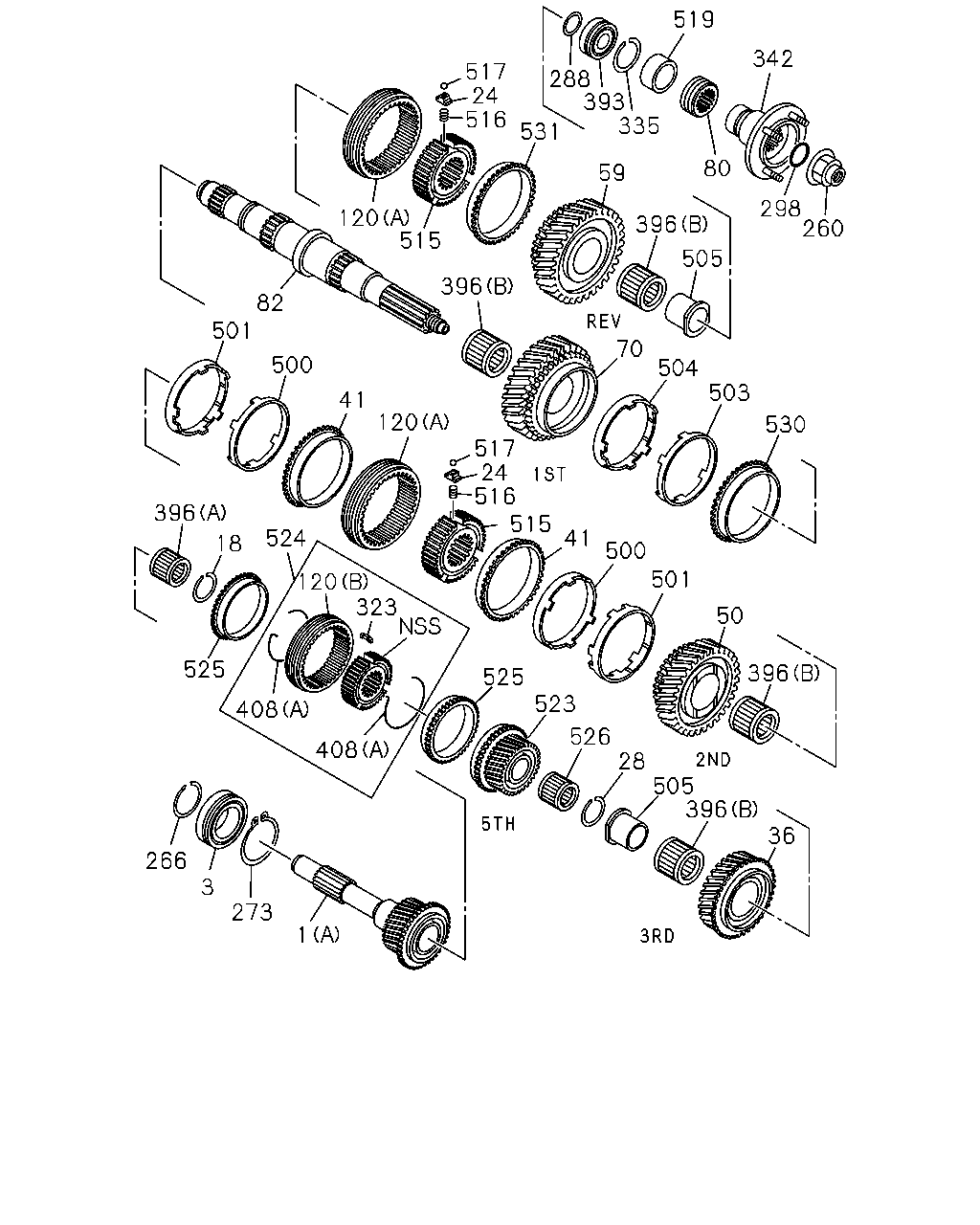

342 519 80 260 298 396 59 335 393 288 517 531 516 24 515 120 396 70 503 530 50 396 501 500 41 515 517 516 24 120 41 500 82 501 396 524 18 120 323 525 505 408 408 525 523 526 28 505 396 36 1 273 3 266 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) Z=28	8-98031-848-0	01	1	0803-	●
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) Z=26	8-98021-266-0	01	1	0803-		●
3	BEARING; TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NSK	8-97253-098-1	01	1	0803-	●	●
18	RING; SNAP,CLU HUB TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=1.8	8-97254-728-0	01	1	0803-	●	●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-313-1	06	1	0803-	●	●
28	RING; SNAP,3RD GEAR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=46.5 T=1.8	8-97254-743-0	01	1	0803-	●	●
36	GEAR; 3RD,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=34	8-97241-234-0	01	1	0803-	●	●
41	RING; BLOCK,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97241-306-1	02	1	0803-	●	●
50	GEAR; 2ND,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=38	8-97241-237-1	01	1	0803-	●	●
59	GEAR; REV MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=41	8-97241-244-0	01	1	0803-	●	●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=43	8-97350-010-0	01	1	0803-	●	●
80	GEAR; SPD DRIVE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=4	8-97253-556-0	01	1	0803-	●	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=28-42-42-21	8-97253-117-3	01	1	0803-	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=28-42-42-21	8-97253-116-3	01	1	0803-		●
120	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) Z=45	8-94421-871-1	01	1	0803-	●	●
120	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) Z=45	8-97241-296-1	02	1	0803-1311	●	●
120	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) Z=45	8-98258-279-0	02	1	1312-	●	●
260	NUT; MAINSHAFT END TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M27 H=25	8-97360-410-0	01	1	0803-	●	●
266	RING; SNAP,BRG INNER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97286-916-0	01	1	0803-	●	●
273	RING; SNAP,BRG OUTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-610-0	01	1	0803-	●	●
288	SPACER; BRG,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-942-0	01	1	0803-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.6 T=5.7	8-98028-226-0	01	1	0803-	●	●
323	INSERT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-94448-202-2	03	1	0803-	●	●
335	RING; SNAP,BEARING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-722-0	01	1	0803-	●	●
342	FLANGE; OUTPUT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98031-640-0	01	1	0803-	●	●
393	BEARING; MAINSHAFT END TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-105-1	01	1	0803-	●	●
396	BEARING; NEEDLE,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97253-102-1	01	1	0803-	●	●
396	BEARING; NEEDLE,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97253-110-0	04	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-94148-196-0	03	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97366-040-1	02	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97366-040-1	02	1	0803-		●
500	RING; OUTSIDE,3RD & 2ND TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-309-1	02	1	0803-	●	●
501	RING; INSIDE,3RD & 2ND TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-312-1	02	1	0803-	●	●
503	RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-309-1	01	1	0803-	●	●
504	RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-312-1	01	1	0803-	●	●
505	COLLAR; 3RD & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-119-2	02	1	0803-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-298-3	02	1	0803-	●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-835-0	06	1	0803-	●	●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-935-0	06	1	0803-	●	●
519	COLLAR; MAINSHAFT END,5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-940-0	01	1	0803-	●
523	GEAR; OD,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=22	8-97241-231-0	01	1	0803-	●
524	SLEEVE & HUB ASM; TOP-4TH,OD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97366-526-0	01	1	0803-	●	●
525	RING; BLOCK,TOP & 4TH,OD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97309-532-0	02	1	0803-	●	●
526	BEARING; NEEDLE,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-112-0	01	1	0803-	●	●
530	RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97241-306-1	01	1	0803-	●	●
531	RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97368-343-0	01	1	0803-	●	●

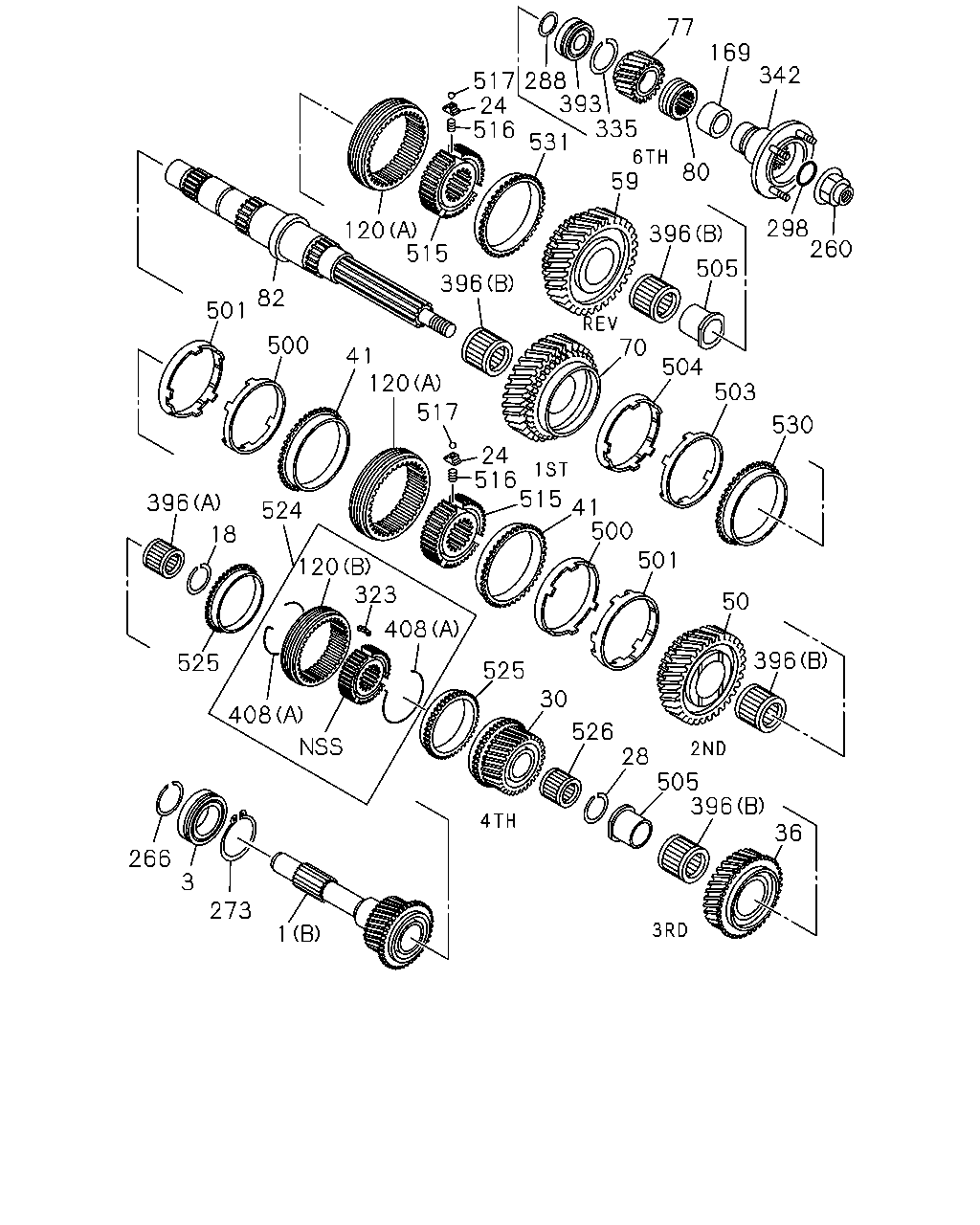

501 82 500 41 120 517 24 516 515 41 500 501 50 396 530 503 504 70 505 396 298 260 342 169 77 393 335 80 59 531 288 120 515 396 517 24 516 524 18 396 525 408 120 323 408 525 30 526 28 505 396 36 1 273 3 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) Z=28	8-98031-848-0	01	1	0803-	●
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) Z=26	8-98021-266-0	01	1	0803-		●
3	BEARING; TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NSK	8-97253-098-1	01	1	0803-	●	●
18	RING; SNAP,CLU HUB TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.7 T=1.8	8-97254-728-0	01	1	0803-	●	●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-313-1	06	1	0803-	●	●
28	RING; SNAP,3RD GEAR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=46.5 T=1.8	8-97254-743-0	01	1	0803-	●	●
30	GEAR; 4TH,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=28	8-97241-230-0	01	1	0803-		●
36	GEAR; 3RD,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=34	8-97241-234-0	01	1	0803-	●	●
41	RING; BLOCK,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97241-306-1	02	1	0803-	●	●
50	GEAR; 2ND,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=38	8-97241-237-1	01	1	0803-	●	●
59	GEAR; REV MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=41	8-97241-244-0	01	1	0803-	●	●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=43	8-97350-010-0	01	1	0803-	●	●
77	GEAR; 6TH,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=21	8-97386-582-0	01	1	0803-		●
80	GEAR; SPD DRIVE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=4	8-97253-556-0	01	1	0803-	●	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=28-42-42-21	8-97253-117-3	01	1	0803-	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=28-42-42-21	8-97253-116-3	01	1	0803-		●
120	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) Z=45	8-94421-871-1	01	1	0803-	●	●
120	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) Z=45	8-97241-296-1	02	1	0803-1311	●	●
120	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) Z=45	8-98258-279-0	02	1	1312-	●	●
169	COLLAR; MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-937-1	01	1	0803-		●
260	NUT; MAINSHAFT END TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M27 H=25	8-97360-410-0	01	1	0803-	●	●
266	RING; SNAP,BRG INNER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97286-916-0	01	1	0803-	●	●
273	RING; SNAP,BRG OUTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-610-0	01	1	0803-	●	●
288	SPACER; BRG,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-942-0	01	1	0803-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=30.6 T=5.7	8-98028-226-0	01	1	0803-	●	●
323	INSERT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-94448-202-2	03	1	0803-	●	●
335	RING; SNAP,BEARING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-722-0	01	1	0803-	●	●
342	FLANGE; OUTPUT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98031-640-0	01	1	0803-	●	●
393	BEARING; MAINSHAFT END TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-105-1	01	1	0803-	●	●
396	BEARING; NEEDLE,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97253-102-1	01	1	0803-	●	●
396	BEARING; NEEDLE,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97253-110-0	04	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-94148-196-0	03	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97366-040-1	02	1	0803-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97366-040-1	02	1	0803-		●
500	RING; OUTSIDE,3RD & 2ND TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-309-1	02	1	0803-	●	●
501	RING; INSIDE,3RD & 2ND TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-312-1	02	1	0803-	●	●
503	RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-309-1	01	1	0803-	●	●
504	RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-312-1	01	1	0803-	●	●
505	COLLAR; 3RD & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-119-2	02	1	0803-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-298-3	02	1	0803-	●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-835-0	06	1	0803-	●	●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-935-0	06	1	0803-	●	●
524	SLEEVE & HUB ASM; TOP-4TH,OD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97366-526-0	01	1	0803-	●	●
525	RING; BLOCK,TOP & 4TH,OD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97309-532-0	02	1	0803-	●	●
526	BEARING; NEEDLE,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-112-0	01	1	0803-	●	●
530	RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97241-306-1	01	1	0803-	●	●
531	RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97368-343-0	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
