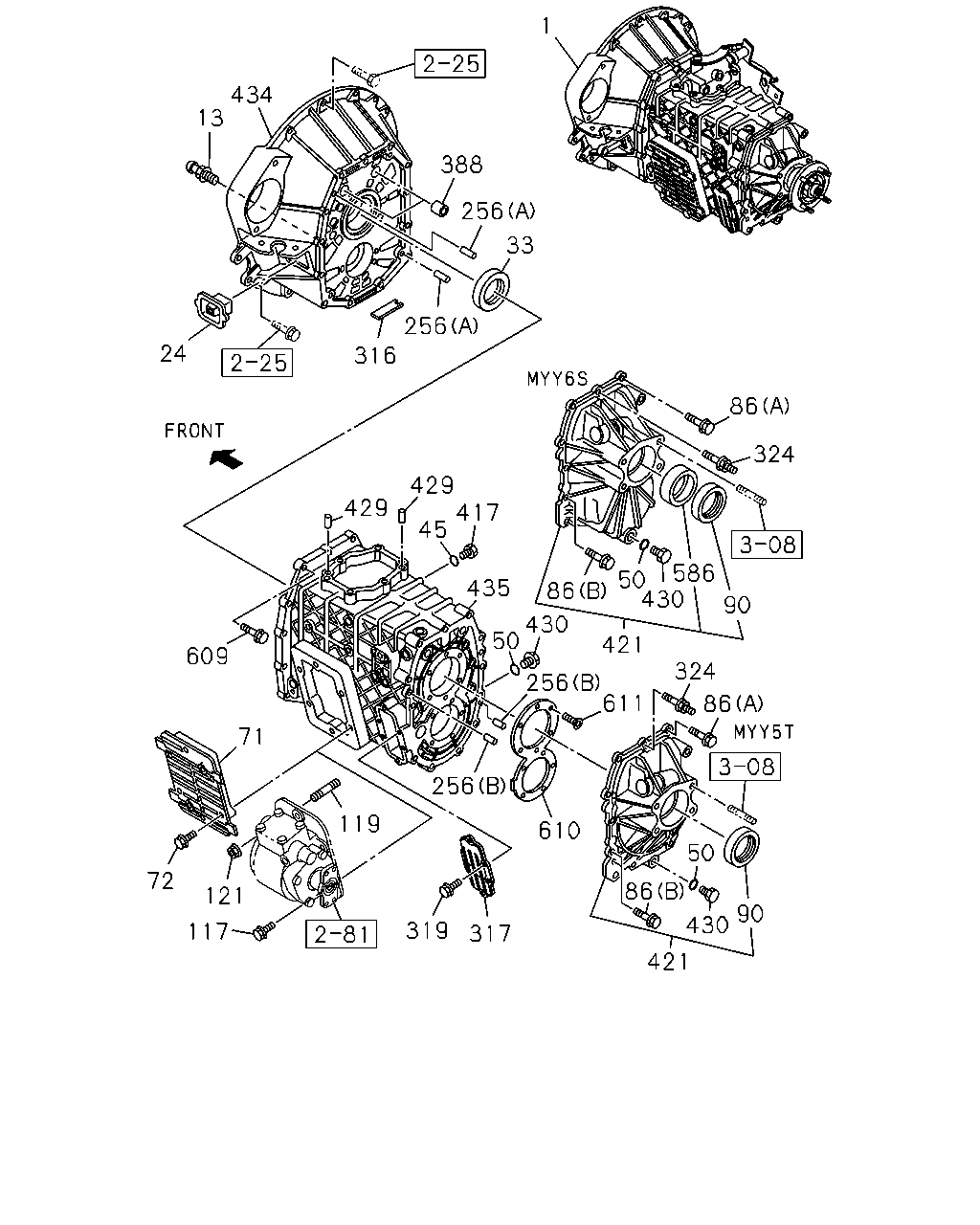

2-20 — MANUAL TRANSMISSION ASM AND CASE (#74415) — 46 parça

1 434 13 388 256 33 256 24 316 86 324 429 417 45 429 586 50 430 435 86 90 430 50 256 421 609 324 256 611 86 71 119 610 50 86 72 121 90 430 319 117 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98067-623-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>	8-98067-623-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98067-656-0	01	1	0803-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>	8-98067-656-0	01	1	0803-		●
13	SUPPORT; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97255-384-1	01	1	0803-	●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97255-201-0	01	1	0803-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-550-0	01	1	0803-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=17	8-97115-712-0	01	1	0803-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=17	8-97115-712-0	01	1	0803-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=17	8-97115-712-0	02	1	0803-		●
71	COVER; SIDE,TRANS CASE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0803-	●	●
72	BOLT; SIDE COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-98014-142-0	06	1	0803-	●	●
86	BOLT; RR COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-		●
86	BOLT; RR COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M10X40 FLANGE	0-28151-040-0	10	1	0803-1405	●	●
86	BOLT; RR COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-	●
86	BOLT; RR COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10X40 FLANGE	8-97365-377-0	02	1	0803-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NOK	8-97253-552-1	01	1	0803-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 FLANGE	0-28751-030-0	03	1	0803-1107	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 FLANGE	0-28751-030-0	02	1	1108-	●	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 L=45	0-44011-030-0	02	1	1108-	●	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X25 L=40 THA	0-44011-025-0	03	1	0803-1107	●	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X25 L=40 THA	0-44011-025-0	02	1	1108-	●	●
121	NUT; PTO FIX PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE THA	0-91180-210-0	03	1	0803-1006	●	●
121	NUT; PTO FIX PTO TRANSMISSION SIDE<V66> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE THA	0-91180-210-0	04	1	1007-	●	●
256	PIN; KNOCK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) OD=10 L=20	8-97135-423-0	02	1	0803-	●	●
256	PIN; KNOCK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=6 L=12 THA	9-08160-612-0	02	1	0803-	●	●
316	MAGNET; TRANS CASE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-94249-524-2	01	1	0803-	●	●
317	COVER; CASE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-626-0	01	1	0803-	●	●
319	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X20 FLANGE THA	0-28050-820-0	06	1	0803-	●	●
324	STUD; RR COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-		●
324	STUD; RR COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X15,M10X40 L=65	8-97365-379-0	01	1	0803-1405	●	●
324	STUD; RR COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-	●
388	BUSHING; CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-326-2	02	1	0803-	●	●
417	PLUG; OIL FILLER,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97365-373-0	01	1	0803-	●	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98020-029-0	01	1	0803-	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98020-028-0	01	1	0803-		●
429	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> OD=10 L=20	8-97135-423-0	02	1	0803-	●	●
430	PLUG; OIL DRAIN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97365-374-0	01	1	0803-	●
430	PLUG; OIL DRAIN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97365-374-0	02	1	0803-		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97237-099-5	01	1	0803-	●	●
435	CASE; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97379-375-0	01	1	0803-	●
435	CASE; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97379-374-0	01	1	0803-		●
586	BEARING; NEEDLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97253-109-0	01	1	0803-		●
609	BOLT; HSG TO CASE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X40 FLANGE	0-28151-040-0	13	1	0803-	●	●
610	RETAINER; BRG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-315-1	01	1	0803-	●	●
611	SCREW TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X27 TORQUES	8-97365-354-0	11	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
