2-05 — CLUTCH PIPING (#74410) — 24 parça

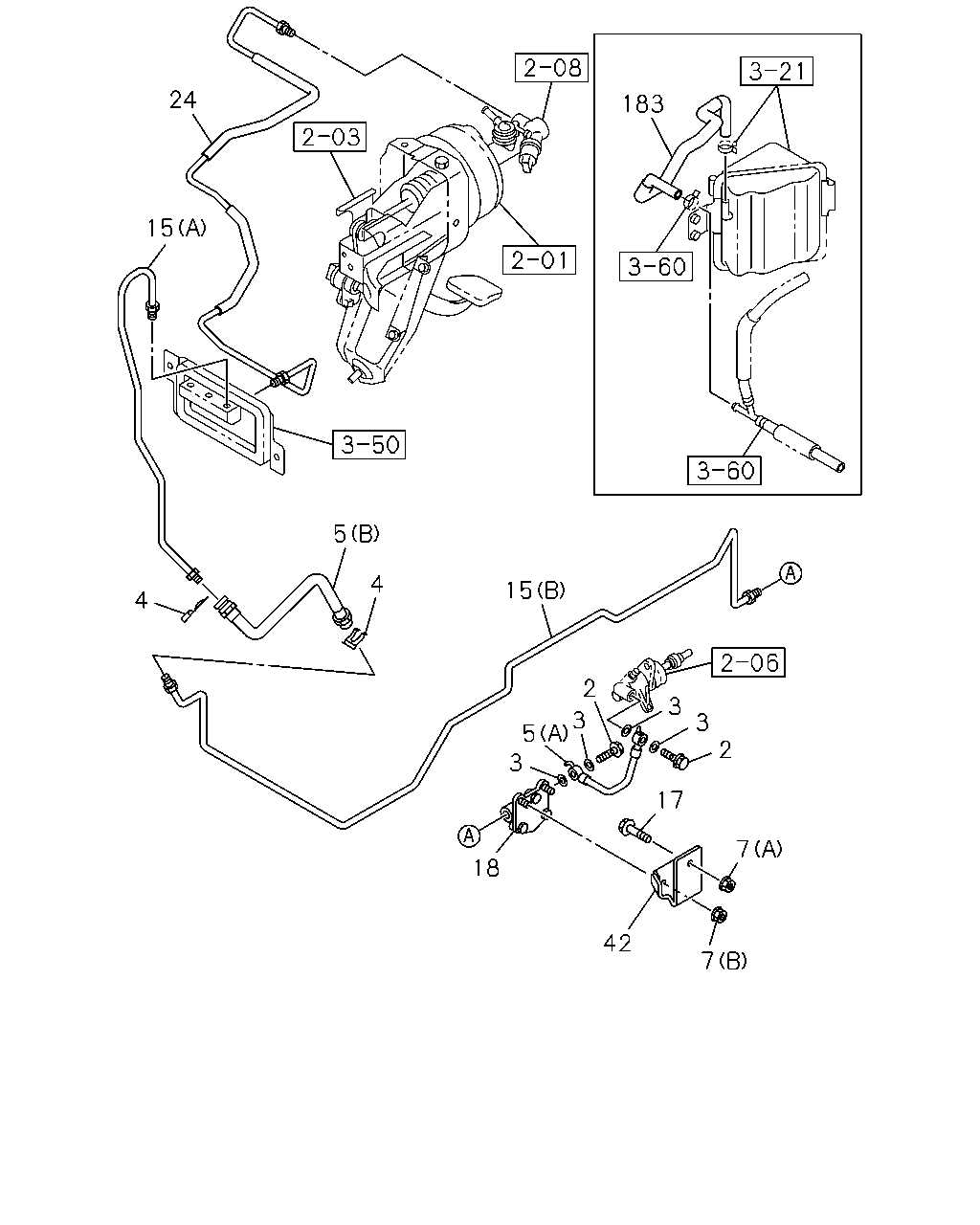

çizim 102440
24 183 15 5 4 15 4 2 3 3 3 2 5 3 17 7 18 42 7
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X22 		8-97381-454-0 02 1 0803-0905 ● ●
2 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X22 THA 		8-98014-005-0 02 1 0906- ● ●
3 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 0803- ● ●
4 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97365-304-0 02 1 0803- ● ●
5 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98077-611-2 01 1 0803- ● ●
5 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		8-98083-907-0 01 1 0803- ● ●
7 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M8 FLANGE THA 		0-91180-108-0 02 1 0803-1206 ● ●
7 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M8 FLANGE THA 		0-91180-108-0 02 1 1207- ● ●
7 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M10 FLANGE THA 		0-91180-110-0 01 1 0803-1206 ● ●
7 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M10 FLANGE THA 		0-91180-110-0 01 1 1207- ● ●
15 PIPE; CLU,FLEX HOSE
(A) THA 		8-97389-642-1 01 1 0803-1206 ● ●
15 PIPE; CLU,FLEX HOSE
(A) THA 		8-97389-642-1 01 1 1207- ● ●
15 PIPE; CLU,FLEX HOSE
(B) THA 		8-98051-538-0 01 1 0803-1206 ● ●
15 PIPE; CLU,FLEX HOSE
(B) THA 		8-98051-538-0 01 1 1207- ● ●
17 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 FLANGE THA 		0-28651-030-0 01 1 0803-1206 ● ●
17 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 FLANGE THA 		0-28651-030-0 01 1 1207-1210 ● ●
17 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 FLANGE THA 		0-28651-030-0 02 1 1211- ● ●
18 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98077-610-1 01 1 0803- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97389-356-1 01 1 0803-1207 ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97389-356-1 01 1 1208- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98077-617-0 01 1 0803- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98041-335-1 01 1 0803- ● ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-98017-169-1 01 1 0803-1012 ● ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-98121-942-0 01 1 1101- ● ●
