1-50 — EXHAUST PIPE AND SILENCER (#74405) — 169 parça

2 329 25 36 1 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH THA	8-97924-538-0	01	1	0803-	●	●
2	GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0803-	●	●
8	BRACKET; EXH PIPE	8-98026-063-0	01	1	0803-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER THA	8-97924-537-1	01	1	0803-	●	●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0803-	●	●
43	CLAMP; EXH PIPE	8-97351-200-1	01	1	0803-	●	●
44	BOLT; BRKT (A) M10X25 FLANGE THA	0-28151-025-0	02	1	0803-	●	●
44	BOLT; BRKT (B) M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206	●	●
44	BOLT; BRKT (B) M10X30 FLANGE THA	0-28651-030-0	02	1	1207-	●	●
329	NUT; EXH PIPE TO PIPE M8 FLANGE THA	0-91180-108-0	04	1	0803-1206	●	●
329	NUT; EXH PIPE TO PIPE M8 FLANGE THA	0-91180-108-0	04	1	1207-1210	●	●
329	NUT; EXH PIPE TO PIPE M8 FLANGE THA	0-91180-108-0	08	1	1211-	●	●

118 117 115 345 118 376 117 113 115 352 352 59 115 113 115 337 84 576 12 14 577 577 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH THA	8-97924-544-0	01	1	0803-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64	8-97373-108-0	01	1	0803-	●	●
59	BRACKET; EXH SILENCER,FRT THA	8-98082-156-0	01	1	0803-	●	●
84	GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	0803-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	02	1	1211-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	02	1	0803-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0803-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0803-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0803-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	0803-	●	●
337	BOLT; RUBBER,SUPPORT M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206	●	●
337	BOLT; RUBBER,SUPPORT M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210	●	●
337	BOLT; RUBBER,SUPPORT M10X30 FLANGE THA	0-28651-030-0	04	1	1211-	●	●
345	BRACKET; EXH SILENCER,RR THA	8-98027-822-0	01	1	0803-	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0803-0806	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0807-1102	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0807-1102	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	1103-	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	04	1	0803-1206	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	04	1	1207-1210	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	08	1	1211-	●	●
376	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206	●	●
376	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210	●	●
376	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	04	1	1211-	●	●
576	BRACKET; DPD FRT TO FRAME	8-98067-992-0	01	1	0803-	●	●
577	BRACKET; DPD RR TO FRAME SINGLE RR TIRE<6TD> (A)	8-98084-130-0	01	1	0803-	●
577	BRACKET; DPD RR TO FRAME EXC. SINGLE RR TIRE<6TD> (B)	8-98067-994-0	01	1	0803-	●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM<24W> (B)	8-98067-994-0	01	1	0803-		●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM<33W> (C)	8-98072-145-0	01	1	0803-		●

105 357 88 164 124 81 137 70 125 166 94 95 97 104 162 144 143 94 88 165 137 126 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; SILENCER M8 FLANGE THA	0-91180-108-0	04	1	0803-1206	●	●
38	NUT; SILENCER M8 FLANGE THA	0-91180-108-0	04	1	1207-1210	●	●
38	NUT; SILENCER M8 FLANGE THA	0-91180-108-0	08	1	1211-	●	●
70	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206	●	●
70	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210	●	●
70	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	04	1	1211-	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	04	1	0803-1206	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	04	1	1207-1210	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	08	1	1211-	●	●
88	CLAMP; EXH PIPE THA	8-97373-158-0	02	1	0803-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	0803-1206	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	1207-	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE THA	8-97301-165-0	01	1	0803-	●	●
95	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206	●	●
95	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210	●	●
95	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	04	1	1211-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0803-	●	●
104	NUT; BRKT SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-110-0	01	1	0803-1206	●
104	NUT; BRKT WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	02	1	1207-1210		●
104	NUT; BRKT WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	02	1	1207-1210		●
104	NUT; BRKT WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	04	1	1211-		●
104	NUT; BRKT WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	04	1	1211-		●
104	NUT; BRKT WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	02	1	0803-1206		●
104	NUT; BRKT WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	02	1	0803-1206		●
104	NUT; BRKT SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-110-0	01	1	1207-1210	●
104	NUT; BRKT SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-110-0	02	1	1211-	●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0803-1206	●	●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	1207-1210	●	●
105	NUT; CLAMP M10 THA	0-91110-510-0	02	1	1211-	●	●
124	NUT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	01	1	0803-1206		●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	01	1	0803-1206		●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	01	1	1207-1210		●
124	NUT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	01	1	1207-1210		●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	02	1	1211-		●
124	NUT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	02	1	1211-		●
125	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0803-1206	●	●
125	NUT; CLAMP M10 THA	0-91110-510-0	01	1	1207-1210	●	●
125	NUT; CLAMP M10 THA	0-91110-510-0	02	1	1211-	●	●
126	PIPE; EXH,RR SINGLE RR TIRE<6TD> (A) THA	8-97924-502-1	01	1	0803-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (B) THA	8-97924-503-1	01	1	0803-		●
126	PIPE; EXH,RR WHEEL BASE 3300MM<33W> (C) THA	8-97924-504-1	01	1	0803-		●
137	BRACKET; TAIL PIPE SINGLE RR TIRE<6TD> (C)	8-98001-893-1	01	1	0803-	●
137	BRACKET; TAIL PIPE SINGLE RR TIRE<6TD> (D)	8-98001-903-0	01	1	0803-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (A)	8-98038-762-1	01	1	0803-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (B)	8-98075-678-0	01	1	0803-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM<33W> (E)	8-98075-674-0	01	1	0803-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM<33W> (F)	8-98075-675-1	01	1	0803-		●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	0803-	●	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	01	1	0803-1206	●	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	01	1	1207-1210	●	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	02	1	1211-	●	●
162	RUBBER; SUPPORT,TAIL PIPE (A)	8-98032-150-0	01	1	0803-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM<24W> (A)	8-98032-150-0	01	1	0803-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM<33W> (B) L=115	8-98034-765-0	01	1	0803-		●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	0803-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM<24W> (A) L=23	8-98006-011-0	01	1	0803-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM<33W> (B) L=37.5 THA	9-22151-217-0	01	1	0803-		●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE THA	0-28051-045-0	01	1	0803-1206	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> (A) M10X45 FLANGE THA	0-28051-045-0	01	1	0803-1206		●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE THA	0-28051-045-0	01	1	1207-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> (A) M10X45 FLANGE THA	0-28051-045-0	01	1	1207-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> (B) M10X70 FLANGE THA	0-28051-070-0	01	1	0803-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0803-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0803-	●	●

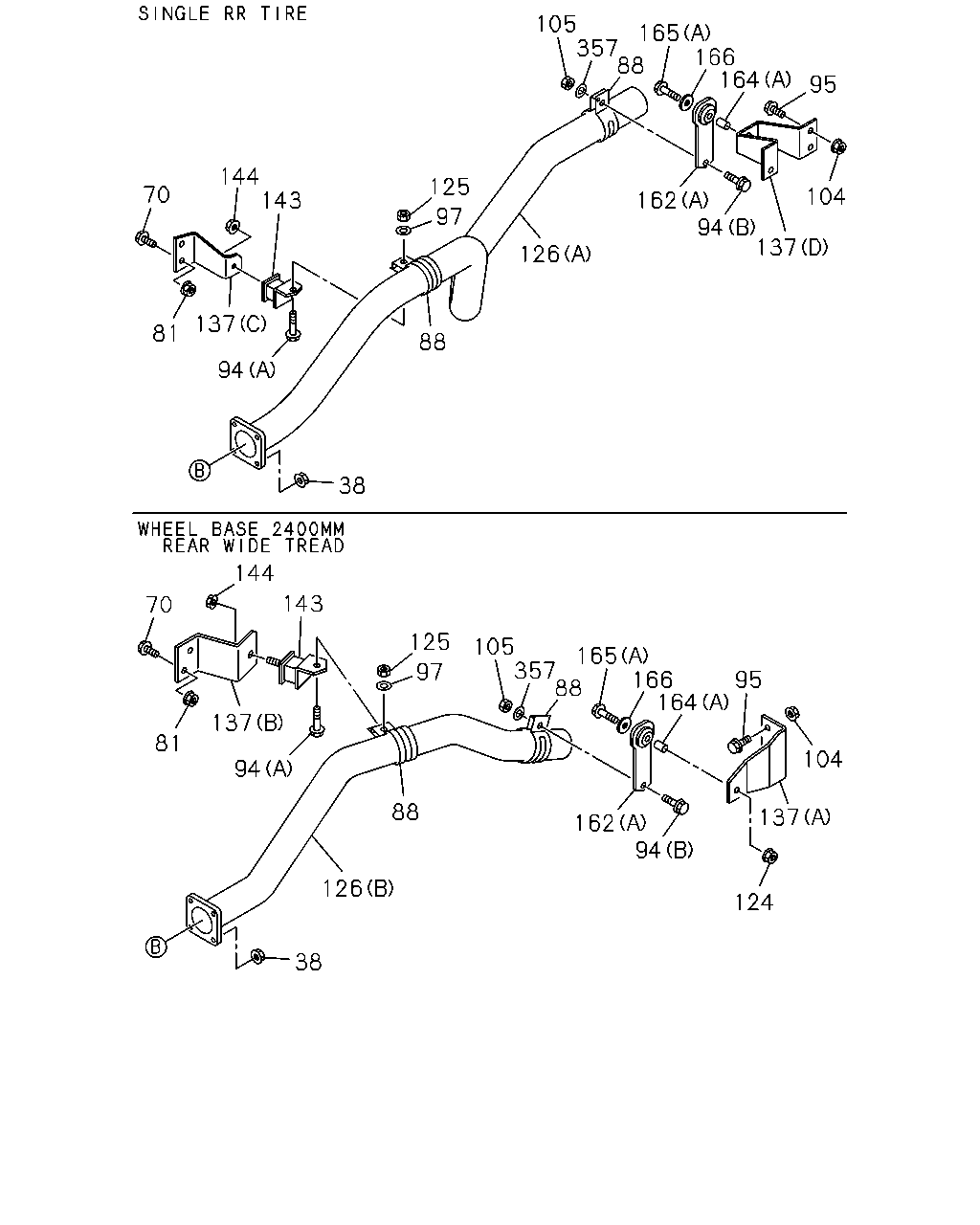

105 357 88 165 166 164 95 144 143 125 70 104 162 94 137 97 126 137 81 88 94 38 144 143 70 125 105 357 88 165 166 164 97 95 137 81 104 94 88 137 162 94 126 124 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; SILENCER M8 FLANGE THA	0-91180-108-0	04	1	0803-1206	●	●
38	NUT; SILENCER M8 FLANGE THA	0-91180-108-0	04	1	1207-1210	●	●
38	NUT; SILENCER M8 FLANGE THA	0-91180-108-0	08	1	1211-	●	●
70	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206	●	●
70	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210	●	●
70	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	04	1	1211-	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	04	1	0803-1206	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	04	1	1207-1210	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	08	1	1211-	●	●
88	CLAMP; EXH PIPE THA	8-97373-158-0	02	1	0803-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	0803-1206	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	1207-	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE THA	8-97301-165-0	01	1	0803-	●	●
95	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206	●	●
95	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210	●	●
95	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	04	1	1211-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0803-	●	●
104	NUT; BRKT SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-110-0	01	1	0803-1206	●
104	NUT; BRKT WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	02	1	1207-1210		●
104	NUT; BRKT WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	02	1	1207-1210		●
104	NUT; BRKT WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	04	1	1211-		●
104	NUT; BRKT WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	04	1	1211-		●
104	NUT; BRKT WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	02	1	0803-1206		●
104	NUT; BRKT WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	02	1	0803-1206		●
104	NUT; BRKT SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-110-0	01	1	1207-1210	●
104	NUT; BRKT SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-110-0	02	1	1211-	●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0803-1206	●	●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	1207-1210	●	●
105	NUT; CLAMP M10 THA	0-91110-510-0	02	1	1211-	●	●
124	NUT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	01	1	0803-1206		●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	01	1	0803-1206		●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	01	1	1207-1210		●
124	NUT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	01	1	1207-1210		●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	02	1	1211-		●
124	NUT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	02	1	1211-		●
125	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0803-1206	●	●
125	NUT; CLAMP M10 THA	0-91110-510-0	01	1	1207-1210	●	●
125	NUT; CLAMP M10 THA	0-91110-510-0	02	1	1211-	●	●
126	PIPE; EXH,RR SINGLE RR TIRE<6TD> (A) THA	8-97924-502-1	01	1	0803-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (B) THA	8-97924-503-1	01	1	0803-		●
126	PIPE; EXH,RR WHEEL BASE 3300MM<33W> (C) THA	8-97924-504-1	01	1	0803-		●
137	BRACKET; TAIL PIPE SINGLE RR TIRE<6TD> (C)	8-98001-893-1	01	1	0803-	●
137	BRACKET; TAIL PIPE SINGLE RR TIRE<6TD> (D)	8-98001-903-0	01	1	0803-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (A)	8-98038-762-1	01	1	0803-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (B)	8-98075-678-0	01	1	0803-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM<33W> (E)	8-98075-674-0	01	1	0803-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM<33W> (F)	8-98075-675-1	01	1	0803-		●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	0803-	●	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	01	1	0803-1206	●	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	01	1	1207-1210	●	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	02	1	1211-	●	●
162	RUBBER; SUPPORT,TAIL PIPE (A)	8-98032-150-0	01	1	0803-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM<24W> (A)	8-98032-150-0	01	1	0803-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM<33W> (B) L=115	8-98034-765-0	01	1	0803-		●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	0803-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM<24W> (A) L=23	8-98006-011-0	01	1	0803-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM<33W> (B) L=37.5 THA	9-22151-217-0	01	1	0803-		●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE THA	0-28051-045-0	01	1	0803-1206	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> (A) M10X45 FLANGE THA	0-28051-045-0	01	1	0803-1206		●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE THA	0-28051-045-0	01	1	1207-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> (A) M10X45 FLANGE THA	0-28051-045-0	01	1	1207-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> (B) M10X70 FLANGE THA	0-28051-070-0	01	1	0803-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0803-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
