Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#74404) — 335 parça

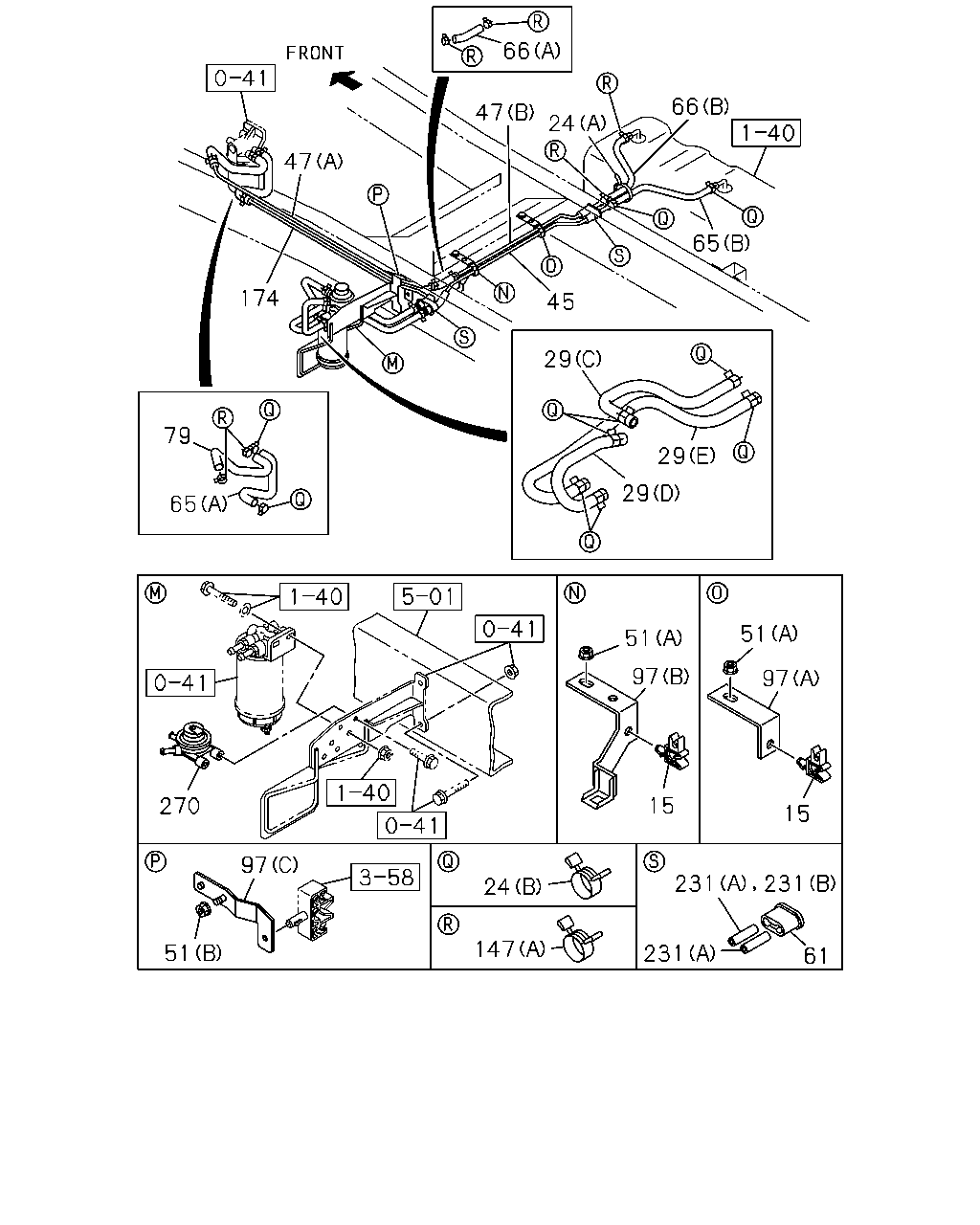

66 24 66 97 65 51 47 47 174 45 79 29 65 24 29 51 51 28 74 97 97 15 15 147 72 270 231 72 24 61 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0803-	●	●
24	CLIP; FUEL HOSE (A) L=140 THA	8-97920-656-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	8-97920-656-0	01	1	0803-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	8-97920-656-0	01	1	0803-		●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM<33W> (A) L=140 THA	8-97920-656-0	03	1	0803-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (A) L=250 THA	5-09707-030-1	01	1	0803-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (A) L=250 THA	5-09707-030-1	01	1	0803-		●
24	CLIP; FUEL HOSE (A) L=140 THA	5-09707-031-1	01	1	0803-	●	●
24	CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	5-09707-031-1	01	1	0803-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	5-09707-031-1	01	1	0803-		●
24	CLIP; FUEL HOSE (B) ID=16 THA	8-94238-568-0	08	1	0803-0911	●	●
24	CLIP; FUEL HOSE (B) ID=16 THA	8-98008-098-0	08	1	0912-	●	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206		●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210		●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE THA	0-28651-030-0	04	1	1211-	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10X30 FLANGE THA	0-28651-030-0	04	1	1211-		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA	0-28651-030-0	04	1	1211-		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-		●
29	HOSE; FUEL (B) L=200 THA	8-98081-038-0	01	1	0803-1206	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	0803-1206		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	0803-1206		●
29	HOSE; FUEL (B) L=200 THA	8-98081-038-0	01	1	1207-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98099-502-0	01	1	0803-		●
29	HOSE; FUEL WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (E)	8-98099-503-0	01	1	0803-		●
29	HOSE; FUEL WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (D)	8-98105-710-0	01	1	0803-		●
45	PIPE; FUEL,DELIVERY	8-97389-579-2	01	1	0803-0909	●	●
45	PIPE; FUEL,DELIVERY THA	8-97389-579-3	01	1	0910-	●	●
47	PIPE; FUEL,RETURN (A)	8-98064-630-0	01	1	0803-1005	●
47	PIPE; FUEL,RETURN WHEEL BASE 2400MM<24W> (A)	8-98064-630-0	01	1	0803-1005		●
47	PIPE; FUEL,RETURN (A) THA	8-98163-294-0	01	1	1006-	●
47	PIPE; FUEL,RETURN WHEEL BASE 2400MM<24W> (A) THA	8-98163-294-0	01	1	1006-		●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-2	01	1	0803-0907	●	●
47	PIPE; FUEL,RETURN (B) L=679 THA	8-98020-778-3	01	1	0908-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3300MM<33W> (A)	8-97389-594-3	01	1	0803-1005		●
47	PIPE; FUEL,RETURN WHEEL BASE 3300MM<33W> (A) THA	8-98110-833-0	01	1	1006-		●
51	NUT; CLIP,PIPE (A) M10 THA	0-91111-510-0	02	1	0803-	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-1206	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE THA	0-91180-110-0	01	1	1207-	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	0803-	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97389-796-0	01	1	1101-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97389-796-0	01	1	1101-		●
65	HOSE; FUEL,DELIVERY PIPE (B) THA	8-97389-796-0	01	1	0803-1012	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> (B) THA	8-97389-796-0	01	1	0803-1012		●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-175-1	01	1	0803-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-175-1	01	1	0803-		●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98098-176-1	01	1	0803-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98098-176-1	01	1	0803-		●
65	HOSE; FUEL,DELIVERY PIPE (A) THA	8-97389-772-0	01	1	0803-1206	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) THA	8-97389-772-0	01	1	1207-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM<33W> (B) THA	8-97924-497-0	01	1	0803-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1207-	●	●
66	HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=380 THA	8-97924-117-0	01	1	0803-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=380 THA	8-97924-117-0	01	1	0803-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-1206	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM<33W> (B) L=550 THA	8-97924-400-0	01	1	0803-		●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	02	1	0803-0803	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (A)	8-98028-752-2	02	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98028-752-2	02	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	01	1	0803-0803	●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	01	1	0803-0803	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (A)	8-98028-752-2	01	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98028-752-2	01	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (A)	8-98028-752-2	01	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98028-752-2	01	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER (B)	8-98107-370-0	01	1	0804-	●
72	BRACKET; FUEL PUMP & FILTER (B)	8-98107-370-0	01	1	0804-	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (B)	8-98107-370-0	01	1	0804-		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98107-370-0	01	1	0804-		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (B)	8-98107-370-0	01	1	0804-		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98107-370-0	01	1	0804-		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE THA	0-91180-110-0	02	1	0803-1206	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10 FLANGE THA	0-91180-110-0	02	1	0803-1206		●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-110-0	02	1	0803-1206		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE THA	0-91180-110-0	02	1	1207-1210	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10 FLANGE THA	0-91180-110-0	02	1	1207-1210		●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-110-0	02	1	1207-1210		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE THA	0-91180-110-0	04	1	1211-	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10 FLANGE THA	0-91180-110-0	04	1	1211-		●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-110-0	04	1	1211-		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN THA	8-98147-758-0	01	1	1006-	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98064-802-0	01	1	0803-1005	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 2400MM<24W>	8-98064-802-0	01	1	0803-1005		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 3300MM<33W>	8-97389-777-1	01	1	0803-1005		●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	0803-	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	0803-	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	0803-	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-94238-568-0	04	1	0803-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-94238-568-0	04	1	0803-0911		●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-98008-098-0	04	1	0912-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-98008-098-0	04	1	0912-		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-94238-610-0	06	1	0803-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12 THA	8-98150-358-0	06	1	0912-	●	●
174	PIPE; FUEL,FEED,FRT THA	8-98064-632-1	01	1	0803-1206	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM<24W> THA	8-98064-632-1	01	1	0803-1206		●
174	PIPE; FUEL,FEED,FRT THA	8-98064-632-1	01	1	1207-1210	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM<24W> THA	8-98064-632-1	01	1	1207-1210		●
174	PIPE; FUEL,FEED,FRT THA	8-98064-632-1	02	1	1211-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM<24W> THA	8-98064-632-1	02	1	1211-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM<33W> THA	8-97389-589-1	01	1	0803-1206		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM<33W> THA	8-97389-589-1	01	1	1207-1210		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM<33W> THA	8-97389-589-1	02	1	1211-		●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0803-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	0803-	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408	●	●
270	PUMP ASM; FUEL THA	8-97948-892-0	01	1	1409-	●	●

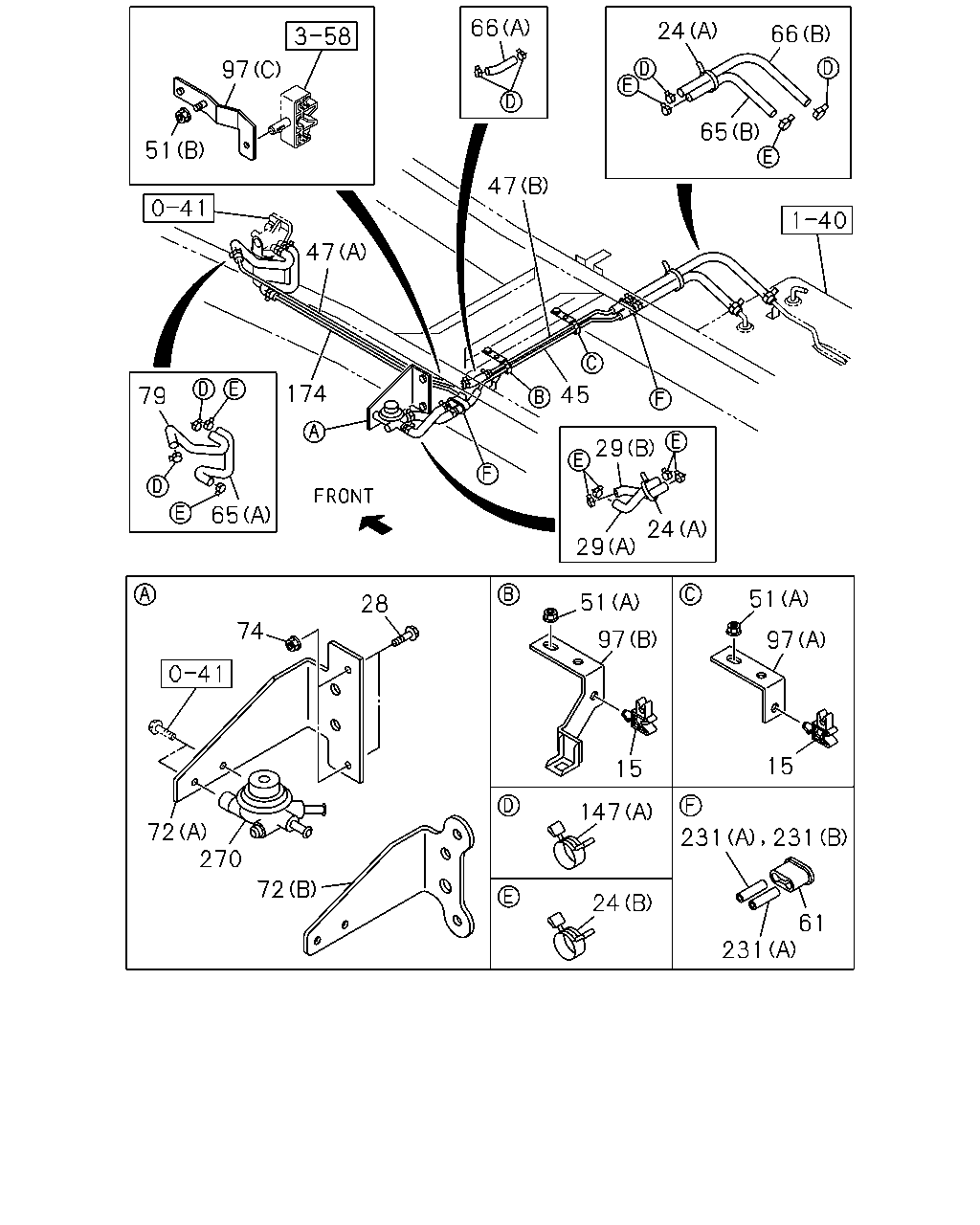

66 66 47 24 47 65 174 45 29 79 29 29 65 51 51 97 97 15 270 15 97 231 24 147 51 231 61 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0803-	●	●
24	CLIP; FUEL HOSE (A) L=140 THA	8-97920-656-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	8-97920-656-0	01	1	0803-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	8-97920-656-0	01	1	0803-		●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM<33W> (A) L=140 THA	8-97920-656-0	03	1	0803-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (A) L=250 THA	5-09707-030-1	01	1	0803-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (A) L=250 THA	5-09707-030-1	01	1	0803-		●
24	CLIP; FUEL HOSE (A) L=140 THA	5-09707-031-1	01	1	0803-	●	●
24	CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	5-09707-031-1	01	1	0803-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	5-09707-031-1	01	1	0803-		●
24	CLIP; FUEL HOSE (B) ID=16 THA	8-94238-568-0	08	1	0803-0911	●	●
24	CLIP; FUEL HOSE (B) ID=16 THA	8-98008-098-0	08	1	0912-	●	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-		●
29	HOSE; FUEL (B) L=200 THA	8-98081-038-0	01	1	0803-1206	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	0803-1206		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	0803-1206		●
29	HOSE; FUEL (B) L=200 THA	8-98081-038-0	01	1	1207-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98099-502-0	01	1	0803-		●
29	HOSE; FUEL WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (E)	8-98099-503-0	01	1	0803-		●
29	HOSE; FUEL WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (D)	8-98105-710-0	01	1	0803-		●
45	PIPE; FUEL,DELIVERY	8-97389-579-2	01	1	0803-0909	●	●
45	PIPE; FUEL,DELIVERY THA	8-97389-579-3	01	1	0910-	●	●
47	PIPE; FUEL,RETURN (A)	8-98064-630-0	01	1	0803-1005	●
47	PIPE; FUEL,RETURN WHEEL BASE 2400MM<24W> (A)	8-98064-630-0	01	1	0803-1005		●
47	PIPE; FUEL,RETURN (A) THA	8-98163-294-0	01	1	1006-	●
47	PIPE; FUEL,RETURN WHEEL BASE 2400MM<24W> (A) THA	8-98163-294-0	01	1	1006-		●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-2	01	1	0803-0907	●	●
47	PIPE; FUEL,RETURN (B) L=679 THA	8-98020-778-3	01	1	0908-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3300MM<33W> (A)	8-97389-594-3	01	1	0803-1005		●
47	PIPE; FUEL,RETURN WHEEL BASE 3300MM<33W> (A) THA	8-98110-833-0	01	1	1006-		●
51	NUT; CLIP,PIPE (A) M10 THA	0-91111-510-0	02	1	0803-	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-1206	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE THA	0-91180-110-0	01	1	1207-	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	0803-	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97389-796-0	01	1	1101-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97389-796-0	01	1	1101-		●
65	HOSE; FUEL,DELIVERY PIPE (B) THA	8-97389-796-0	01	1	0803-1012	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> (B) THA	8-97389-796-0	01	1	0803-1012		●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-175-1	01	1	0803-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-175-1	01	1	0803-		●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98098-176-1	01	1	0803-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98098-176-1	01	1	0803-		●
65	HOSE; FUEL,DELIVERY PIPE (A) THA	8-97389-772-0	01	1	0803-1206	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) THA	8-97389-772-0	01	1	1207-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM<33W> (B) THA	8-97924-497-0	01	1	0803-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1207-	●	●
66	HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=380 THA	8-97924-117-0	01	1	0803-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=380 THA	8-97924-117-0	01	1	0803-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-1206	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM<33W> (B) L=550 THA	8-97924-400-0	01	1	0803-		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN THA	8-98147-758-0	01	1	1006-	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98064-802-0	01	1	0803-1005	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 2400MM<24W>	8-98064-802-0	01	1	0803-1005		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 3300MM<33W>	8-97389-777-1	01	1	0803-1005		●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	0803-	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	0803-	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	0803-	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-94238-568-0	04	1	0803-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-94238-568-0	04	1	0803-0911		●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-98008-098-0	04	1	0912-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-98008-098-0	04	1	0912-		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-94238-610-0	06	1	0803-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12 THA	8-98150-358-0	06	1	0912-	●	●
174	PIPE; FUEL,FEED,FRT THA	8-98064-632-1	01	1	0803-1206	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM<24W> THA	8-98064-632-1	01	1	0803-1206		●
174	PIPE; FUEL,FEED,FRT THA	8-98064-632-1	01	1	1207-1210	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM<24W> THA	8-98064-632-1	01	1	1207-1210		●
174	PIPE; FUEL,FEED,FRT THA	8-98064-632-1	02	1	1211-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM<24W> THA	8-98064-632-1	02	1	1211-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM<33W> THA	8-97389-589-1	01	1	0803-1206		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM<33W> THA	8-97389-589-1	01	1	1207-1210		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM<33W> THA	8-97389-589-1	02	1	1211-		●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0803-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	0803-	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408	●	●
270	PUMP ASM; FUEL THA	8-97948-892-0	01	1	1409-	●	●

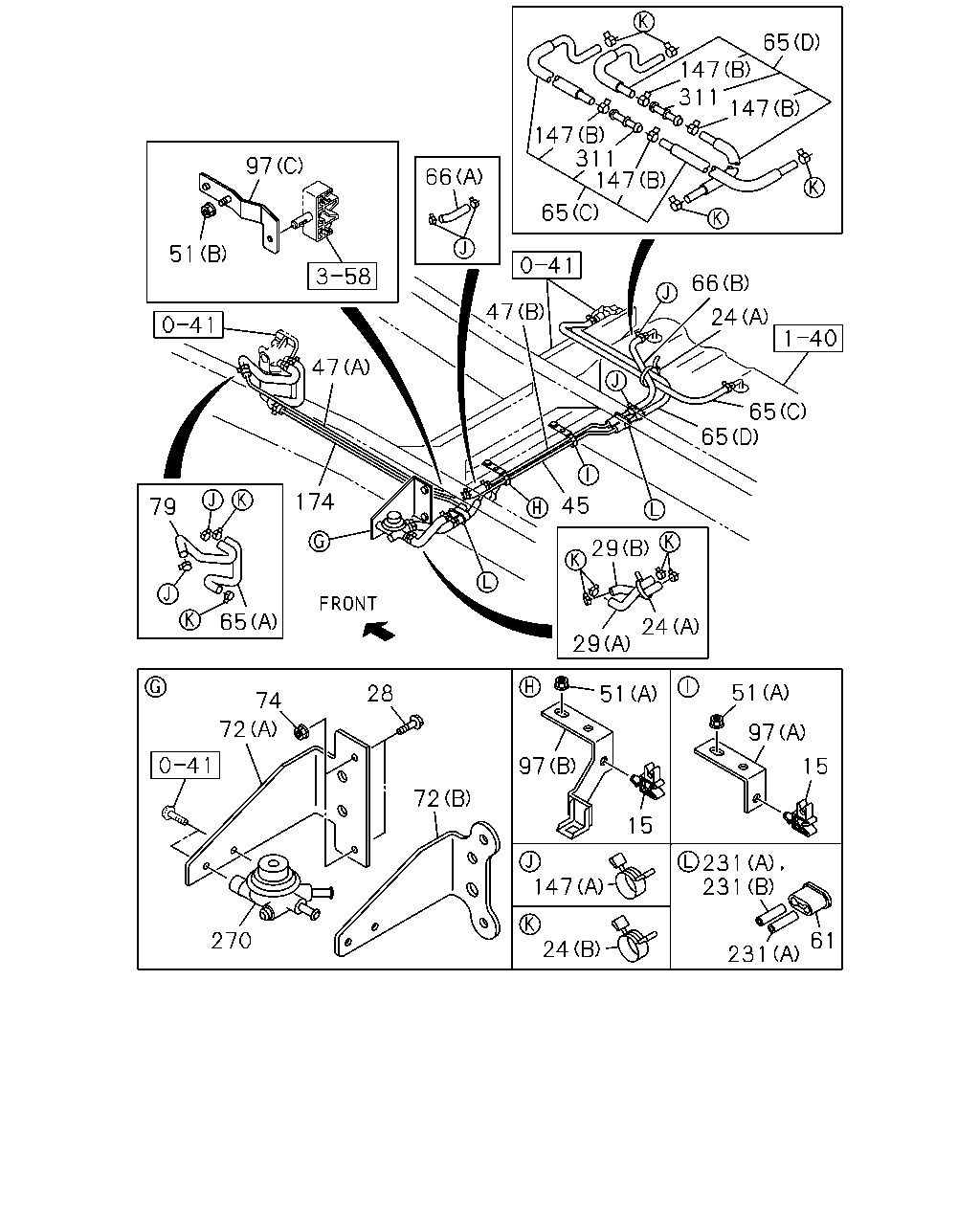

65 147 311 147 147 311 147 97 66 65 51 66 47 24 47 65 65 174 45 79 29 65 24 29 51 28 51 74 72 97 97 15 72 15 231 231 147 24 270 61 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0803-	●	●
24	CLIP; FUEL HOSE (A) L=140 THA	8-97920-656-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	8-97920-656-0	01	1	0803-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	8-97920-656-0	01	1	0803-		●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM<33W> (A) L=140 THA	8-97920-656-0	03	1	0803-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (A) L=250 THA	5-09707-030-1	01	1	0803-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (A) L=250 THA	5-09707-030-1	01	1	0803-		●
24	CLIP; FUEL HOSE (A) L=140 THA	5-09707-031-1	01	1	0803-	●	●
24	CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	5-09707-031-1	01	1	0803-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (A) L=140 THA	5-09707-031-1	01	1	0803-		●
24	CLIP; FUEL HOSE (B) ID=16 THA	8-94238-568-0	08	1	0803-0911	●	●
24	CLIP; FUEL HOSE (B) ID=16 THA	8-98008-098-0	08	1	0912-	●	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-94238-568-0	02	1	0803-0911	●	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA	0-28651-030-0	02	1	0803-1206		●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA	0-28651-030-0	02	1	1207-1210		●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE THA	0-28651-030-0	04	1	1211-	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10X30 FLANGE THA	0-28651-030-0	04	1	1211-		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA	0-28651-030-0	04	1	1211-		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-		●
29	HOSE; FUEL (B) L=200 THA	8-98081-038-0	01	1	0803-1206	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	0803-1206		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	0803-1206		●
29	HOSE; FUEL (B) L=200 THA	8-98081-038-0	01	1	1207-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=200 THA	8-98081-038-0	01	1	1207-		●
29	HOSE; FUEL WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98099-502-0	01	1	0803-		●
29	HOSE; FUEL WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (E)	8-98099-503-0	01	1	0803-		●
29	HOSE; FUEL WHEEL BASE 3300MM<33W> POOR QUALITY DIESEL FUEL<KF0> (D)	8-98105-710-0	01	1	0803-		●
45	PIPE; FUEL,DELIVERY	8-97389-579-2	01	1	0803-0909	●	●
45	PIPE; FUEL,DELIVERY THA	8-97389-579-3	01	1	0910-	●	●
47	PIPE; FUEL,RETURN (A)	8-98064-630-0	01	1	0803-1005	●
47	PIPE; FUEL,RETURN WHEEL BASE 2400MM<24W> (A)	8-98064-630-0	01	1	0803-1005		●
47	PIPE; FUEL,RETURN (A) THA	8-98163-294-0	01	1	1006-	●
47	PIPE; FUEL,RETURN WHEEL BASE 2400MM<24W> (A) THA	8-98163-294-0	01	1	1006-		●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-2	01	1	0803-0907	●	●
47	PIPE; FUEL,RETURN (B) L=679 THA	8-98020-778-3	01	1	0908-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3300MM<33W> (A)	8-97389-594-3	01	1	0803-1005		●
47	PIPE; FUEL,RETURN WHEEL BASE 3300MM<33W> (A) THA	8-98110-833-0	01	1	1006-		●
51	NUT; CLIP,PIPE (A) M10 THA	0-91111-510-0	02	1	0803-	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-1206	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE THA	0-91180-110-0	01	1	1207-	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	0803-	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97389-796-0	01	1	1101-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) THA	8-97389-796-0	01	1	1101-		●
65	HOSE; FUEL,DELIVERY PIPE (B) THA	8-97389-796-0	01	1	0803-1012	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> (B) THA	8-97389-796-0	01	1	0803-1012		●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-175-1	01	1	0803-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (D)	8-98098-175-1	01	1	0803-		●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98098-176-1	01	1	0803-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98098-176-1	01	1	0803-		●
65	HOSE; FUEL,DELIVERY PIPE (A) THA	8-97389-772-0	01	1	0803-1206	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) THA	8-97389-772-0	01	1	1207-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM<33W> (B) THA	8-97924-497-0	01	1	0803-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1207-	●	●
66	HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=380 THA	8-97924-117-0	01	1	0803-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM<24W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=380 THA	8-97924-117-0	01	1	0803-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-1206	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM<33W> (B) L=550 THA	8-97924-400-0	01	1	0803-		●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	02	1	0803-0803	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (A)	8-98028-752-2	02	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98028-752-2	02	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	01	1	0803-0803	●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	01	1	0803-0803	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (A)	8-98028-752-2	01	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98028-752-2	01	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (A)	8-98028-752-2	01	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98028-752-2	01	1	0803-0803		●
72	BRACKET; FUEL PUMP & FILTER (B)	8-98107-370-0	01	1	0804-	●
72	BRACKET; FUEL PUMP & FILTER (B)	8-98107-370-0	01	1	0804-	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (B)	8-98107-370-0	01	1	0804-		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98107-370-0	01	1	0804-		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM<24W> (B)	8-98107-370-0	01	1	0804-		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98107-370-0	01	1	0804-		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE THA	0-91180-110-0	02	1	0803-1206	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10 FLANGE THA	0-91180-110-0	02	1	0803-1206		●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-110-0	02	1	0803-1206		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE THA	0-91180-110-0	02	1	1207-1210	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10 FLANGE THA	0-91180-110-0	02	1	1207-1210		●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-110-0	02	1	1207-1210		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE THA	0-91180-110-0	04	1	1211-	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM<24W> M10 FLANGE THA	0-91180-110-0	04	1	1211-		●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM<33W> EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-110-0	04	1	1211-		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN THA	8-98147-758-0	01	1	1006-	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98064-802-0	01	1	0803-1005	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 2400MM<24W>	8-98064-802-0	01	1	0803-1005		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 3300MM<33W>	8-97389-777-1	01	1	0803-1005		●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	0803-	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	0803-	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	0803-	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-94238-568-0	04	1	0803-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-94238-568-0	04	1	0803-0911		●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-98008-098-0	04	1	0912-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=16 THA	8-98008-098-0	04	1	0912-		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-94238-610-0	06	1	0803-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12 THA	8-98150-358-0	06	1	0912-	●	●
174	PIPE; FUEL,FEED,FRT THA	8-98064-632-1	01	1	0803-1206	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM<24W> THA	8-98064-632-1	01	1	0803-1206		●
174	PIPE; FUEL,FEED,FRT THA	8-98064-632-1	01	1	1207-1210	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM<24W> THA	8-98064-632-1	01	1	1207-1210		●
174	PIPE; FUEL,FEED,FRT THA	8-98064-632-1	02	1	1211-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM<24W> THA	8-98064-632-1	02	1	1211-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM<33W> THA	8-97389-589-1	01	1	0803-1206		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM<33W> THA	8-97389-589-1	01	1	1207-1210		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM<33W> THA	8-97389-589-1	02	1	1211-		●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0803-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	0803-	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408	●	●
270	PUMP ASM; FUEL THA	8-97948-892-0	01	1	1409-	●	●
311	JOINT; HOSE POOR QUALITY DIESEL FUEL<KF0>	8-97353-668-0	02	1	0803-	●
311	JOINT; HOSE WHEEL BASE 2400MM<24W> POOR QUALITY DIESEL FUEL<KF0>	8-97353-668-0	02	1	0803-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
