1-40 — FUEL TANK (#74403) — 55 parça

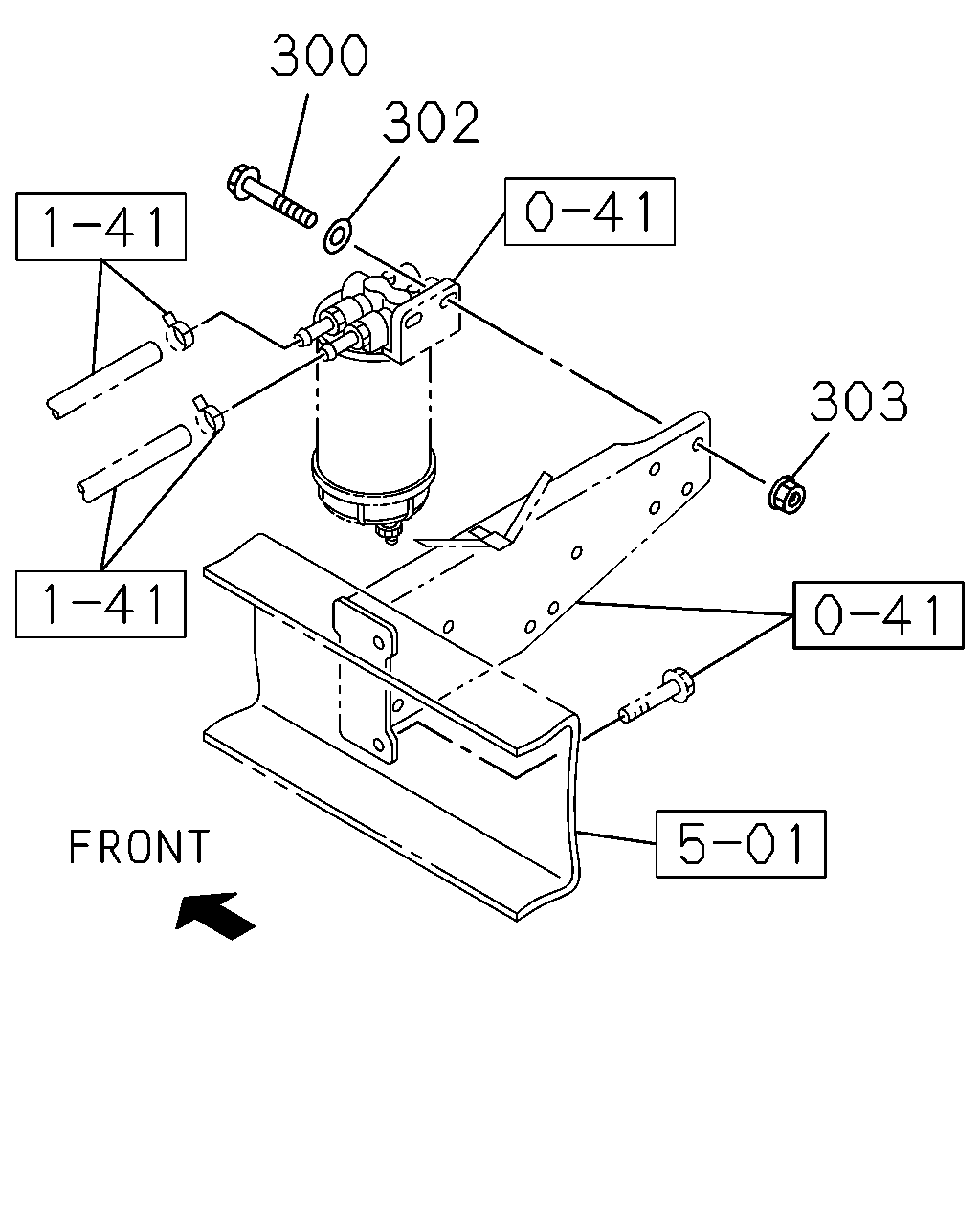

çizim 93067
300 302 303
BalonParca AdiParca NoAdetTipApplied Date A B
300 BOLT; BRKT TO BODY
ENGINE BREAKDOWN<RZX> KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> M8X25 FLANGE THA 		0-28650-825-0 02 1 1109- ● ●
300 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE THA 		0-28651-040-0 02 1 0803- ● ●
300 BOLT; BRKT TO BODY
KD PREPARATORY PACK<6HF> M8X25 FLANGE THA 		0-28650-825-0 02 1 0803- ● ●
302 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 02 1 0803- ● ●
303 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA 		0-91180-110-0 02 1 0803- ● ●

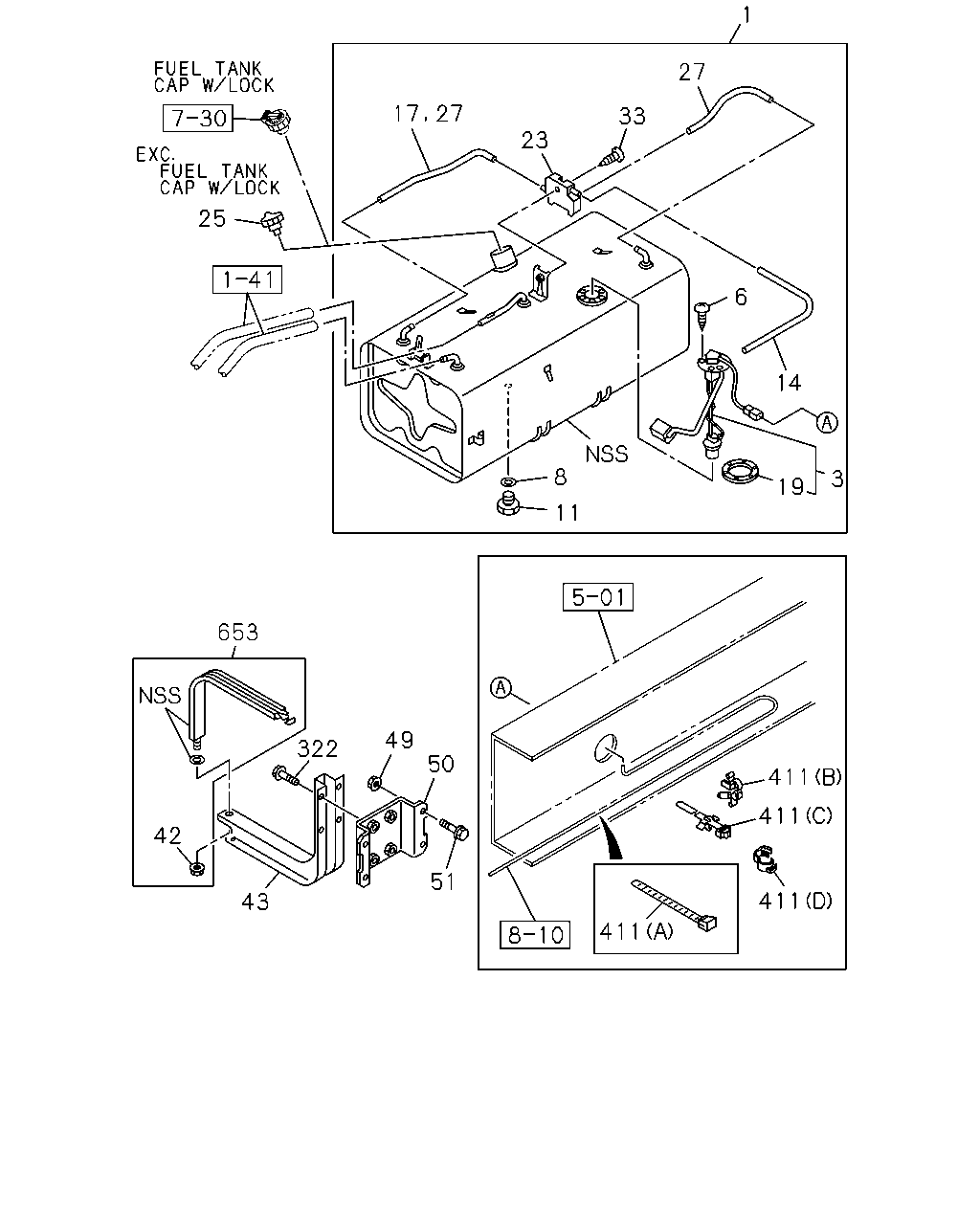

çizim 93263
25 17 27 33 27 1 23 11 8 19 14 6 3 653 51 49 50 322 42 43 411 411 411 411
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
753X340X327 75L THA 		8-97924-555-0 01 1 0803- ●
1 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 753X340X327 75L THA 		8-97924-555-0 01 1 0803- ●
1 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1000X340X327 100L THA 		8-97924-556-0 01 1 0803- ●
3 UNIT; FUEL TANK,SUB
THA 		8-94316-190-0 01 1 0803- ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER THA 		0-36220-512-0 05 1 0803- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
THA 		8-97918-206-0 01 1 0803- ● ●
11 PLUG; DRAIN,FUEL TANK
THA 		8-97917-063-0 01 1 0803- ● ●
14 HOSE; BREATHER,OUTLET
THA 		8-97917-066-0 01 1 0803- ●
14 HOSE; BREATHER,OUTLET
FUEL TANK 75 LITTER<7GX> THA 		8-97917-066-0 01 1 0803- ●
14 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=430 THA 		8-97917-065-0 01 1 0803- ●
17 HOSE; BREATHER
THA 		8-97917-069-0 01 1 0803- ●
17 HOSE; BREATHER
FUEL TANK 75 LITTER<7GX> THA 		8-97917-069-0 01 1 0803- ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0803- ● ●
23 JOINT; BREATHER HOSE
THA 		8-97917-064-0 01 1 0803- ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0803- ● ●
27 HOSE; BREATHER
THA 		8-97917-068-0 01 1 0803- ●
27 HOSE; BREATHER
FUEL TANK 75 LITTER<7GX> THA 		8-97917-068-0 01 1 0803- ●
27 HOSE; BREATHER
FUEL TANK 100 LITTER<N02> L=470 THA 		8-97917-067-0 02 1 0803- ●
33 SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER THA 		0-36230-620-0 01 1 0803- ● ●
42 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0803- ● ●
43 BRACKET; FUEL TANK
THA 		8-97917-011-0 02 1 0803- ● ●
49 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 06 1 0803- ●
49 NUT; BRKT
WHEEL BASE 2400MM<24W> M10 FLANGE THA 		0-91180-210-0 06 1 0803- ●
49 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 08 1 0803-0808 ● ●
49 NUT; BRKT
WHEEL BASE 3300MM<33W> M10 FLANGE THA 		0-91180-210-0 08 1 0803-0808 ●
49 NUT; BRKT
WHEEL BASE 3300MM<33W> M10 FLANGE THA 		0-91180-210-0 08 1 0809- ●
50 BRACKET; SUPPORT,FUEL BRKT
THA 		8-97923-999-1 02 1 0803- ● ●
51 BOLT; BRKT TO FRAME
M10X30 FLANGE THA 		0-28661-030-0 08 1 0803- ●
51 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> M10X30 FLANGE THA 		0-28661-030-0 08 1 0803- ●
51 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM<33W> M10X35 FLANGE THA 		0-28661-035-0 08 1 0803- ●
322 BOLT; BRKT FIX
M10X25 FLANGE THA 		0-28661-025-0 08 1 0803- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(D) ID=20 		8-94241-972-0 02 1 0804- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM<24W> (D) ID=20 		8-94241-972-0 02 1 0804- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM<33W> (D) ID=20 		8-94241-972-0 01 1 0804- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM<33W> (A) L=140 THA 		8-97920-656-0 02 1 0803- ●
411 CLIP; FUEL TANK UNIT HARNESS
(A) L=140 THA 		8-97920-656-0 03 1 0803-0803 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(A) L=140 THA 		8-97920-656-0 03 1 0803- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM<24W> (A) L=140 THA 		8-97920-656-0 03 1 0803- ●
411 CLIP; FUEL TANK UNIT HARNESS
(B) ID=5-12 L=18 THA 		1-09709-287-0 03 1 0803- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(C) L=170.3 THA 		1-09987-182-0 01 1 0803- ● ●
653 BAND KIT; FUEL TANK 5-87411-970-0 02 1 0803- ● ●

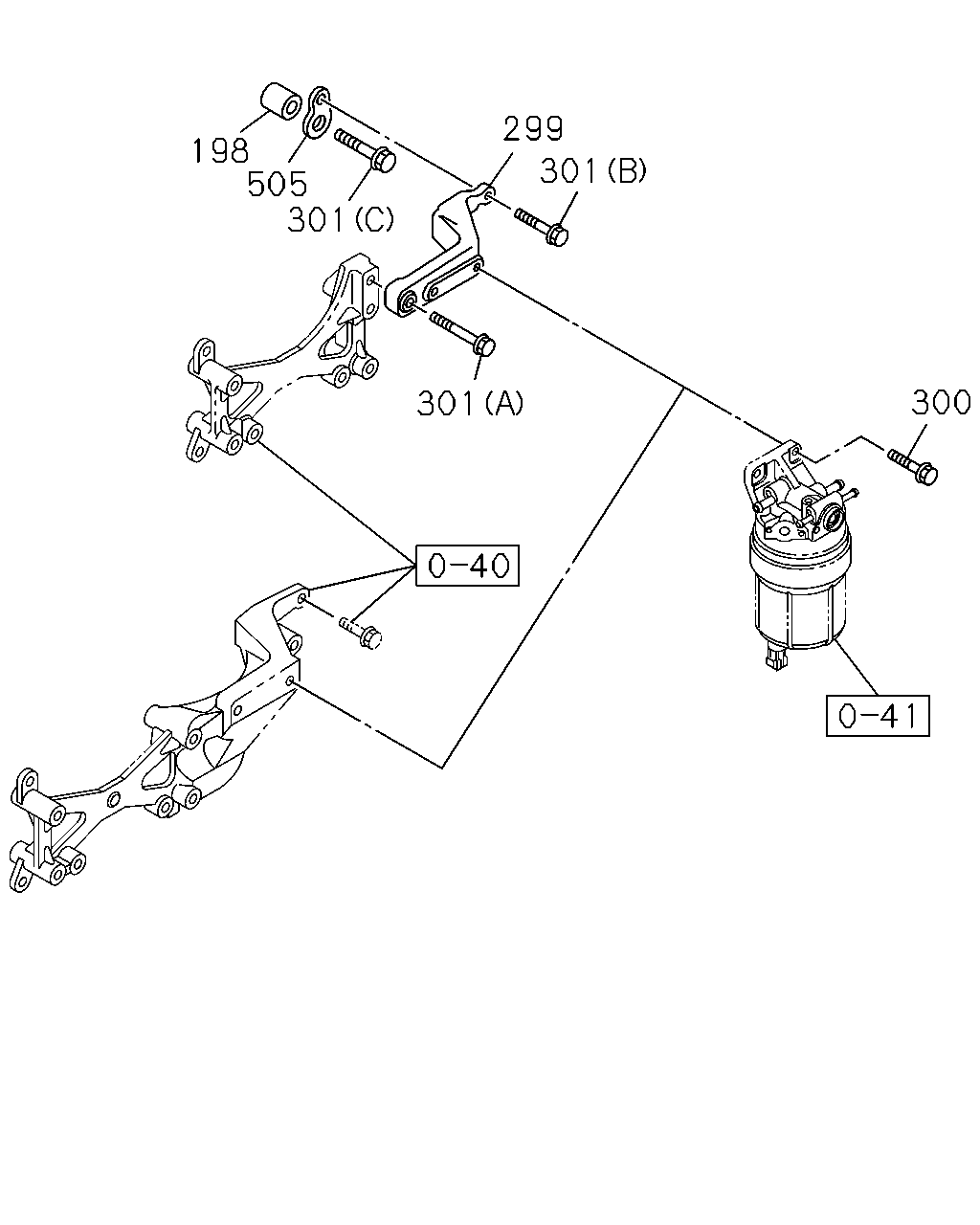

çizim 185606
299 198 505 301 301 300 301
BalonParca AdiParca NoAdetTipApplied Date A B
198 SPACER
KD PREPARATORY PACK<6HF> 		8-98081-509-0 01 1 0803-1001 ● ●
299 BRACKET; FUEL FILTER
KD PREPARATORY PACK<6HF> 		8-98009-087-4 01 1 0803-1001 ● ●
300 BOLT; BRKT TO BODY
ENGINE BREAKDOWN<RZX> KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> M8X25 FLANGE THA 		0-28650-825-0 02 1 1109- ● ●
300 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE THA 		0-28651-040-0 02 1 0803- ● ●
300 BOLT; BRKT TO BODY
KD PREPARATORY PACK<6HF> M8X25 FLANGE THA 		0-28650-825-0 02 1 0803- ● ●
301 BOLT; BRKT TO SEDIMENTER
KD PREPARATORY PACK<6HF> (B) M8X40 FLANGE 		0-28060-840-0 01 1 0803-1001 ● ●
301 BOLT; BRKT TO SEDIMENTER
KD PREPARATORY PACK<6HF> (A) M8X66 FLANGE 		8-98081-507-0 01 1 0803-1001 ● ●
301 BOLT; BRKT TO SEDIMENTER
KD PREPARATORY PACK<6HF> (C) M14X58 FLANGE 		8-98081-508-0 01 1 0803-1001 ● ●
505 BRACKET
KD PREPARATORY PACK<6HF> 		8-98081-486-0 01 1 0803-1001 ● ●
