1-31 — AIR DUCT (#74401) — 87 parça

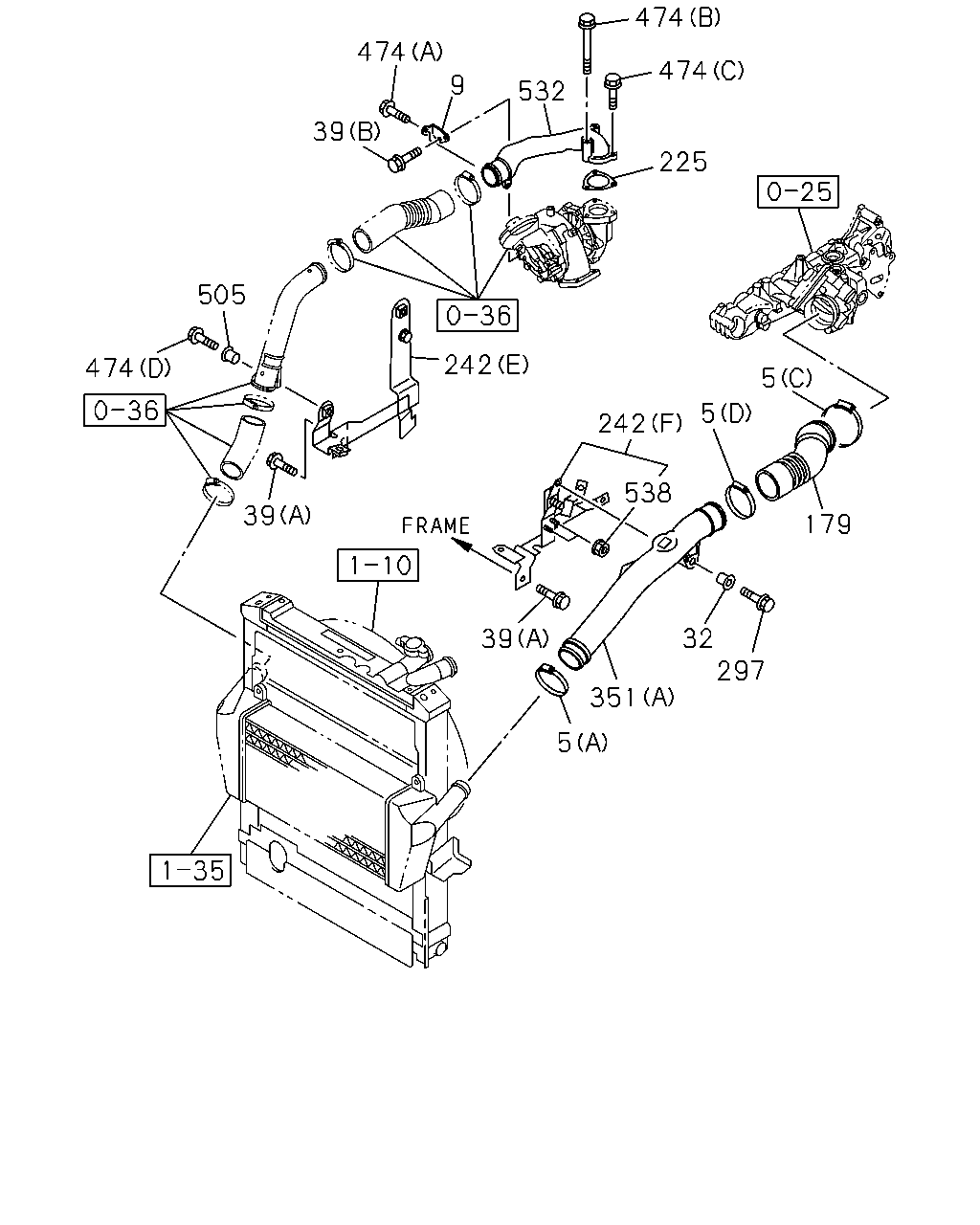

çizim 91842
474 39 505 474 39 242 225 532 474 474 5 5 242 538 39 351 5 297 32 179 9
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0803-0810 ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-1507 ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98308-273-0 01 1 1508- ● ●
5 CLIP; AIR DUCT
(D) ID=58-76 THA 		1-09707-203-0 01 1 0803-0811 ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-1507 ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 THA 		8-98141-459-0 01 1 1508- ● ●
5 CLIP; AIR DUCT
(A) ID=50-65 THA 		1-09707-204-0 01 1 0803-0810 ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-1507 ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 THA 		8-98133-396-0 01 1 1508- ● ●
5 CLIP; AIR DUCT
(B) 		9-09915-504-1 01 1 0803-0803 ● ●
5 CLIP; AIR DUCT
(B) 		1-14239-263-0 01 1 0803- ● ●
9 BRACKET; INT PIPE 8-98009-086-0 01 1 0803- ● ●
32 RUBBER; AIR DUCT MTG
OD=23 		8-97105-689-6 01 1 0803- ● ●
39 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 02 1 0803- ● ●
39 BOLT; BRKT
(B) M8X14 FLANGE 		8-97378-075-0 01 1 0803- ● ●
179 HOSE; AIR INT 8-98050-920-2 01 1 0803- ● ●
225 GASKET; AIR PIPE
ID=47 		8-97202-328-1 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0803-1411 ● ●
242 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1412- ● ●
297 BOLT; DUCT
M8X35 FLANGE THA 		0-28650-835-0 01 1 0803- ● ●
351 DUCT; AIR
(B) 		8-97109-423-0 01 1 0803-0803 ● ●
351 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803- ● ●
351 DUCT; AIR
(A) 		8-98067-267-0 01 1 0803- ● ●
474 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 0803- ● ●
474 BOLT; PIPE
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0803-1206 ● ●
474 BOLT; PIPE
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1207- ● ●
474 BOLT; PIPE
(C) M6X30 FLANGE THA 		0-28650-630-0 01 1 0803- ● ●
474 BOLT; PIPE
(D) M8X35 FLANGE THA 		0-28650-835-0 01 1 0803- ● ●
505 RUBBER; MTG
OD=23 		8-97105-689-6 01 1 0803- ● ●
532 PIPE; INTAKE 8-97385-203-1 01 1 0803-1303 ● ●
532 PIPE; INTAKE 8-98237-771-1 01 1 1304- ● ●
538 NUT; PLATE,AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0803- ● ●

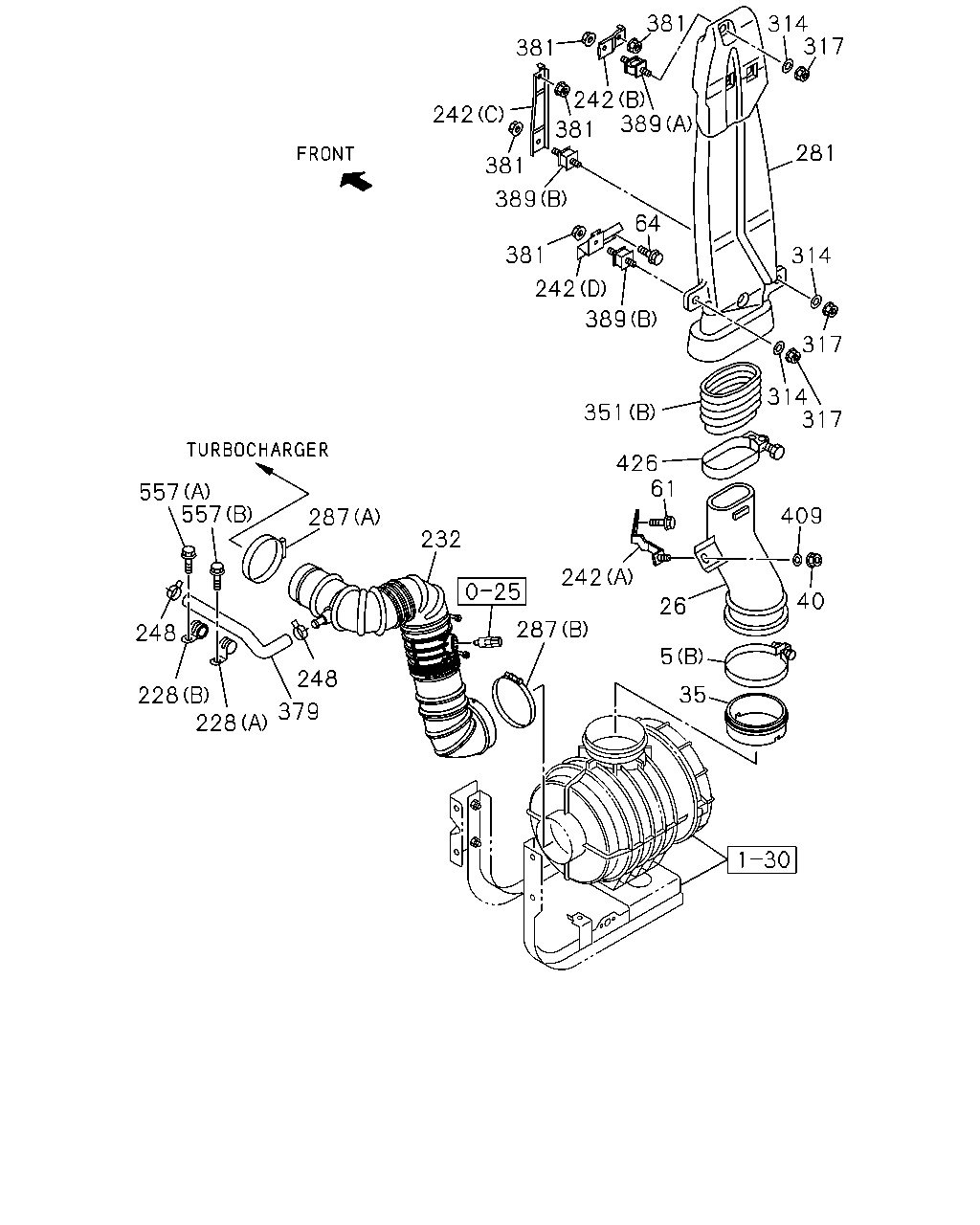

çizim 185607
35 5 26 40 409 317 314 317 314 281 317 314 381 381 389 242 381 381 389 381 64 389 351 426 61 242 242 287 232 287 248 379 228 228 248 557 557 242
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0803-0810 ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-1507 ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98308-273-0 01 1 1508- ● ●
5 CLIP; AIR DUCT
(D) ID=58-76 THA 		1-09707-203-0 01 1 0803-0811 ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-1507 ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 THA 		8-98141-459-0 01 1 1508- ● ●
5 CLIP; AIR DUCT
(A) ID=50-65 THA 		1-09707-204-0 01 1 0803-0810 ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-1507 ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 THA 		8-98133-396-0 01 1 1508- ● ●
5 CLIP; AIR DUCT
(B) 		9-09915-504-1 01 1 0803-0803 ● ●
5 CLIP; AIR DUCT
(B) 		1-14239-263-0 01 1 0803- ● ●
26 DUCT; AIR INT 8-98023-339-0 01 1 0803- ● ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0803- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE THA 		0-91180-110-0 01 1 0803- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA 		0-28650-825-0 01 1 0803-1206 ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1207-1210 ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1211- ● ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0803- ● ●
228 CLIP; PCV HOSE
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0803-1001 ● ●
228 CLIP; PCV HOSE
(A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002- ● ●
228 CLIP; PCV HOSE
(B) ID=22 L=22 		5-83574-045-0 01 1 0803-1001 ● ●
228 CLIP; PCV HOSE
(B) ID=22 L=22 		8-98120-916-0 01 1 1002- ● ●
232 HOSE; CONN 8-98048-540-0 01 1 0803-1409 ● ●
232 HOSE; CONN 8-98269-834-0 01 1 1410- ● ●
242 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0803-1411 ● ●
242 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1412- ● ●
248 CLIP; RUBBER HOSE
ID=21.7 		8-97203-074-0 02 1 0803- ● ●
281 DUCT; AIR,VERTICAL INT 8-97369-706-0 01 1 0803- ● ●
287 CLIP; AIR DUCT
(A) ID=68-85 		1-09707-202-0 01 1 0803-0810 ● ●
287 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 0811-1507 ● ●
287 CLIP; AIR DUCT
(A) ID=65-85 		8-98308-273-0 01 1 1508- ● ●
287 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 0803- ● ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0803- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER THA 		8-97581-234-0 03 1 0803- ● ●
351 DUCT; AIR
(B) 		8-97109-423-0 01 1 0803-0803 ● ●
351 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803- ● ●
351 DUCT; AIR
(A) 		8-98067-267-0 01 1 0803- ● ●
379 HOSE; RUBBER
THA 		8-98045-343-0 01 1 0803- ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER THA 		8-97581-234-0 05 1 0803- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0803- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0803- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0803- ● ●
426 CLIP; DUCT
D=101.6 		9-09915-502-1 01 1 0803- ● ●
557 BOLT; HOSE CLIP
(A) M6X10 FLANGE THA 		0-28050-610-0 01 1 0803- ● ●
557 BOLT; HOSE CLIP
(B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0803- ● ●
