Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#744) — 257 parça

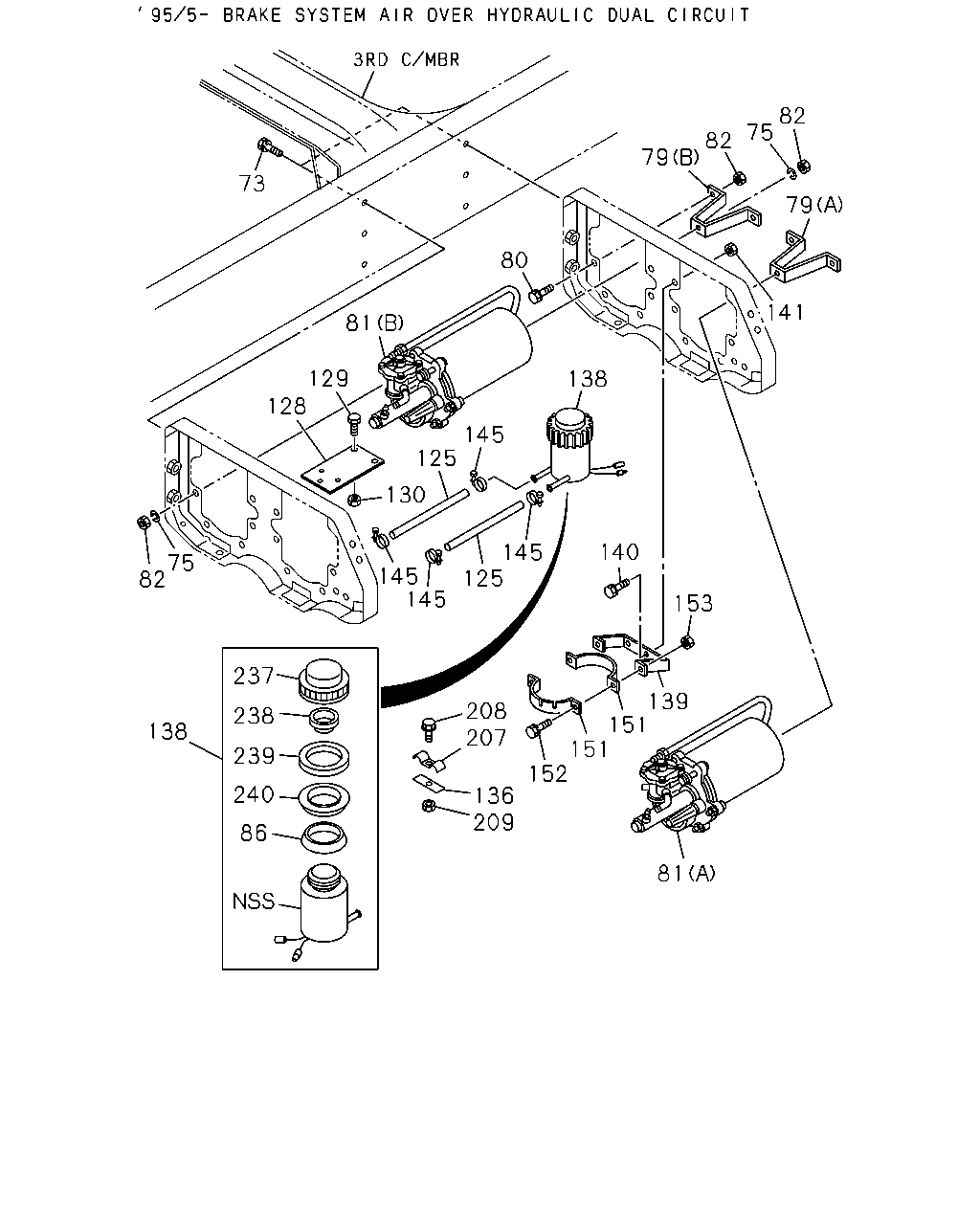

82 75 82 79 73 79 80 141 81 129 128 138 145 125 130 75 82 140 145 125 145 145 153 237 139 151 151 152 208 207 238 138 239 240 136 209 86 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X45	1-09030-052-1	06	1	9505-
75	WASHER; LK,STAY,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	9-09150-510-0	10	1	9505-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) H=133	1-53318-216-0	01	1	9505-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) H=203	1-53318-217-0	01	1	9505-
80	BOLT; BRKT M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9204-9504
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	02	1	9505-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	04	1	9505-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9505-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47800-384-2	01	1	9505-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47800-385-2	01	1	9505-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	16	1	9505-
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	9505-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140	1-47469-051-1	01	1	9505-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=190	1-47469-052-2	01	1	9505-
128	PROTECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53319-018-0	01	1	9505-
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9505-
130	NUT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9505-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9505-
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-154-1	01	1	9505-
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-114-3	01	1	9505-
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	03	1	9505-
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	03	1	9505-
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	9505-
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-113-0	02	1	9505-
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9505-
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9505-
207	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	9505-
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9505-
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-026-1	01	1	9505-
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	9505-
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	9505-
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	9505-

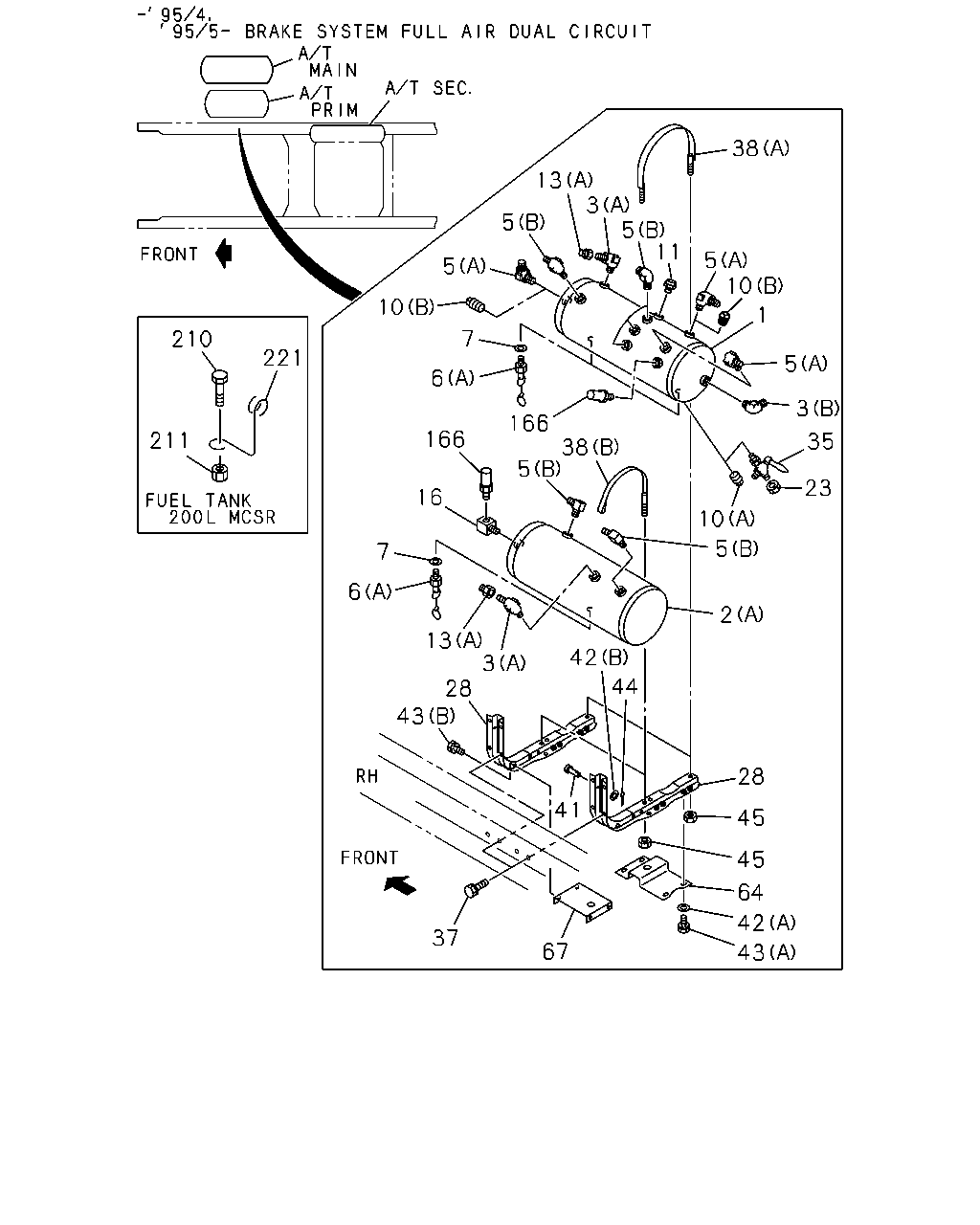

38 13 3 5 11 5 5 10 5 10 1 7 210 221 5 6 3 166 166 211 35 38 5 23 16 10 5 7 6 2 13 3 42 44 28 43 28 41 45 45 64 42 37 67 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48330-801-4	01	1	9204-9504
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48330-801-4	01	1	9505-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48330-736-0	01	1	9505-
2	TANK; AIR (A)	1-48330-802-1	01	1	9204-9504
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48330-802-1	01	1	9505-
2	TANK; AIR (B)	1-48330-804-2	01	1	9204-9504
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48330-070-1	01	1	9505-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48330-804-2	01	1	9505-
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9204-9504
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-182-2	02	1	9505-
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	02	1	9204-9504
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48410-133-2	01	1	9505-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48410-133-2	02	1	9505-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9204-9504
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9505-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9505-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9505-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09660-091-3	01	1	9505-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M22 & PT3/4	1-48410-136-2	01	1	9505-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9204-9504
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9505-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9204-9504
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9505-
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9204-9504
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9505-
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	03	1	9204-9504
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	03	1	9505-
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	03	1	9204-9207
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9208-9509
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	9510-
6	COCK; DRAIN,AIR TANK (B)	1-48312-013-1	01	1	9204-9504
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48312-013-1	01	1	9505-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9204-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	01	1	9204-
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09605-111-0	02	1	9204-9504
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09605-111-0	02	1	9505-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	01	1	9204-9504
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	01	1	9505-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4	9-99204-513-0	01	1	9505-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9204-
13	ADAPTER; NYLON TUBE (B) M20X36	1-09660-576-0	01	1	9204-9504
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20X36	1-09660-576-0	01	1	9505-
13	ADAPTER; NYLON TUBE (A) M20X36	1-09660-576-0	02	1	9204-9504
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20X36	1-09660-576-0	02	1	9505-
16	CONNECTOR; SWITCH	1-09660-640-1	02	1	9204-9302
16	CONNECTOR; SWITCH PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9303-9504
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9505-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9204-
28	BRACKET; AIR TANK	1-48317-240-4	02	1	9204-9504
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-240-4	02	1	9505-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9204-
37	BOLT; AIR TANK M12X35 W/LK WASHER	0-50041-235-0	08	1	9204-9504
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X35 W/LK WASHER	0-50041-235-0	08	1	9505-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9204-9504
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9505-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9204-9504
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	9505-
41	PIN; BAND FIX	9-08221-060-0	02	1	9204-9504
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-08221-060-0	02	1	9505-
42	WASHER; PL (A) ID=8.4 OD=22	9-09160-708-0	04	1	9204-9504
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=8.4 OD=22	9-09160-708-0	04	1	9505-
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9204-9504
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=10.5	9-09164-510-0	02	1	9505-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9204-9504
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9505-
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9204-9504
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9505-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	02	1	9505-
44	PIN; SPLIT	9-08113-018-0	02	1	9204-9504
44	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=2.8 L=18	9-08113-018-0	02	1	9505-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9204-9504
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9505-
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9204-9504
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-220-1	01	1	9505-
67	STAY; SUB TANK	1-48317-271-0	01	1	9204-9504
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-271-0	01	1	9505-
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9505-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	02	1	9204-9411
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	02	1	9412-9504
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9505-
210	BOLT; STRING GUIDE FUEL TANK 200L MCSR(PK6) M8X20 FLANGE	0-28010-820-0	03	1	9204-9204
210	BOLT; STRING GUIDE FUEL TANK 200L MCSR(PK6) M8X20 FLANGE	0-28080-820-0	03	1	9205-
211	NUT; STRING GUIDE FUEL TANK 200L MCSR(PK6) M8	9-09110-408-0	03	1	9204-
221	GUIDE; STRING,AIR TANK FUEL TANK 200L MCSR(PK6)	1-48319-091-0	03	1	9204-

62 67 71 73 78 63 74 46 71 46 55 10 11 77 1 9 43 5 24 36 5 167 7 5 3 6 5 3 164 39 2 167 164 24 7 39 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48330-801-4	01	1	9204-9504
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48330-801-4	01	1	9505-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48330-736-0	01	1	9505-
2	TANK; AIR (A)	1-48330-802-1	01	1	9204-9504
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48330-802-1	01	1	9505-
2	TANK; AIR (B)	1-48330-804-2	01	1	9204-9504
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48330-070-1	01	1	9505-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48330-804-2	01	1	9505-
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9204-9504
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-182-2	02	1	9505-
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	02	1	9204-9504
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48410-133-2	01	1	9505-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48410-133-2	02	1	9505-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9204-9504
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9505-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9505-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9505-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09660-091-3	01	1	9505-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M22 & PT3/4	1-48410-136-2	01	1	9505-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9204-9504
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9505-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9204-9504
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9505-
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9204-9504
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9505-
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	03	1	9204-9504
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	03	1	9505-
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	03	1	9204-9207
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9208-9509
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	9510-
6	COCK; DRAIN,AIR TANK (B)	1-48312-013-1	01	1	9204-9504
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48312-013-1	01	1	9505-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9204-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	01	1	9204-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9505-
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09605-111-0	02	1	9204-9504
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09605-111-0	02	1	9505-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	01	1	9204-9504
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	01	1	9505-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4	9-99204-513-0	01	1	9505-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9204-
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47497-999-0	01	1	9505-
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-49111-893-0	01	1	9505-
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-477-0	01	1	9505-
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9204-9504
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-301-0	01	1	9505-
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-302-0	02	1	9505-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-48317-308-0	02	1	9505-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9204-9504
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9505-
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9204-9504
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9505-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	02	1	9505-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	9204-9504
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	12	1	9505-
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	08	1	9505-
55	WASHER; PL,U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	08	1	9505-
62	BOLT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	02	1	9505-
63	NUT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	02	1	9505-
67	STAY; SUB TANK	1-48317-271-0	01	1	9204-9504
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-271-0	01	1	9505-
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9505-
71	BRACKET; AIR MASTER,TANDEM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-276-0	02	1	9505-
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X45	1-09030-052-1	06	1	9505-
74	NUT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	04	1	9505-
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-293-1	01	1	9505-
78	BOLT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9505-
164	CONNECTOR; SUB AIR TANK	1-09660-531-0	01	1	9204-9504
164	CONNECTOR; SUB AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09656-268-1	02	1	9505-
164	CONNECTOR; SUB AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-531-0	01	1	9505-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB	1-48340-040-0	01	1	9204-9411
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-0	01	1	9412-9504
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	01	1	9505-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	02	1	9505-

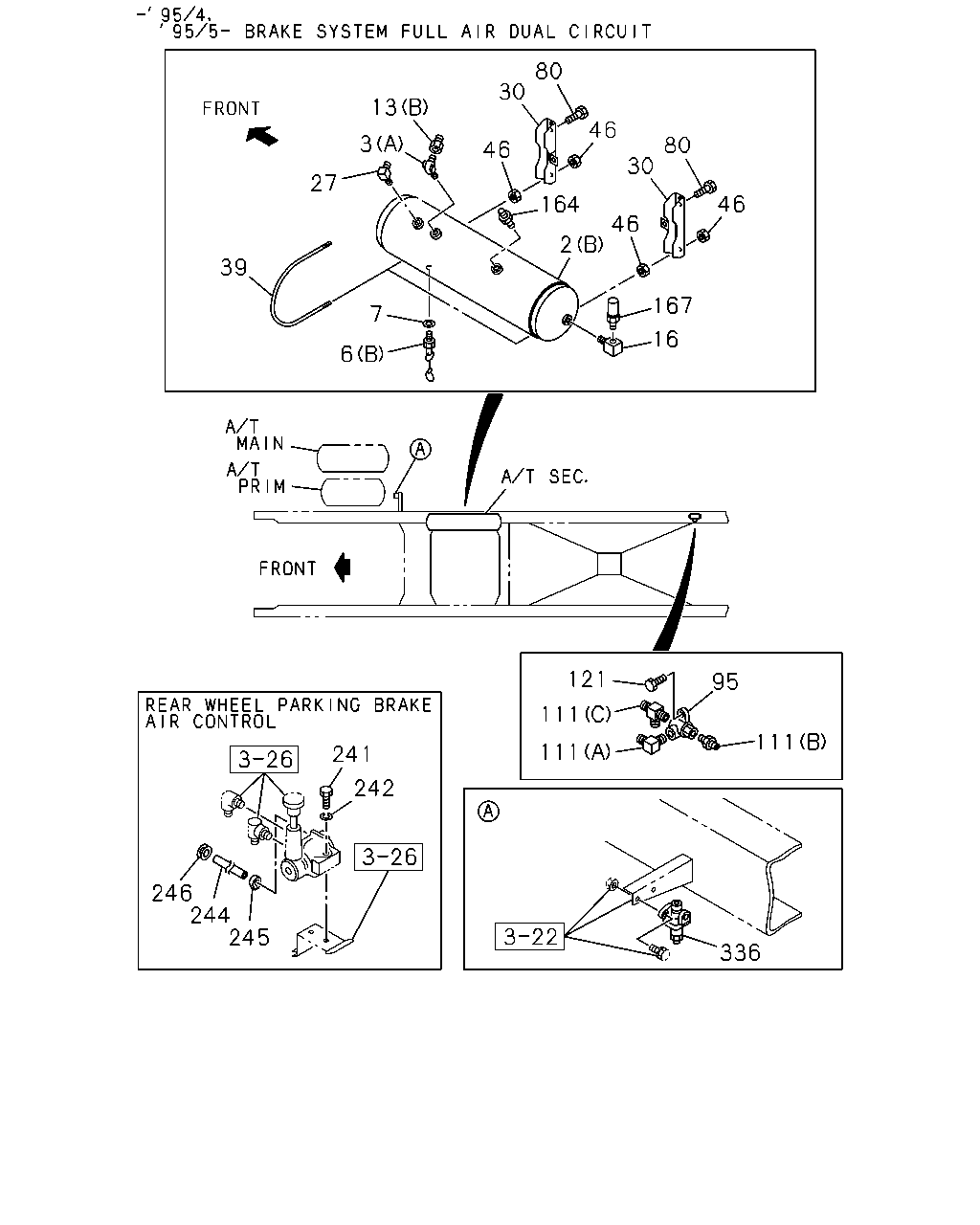

80 30 13 46 3 80 46 30 27 46 164 46 2 39 167 7 16 6 121 95 111 111 111 241 242 246 244 245 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48330-802-1	01	1	9204-9504
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48330-802-1	01	1	9505-
2	TANK; AIR (B)	1-48330-804-2	01	1	9204-9504
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48330-070-1	01	1	9505-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48330-804-2	01	1	9505-
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9204-9504
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-182-2	02	1	9505-
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	02	1	9204-9504
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48410-133-2	01	1	9505-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48410-133-2	02	1	9505-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9204-9504
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9505-
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	03	1	9204-9207
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9208-9509
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	9510-
6	COCK; DRAIN,AIR TANK (B)	1-48312-013-1	01	1	9204-9504
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48312-013-1	01	1	9505-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9204-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	01	1	9204-
13	ADAPTER; NYLON TUBE (B) M20X36	1-09660-576-0	01	1	9204-9504
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20X36	1-09660-576-0	01	1	9505-
13	ADAPTER; NYLON TUBE (A) M20X36	1-09660-576-0	02	1	9204-9504
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20X36	1-09660-576-0	02	1	9505-
16	CONNECTOR; SWITCH	1-09660-640-1	02	1	9204-9302
16	CONNECTOR; SWITCH PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9303-9504
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9505-
27	UNION; ELBOW,AIR TANK	1-09660-534-0	01	1	9204-9504
27	UNION; ELBOW,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-534-0	01	1	9505-
30	BRACKET; AIR TANK,SUB	1-48317-494-0	02	1	9204-9504
30	BRACKET; AIR TANK,SUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-494-0	02	1	9505-
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9204-9504
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-301-0	01	1	9505-
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-302-0	02	1	9505-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-48317-308-0	02	1	9505-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	9204-9504
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	12	1	9505-
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	08	1	9505-
80	BOLT; BRKT M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9204-9504
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	02	1	9505-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	04	1	9505-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9505-
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48410-251-0	01	1	9204-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-534-0	01	1	9204-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-563-0	01	1	9204-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-572-0	01	1	9204-
121	BOLT; DOUBLE CHECK VLV AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28010-835-0	01	1	9204-9204
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28080-835-0	01	1	9205-9310
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28080-835-0	02	1	9311-
164	CONNECTOR; SUB AIR TANK	1-09660-531-0	01	1	9204-9504
164	CONNECTOR; SUB AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09656-268-1	02	1	9505-
164	CONNECTOR; SUB AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-531-0	01	1	9505-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB	1-48340-040-0	01	1	9204-9411
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-0	01	1	9412-9504
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	01	1	9505-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	02	1	9505-
241	BOLT; SET,CONT VLV M8X65	0-10805-865-0	02	1	9204-9504
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9505-
242	WASHER; LK,CONT VLV ID=8.2	9-09150-508-0	02	1	9204-9504
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9505-
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9204-9504
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9505-
245	CLIP; VINYL PIPE ID=15	9-09715-098-0	01	1	9204-9504
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=15	9-09715-098-0	01	1	9505-
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	9204-9504
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9505-
336	VALVE; PROTECTION NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48110-006-0	01	1	9204-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
