◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#74399) — 22 parça

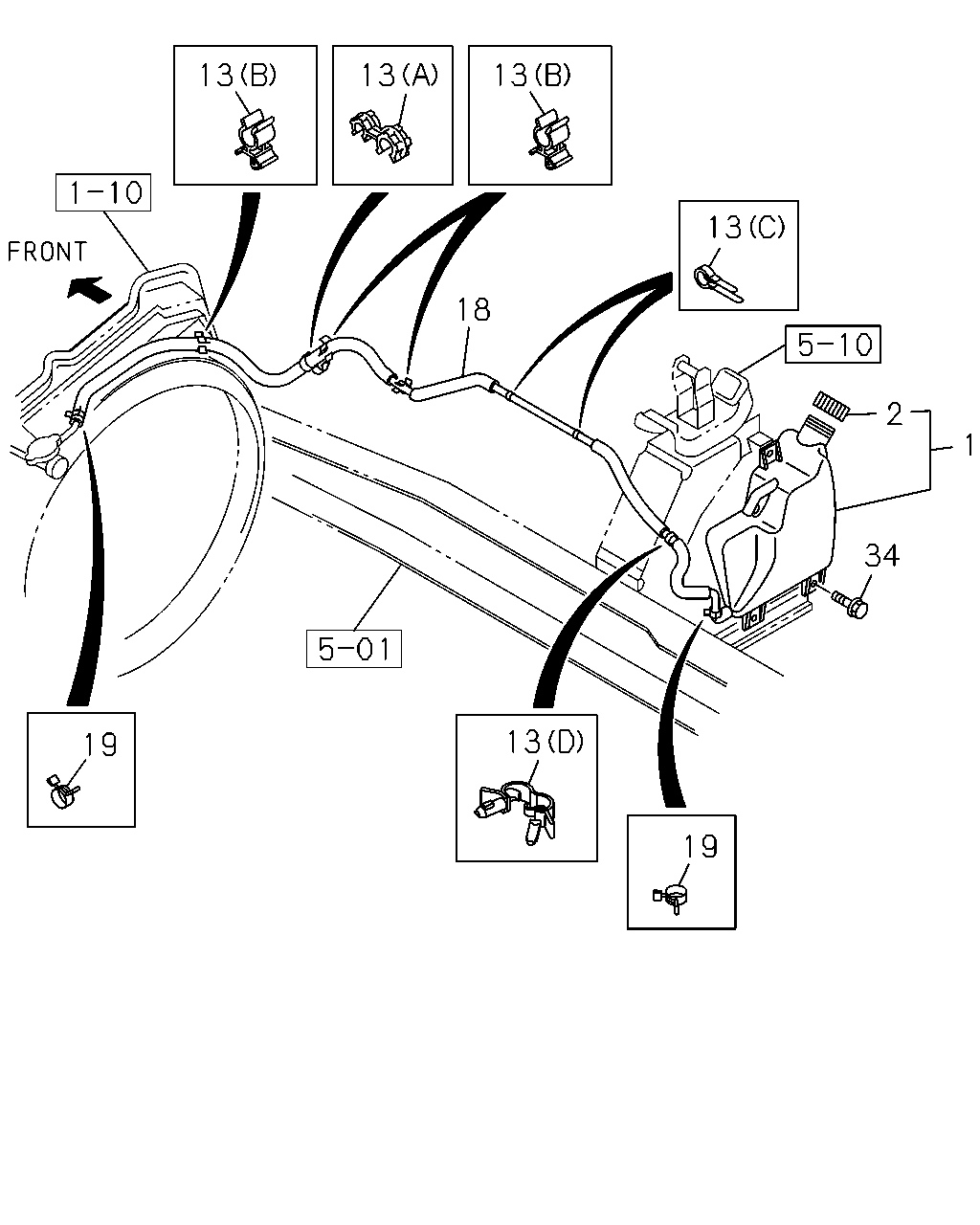

çizim 89292
13 13 13 13 18 2 1 34 13 19 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 8-97387-632-1 01 1 0803-1010 ● ●
1 TANK; SURGE,RAD 8-98178-179-0 01 1 1011- ● ●
2 CAP; SURGE TANK 8-97217-796-0 01 1 0803-1010 ● ●
2 CAP; SURGE TANK 8-98178-074-0 01 1 1011- ● ●
13 CLIP; HOSE,SURGE TANK
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0803- ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 02 1 0803- ● ●
13 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0803- ● ●
13 CLIP; HOSE,SURGE TANK
(B) ID=12 		8-98029-256-0 03 1 0803- ● ●
18 HOSE; RAD TO SURGE TANK
THA 		8-98065-255-0 01 1 0803- ● ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-94238-610-0 02 1 0803-0911 ● ●
19 CLIP; HOSE,SURGE TANK
ID=12 THA 		8-98150-358-0 02 1 0912- ● ●
34 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0803- ● ●
çizim 185605
56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date A B
55 HOSE; WATER,RAD OUTLET 8-97383-814-1 01 1 0803-1208 ● ●
55 HOSE; WATER,RAD OUTLET
THA 		8-97923-128-1 01 1 1209- ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98036-282-0 04 1 0803-0803 ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98036-282-0 02 1 0803-0901 ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98036-282-0 02 1 0803-0901 ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 02 1 0902- ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 02 1 0902- ● ●
128 HOSE; WATER,RAD INL
THA 		8-97383-812-1 01 1 0803-1206 ● ●
128 HOSE; WATER,RAD INL
THA 		8-97383-812-1 01 1 1207-1210 ● ●
128 HOSE; WATER,RAD INL
THA 		8-97383-812-1 02 1 1211- ● ●
