◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#74398) — 70 parça

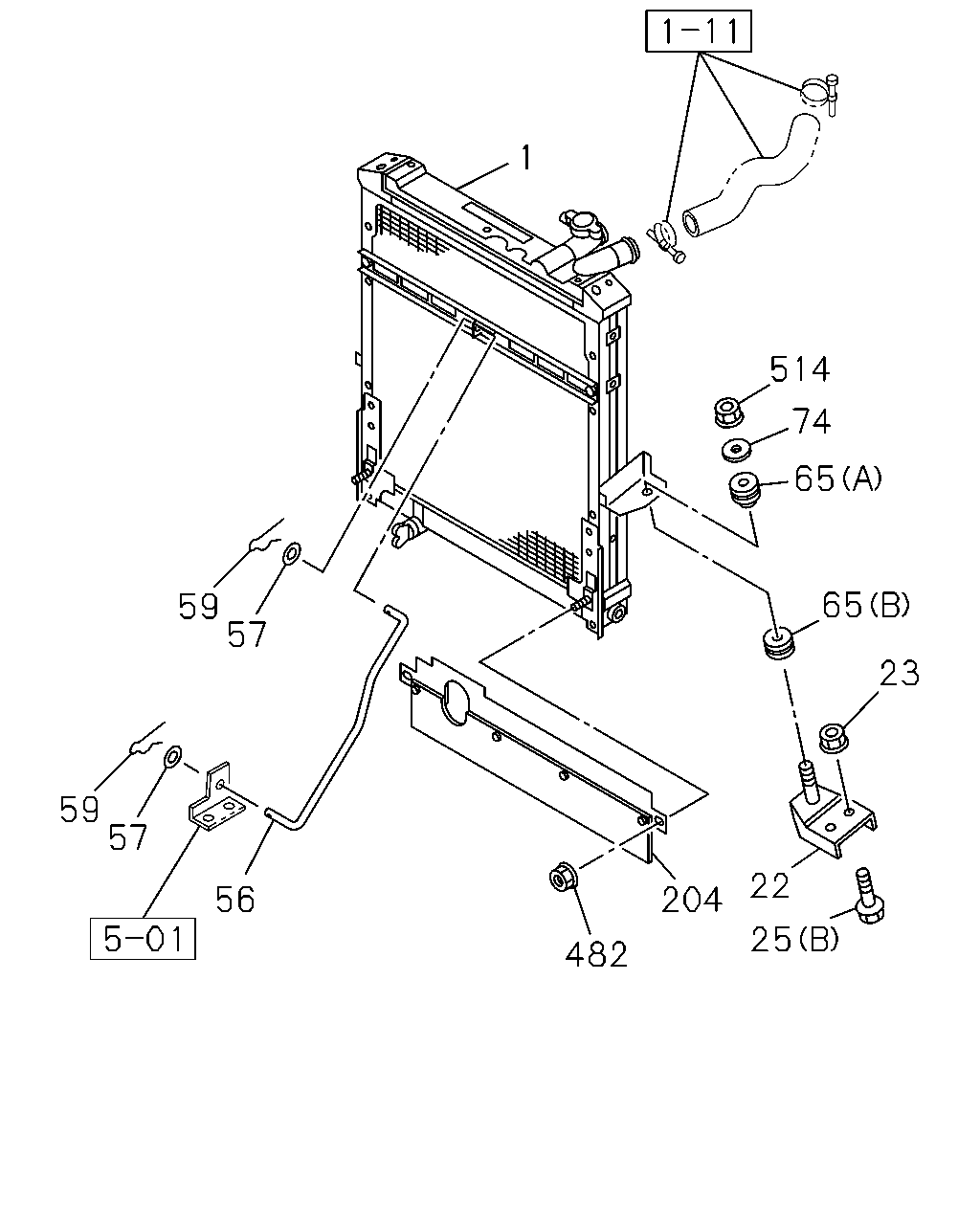

çizim 85369
23 65 65 74 514 1 59 59 57 57 56 482 204 25 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-97387-468-1 01 1 0803-1412 ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97387-468-1 01 1 0803-1412 ●
1 RADIATOR ASM
THA 		8-97948-954-0 01 1 1501- ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97948-954-0 01 1 1501- ●
22 BRACKET; RAD MTG 8-97383-952-0 01 1 0803- ● ●
22 BRACKET; RAD MTG 8-97383-951-0 01 1 0803- ● ●
23 NUT; RAD MTG
M10 FLANGE THA 		0-91180-210-0 04 1 0803-0908 ● ●
23 NUT; RAD MTG
M10 FLANGE THA 		0-91180-110-0 04 1 0909- ● ●
25 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 04 1 0803-1207 ● ●
25 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 04 1 1208- ● ●
25 BOLT; BRKT
(A) M6X12 FLANGE THA 		0-28050-612-0 04 1 0803- ●
25 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M6X12 FLANGE THA 		0-28050-612-0 04 1 0803- ●
56 STAY; RAD 8-97383-947-1 01 1 0803- ● ●
57 WASHER; PL,STAY
ID=10.5 		0-91610-510-0 02 1 0803- ● ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 0803- ● ●
65 INSULATOR; RAD
(A) 		8-94249-346-0 02 1 0803- ● ●
65 INSULATOR; RAD
(B) 		8-94249-347-0 02 1 0803- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36 		8-97359-049-1 02 1 0803- ● ●
204 GUIDE ASM; AIR 8-97383-928-1 01 1 0803- ● ●
482 NUT; AIR GUIDE
M8 FLANGE THA 		0-91180-108-0 02 1 0803-1207 ● ●
482 NUT; AIR GUIDE
M8 FLANGE THA 		0-91180-108-0 02 1 1208- ● ●
514 NUT; RAD
M8 FLANGE THA 		0-91180-108-0 02 1 0803- ● ●

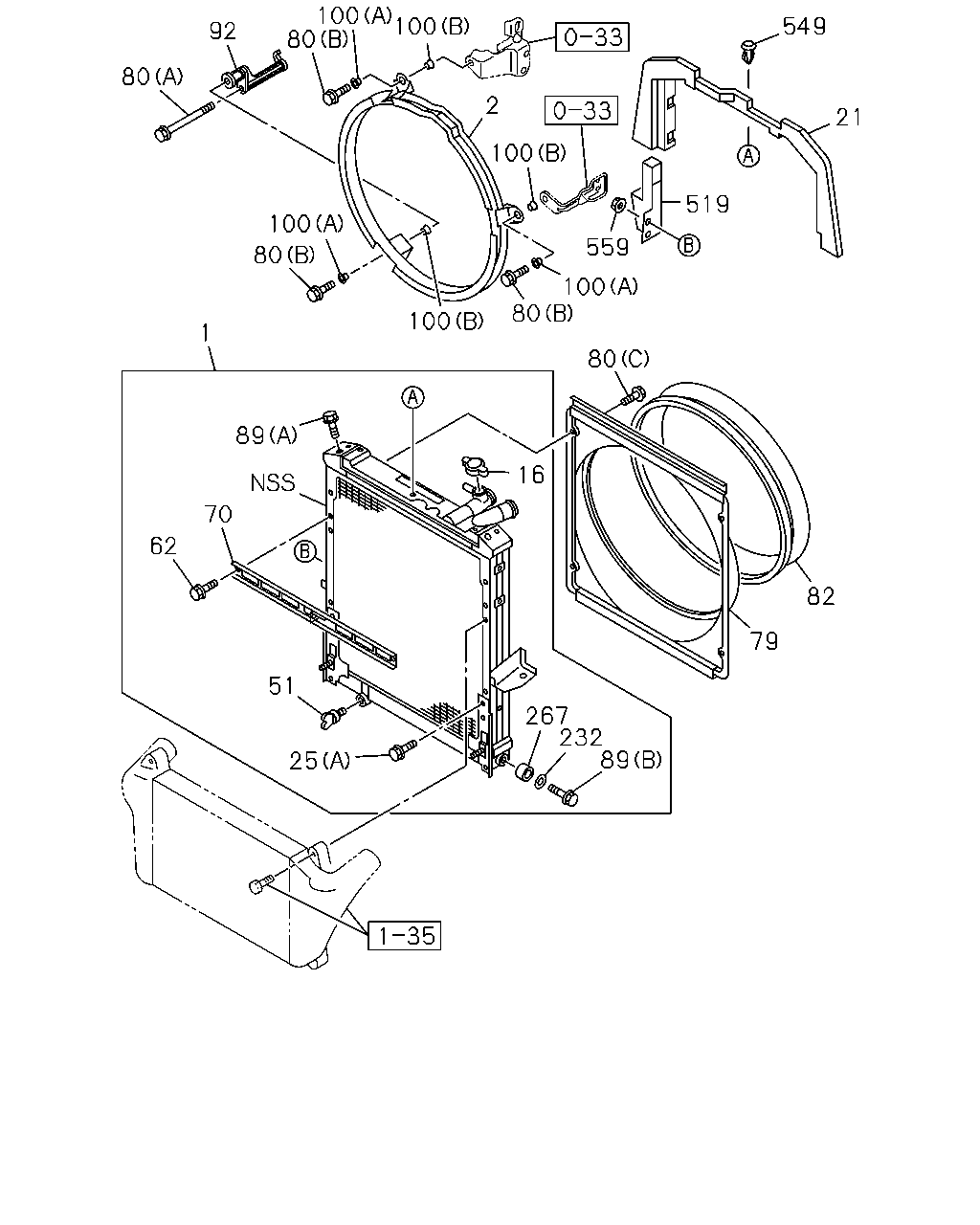

çizim 85907
100 80 100 549 92 80 2 21 100 519 100 559 80 100 80 100 1 80 89 16 70 62 82 79 51 267 232 89 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-97387-468-1 01 1 0803-1412 ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97387-468-1 01 1 0803-1412 ●
1 RADIATOR ASM
THA 		8-97948-954-0 01 1 1501- ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97948-954-0 01 1 1501- ●
2 GUIDE; FAN 8-98054-659-0 01 1 0803- ● ●
16 CAP; RAD
THA 		8-97239-187-0 01 1 0803- ●
16 CAP; RAD
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97239-187-0 01 1 0803- ●
21 SEAL; RAD 8-98000-816-0 01 1 0803- ● ●
25 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 04 1 0803-1207 ● ●
25 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 04 1 1208- ● ●
25 BOLT; BRKT
(A) M6X12 FLANGE THA 		0-28050-612-0 04 1 0803- ●
25 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M6X12 FLANGE THA 		0-28050-612-0 04 1 0803- ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0803- ●
51 PLUG; DRAIN
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> W/GASKET THA 		8-97171-437-0 01 1 0803- ●
62 BOLT; STAY
M8X12 FLANGE THA 		0-28050-812-0 02 1 0803- ●
62 BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X12 FLANGE THA 		0-28050-812-0 02 1 0803- ●
70 STAY; RAD
THA 		8-98018-940-0 01 1 0803- ●
70 STAY; RAD
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98018-940-0 01 1 0803- ●
79 GUIDE; FAN,RAD
THA 		8-98234-712-0 01 1 0803- ●
79 GUIDE; FAN,RAD
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98234-712-0 01 1 0803- ●
80 BOLT; FAN GUIDE
(A) M8X130 FLANGE 		0-28055-813-0 01 1 0803- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0803-1207 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 1208-1210 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE THA 		0-28650-830-0 06 1 1211- ● ●
80 BOLT; FAN GUIDE
(C) M6X12 THA 		8-98039-672-0 02 1 0803-1312 ●
80 BOLT; FAN GUIDE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) M6X12 THA 		8-98039-672-0 02 1 0803-1312 ●
80 BOLT; FAN GUIDE
(C) M6X12 THA 		8-98039-672-0 02 1 1401- ●
80 BOLT; FAN GUIDE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) M6X12 THA 		8-98039-672-0 02 1 1401- ●
82 COVER; FAN,RAD 8-97387-085-1 01 1 0803- ●
82 COVER; FAN,RAD
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97387-085-1 01 1 0803- ●
89 BOLT
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0803- ●
89 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0803- ●
89 BOLT
(B) M8X25 W/PL WASHER THA 		1-21469-153-0 02 1 0803- ●
89 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M8X25 W/PL WASHER THA 		1-21469-153-0 02 1 0803- ●
92 BRACKET; FAN GUIDE 8-97381-550-1 01 1 0803-1303 ● ●
92 BRACKET; FAN GUIDE 8-98237-770-0 01 1 1304- ● ●
100 RUBBER; MTG
(B) OD=32 		8-94395-766-0 03 1 0803- ● ●
100 RUBBER; MTG
(A) OD=32 		8-98058-502-1 03 1 0803- ● ●
232 COLLAR; DIST,CUSHION RUBBER
THA 		1-87410-723-0 02 1 0803-1312 ●
232 COLLAR; DIST,CUSHION RUBBER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		1-87410-723-0 02 1 0803-1312 ●
232 COLLAR; DIST,CUSHION RUBBER
THA 		8-98141-232-0 02 1 1401- ●
232 COLLAR; DIST,CUSHION RUBBER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98141-232-0 02 1 1401- ●
267 RUBBER; CUSHION
THA 		1-21467-023-0 02 1 0803- ●
267 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		1-21467-023-0 02 1 0803- ●
519 SEAL; RAD SIDE 8-98038-591-0 01 1 0803- ● ●
549 CLIP; SEAL,RAD 8-97228-568-0 05 1 0803- ● ●
559 NUT; RAD SIDE
M6 FLANGE THA 		0-91180-106-0 02 1 0803-1207 ● ●
559 NUT; RAD SIDE
M6 FLANGE THA 		0-91180-106-0 02 1 1208- ● ●
