◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#74396) — 12 parça

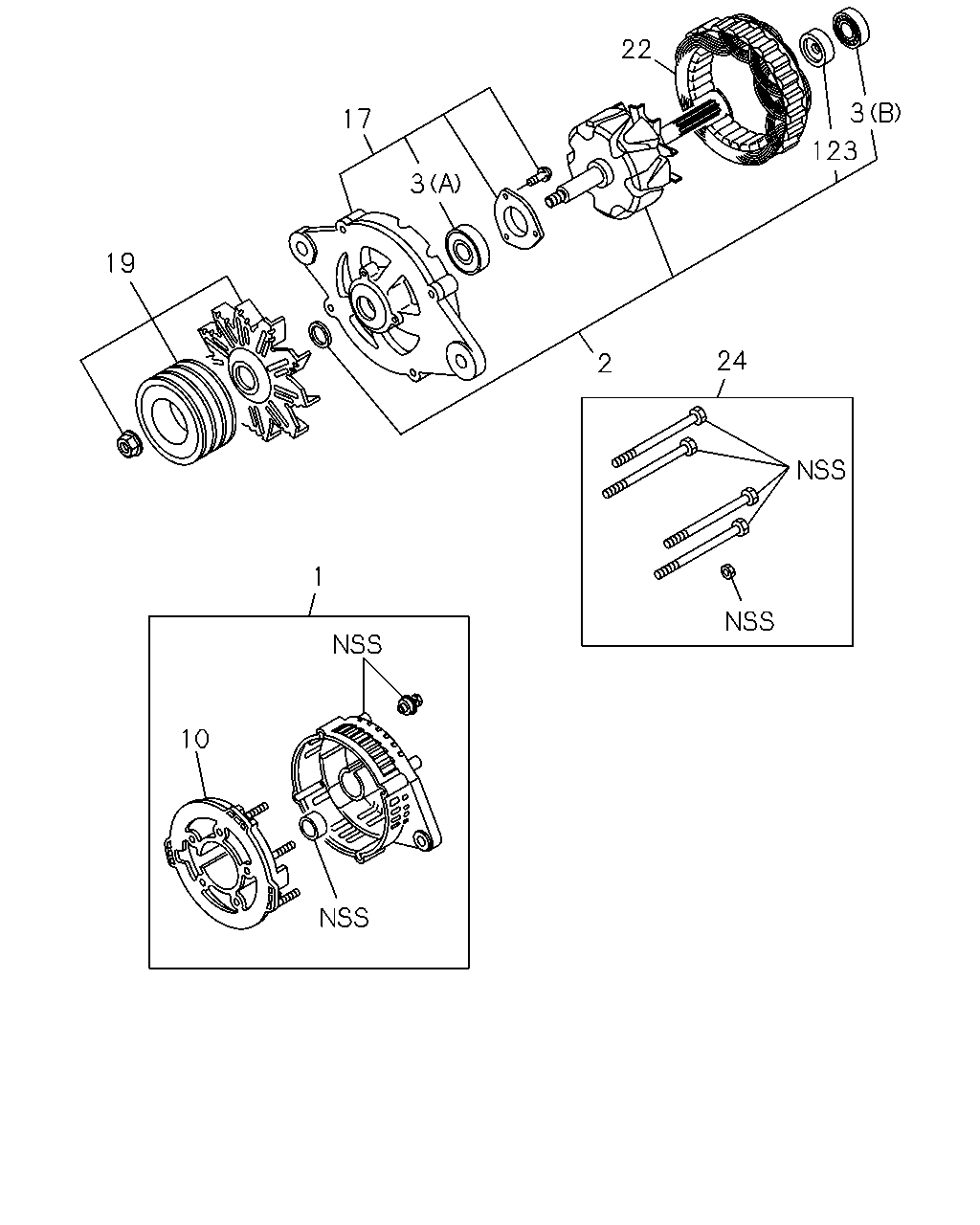

çizim 75208
22 3 17 123 3 19 24 2 1 10
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98029-887-2 		8-98046-185-0 01 1 -1208
1 COVER ASM; RR,GEN
ASM PART: A = 8-98029-887-2 		8-98230-316-0 01 1 1209-
2 ROTOR; GEN
ASM PART: A = 8-98029-887-2 		8-98038-914-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98029-887-2 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98029-887-2 		8-97161-473-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-98029-887-2 		8-98046-188-0 01 1 -1208
10 RECTIFIER; GEN
ASM PART: A = 8-98029-887-2 		8-98230-326-0 01 1 1209-
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98029-887-2 		8-98038-922-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98029-887-2 		8-98038-925-0 01 1 -
22 STATOR; GEN
ASM PART: A = 8-98029-887-2 		8-97192-850-0 01 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98029-887-2 		8-98038-927-0 01 1 -
123 GUIDE; BRUSH
ASM PART: A = 8-98029-887-2 		8-97062-644-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
