Isuzu WW
▶
TRUCKS
▶
NLR
▶
51168 - NLR/NMR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

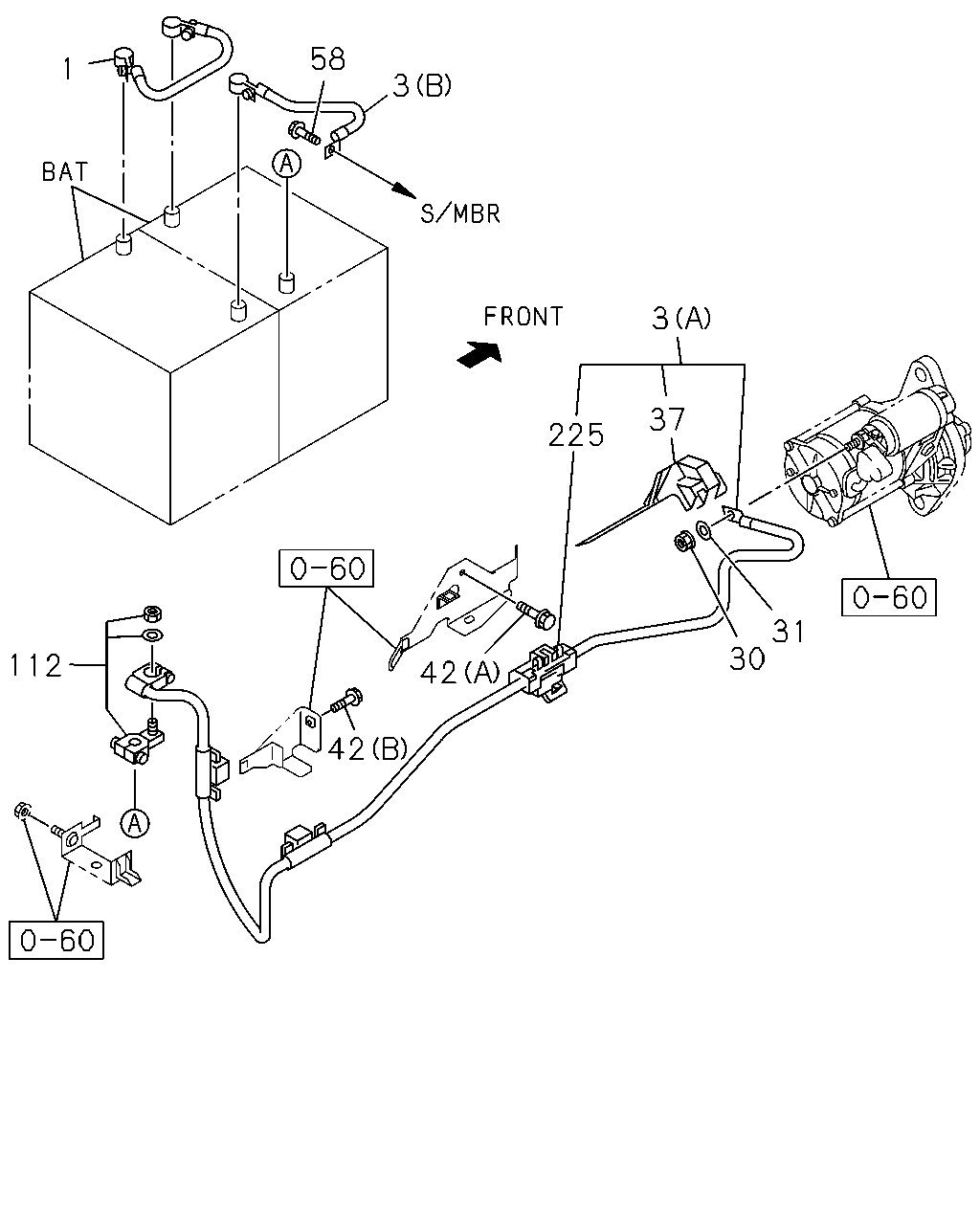

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#74394) — 14 parça
58
1
3
3
37
225
31
30
112
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280 THA
8-97922-383-0
01
1
0803-
3
HARNESS; CABLE,BATTERY TO STARTER
(B) THA
8-97922-384-0
01
1
0803-
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 2400MM<24W> (A) THA
8-97923-868-0
01
1
0803-0804
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 2400MM<24W> (A) THA
8-97924-474-0
01
1
0805-
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 3300MM<33W> (A) THA
8-97923-869-0
01
1
0803-0804
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 3300MM<33W> (A) THA
8-97924-475-0
01
1
0805-
30
NUT; CABLE,STARTER TO BATTERY
M8 THA
0-91110-508-0
01
1
0803-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 THA
0-91510-808-0
01
1
0803-
37
CAP; TERMINAL,BATTERY CABLE
8-98042-507-0
01
1
0803-
42
BOLT; BRKT,BATTERY CABLE
(B) M6X25 FLANGE THA
0-28650-625-0
01
1
0803-
42
BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE THA
8-97329-599-0
01
1
0803-
58
BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0803-
112
TERMINAL; BATTERY
<+>
8-97365-771-0
01
1
0803-
225
BLOCK; TERMINAL
THA
8-98029-689-0
01
1
0803-
