0-52 — OIL AND VACUUM PIPING; ENGINE (#74391) — 73 parça

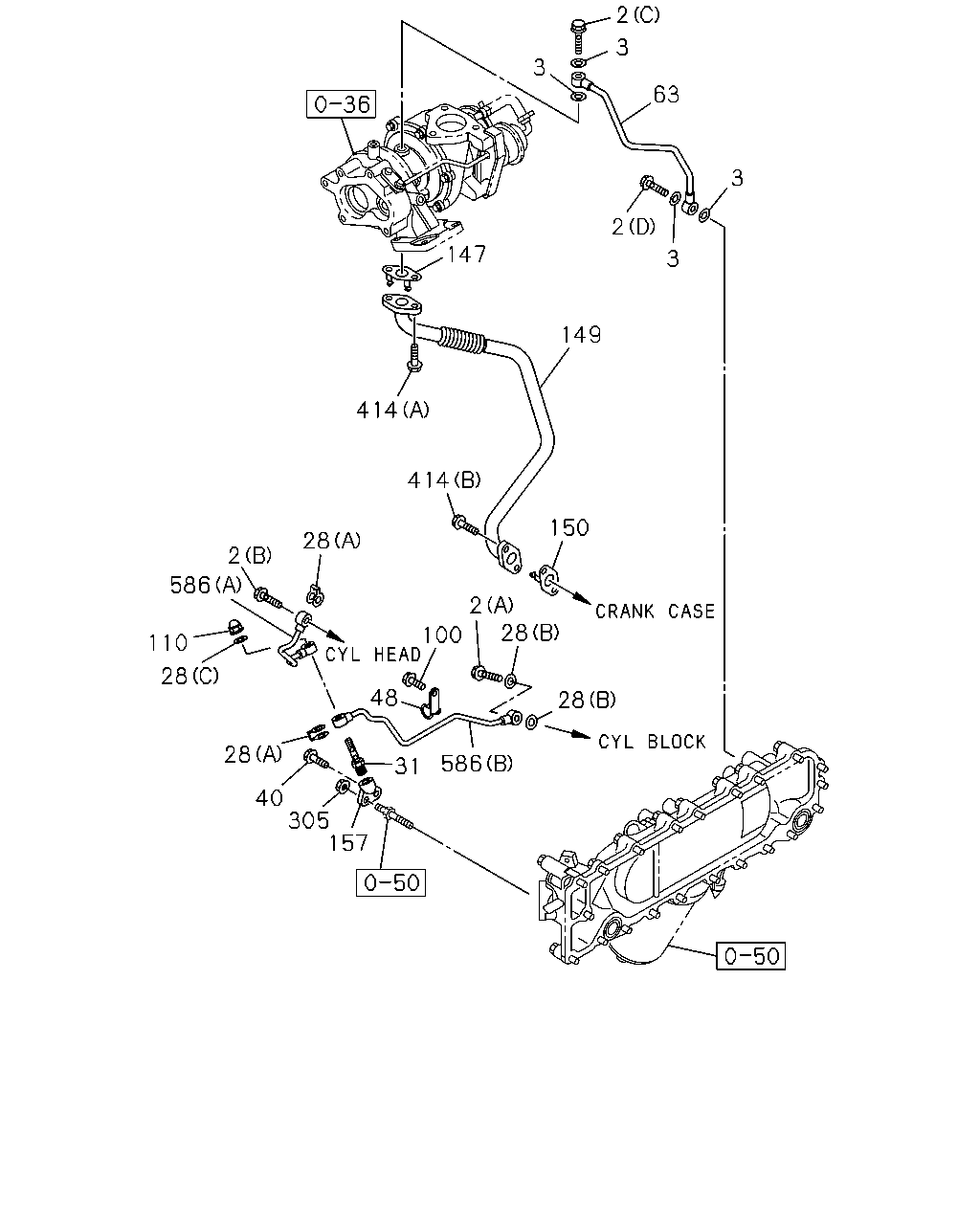

2 3 3 63 3 2 147 3 149 414 414 150 28 2 586 2 28 100 110 28 48 28 28 586 31 40 305 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE ENGINE MADE IN THAILAND<6ZP> (A) M14X27 FLANGE THA	1-09675-086-0	01	1	1109-
2	BOLT; EYE,OIL PIPE ENGINE MADE IN THAILAND<6ZP> (D) M10X24 THA	8-97944-505-1	01	1	1109-
2	BOLT; EYE,OIL PIPE ENGINE MADE IN THAILAND<6ZP> (B) M8X20 EYE-BOLT THA	8-97910-296-1	01	1	1109-1111
2	BOLT; EYE,OIL PIPE ENGINE MADE IN THAILAND<6ZP> (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-
2	BOLT; EYE,OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> (A) M14X27 FLANGE THA	1-09675-086-0	01	1	0803-
2	BOLT; EYE,OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	0803-1111
2	BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-
2	BOLT; EYE,OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> (C) M10X27 FLANGE	8-94443-535-0	01	1	0803-
2	BOLT; EYE,OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> (D) M10X24	9-09906-205-1	01	1	0803-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	1109-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	0803-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0803-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (A) ID=8.2	8-97251-046-0	02	1	0803-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0803-0902
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	0903-
31	NIPPLE; OIL PIPE ENGINE MADE IN THAILAND<6ZP> THA	8-98044-067-1	01	1	1109-
31	NIPPLE; OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98044-067-1	01	1	0803-
40	BOLT; OIL PIPE ENGINE MADE IN THAILAND<6ZP> M6X12 FLANGE THA	0-28050-612-0	01	1	1109-
40	BOLT; OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> M6X12 FLANGE THA	0-28050-612-0	01	1	0803-
48	CLIP; OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> ID=7 L=28	8-98068-212-0	01	1	0803-0903
48	CLIP; OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> ID=7 L=28	8-98121-233-0	01	1	0904-
63	PIPE; OIL,TURBOCHARGER FEED ENGINE MADE IN THAILAND<6ZP>	8-97381-488-0	01	1	1109-
63	PIPE; OIL,TURBOCHARGER FEED EXC. ENGINE MADE IN THAILAND<6ZP>	8-97381-488-0	01	1	0803-
100	BOLT; CLIP ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA	0-28050-812-0	01	1	1109-
100	BOLT; CLIP EXC. ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA	0-28050-812-0	01	1	0803-
110	NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-97372-242-0	01	1	0803-1309
110	NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1310-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA	8-98132-017-0	01	1	1109-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> ID=16	8-98029-475-0	01	1	0803-
149	PIPE; OIL RETURN,TURBOCHARGER ENGINE MADE IN THAILAND<6ZP>	8-97381-489-2	01	1	1109-
149	PIPE; OIL RETURN,TURBOCHARGER EXC. ENGINE MADE IN THAILAND<6ZP>	8-97381-489-2	01	1	0803-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP>	8-98029-476-0	01	1	1112-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP>	8-98029-476-0	01	1	0803-1111
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1112-
157	BRACKET; OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP>	8-98043-093-0	01	1	0803-
305	NUT; BRKT,OIL PIPE ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA	0-91180-106-0	01	1	1109-
305	NUT; BRKT,OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA	0-91180-106-0	01	1	0803-
414	BOLT; OIL PIPE ENGINE MADE IN THAILAND<6ZP> (A) M6X16 HEX SOCKET THA	0-58330-616-0	02	1	1109-
414	BOLT; OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	0803-1107
414	BOLT; OIL PIPE (A) M6X16 HEX SOCKET THA	0-58330-616-0	02	1	1108-
414	BOLT; OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	0803-
586	PIPE; OIL,TENSIONER ENGINE MADE IN THAILAND<6ZP> (A)	8-98039-566-0	01	1	1109-
586	PIPE; OIL,TENSIONER ENGINE MADE IN THAILAND<6ZP> (B)	8-98039-567-0	01	1	1109-
586	PIPE; OIL,TENSIONER EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98039-566-0	01	1	0803-
586	PIPE; OIL,TENSIONER EXC. ENGINE MADE IN THAILAND<6ZP> (B)	8-98039-567-0	01	1	0803-

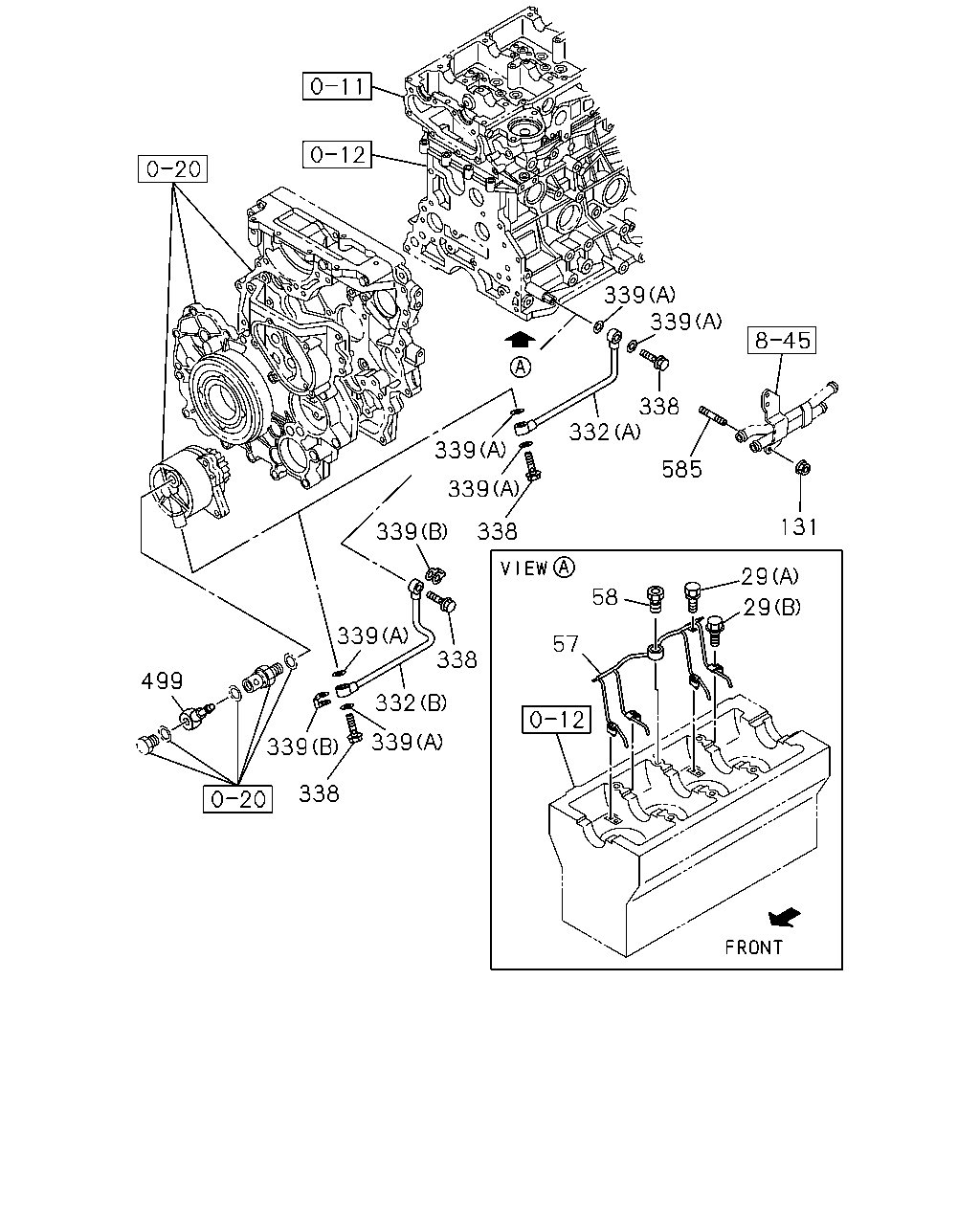

339 339 338 332 585 131 29 29 58 57 339 339 338 339 339 338 332 339 339 338 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	BOLT; OIL PIPE,OIL JET ENGINE MADE IN THAILAND<6ZP> (A) M8X10 FLANGE THA	0-28050-810-0	01	1	1109-
29	BOLT; OIL PIPE,OIL JET ENGINE MADE IN THAILAND<6ZP> (B) M6X20 FLANGE THA	8-97380-673-1	04	1	1109-
29	BOLT; OIL PIPE,OIL JET EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0803-
29	BOLT; OIL PIPE,OIL JET EXC. ENGINE MADE IN THAILAND<6ZP> (B) M6X20 THA	8-97117-298-1	04	1	0803-
57	PIPE; OIL,OIL JET ENGINE MADE IN THAILAND<6ZP> THA	8-97312-132-3	01	1	1109-
57	PIPE; OIL,OIL JET EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97312-132-3	01	1	0803-
58	VALVE; RELIEF,OIL JET,PISTON COOLING ENGINE MADE IN THAILAND<6ZP> THA	8-97379-464-0	01	1	1109-
58	VALVE; RELIEF,OIL JET,PISTON COOLING EXC. ENGINE MADE IN THAILAND<6ZP>	8-97239-048-1	01	1	0803-1407
58	VALVE; RELIEF,OIL JET,PISTON COOLING EXC. ENGINE MADE IN THAILAND<6ZP>	8-98285-334-0	01	1	1408-
131	NUT; UNION ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA	5-09440-010-0	01	1	1109-
131	NUT; UNION EXC. ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA	5-09440-010-0	01	1	0803-
332	PIPE; OIL,C/BL TO VAC PUMP ENGINE MADE IN THAILAND<6ZP> (A) THA	8-98038-929-0	01	1	1109-
332	PIPE; OIL,C/BL TO VAC PUMP ENGINE MADE IN THAILAND<6ZP> (A) THA	8-98038-929-0	01	1	1301-
332	PIPE; OIL,C/BL TO VAC PUMP EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98038-097-0	01	1	0803-0901
332	PIPE; OIL,C/BL TO VAC PUMP (A) THA	8-98038-929-0	01	1	0902-1212
332	PIPE; OIL,C/BL TO VAC PUMP EXC. ENGINE MADE IN THAILAND<6ZP> (B)	8-98201-785-0	01	1	1301-
338	BOLT; JOINT,OIL PIPE ENGINE MADE IN THAILAND<6ZP> M8X20 EYE-BOLT THA	8-97910-296-1	02	1	1109-
338	BOLT; JOINT,OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> M8X18 EYE-BOLT	1-09675-037-1	02	1	0803-0901
338	BOLT; JOINT,OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> M8X20 EYE-BOLT	5-09675-018-1	02	1	0902-
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	1109-
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	1301-
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0803-1212
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	02	1	1301-1302
499	PIPE; VACUUM EXC. ENGINE MADE IN THAILAND<6ZP>	8-98027-553-0	01	1	0803-
585	STUD; CLIP ENGINE MADE IN THAILAND<6ZP> M8X18 L=30 THA	0-41010-818-0	01	1	1109-
585	STUD; CLIP EXC. ENGINE MADE IN THAILAND<6ZP> M8X18 L=30 THA	0-41010-818-0	01	1	0803-
