1 |

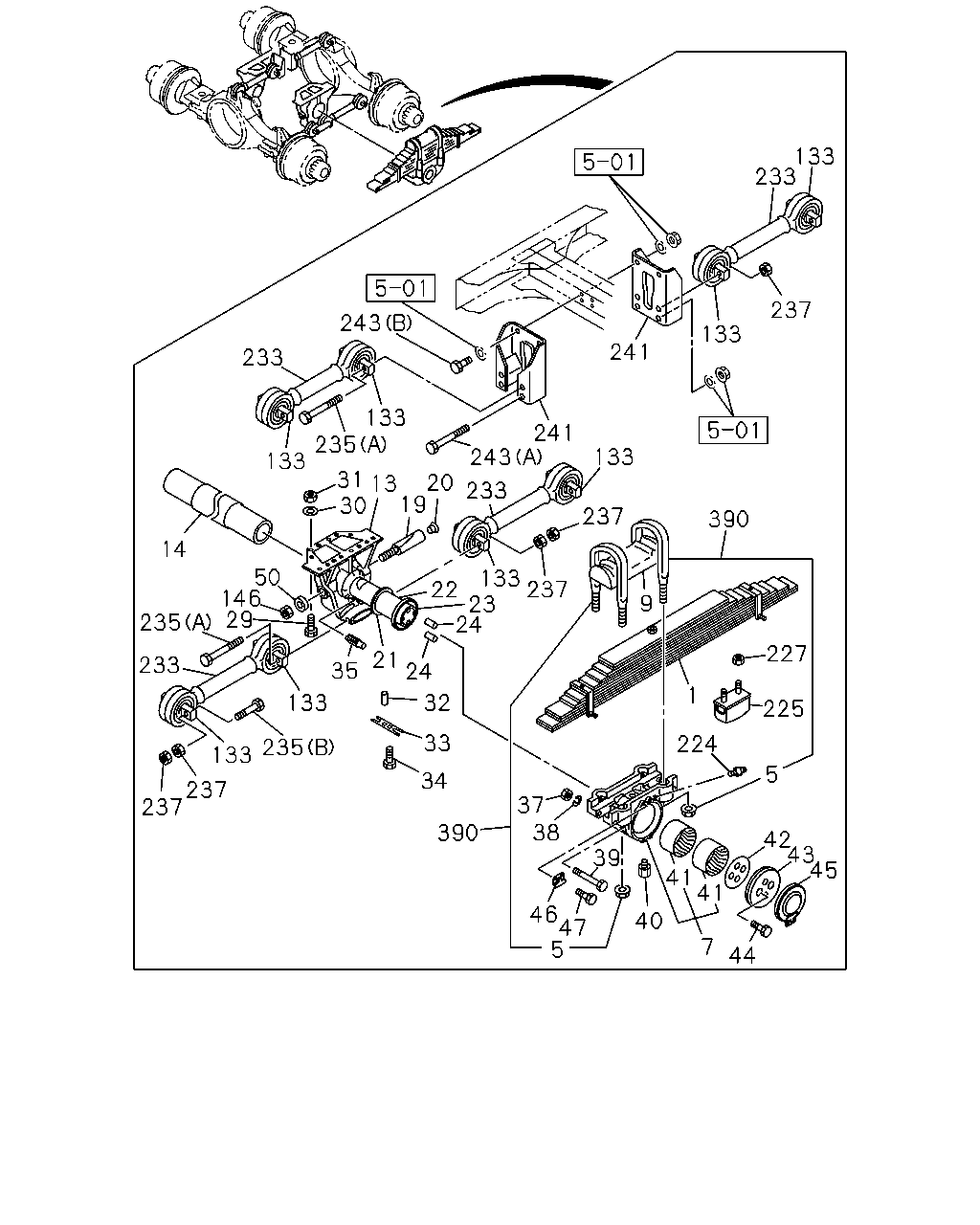

SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
8-LEAF
|
1-51310-432-3 |
02 |
1 |
9812-9912 |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
EXC. RR TIRE 12.00-20<98X>
8-LEAF
|
1-51310-432-3 |
02 |
1 |
0001- |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
RR TIRE 12.00-20<98X>
9-LEAF
|
1-51310-846-0 |
02 |
1 |
0001- |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
12-LEAF
|
1-51310-436-2 |
02 |
1 |
9812-9912 |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),RR
TIRE 12.00-20<98X>
12-LEAF
|
1-51310-436-2 |
02 |
1 |
0001- |
| |
5 |
NUT; U-BOLT,RR SPR
M27 FLANGE
|
1-09440-058-0 |
08 |
1 |
9812- |
| |
7 |
SEAT; SPR,LWR
|
1-51385-091-1 |
02 |
1 |
9812- |
| |
9 |
PAD; U BOLT,RR SPR
|
1-51372-019-1 |
02 |
1 |
9812- |
| |
13 |
BRACKET; TRUNNION SHAFT
|
1-53361-065-0 |
02 |
1 |
9812- |
| |
14 |
PIPE; TRUNNION BRKT
|
1-51389-032-0 |
01 |
1 |
9812- |
| |
19 |
BOLT; KEY,SHAFT
|
1-51389-066-0 |
02 |
1 |
9812- |
| |
20 |
GROMMET; KEY BOLT
|
1-09333-057-0 |
02 |
1 |
9812- |
| |
21 |
WASHER; THRUST,TRUNNION SHAFT
|
1-51389-058-0 |
02 |
1 |
9812- |
| |
22 |
SHAFT; TRUNNION,RR SUSP
|
1-51381-022-2 |
02 |
1 |
9812- |
| |
23 |
SEAL; OIL,TRUNNION SHAFT
|
1-51389-005-0 |
02 |
1 |
9812- |
| |
24 |
PIN; SIDE PLATE TO SHAFT
|
1-09740-009-0 |
04 |
1 |
9812- |
| |
29 |
BOLT; BRKT TO FRAME
M18X75
|
1-09000-221-1 |
24 |
1 |
9812- |
| |
29 |
BOLT; BRKT TO FRAME
M18X55
|
9-92061-855-0 |
04 |
1 |
9812- |
| |
30 |
WASHER; PL,TRUNNION BRKT
ID=19
|
1-09503-162-0 |
AR |
1 |
9812- |
| |
31 |
NUT; TRUNNION BRKT
M18
|
9-99110-518-0 |
28 |
1 |
9812- |
| |
32 |
PIN; STRAIGHT
|
1-09740-027-0 |
04 |
1 |
9812- |
| |
33 |
PLATE; LK KNOCK PIN
|
1-53369-032-1 |
02 |
1 |
9812- |
| |
34 |
BOLT; LOCK PLATE
M10X16 FLANGE
|
0-28081-016-0 |
02 |
1 |
9812- |
| |
35 |
PIN; TRUNNION SHAFT
|
1-09749-030-1 |
04 |
1 |
9812- |
| |
37 |
NUT; SPR SETTING
M22
|
9-09110-522-0 |
04 |
1 |
9812- |
| |
38 |
WASHER; LK,SPR SETTING
ID=22.5
|
9-09150-622-0 |
04 |
1 |
9812- |
| |
39 |
BOLT; SPR SETTING
M22X155
|
9-09801-290-1 |
04 |
1 |
9812- |
| |
40 |
VALVE; GREASE ESCAPE
|
9-51389-010-0 |
02 |
1 |
9812- |
| |
41 |
BUSHING; TRUNNION SHAFT
|
1-51386-004-0 |
04 |
1 |
9812- |
| |
42 |
SHIM; SIDE PLATE TO SHAFT
|
1-51389-033-1 |
12 |
1 |
9812- |
| |
43 |
PLATE; SIDE,TRUNNION SHAFT
|
1-51382-010-4 |
02 |
1 |
9812- |
| |
44 |
BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE
|
1-09044-038-2 |
04 |
1 |
9812- |
| |
45 |
COVER; SPR SEAT
|
1-51387-013-2 |
02 |
1 |
9812- |
| |
46 |
BRACKET; COVER
|
1-51387-015-2 |
02 |
1 |
9812- |
| |
47 |
BOLT; COVER TO SEAT
M8X12 FLANGE
|
0-28080-812-0 |
08 |
1 |
9812- |
| |
50 |
WASHER; PL,TRUNNION SHAFT
|
1-09503-071-0 |
02 |
1 |
9812- |
| |
133 |
BUSHING; RUBBER,TORQUE ROD
OD=105
|
1-51519-113-1 |
12 |
1 |
9812-9912 |
| |
133 |
BUSHING; RUBBER,TORQUE ROD
CAB UP +110MM<TGG>
RR TIRE 12.00-20<98X>
OD=105
|
1-51519-113-1 |
12 |
1 |
0001- |
| |
133 |
BUSHING; RUBBER,TORQUE ROD
EXC. RR TIRE 12.00-20<98X>
OD=105
|
1-51519-113-1 |
06 |
1 |
0001- |
| |
133 |
BUSHING; RUBBER,TORQUE ROD
EXC. RR TIRE 12.00-20<98X>
OD=105
|
1-51519-113-1 |
06 |
1 |
0001- |
| |
146 |
NUT; KEY BOLT
M24
|
9-99110-524-0 |
02 |
1 |
9812- |
| |
224 |
NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9812- |
| |
225 |
RUBBER; CUSHION,RR SPR
FORWARD LH, REARWARD RH
|
1-53366-046-0 |
02 |
1 |
9812- |
| |
225 |
RUBBER; CUSHION,RR SPR
FORWARD RH, REARWARD LH
|
1-53366-045-0 |
02 |
1 |
9812- |
| |
227 |
NUT; CUSHION RUBBER
M12 FLANGE
|
0-91150-212-0 |
08 |
1 |
9812- |
| |
233 |
ROD ASM; TORQUE,RR SUSP
REARWARD
L=550
|
1-51511-659-0 |
03 |
1 |
9812-9912 |
| |
233 |
ROD ASM; TORQUE,RR SUSP
EXC. RR TIRE 12.00-20<98X>
REARWARD
L=550
|
1-51511-659-0 |
03 |
1 |
0001- |
| |
233 |
ROD ASM; TORQUE,RR SUSP
CAB UP +110MM<TGG>
FORWARD
L=525
|
1-51511-656-0 |
03 |
1 |
9812-9912 |
| |
233 |
ROD ASM; TORQUE,RR SUSP
CAB UP +110MM<TGG>
EXC. RR TIRE 12.00-20<98X>
FORWARD
L=525
|
1-51511-656-0 |
03 |
1 |
0001- |
| |
233 |
ROD ASM; TORQUE,RR SUSP
CAB UP +110MM<TGG>
RR TIRE 12.00-20<98X>
FORWARD LOWER
L=560
|
1-51511-669-0 |
02 |
1 |
0001- |
| |
233 |
ROD ASM; TORQUE,RR SUSP
CAB UP +110MM<TGG>
RR TIRE 12.00-20<98X>
REARWARD
L=585
|
1-51511-672-0 |
03 |
1 |
0001- |
| |
233 |
ROD ASM; TORQUE,RR SUSP
CAB UP +110MM<TGG>
RR TIRE 12.00-20<98X>
FORWARD UPPER
L=565
|
1-51511-685-0 |
01 |
1 |
0001- |
| |
233 |
ROD ASM; TORQUE,RR SUSP
EXC. CAB UP +110MM<TGG>
FORWARD LOWER
L=515
|
1-51511-655-0 |
02 |
1 |
9812-9912 |
| |
233 |
ROD ASM; TORQUE,RR SUSP
EXC. CAB UP +110MM<TGG>,RR TIRE 12.00-20<98X>
FORWARD LOWER
L=515
|
1-51511-655-0 |
02 |
1 |
0001- |
| |
233 |
ROD ASM; TORQUE,RR SUSP
EXC. CAB UP +110MM<TGG>
FORWARD UPPER
L=535
|
1-51511-657-0 |
01 |
1 |
9812-9912 |
| |
233 |
ROD ASM; TORQUE,RR SUSP
EXC. CAB UP +110MM<TGG>,RR TIRE 12.00-20<98X>
FORWARD UPPER
L=535
|
1-51511-657-0 |
01 |
1 |
0001- |
| |
235 |
BOLT; TORQUE ROD
(A)
M18X265
|
1-09000-078-1 |
06 |
1 |
9812- |
| |
235 |
BOLT; TORQUE ROD
(B)
M18X102
|
1-09000-568-0 |
12 |
1 |
9812- |
| |
237 |
NUT; TORQUE ROD
M18
|
1-09464-011-0 |
18 |
1 |
9812- |
| |
241 |
BRACKET; TORQUE ROD
|
1-53363-031-2 |
02 |
1 |
9812- |
| |
243 |
BOLT; BRKT,TORQUE ROD
(A)
M14X205
|
1-09000-147-0 |
02 |
1 |
9812- |
| |
243 |
BOLT; BRKT,TORQUE ROD
(B)
M14X50
|
9-92061-450-0 |
02 |
1 |
9812- |
| |
390 |
U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
L=330
|
1-87870-164-3 |
04 |
1 |
9812- |
| |
390 |
U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
L=350
|
1-87870-392-1 |
04 |
1 |
9812- |
