Sayfa 0-40 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶

0-40 — FUEL INJECTION SYSTEM (#74387) — 122 parça

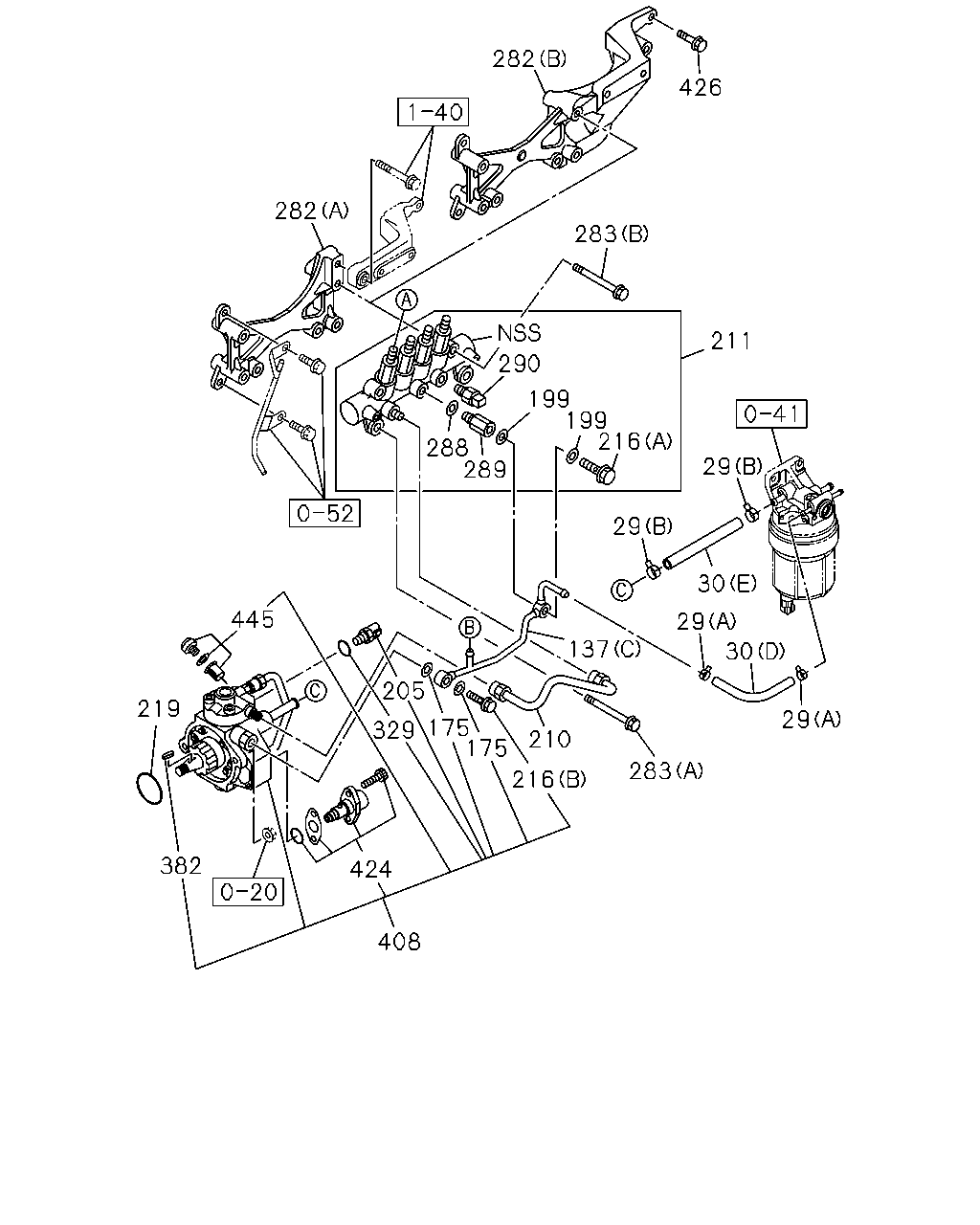

426 283 290 199 199 216 211 29 29 30 29 30 29 283 137 210 216 175 175 329 205 424 408 382 219 445 289 288 282 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; HOSE ENGINE MADE IN THAILAND<6ZP> (A) ID=12 WO/PVC COATING THA	8-94123-526-1	02	1	1109-
29	CLIP; HOSE ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5 THA	8-97944-126-0	10	1	1109-
29	CLIP; HOSE EXC. ENGINE MADE IN THAILAND<6ZP> (A) ID=12 WO/PVC COATING THA	8-94123-526-1	02	1	0803-
29	CLIP; HOSE EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=16	8-94392-924-0	02	1	0803-
29	CLIP; HOSE EXC. ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5 THA	8-97019-473-0	10	1	0803-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (A) L=130 THA	8-98053-692-0	01	1	1109-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (B) L=96 THA	8-98053-693-0	03	1	1109-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (C) THA	8-98112-034-0	01	1	1109-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (A) L=130	0-01804-130-0	01	1	0803-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (B) L=98	8-97354-652-0	03	1	0803-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (C) L=150	8-97362-306-2	01	1	0803-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (D) L=110	8-97377-894-0	01	1	0803-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (E) L=265	8-98009-700-2	01	1	0803-1101
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (E) L=265	8-98169-863-0	01	1	1102-
137	PIPE ASM; LEAK OFF EXC. ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97315-230-2	01	1	0803-1101
137	PIPE ASM; LEAK OFF ENGINE MADE IN THAILAND<6ZP> (A)	8-98161-062-0	01	1	1102-
137	PIPE ASM; LEAK OFF EXC. ENGINE MADE IN THAILAND<6ZP> (B) THA	8-97315-231-2	03	1	0803-1101
137	PIPE ASM; LEAK OFF ENGINE MADE IN THAILAND<6ZP> (B)	8-98161-061-0	03	1	1102-
137	PIPE ASM; LEAK OFF EXC. ENGINE MADE IN THAILAND<6ZP> (C)	8-98009-699-0	01	1	0803-
137	PIPE ASM; LEAK OFF EXC. ENGINE MADE IN THAILAND<6ZP> (D)	8-98036-510-0	01	1	0803-
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP EXC. ENGINE MADE IN THAILAND<6ZP> ID=10.2 OD=15.2	1-09630-083-0	02	1	0803-1104
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=10.2 OD=15.2	1-09630-083-0	02	1	1105-
199	GASKET; EYE BOLT ENGINE MADE IN THAILAND<6ZP>	8-97602-218-0	02	1	1109-
199	GASKET; EYE BOLT EXC. ENGINE MADE IN THAILAND<6ZP>	8-97602-218-0	02	1	0803-
205	SENSOR; FUEL TEMP ENGINE MADE IN THAILAND<6ZP> THA	8-98023-581-0	01	1	1109-
205	SENSOR; FUEL TEMP EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98023-581-0	01	1	0803-1104
205	SENSOR; FUEL TEMP THA	8-98023-581-0	01	1	1105-
210	PIPE; INJ,C/R ENGINE MADE IN THAILAND<6ZP> THA	8-97388-902-0	01	1	1109-
210	PIPE; INJ,C/R EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97388-902-0	01	1	0803-
211	RAIL ASM; COMMON ENGINE MADE IN THAILAND<6ZP>	8-98011-888-2	01	1	1109-
211	RAIL ASM; COMMON EXC. ENGINE MADE IN THAILAND<6ZP>	8-98011-888-2	01	1	0803-
216	BOLT; EYE ENGINE MADE IN THAILAND<6ZP> (B) THA	9-88130-088-0	01	1	1109-
216	BOLT; EYE EXC. ENGINE MADE IN THAILAND<6ZP> (B) THA	9-88130-088-0	01	1	0803-1104
216	BOLT; EYE (B) THA	9-88130-088-0	01	1	1105-
216	BOLT; EYE EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98043-033-0	01	1	0803-
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> ID=49.7 THA	1-09623-541-0	01	1	1109-
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> ID=49.7 THA	1-09623-541-0	01	1	0803-
282	BRACKET; COMMON RAIL ENGINE MADE IN THAILAND<6ZP> (B)	8-98147-694-0	01	1	1109-
282	BRACKET; COMMON RAIL EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98053-912-0	01	1	0803-1001
282	BRACKET; COMMON RAIL EXC. ENGINE MADE IN THAILAND<6ZP> (B)	8-98147-694-0	01	1	1002-
283	BOLT; COMMON RAIL ENGINE MADE IN THAILAND<6ZP> (A) M8X70 FLANGE THA	0-28050-870-0	02	1	1109-
283	BOLT; COMMON RAIL ENGINE MADE IN THAILAND<6ZP> (B) M8X81 FLANGE THA	8-97354-584-0	02	1	1109-
283	BOLT; COMMON RAIL EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X70 FLANGE THA	0-28050-870-0	02	1	0803-
283	BOLT; COMMON RAIL EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8X81 FLANGE THA	8-97354-584-0	02	1	0803-
288	GASKET ENGINE MADE IN THAILAND<6ZP> ID=11 OD=16.3	1-15641-046-0	01	1	1109-
288	GASKET EXC. ENGINE MADE IN THAILAND<6ZP> ID=11 OD=16.3	1-15641-046-0	01	1	0803-
289	LIMITER; FUEL PRESS ENGINE MADE IN THAILAND<6ZP> THA	8-98032-549-0	01	1	1109-
289	LIMITER; FUEL PRESS EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98032-549-0	01	1	0803-
290	SENSOR; PRESS ENGINE MADE IN THAILAND<6ZP>	8-98119-790-0	01	1	1109-
290	SENSOR; PRESS EXC. ENGINE MADE IN THAILAND<6ZP>	8-97318-684-0	01	1	0803-0809
290	SENSOR; PRESS EXC. ENGINE MADE IN THAILAND<6ZP>	8-98119-790-0	01	1	0810-
329	GASKET; SENSOR,FUEL TEMP EXC. ENGINE MADE IN THAILAND<6ZP> ID=9.8 OD=11.7	9-09566-110-0	01	1	0803-1104
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	1105-1105
382	KEY; DRIVE SHAFT EXC. ENGINE MADE IN THAILAND<6ZP>	8-97375-384-0	01	1	0803-1104
382	KEY; DRIVE SHAFT THA	8-98161-995-0	01	1	1105-
408	PUMP ASM; FUEL,SUPPLY EXC. ENGINE MADE IN THAILAND<6ZP>	8-97381-555-4	01	1	0803-1104
408	PUMP ASM; FUEL,SUPPLY THA	8-97381-555-5	01	1	1105-
424	OVERHAUL KIT; SUPPLY PUMP EXC. ENGINE MADE IN THAILAND<6ZP> W/ADAPTER	8-98145-484-0	01	1	0803-0905
424	OVERHAUL KIT; SUPPLY PUMP EXC. ENGINE MADE IN THAILAND<6ZP>	8-98145-501-0	01	1	0906-1104
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1105-
426	BOLT; BRACKET ENGINE MADE IN THAILAND<6ZP> M8X60 FLANGE THA	0-28050-860-0	01	1	1109-
426	BOLT; BRACKET EXC. ENGINE MADE IN THAILAND<6ZP> M8X60 FLANGE THA	0-28050-860-0	01	1	1002-
445	SCREW; FILTER,INLET THA	8-98204-986-0	01	1	1105-

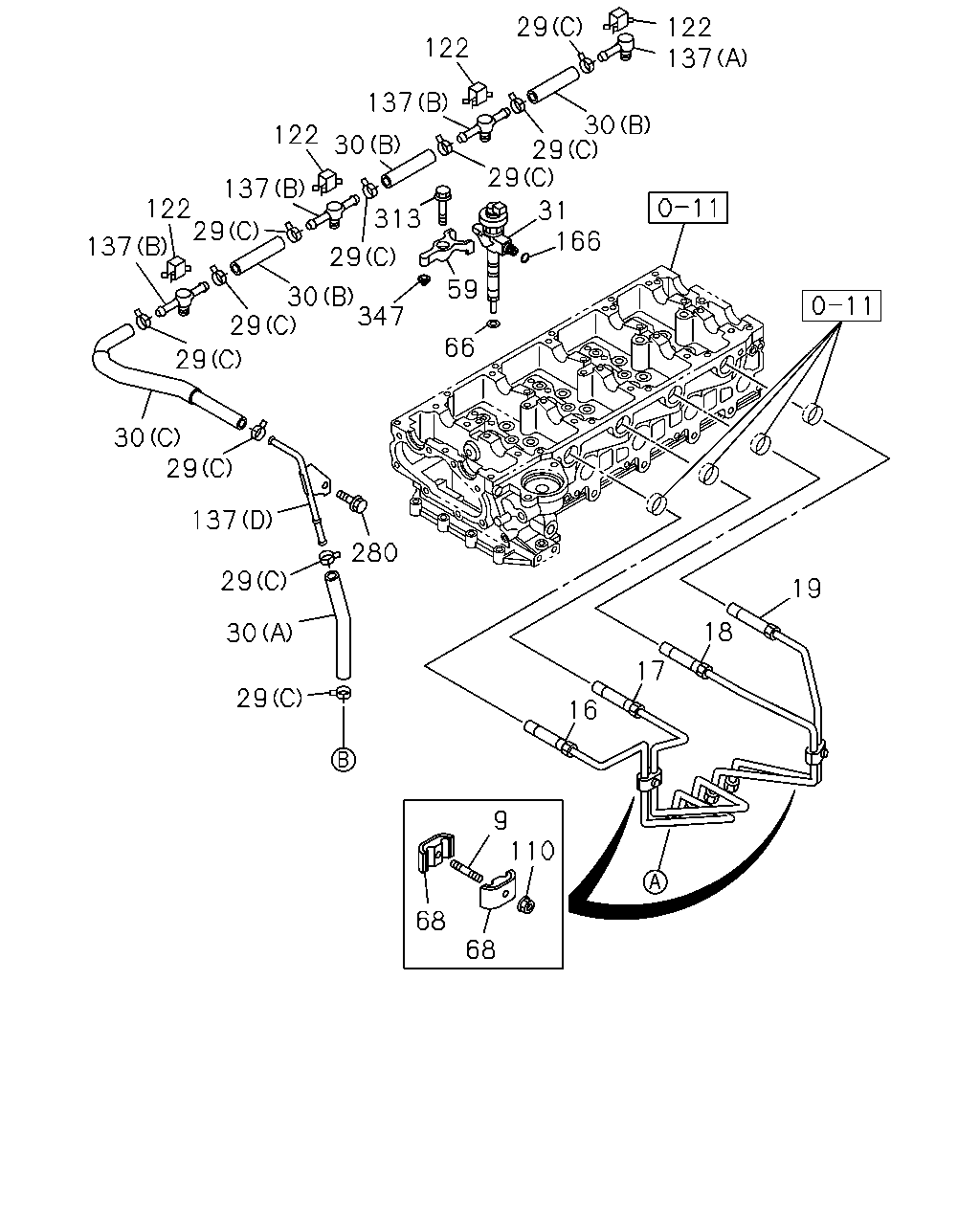

29 122 137 122 137 30 29 29 122 30 137 122 29 31 166 313 137 29 59 30 347 29 66 29 30 29 137 280 29 19 18 30 17 29 16 9 110 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	STUD; CLIP ENGINE MADE IN THAILAND<6ZP> M6X25 L=36 THA	8-97214-234-1	02	1	1109-
9	STUD; CLIP EXC. ENGINE MADE IN THAILAND<6ZP> M6X25 L=36 THA	8-97214-234-1	02	1	0803-1201
9	STUD; CLIP EXC. ENGINE MADE IN THAILAND<6ZP> M6X30 L=38 THA	0-41010-630-0	02	1	1202-
16	PIPE; INJ NO.1 ENGINE MADE IN THAILAND<6ZP> THA	8-98011-606-0	01	1	1109-
16	PIPE; INJ NO.1 EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98011-606-0	01	1	0803-1201
16	PIPE; INJ NO.1 EXC. ENGINE MADE IN THAILAND<6ZP>	8-98203-719-0	01	1	1202-
17	PIPE; INJ NO.2 ENGINE MADE IN THAILAND<6ZP> THA	8-98043-684-0	01	1	1109-
17	PIPE; INJ NO.2 EXC. ENGINE MADE IN THAILAND<6ZP>	8-98011-607-0	01	1	0803-0804
17	PIPE; INJ NO.2 EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98043-684-0	01	1	0805-1201
17	PIPE; INJ NO.2 EXC. ENGINE MADE IN THAILAND<6ZP>	8-98203-720-0	01	1	1202-
18	PIPE; INJ NO.3 ENGINE MADE IN THAILAND<6ZP> THA	8-98011-608-0	01	1	1109-
18	PIPE; INJ NO.3 EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98011-608-0	01	1	0803-1201
18	PIPE; INJ NO.3 EXC. ENGINE MADE IN THAILAND<6ZP>	8-98203-721-0	01	1	1202-
19	PIPE; INJ NO.4 ENGINE MADE IN THAILAND<6ZP> THA	8-98011-609-0	01	1	1109-
19	PIPE; INJ NO.4 EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98011-609-0	01	1	0803-1201
19	PIPE; INJ NO.4 EXC. ENGINE MADE IN THAILAND<6ZP>	8-98203-722-0	01	1	1202-
29	CLIP; HOSE ENGINE MADE IN THAILAND<6ZP> (A) ID=12 WO/PVC COATING THA	8-94123-526-1	02	1	1109-
29	CLIP; HOSE ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5 THA	8-97944-126-0	10	1	1109-
29	CLIP; HOSE EXC. ENGINE MADE IN THAILAND<6ZP> (A) ID=12 WO/PVC COATING THA	8-94123-526-1	02	1	0803-
29	CLIP; HOSE EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=16	8-94392-924-0	02	1	0803-
29	CLIP; HOSE EXC. ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5 THA	8-97019-473-0	10	1	0803-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (A) L=130 THA	8-98053-692-0	01	1	1109-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (B) L=96 THA	8-98053-693-0	03	1	1109-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (C) THA	8-98112-034-0	01	1	1109-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (A) L=130	0-01804-130-0	01	1	0803-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (B) L=98	8-97354-652-0	03	1	0803-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (C) L=150	8-97362-306-2	01	1	0803-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (D) L=110	8-97377-894-0	01	1	0803-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (E) L=265	8-98009-700-2	01	1	0803-1101
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (E) L=265	8-98169-863-0	01	1	1102-
31	NOZZLE ASM; INJ ENGINE MADE IN THAILAND<6ZP> THA	8-98011-604-5	04	1	1109-
31	NOZZLE ASM; INJ EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98011-604-5	04	1	0803-
59	CLAMP; NOZZLE HOLDER ENGINE MADE IN THAILAND<6ZP> THA	8-98092-539-0	04	1	1109-
59	CLAMP; NOZZLE HOLDER EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98092-539-0	04	1	0803-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP>	8-98077-165-0	04	1	0803-1103
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP>	8-98181-540-0	04	1	1104-
68	CLIP; INJ PIPE ENGINE MADE IN THAILAND<6ZP> THA	8-97213-481-0	04	1	1109-
68	CLIP; INJ PIPE EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97213-481-0	04	1	0803-1201
68	CLIP; INJ PIPE EXC. ENGINE MADE IN THAILAND<6ZP> ID=11 & 11 L=19	8-98039-293-0	04	1	1202-1405
68	CLIP; INJ PIPE EXC. ENGINE MADE IN THAILAND<6ZP> ID=11 & 11 L=19	8-98148-996-2	04	1	1406-
110	NUT; CLIP ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA	0-91180-106-0	02	1	1109-
110	NUT; CLIP EXC. ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA	0-91180-106-0	02	1	0803-
122	CLIP; LEAK OFF PIPE ENGINE MADE IN THAILAND<6ZP>	8-97315-286-0	04	1	1109-
122	CLIP; LEAK OFF PIPE EXC. ENGINE MADE IN THAILAND<6ZP>	8-97315-286-0	04	1	0803-
137	PIPE ASM; LEAK OFF EXC. ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97315-230-2	01	1	0803-1101
137	PIPE ASM; LEAK OFF ENGINE MADE IN THAILAND<6ZP> (A)	8-98161-062-0	01	1	1102-
137	PIPE ASM; LEAK OFF EXC. ENGINE MADE IN THAILAND<6ZP> (B) THA	8-97315-231-2	03	1	0803-1101
137	PIPE ASM; LEAK OFF ENGINE MADE IN THAILAND<6ZP> (B)	8-98161-061-0	03	1	1102-
137	PIPE ASM; LEAK OFF EXC. ENGINE MADE IN THAILAND<6ZP> (C)	8-98009-699-0	01	1	0803-
137	PIPE ASM; LEAK OFF EXC. ENGINE MADE IN THAILAND<6ZP> (D)	8-98036-510-0	01	1	0803-
166	GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> ID=11 OD=14.8 THA	9-09566-111-0	04	1	1109-
166	GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> ID=11 OD=14.8 THA	9-09566-111-0	04	1	0803-
280	BOLT; CLIP,FUEL HOSE ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA	0-28050-812-0	01	1	1109-
280	BOLT; CLIP,FUEL HOSE EXC. ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA	0-28050-812-0	01	1	0803-
313	BOLT; BRKT,INJ NOZZLE ENGINE MADE IN THAILAND<6ZP> M8X50 W/WASHER THA	8-98095-575-0	04	1	1109-
313	BOLT; BRKT,INJ NOZZLE EXC. ENGINE MADE IN THAILAND<6ZP> M8X50 W/WASHER THA	8-97372-144-0	04	1	0803-
347	PIN ENGINE MADE IN THAILAND<6ZP> THA	8-98165-035-0	04	1	1109-
347	PIN EXC. ENGINE MADE IN THAILAND<6ZP>	8-97383-286-0	04	1	0803-1011
347	PIN THA	8-98165-035-0	04	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
