◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#74385) — 72 parça

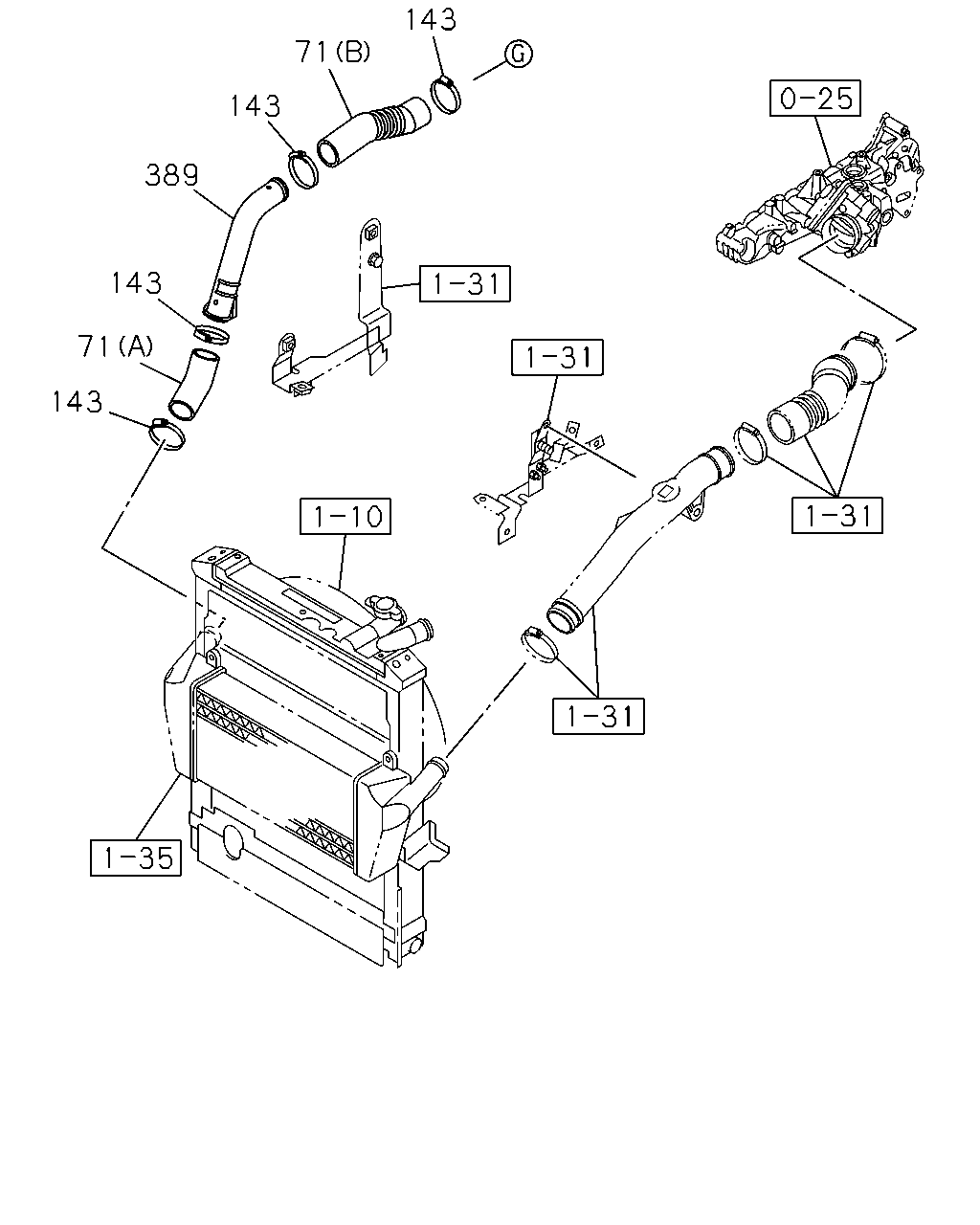

çizim 185595
143 71 143 389 143 71 143
BalonParca AdiParca NoAdetTipApplied Date
71 HOSE; INLET PIPE TO TURBOCHARGER
(A) 		8-98036-513-2 01 1 0803-
71 HOSE; INLET PIPE TO TURBOCHARGER
(B) 		8-98050-918-0 01 1 0803-1001
71 HOSE; INLET PIPE TO TURBOCHARGER
(B) 		8-98159-280-1 01 1 1002-
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-65 THA 		1-09707-204-0 04 1 0803-0810
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=45-65 		8-98133-348-0 04 1 0811-1507
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=45-65 THA 		8-98133-396-0 04 1 1508-
389 PIPE; INL,TURBOCHARGER TO CAC
THA 		8-98038-996-1 01 1 0803-

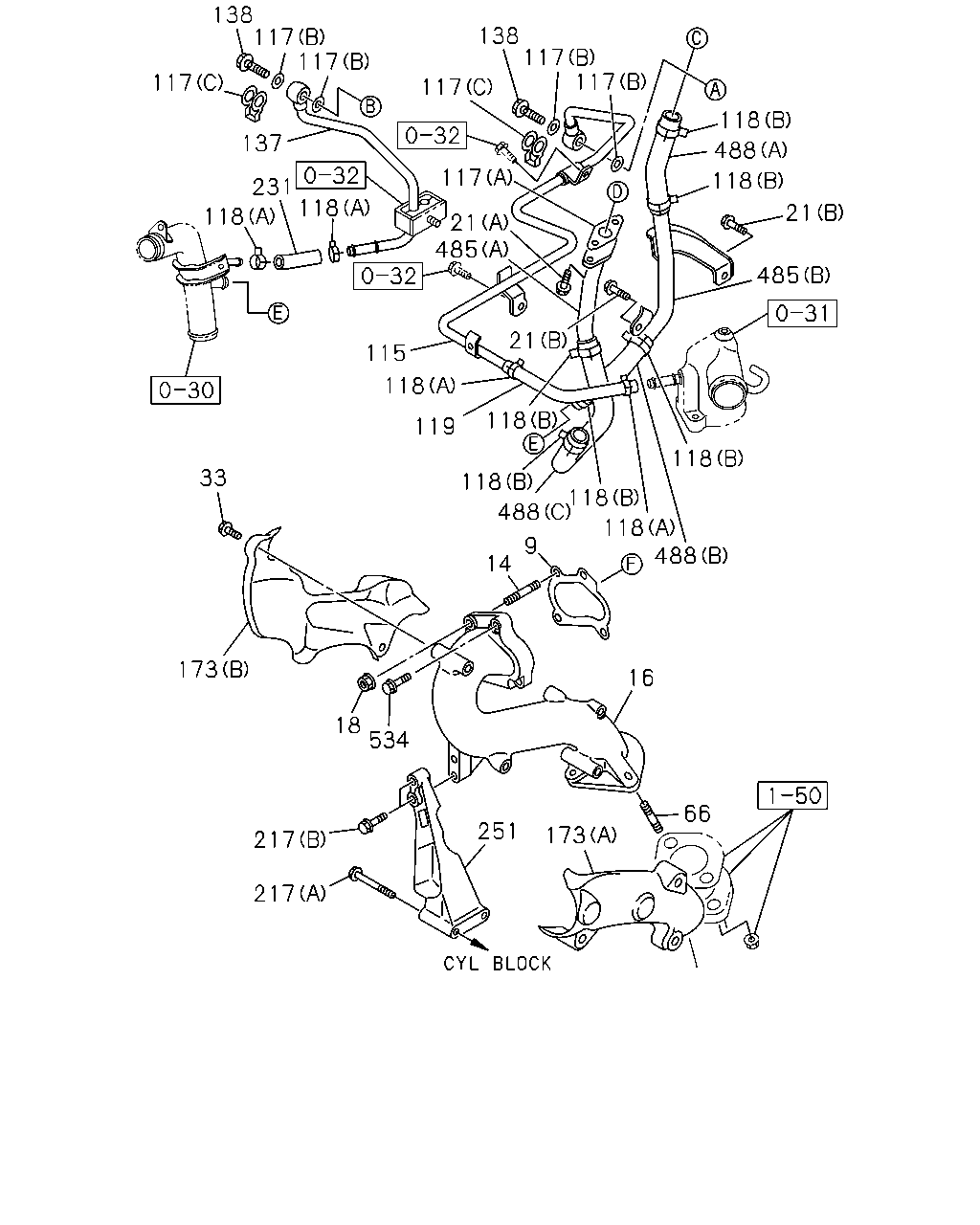

çizim 185597
138 117 117 138 117 117 117 117 118 137 488 117 118 231 118 21 118 21 485 485 21 115 118 118 119 118 33 118 118 488 118 488 9 14 173 16 18 534 66 251 173 217 217
BalonParca AdiParca NoAdetTipApplied Date
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> 		8-98015-116-3 01 1 1109-
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98015-116-1 01 1 0803-1008
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98015-116-1 02 1 1009-
14 STUD; TURBOCHARGER TO EXH PIPE
ENGINE MADE IN THAILAND<6ZP> M8X25 L=36 THA 		8-97378-062-0 02 1 1109-
14 STUD; TURBOCHARGER TO EXH PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> M8X25 L=36 THA 		8-97378-062-0 02 1 0803-
16 ADAPTER; EXH PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98012-735-4 01 1 0803-
18 NUT; EXH PIPE
ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		8-97379-384-0 02 1 1109-
18 NUT; EXH PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> M8 FLANGE 		8-97161-607-0 02 1 0803-
21 BOLT; PIPE
ENGINE MADE IN THAILAND<6ZP> (B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1109-
21 BOLT; PIPE
ENGINE MADE IN THAILAND<6ZP> (A) M6X20 FLANGE THA 		0-28650-620-0 02 1 1109-
21 BOLT; PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0803-
21 BOLT; PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> (A) M6X20 HEX SOCKET THA 		0-58330-620-0 02 1 0803-0809
21 BOLT; PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> (A) M6X20 FLANGE THA 		0-28650-620-0 02 1 0810-
33 BOLT; HEAT PROTECTOR
ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA 		0-28050-812-0 06 1 1109-
33 BOLT; HEAT PROTECTOR
EXC. ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA 		0-28050-812-0 06 1 0803-
66 STUD; EXH PIPE
ENGINE MADE IN THAILAND<6ZP> M10X25 L=45 THA 		0-43211-025-0 03 1 1109-
66 STUD; EXH PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> M10X25 L=45 THA 		0-43211-025-0 03 1 0803-
115 PIPE; WATER,TURBOCHARGER OUT
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98025-752-0 01 1 0803-0803
115 PIPE; WATER,TURBOCHARGER OUT
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98113-709-0 01 1 0803-
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (A) 		8-97262-117-0 01 1 0803-
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=12.2 		9-09571-412-0 04 1 0803-0904
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (C) ID=12.6 		8-97331-137-1 02 1 0905-
118 CLIP; WATER HOSE
ENGINE MADE IN THAILAND<6ZP> (A) ID=12.8 		8-94367-943-0 04 1 1109-1112
118 CLIP; WATER HOSE
ENGINE MADE IN THAILAND<6ZP> (A) ID=12.8 THA 		8-97944-125-0 04 1 1201-
118 CLIP; WATER HOSE
EXC. ENGINE MADE IN THAILAND<6ZP> (A) ID=12.8 		8-94367-943-0 04 1 0803-
118 CLIP; WATER HOSE
EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=22 		8-94382-401-0 06 1 0803-1003
118 CLIP; WATER HOSE
EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=22 		8-97359-141-0 06 1 1004-
119 HOSE; WATER,TURBOCHARGER
ENGINE MADE IN THAILAND<6ZP> 		8-98113-336-0 01 1 1109-
119 HOSE; WATER,TURBOCHARGER
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98022-074-0 01 1 0803-0803
119 HOSE; WATER,TURBOCHARGER
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98113-336-0 01 1 0803-
137 PIPE; WATER,TURBOCHARGER IN
ENGINE MADE IN THAILAND<6ZP> 		8-97381-650-0 01 1 1109-
137 PIPE; WATER,TURBOCHARGER IN
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-97381-650-0 01 1 0803-
138 BOLT; EYE,WATER PIPE
ENGINE MADE IN THAILAND<6ZP> M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 1109-
138 BOLT; EYE,WATER PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 0803-
173 PROTECTOR; HEAT,FUEL PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> (A) 		8-98032-023-1 01 1 0803-
173 PROTECTOR; HEAT,FUEL PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> (B) 		8-98032-024-3 01 1 0803-
217 BOLT; BRKT
ENGINE MADE IN THAILAND<6ZP> (A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1109-
217 BOLT; BRKT
EXC. ENGINE MADE IN THAILAND<6ZP> (A) M10X70 FLANGE THA 		0-28051-070-0 02 1 0803-
217 BOLT; BRKT
EXC. ENGINE MADE IN THAILAND<6ZP> (B) M10X30 FLANGE 		8-98032-158-0 02 1 0803-
231 HOSE; RUBBER,TURBOCHARGER OUT
ENGINE MADE IN THAILAND<6ZP> 		8-98030-402-0 01 1 1109-
231 HOSE; RUBBER,TURBOCHARGER OUT
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98030-402-0 01 1 0803-
251 BRACKET; ADAPTER
ENGINE MADE IN THAILAND<6ZP> 		8-98009-098-1 01 1 1109-
251 BRACKET; ADAPTER
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98009-098-1 01 1 0803-
485 PIPE; WATER EGR
EXC. ENGINE MADE IN THAILAND<6ZP> (A) 		8-97381-651-0 01 1 0803-
485 PIPE; WATER EGR
EXC. ENGINE MADE IN THAILAND<6ZP> (B) 		8-97381-652-0 01 1 0803-
488 HOSE; RUBBER
ENGINE MADE IN THAILAND<6ZP> (B) L=110 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 1109-
488 HOSE; RUBBER
ENGINE MADE IN THAILAND<6ZP> (A) L=120 SERVICED BY L=3000 		0-03666-300-0 01 1 1109-
488 HOSE; RUBBER
ENGINE MADE IN THAILAND<6ZP> (C) 		8-98015-118-0 01 1 1109-
488 HOSE; RUBBER
EXC. ENGINE MADE IN THAILAND<6ZP> (B) L=110 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 0803-
488 HOSE; RUBBER
EXC. ENGINE MADE IN THAILAND<6ZP> (A) L=120 SERVICED BY L=3000 		0-03666-300-0 01 1 0803-
488 HOSE; RUBBER
EXC. ENGINE MADE IN THAILAND<6ZP> (C) 		8-98015-118-0 01 1 0803-
534 BOLT; TURBOCHARGER TO EXH PIPE
ENGINE MADE IN THAILAND<6ZP> M8X35 FLANGE THA 		8-98053-224-0 02 1 1109-
534 BOLT; TURBOCHARGER TO EXH PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> M8X35 FLANGE THA 		8-98053-224-0 02 1 0803-

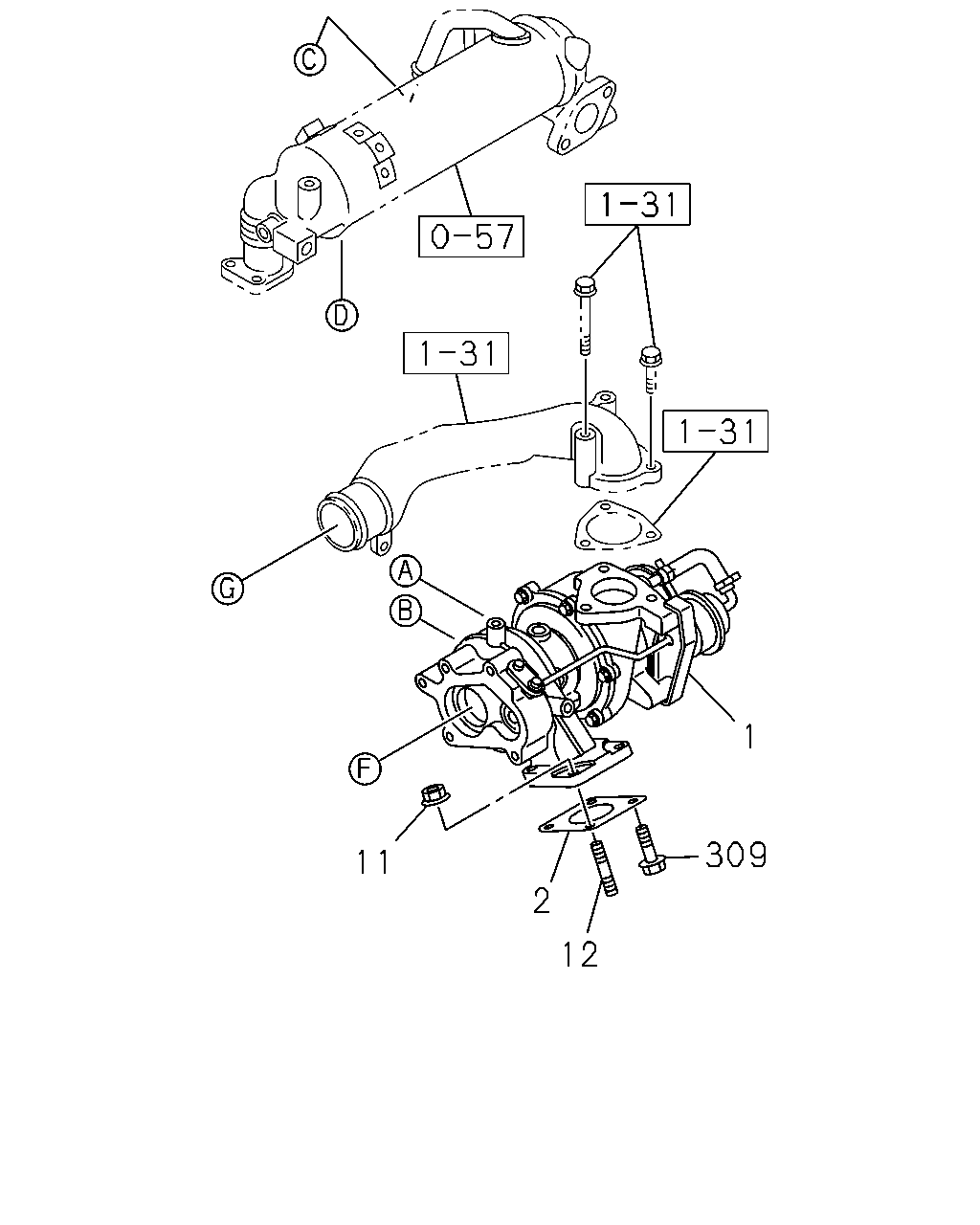

çizim 185599
1 309 11 2 12
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. ENGINE MADE IN THAILAND<6ZP> 		8-98015-115-2 01 1 1109-
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98015-115-1 01 1 0803-0804
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98097-686-0 01 1 0805-0810
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98015-115-2 01 1 0811-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA 		8-97912-697-0 01 1 1109-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> THA 		8-94433-605-0 01 1 0803-
11 NUT; TURBOCHARGER
ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		8-97379-384-0 02 1 1109-
11 NUT; TURBOCHARGER
EXC. ENGINE MADE IN THAILAND<6ZP> M8 FLANGE 		8-97161-607-0 02 1 0803-
12 STUD; TURBOCHARGER
ENGINE MADE IN THAILAND<6ZP> M8X25 L=36 THA 		8-97378-062-0 02 1 1109-
12 STUD; TURBOCHARGER
EXC. ENGINE MADE IN THAILAND<6ZP> M8X25 L=36 THA 		8-97378-062-0 02 1 0803-
309 BOLT; TURBOCHARGER
ENGINE MADE IN THAILAND<6ZP> M8X28 FLANGE THA 		8-98041-363-0 02 1 1109-
309 BOLT; TURBOCHARGER
EXC. ENGINE MADE IN THAILAND<6ZP> M8X28 FLANGE 		8-98043-528-0 02 1 0803-
