Isuzu WW
▶
TRUCKS
▶
NLR
▶
51168 - NLR/NMR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

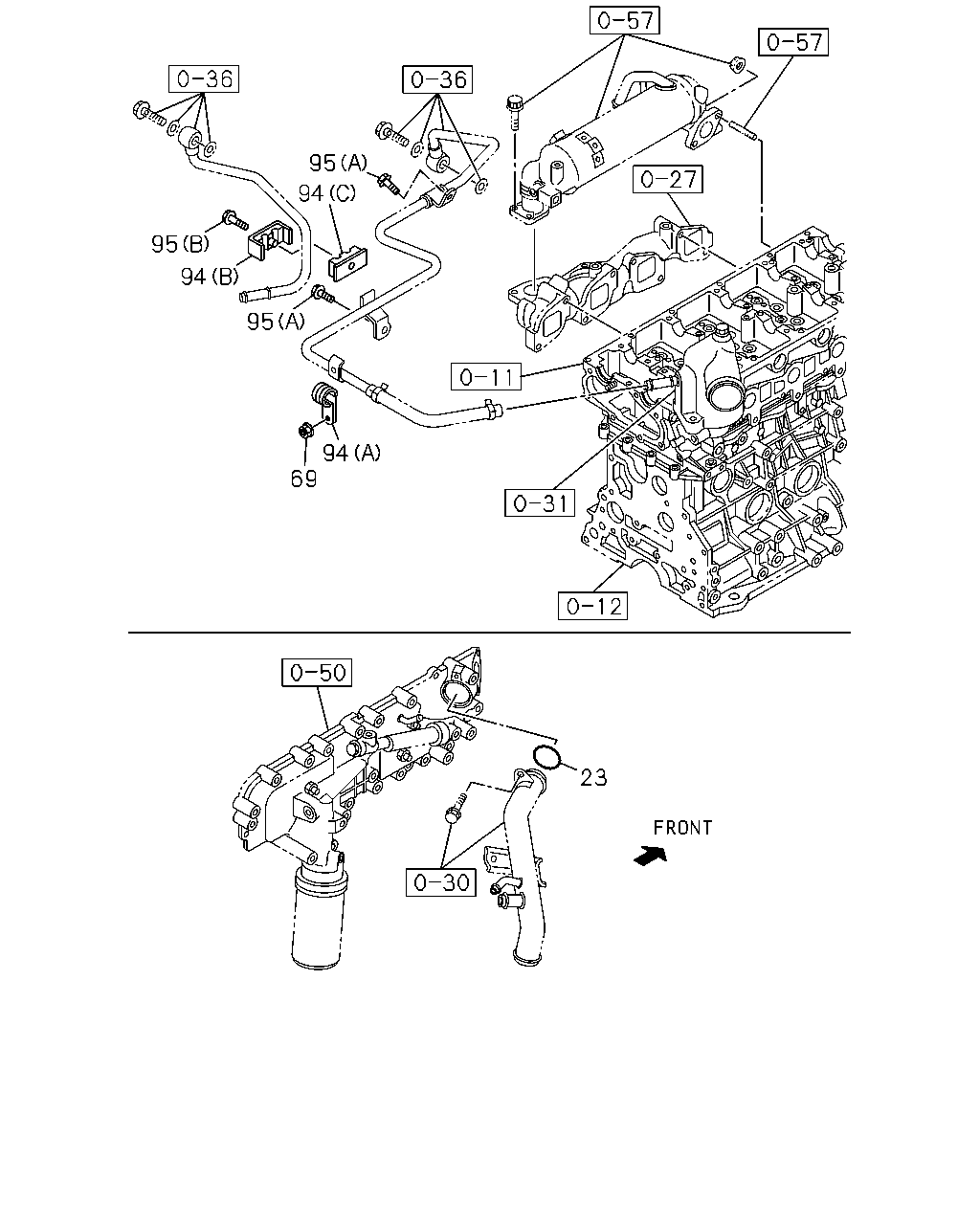

0-32 — WATER PIPING; ENGINE
(#74383) — 11 parça
95
94
95
94
95
94
69
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA
0-95690-338-0
01
1
1109-
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> THA
0-95690-338-0
01
1
0803-
69
NUT; WATER PIPE
ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA
0-91180-206-0
01
1
1109-
69
NUT; WATER PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA
0-91180-206-0
01
1
0803-
94
CLIP; WATER PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> (A) ID=12 L=20
1-09700-911-1
01
1
0803-
94
CLIP; WATER PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=7 & 9 L=25
1-09701-228-3
01
1
0803-
94
CLIP; WATER PIPE
EXC. ENGINE MADE IN THAILAND<6ZP> (C) ID=7 & 9 L=25
1-09701-229-2
01
1
0803-
95
BOLT; CLIP
ENGINE MADE IN THAILAND<6ZP> (A) M6X12 FLANGE THA
0-28050-612-0
02
1
1109-
95
BOLT; CLIP
ENGINE MADE IN THAILAND<6ZP> (B) M6X35 FLANGE THA
0-28650-635-0
01
1
1109-
95
BOLT; CLIP
EXC. ENGINE MADE IN THAILAND<6ZP> (A) M6X12 FLANGE THA
0-28050-612-0
02
1
0803-
95
BOLT; CLIP
EXC. ENGINE MADE IN THAILAND<6ZP> (B) M6X35 FLANGE THA
0-28650-635-0
01
1
0803-
