◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶

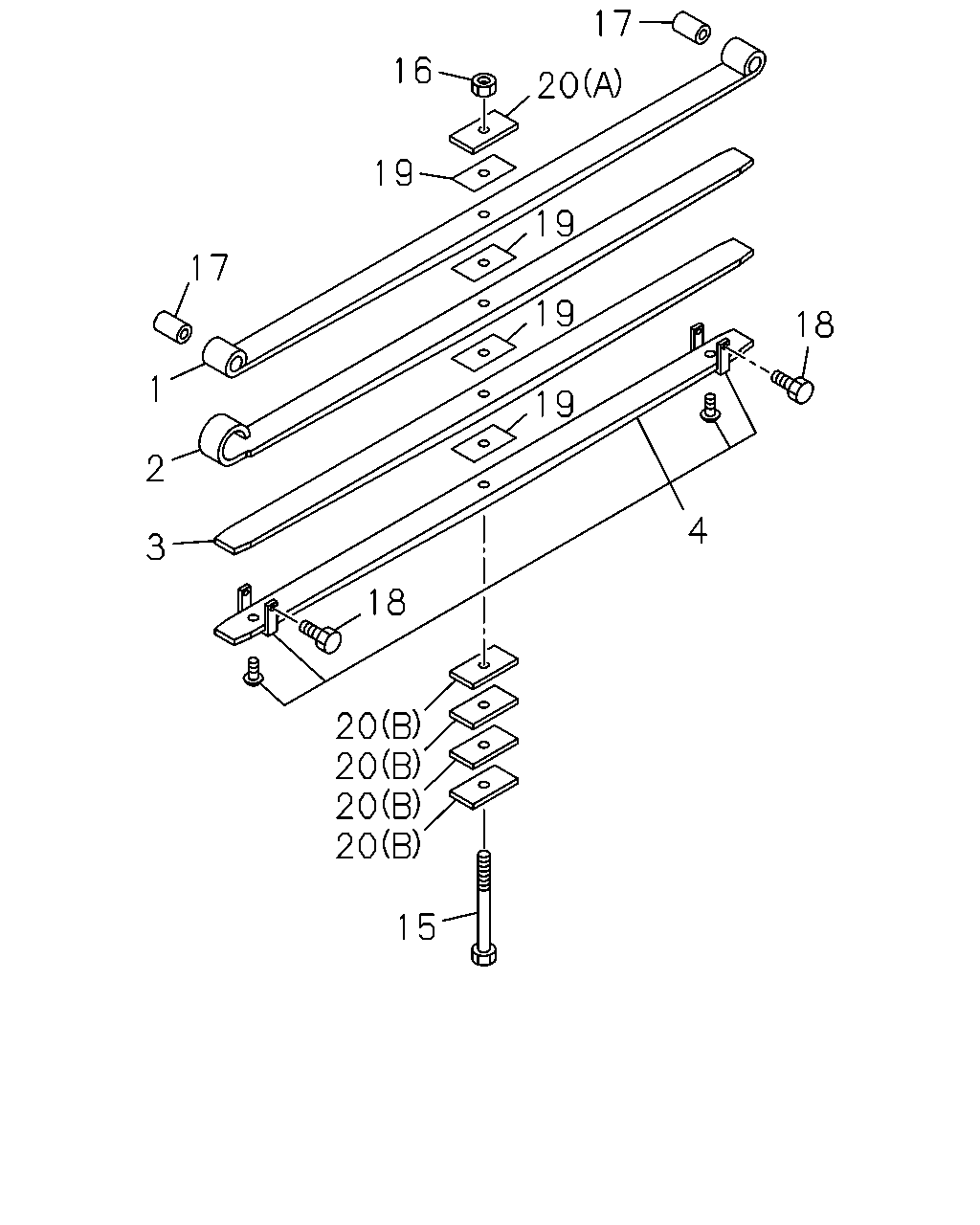

4-55 — FRONT LEAF SPRING (#7438) — 19 parça
çizim 43722
17 16 20 19 19 17 19 18 1 19 2 4 3 18 20 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-273-0 		1-51131-273-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51130-275-0 		1-51131-275-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-273-0 		1-51132-273-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51130-275-0 		1-51132-275-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-273-0 		1-51133-273-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51130-275-0 		1-51133-275-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
W/CLIP ASM PART: A = 1-51130-273-0 		1-51134-273-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
W/CLIP ASM PART: B = 1-51130-275-0 		1-51134-275-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=160 ASM PART: A = 1-51130-273-0 		1-51156-296-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51130-275-0 		1-51156-328-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0 		1-09000-328-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: A = 1-51130-273-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: B = 1-51130-275-0 		1-51177-109-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: B = 1-51130-275-0 		1-51177-114-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: A = 1-51130-273-0 		1-51177-114-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: B = 1-51130-275-0 		1-51177-161-0 01 1 -
