Isuzu WW
▶
TRUCKS
▶
NLR
▶
51168 - NLR/NMR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#74378) — 35 parça
◀

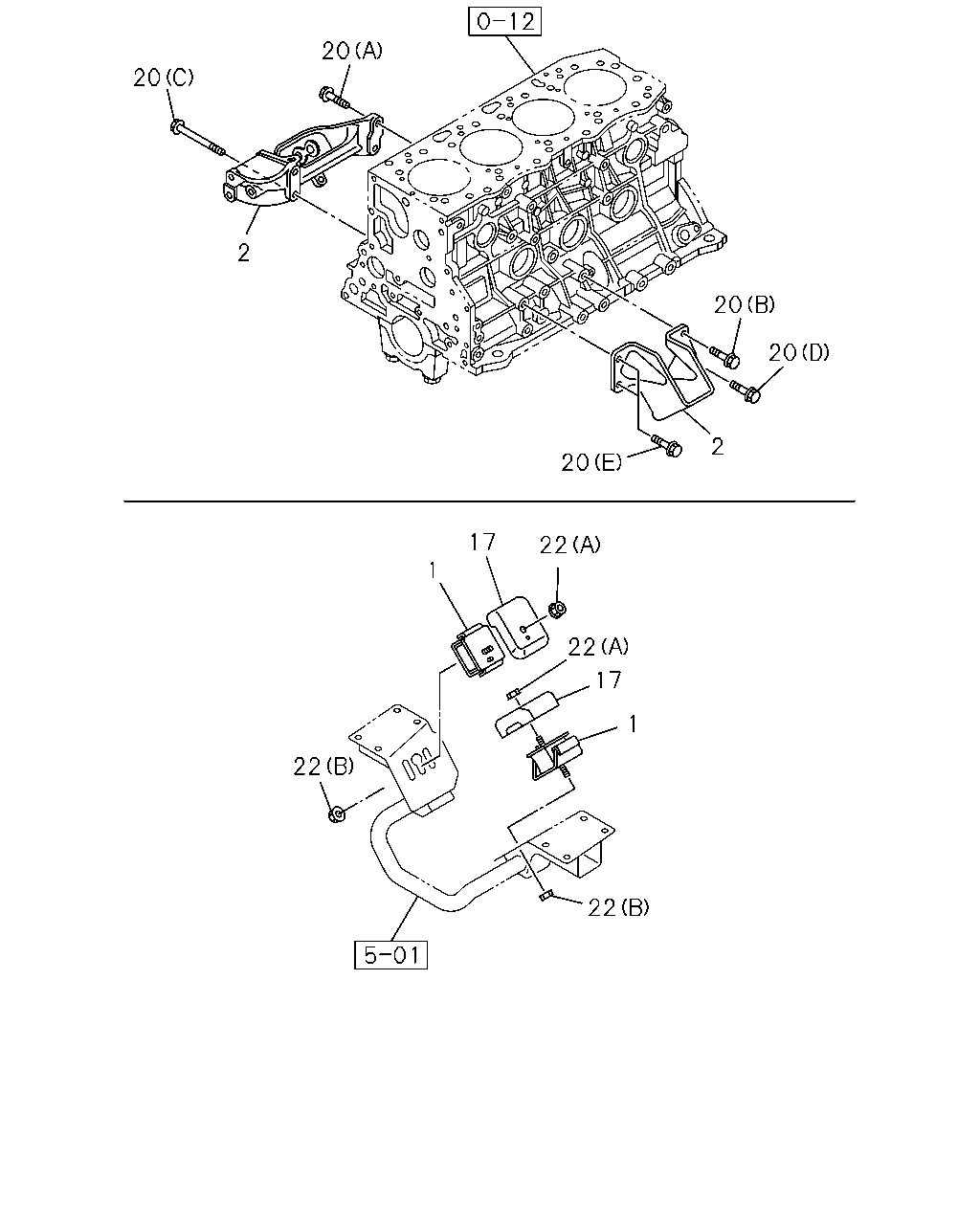

[022A] FRONT (23 parça)
[022A] REAR (12 parça)
▶
20
20
2
20
20
2
20
17
22
1
22
17
1
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
8-98043-001-0
01
1
0803-
1
RUBBER; ENG FOOT,FRT
8-98043-000-0
01
1
0803-
2
FOOT; ENG
8-97381-513-1
01
1
0803-
2
FOOT; ENG
EXC. ENGINE MADE IN THAILAND<6ZP>
8-97381-514-2
01
1
0803-
17
COVER; CUSHION RUBBER,FRT
8-97229-825-0
01
1
0803-
17
COVER; CUSHION RUBBER,FRT
8-97383-796-0
01
1
0803-
20
BOLT; ENG FOOT
ENGINE MADE IN THAILAND<6ZP> (C) M10X70 FLANGE THA
0-28051-070-0
01
1
1109-
20
BOLT; ENG FOOT
ENGINE MADE IN THAILAND<6ZP> (A) M10X30 FLANGE THA
0-28651-030-0
03
1
1109-
20
BOLT; ENG FOOT
EXC. ENGINE MADE IN THAILAND<6ZP> (C) M10X70 FLANGE THA
0-28051-070-0
01
1
0803-
20
BOLT; ENG FOOT
(D) M10X20 FLANGE THA
0-28651-020-0
01
1
0803-1206
20
BOLT; ENG FOOT
(D) M10X20 FLANGE THA
0-28651-020-0
01
1
1207-1210
20
BOLT; ENG FOOT
(D) M10X20 FLANGE THA
0-28651-020-0
02
1
1211-
20
BOLT; ENG FOOT
EXC. ENGINE MADE IN THAILAND<6ZP> (A) M10X30 FLANGE THA
0-28651-030-0
03
1
0803-
20
BOLT; ENG FOOT
(E) M10X25 FLANGE THA
0-28651-025-0
02
1
0803-1206
20
BOLT; ENG FOOT
(E) M10X25 FLANGE THA
0-28651-025-0
02
1
1207-1210
20
BOLT; ENG FOOT
(E) M10X25 FLANGE THA
0-28651-025-0
04
1
1211-
20
BOLT; ENG FOOT
(B) M10X35 FLANGE THA
0-28651-035-0
01
1
0803-1206
20
BOLT; ENG FOOT
(B) M10X35 FLANGE THA
0-28651-035-0
01
1
1207-1210
20
BOLT; ENG FOOT
(B) M10X35 FLANGE THA
0-28651-035-0
02
1
1211-
22
NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE THA
0-91180-112-0
02
1
0803-1206
22
NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE THA
0-91180-112-0
02
1
1207-1210
22
NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE THA
0-91180-112-0
04
1
1211-
22
NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE
8-98046-987-0
02
1
0803-
87
84
76
71
134
78
52
76
134
71
78
76
76
134
67
67
76
71
52
76
134
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

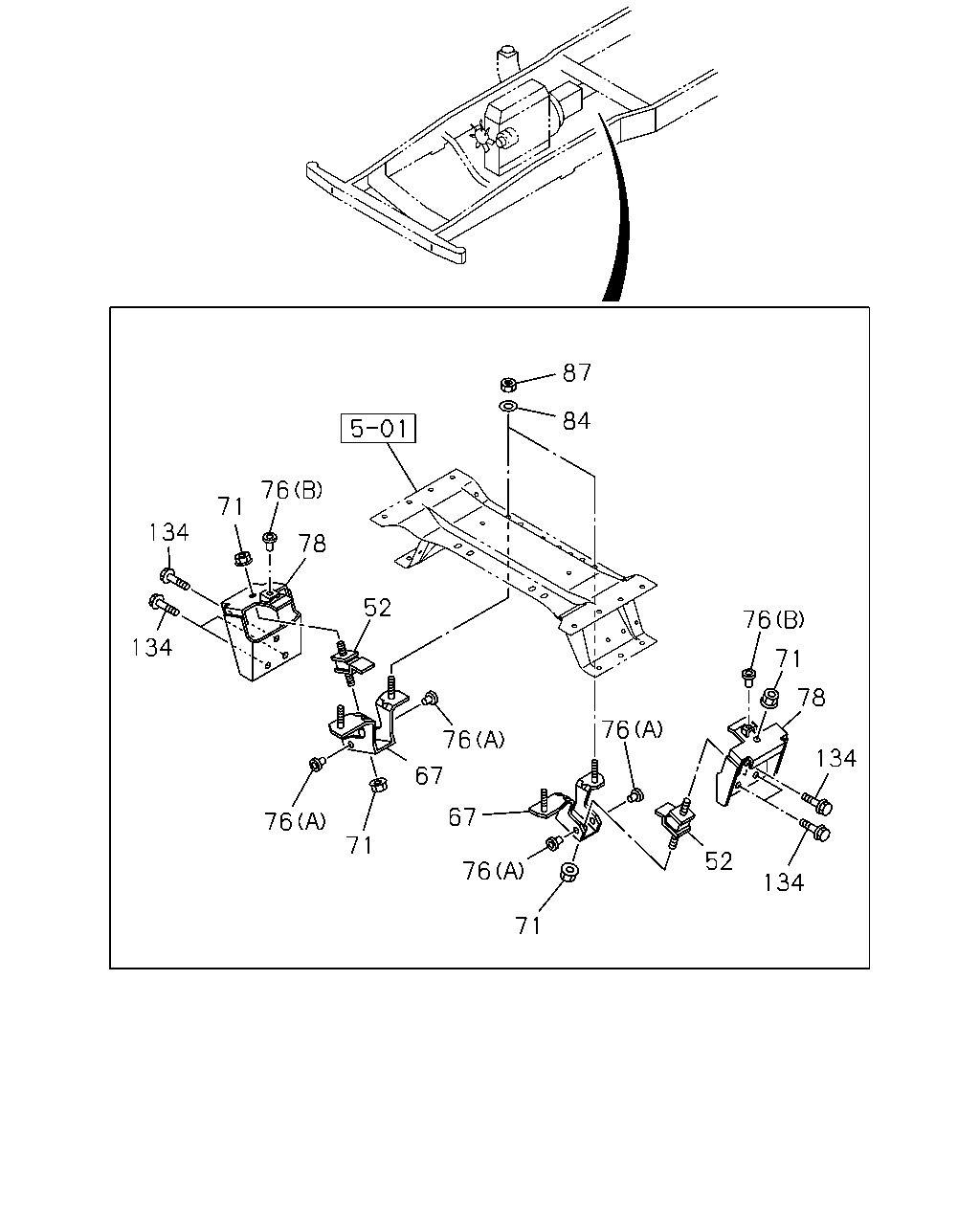

52
RUBBER; CUSHION,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>
8-94111-903-1
02
1
0803-
67
BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>
8-97354-876-1
01
1
0803-
67
BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>
8-97354-877-1
01
1
0803-
71
NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE THA
0-91180-110-0
04
1
0803-
76
STOPPER; ENG MTG RUBBER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)
8-94111-904-0
02
1
0803-
76
STOPPER; ENG MTG RUBBER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)
8-97039-947-1
04
1
0803-
78
BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>
8-98053-902-1
02
1
0803-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0803-
87
NUT; ENG MTG RR
M10 FLANGE THA
0-91180-110-0
04
1
0803-1206
87
NUT; ENG MTG RR
M10 FLANGE THA
0-91180-110-0
04
1
1207-1210
87
NUT; ENG MTG RR
M10 FLANGE THA
0-91180-110-0
08
1
1211-
134
BOLT; SUPPORT BRKT
M12X25 FLANGE
0-28751-225-0
06
1
0803-
