0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#74377) — 103 parça

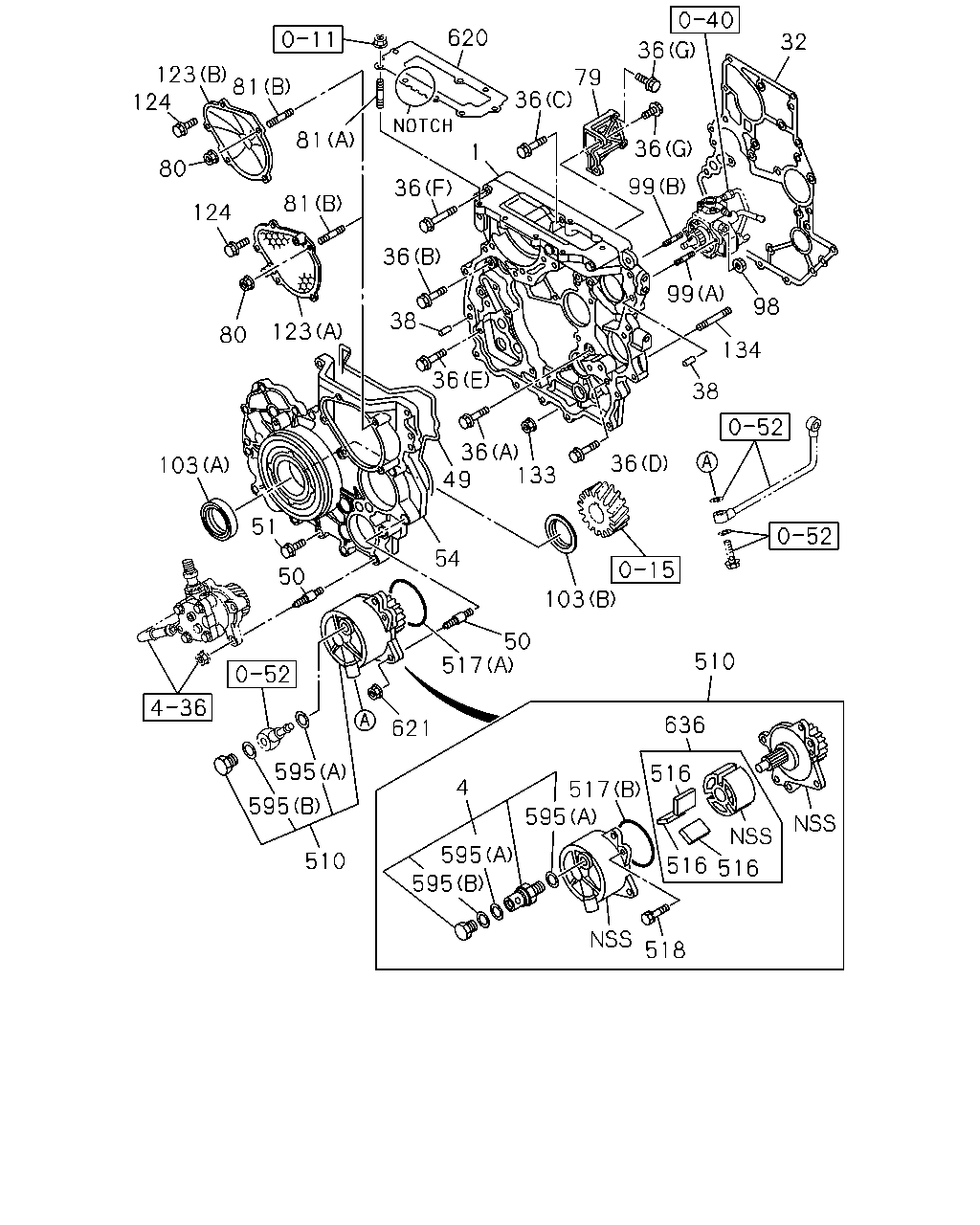

620 79 36 32 99 36 36 36 38 123 80 124 80 81 81 81 123 124 1 36 36 36 49 54 517 103 50 510 636 516 517 595 595 595 510 595 595 621 4 518 516 516 50 51 103 133 36 38 134 98 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE; TIMING GEAR EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97945-261-2	01	1	0803-1203
1	CASE; TIMING GEAR THA	8-98074-747-1	01	1	1204-
4	VALVE ASM; CHECK EXC. ENGINE MADE IN THAILAND<6ZP>	8-98049-521-0	01	1	0803-
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA	8-97312-221-2	01	1	1109-
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97312-221-2	01	1	0803-
36	BOLT; GEAR CASE ENGINE MADE IN THAILAND<6ZP> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	1109-
36	BOLT; GEAR CASE ENGINE MADE IN THAILAND<6ZP> (B) M8X20 FLANGE THA	0-28050-820-0	12	1	1109-
36	BOLT; GEAR CASE ENGINE MADE IN THAILAND<6ZP> (C) M8X35 FLANGE THA	0-28050-835-0	01	1	1109-
36	BOLT; GEAR CASE ENGINE MADE IN THAILAND<6ZP> (D) M8X45 FLANGE THA	0-28050-845-0	02	1	1109-
36	BOLT; GEAR CASE ENGINE MADE IN THAILAND<6ZP> (F) M8X60 FLANGE THA	0-28050-860-0	01	1	1109-
36	BOLT; GEAR CASE ENGINE MADE IN THAILAND<6ZP> (E) M8X25 FLANGE THA	0-28650-825-0	01	1	1109-
36	BOLT; GEAR CASE ENGINE MADE IN THAILAND<6ZP> (G) M8X30 FLANGE THA	0-28650-830-0	03	1	1109-
36	BOLT; GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0803-
36	BOLT; GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8X20 FLANGE THA	0-28050-820-0	12	1	0803-
36	BOLT; GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0803-
36	BOLT; GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0803-
36	BOLT; GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0803-
36	BOLT; GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> (E) M8X25 FLANGE THA	0-28650-825-0	01	1	0803-
36	BOLT; GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0803-
38	PIN; GEAR CASE COVER ENGINE MADE IN THAILAND<6ZP> OD=10 L=20 THA	9-08151-020-0	02	1	1109-
38	PIN; GEAR CASE COVER EXC. ENGINE MADE IN THAILAND<6ZP> OD=10 L=20	8-97135-423-0	02	1	0803-
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA	8-97945-298-0	01	1	1109-
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97945-298-0	01	1	0803-
50	STUD ENGINE MADE IN THAILAND<6ZP> M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	1109-
50	STUD EXC. ENGINE MADE IN THAILAND<6ZP> M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0803-
51	BOLT; GEAR CASE COVER ENGINE MADE IN THAILAND<6ZP> THA	8-97354-697-1	14	1	1109-
51	BOLT; GEAR CASE COVER EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97354-697-1	14	1	0803-
54	COVER; GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP>	8-98012-960-2	01	1	0803-1007
54	COVER; GEAR CASE	8-98165-119-1	01	1	1008-1405
54	COVER; GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP>	8-98253-700-1	01	1	1406-
79	BRACKET; GEAR CASE COVER EXC. ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97370-390-2	01	1	0803-1203
79	BRACKET; GEAR CASE COVER (B) THA	8-98107-106-0	01	1	1204-
80	NUT; COVER ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA	0-91180-206-0	02	1	1109-
80	NUT; COVER EXC. ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA	0-91180-206-0	02	1	0803-
81	STUD; GEAR CASE COVER FIX ENGINE MADE IN THAILAND<6ZP> (B) M6X16 L=25 THA	0-41010-616-0	02	1	1109-
81	STUD; GEAR CASE COVER FIX ENGINE MADE IN THAILAND<6ZP> (A) M8X30 L=48 THA	0-49140-830-0	02	1	1109-
81	STUD; GEAR CASE COVER FIX EXC. ENGINE MADE IN THAILAND<6ZP> (B) M6X16 L=25 THA	0-41010-616-0	02	1	0803-
81	STUD; GEAR CASE COVER FIX EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X30 L=48 THA	0-49140-830-0	02	1	0803-
98	NUT; STUD,INJ PUMP ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA	0-91180-208-0	02	1	1109-
98	NUT; STUD,INJ PUMP EXC. ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA	0-91180-208-0	02	1	0803-
99	STUD; INJ PUMP ENGINE MADE IN THAILAND<6ZP> (B) M8X45 L=63 THA	0-49140-845-0	01	1	1109-1203
99	STUD; INJ PUMP ENGINE MADE IN THAILAND<6ZP> (A) M8X30 L=48 THA	0-49140-830-0	01	1	1109-1203
99	STUD; INJ PUMP ENGINE MADE IN THAILAND<6ZP> (A) M8X30 L=48 THA	0-49140-830-0	02	1	1204-
99	STUD; INJ PUMP EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X30 L=41 THA	8-97369-449-0	01	1	0803-1203
99	STUD; INJ PUMP EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X30 L=41 THA	8-97369-449-0	02	1	1204-
99	STUD; INJ PUMP EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8X45 L=56 THA	8-97369-450-0	01	1	0803-1203
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (A)	8-98158-110-0	01	1	1109-
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-97382-606-0	01	1	0803-1007
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98158-110-0	01	1	1008-
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (B)	8-97386-601-0	01	1	0803-1007
123	COVER; TIMING,LWR ENGINE MADE IN THAILAND<6ZP> (B) THA	8-98158-145-0	01	1	1109-
123	COVER; TIMING,LWR EXC. ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97371-720-1	01	1	0803-1006
123	COVER; TIMING,LWR EXC. ENGINE MADE IN THAILAND<6ZP> (B) THA	8-98158-145-0	01	1	1007-
124	BOLT; TIMING COVER ENGINE MADE IN THAILAND<6ZP> M6X16 FLANGE THA	0-28050-616-0	03	1	1109-
124	BOLT; TIMING COVER EXC. ENGINE MADE IN THAILAND<6ZP> M6X16 FLANGE THA	0-28050-616-0	03	1	0803-
133	NUT; TIMING GEAR CASE ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA	0-91180-208-0	02	1	1109-
133	NUT; TIMING GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA	0-91180-208-0	02	1	0803-
134	STUD; TIMING GEAR CASE ENGINE MADE IN THAILAND<6ZP> M8X20 L=32 THA	0-41010-820-0	02	1	1109-
134	STUD; TIMING GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> M8X20 L=32 THA	0-41010-820-0	02	1	0803-
202	NUT; BRKT M8 FLANGE THA	0-91180-208-0	01	1	1204-
233	STUD; BRKT ENGINE MADE IN THAILAND<6ZP> M8X71 L=83 THA	8-97367-083-0	01	1	1204-
233	STUD; BRKT EXC. ENGINE MADE IN THAILAND<6ZP> M8X71 L=83	8-98017-063-0	01	1	1204-
510	PUMP ASM; VACUUM EXC. ENGINE MADE IN THAILAND<6ZP>	8-98005-250-0	01	1	0803-1005
510	PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-1311
510	PUMP ASM; VACUUM EXC. ENGINE MADE IN THAILAND<6ZP>	8-98251-764-0	01	1	1312-
516	VANE; VAC PUMP EXC. ENGINE MADE IN THAILAND<6ZP>	8-98051-275-0	03	1	0803-
517	GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (A) THA	9-09566-271-0	01	1	1109-
517	GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0803-1311
517	GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (B)	8-98251-769-0	01	1	1312-
517	GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (A) THA	9-09566-271-0	01	1	0803-
518	BOLT; VAC PUMP EXC. ENGINE MADE IN THAILAND<6ZP>	8-98049-523-0	03	1	0803-
595	GASKET; VLV EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=12	8-98018-518-0	01	1	0803-
595	GASKET; VLV EXC. ENGINE MADE IN THAILAND<6ZP> (A) ID=18	8-98018-519-0	02	1	0803-
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> T=1.40 1-NOTCH THA	8-97328-828-2	01	1	1109-
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> T=1.45 2-NOTCH THA	8-97331-631-2	01	1	1109-
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> T=1.50 3-NOTCH THA	8-97331-632-2	01	1	1109-
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> T=1.40 1-NOTCH THA	8-97328-828-2	01	1	0803-
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> T=1.45 2-NOTCH THA	8-97331-631-2	01	1	0803-
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> T=1.50 3-NOTCH THA	8-97331-632-2	01	1	0803-
621	NUT; VAC PUMP ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA	0-91180-208-0	03	1	1109-
621	NUT; VAC PUMP EXC. ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA	0-91180-208-0	03	1	0803-
636	ROTOR & VANE ASM; VAC PUMP ENGINE MADE IN THAILAND<6ZP>	8-98049-520-0	01	1	1109-
636	ROTOR & VANE ASM; VAC PUMP EXC. ENGINE MADE IN THAILAND<6ZP>	8-98049-520-0	01	1	0803-

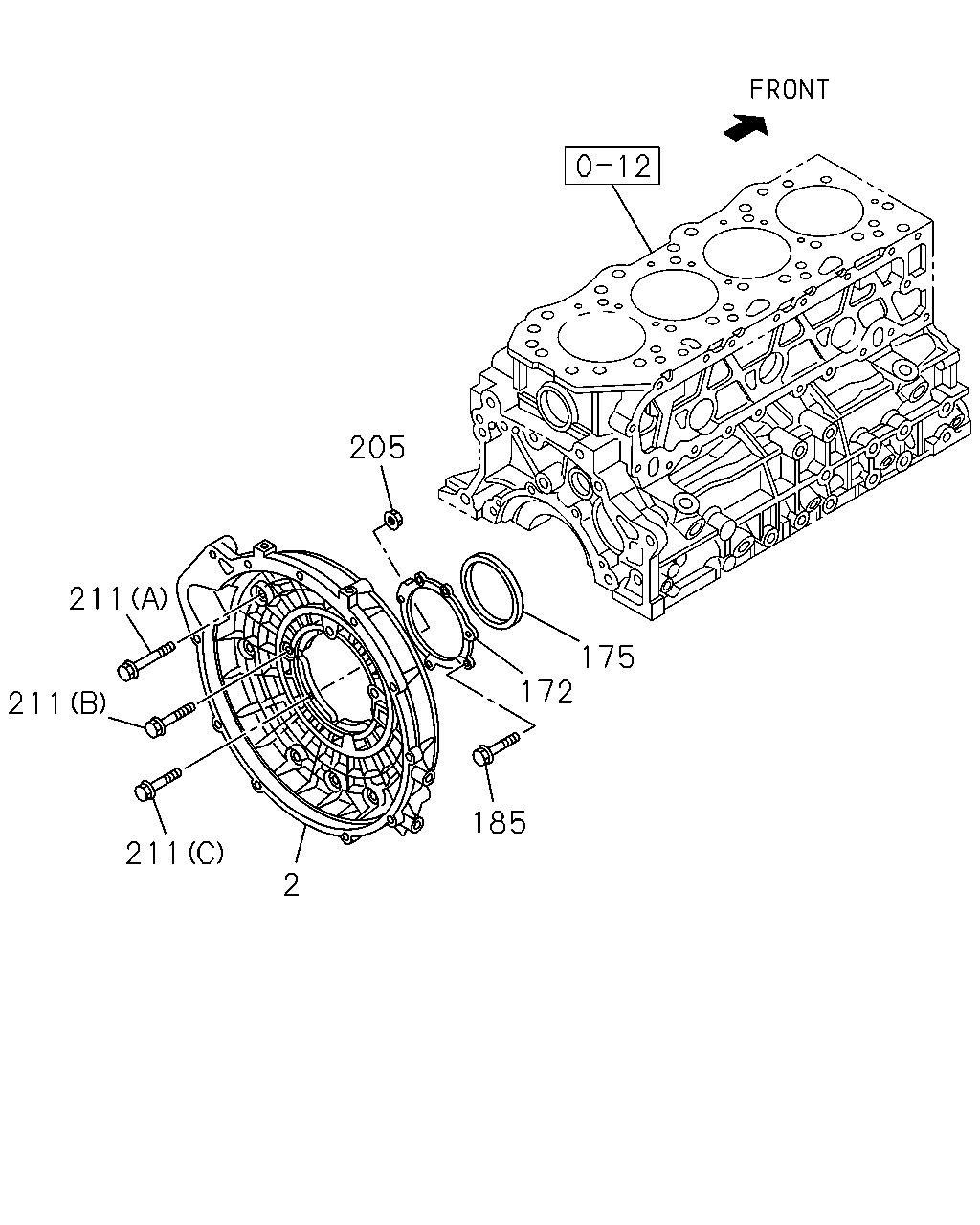

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL	8-97381-492-3	01	1	0803-1310
2	HOUSING; FLYWHEEL EXC. ENGINE MADE IN THAILAND<6ZP>	8-98252-203-0	01	1	1311-
172	RETAINER; CR/SHF ENGINE MADE IN THAILAND<6ZP> THA	8-97379-826-0	01	1	1109-
172	RETAINER; CR/SHF EXC. ENGINE MADE IN THAILAND<6ZP>	8-97175-986-3	01	1	0803-1012
172	RETAINER; CR/SHF ENGINE MADE IN THAILAND<6ZP> THA	8-97379-826-0	01	1	1101-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> ID=95 OD=118	8-97071-561-1	01	1	0803-
185	BOLT; RET TO C/BL ENGINE MADE IN THAILAND<6ZP> M8X25 FLANGE THA	0-28650-825-0	05	1	1109-
185	BOLT; RET TO C/BL EXC. ENGINE MADE IN THAILAND<6ZP> M8X25 FLANGE THA	0-28650-825-0	05	1	0803-
202	NUT; BRKT M8 FLANGE THA	0-91180-208-0	01	1	1204-
205	NUT; HSG ENGINE MADE IN THAILAND<6ZP> M10 FLANGE THA	0-91180-210-0	01	1	1109-
205	NUT; HSG EXC. ENGINE MADE IN THAILAND<6ZP> M10 FLANGE THA	0-91180-210-0	01	1	0803-
211	BOLT; HSG ENGINE MADE IN THAILAND<6ZP> (A) M12X35 FLANGE THA	0-28651-235-0	06	1	1109-
211	BOLT; HSG ENGINE MADE IN THAILAND<6ZP> (C) M10X43 THA	9-09606-535-0	01	1	1109-
211	BOLT; HSG ENGINE MADE IN THAILAND<6ZP> (B) M12X25	5-09000-227-0	03	1	1109-1112
211	BOLT; HSG ENGINE MADE IN THAILAND<6ZP> (B) M12X25 THA	8-97916-324-1	03	1	1201-
211	BOLT; HSG EXC. ENGINE MADE IN THAILAND<6ZP> (A) M12X35 FLANGE THA	0-28651-235-0	06	1	0803-
211	BOLT; HSG EXC. ENGINE MADE IN THAILAND<6ZP> (B) M12X25	5-09000-227-0	03	1	0803-
211	BOLT; HSG EXC. ENGINE MADE IN THAILAND<6ZP> (C) M10X43 THA	9-09606-535-0	01	1	0803-
233	STUD; BRKT ENGINE MADE IN THAILAND<6ZP> M8X71 L=83 THA	8-97367-083-0	01	1	1204-
233	STUD; BRKT EXC. ENGINE MADE IN THAILAND<6ZP> M8X71 L=83	8-98017-063-0	01	1	1204-
