Sayfa 0-15 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#74376) — 130 parça

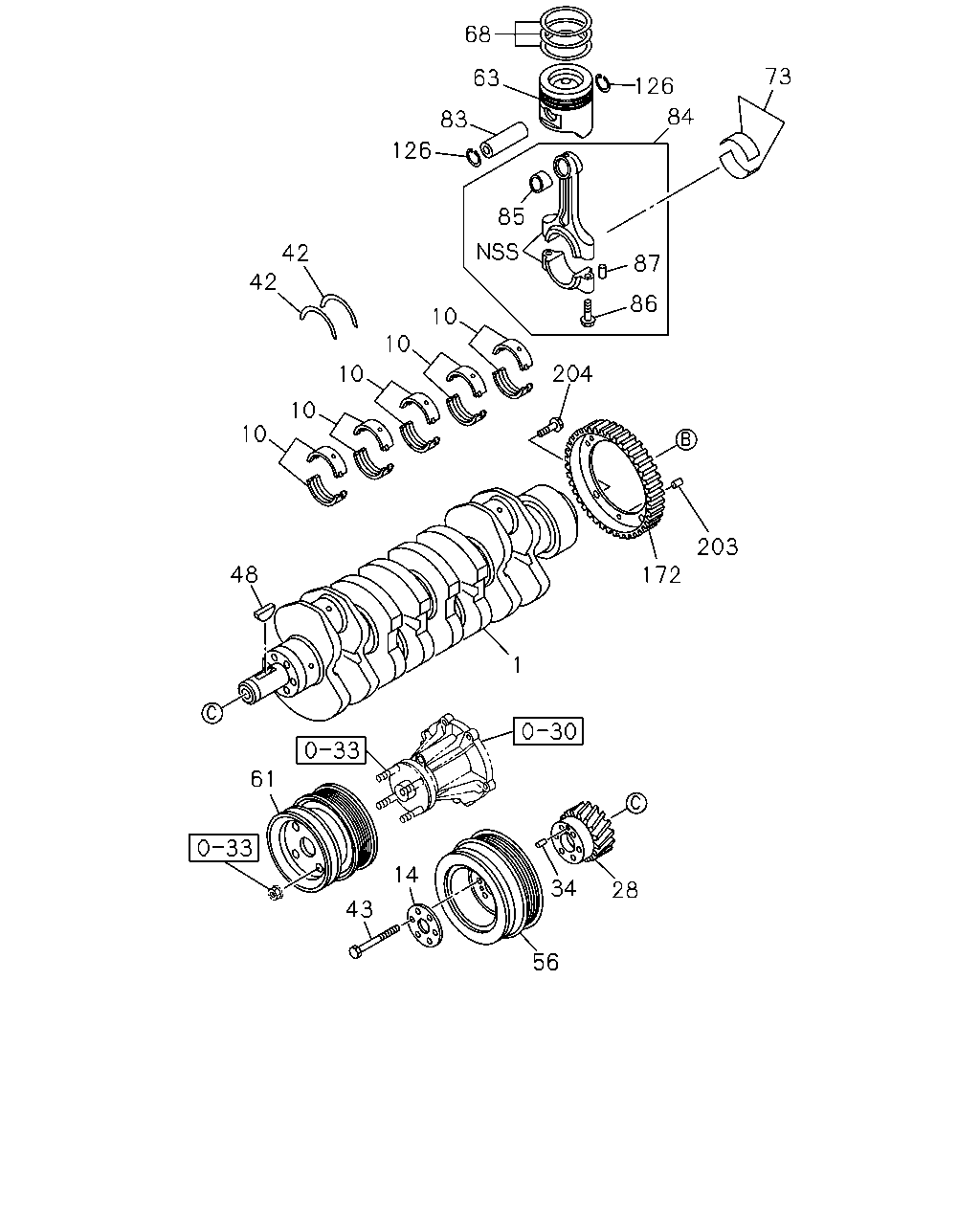

56 28 34 14 43 61 1 172 203 204 10 10 10 10 10 48 42 42 126 83 63 68 85 87 86 84 126 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT ENGINE MADE IN THAILAND<6ZP> THA	8-98182-878-1	01	1	1109-
1	CRANKSHAFT EXC. ENGINE MADE IN THAILAND<6ZP>	8-97388-828-4	01	1	0803-1007
1	CRANKSHAFT EXC. ENGINE MADE IN THAILAND<6ZP>	8-98154-950-2	01	1	1008-1409
1	CRANKSHAFT EXC. ENGINE MADE IN THAILAND<6ZP>	8-98273-590-0	01	1	1410-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> GRADE 1	8-97387-964-0	05	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> GRADE 2	8-97387-965-0	05	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> GRADE 3	8-97387-966-0	05	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> CRANK 3 GRADE 9	8-98053-576-0	01	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> CRANK 3 GRADE 0	8-98053-578-0	01	1	0803-
14	WASHER; PULLEY DAMPER ENGINE MADE IN THAILAND<6ZP> ID=23 OD=72 T=3	8-98165-125-0	01	1	1109-
14	WASHER; PULLEY DAMPER EXC. ENGINE MADE IN THAILAND<6ZP> ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0803-1007
14	WASHER; PULLEY DAMPER EXC. ENGINE MADE IN THAILAND<6ZP> ID=23 OD=72 T=3	8-98165-125-0	01	1	1008-
28	GEAR; CR/SHF ENGINE MADE IN THAILAND<6ZP> Z=44	8-98154-945-1	01	1	1109-
28	GEAR; CR/SHF EXC. ENGINE MADE IN THAILAND<6ZP> Z=44	8-97386-232-1	01	1	0803-1007
28	GEAR; CR/SHF EXC. ENGINE MADE IN THAILAND<6ZP> Z=44	8-98154-945-1	01	1	1008-
34	PIN; GEAR SETTING ENGINE MADE IN THAILAND<6ZP> OD=5 L=10	9-08160-510-0	01	1	1109-
34	PIN; GEAR SETTING EXC. ENGINE MADE IN THAILAND<6ZP> OD=5 L=10	9-08160-510-0	01	1	1008-
42	WASHER; THRUST,CR/SHF ENGINE MADE IN THAILAND<6ZP> THA	8-97354-055-1	02	1	1109-
42	WASHER; THRUST,CR/SHF EXC. ENGINE MADE IN THAILAND<6ZP>	8-98040-704-0	02	1	0803-
43	BOLT; CR/SHF PULLEY ENGINE MADE IN THAILAND<6ZP> M10X90	8-98165-234-1	06	1	1109-
43	BOLT; CR/SHF PULLEY EXC. ENGINE MADE IN THAILAND<6ZP> M16X43	5-09000-273-2	01	1	0803-1007
43	BOLT; CR/SHF PULLEY EXC. ENGINE MADE IN THAILAND<6ZP> M10X90	8-98165-234-1	06	1	1008-
48	KEY; WOODRUFF,CR/SHF ENGINE MADE IN THAILAND<6ZP>	8-94201-641-0	01	1	1109-
48	KEY; WOODRUFF,CR/SHF EXC. ENGINE MADE IN THAILAND<6ZP>	8-94201-641-0	01	1	0803-
56	PULLEY; CR/SHF DAMPER ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-98154-943-1	01	1	1109-
56	PULLEY; CR/SHF DAMPER EXC. ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-97361-562-1	01	1	0803-1007
56	PULLEY; CR/SHF DAMPER EXC. ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-98154-943-1	01	1	1008-
61	PULLEY; FAN DRIVE ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-97362-215-2	01	1	1109-
61	PULLEY; FAN DRIVE EXC. ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-97362-215-2	01	1	0803-
63	PISTON ENGINE MADE IN THAILAND<6ZP> GRADE=A THA	8-98043-703-0	04	1	1109-
63	PISTON ENGINE MADE IN THAILAND<6ZP> GRADE=B THA	8-98043-704-0	04	1	1109-
63	PISTON ENGINE MADE IN THAILAND<6ZP> GRADE=C THA	8-98043-705-0	04	1	1109-
63	PISTON EXC. ENGINE MADE IN THAILAND<6ZP> GRADE=A THA	8-98043-703-0	04	1	0803-
63	PISTON EXC. ENGINE MADE IN THAILAND<6ZP> GRADE=B THA	8-98043-704-0	04	1	0803-
63	PISTON EXC. ENGINE MADE IN THAILAND<6ZP> GRADE=C THA	8-98043-705-0	04	1	0803-
68	RING SET; PISTON,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP>	8-98053-579-0	04	1	0803-1105
68	RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1106-
73	METAL SET; CONN ROD,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP>	8-97358-234-0	04	1	0803-
83	PIN; PISTON ENGINE MADE IN THAILAND<6ZP> THA	8-98150-333-0	04	1	1109-
83	PIN; PISTON EXC. ENGINE MADE IN THAILAND<6ZP>	8-98015-193-1	04	1	0803-
84	ROD ASM; CONN ENGINE MADE IN THAILAND<6ZP> THA	8-97357-716-3	04	1	1207-
84	ROD ASM; CONN EXC. ENGINE MADE IN THAILAND<6ZP>	8-97388-921-2	04	1	0803-
85	BUSHING; CONNROD EXC. ENGINE MADE IN THAILAND<6ZP> AFTER PRESS FITTING,SHAPE THE BUSHING. THA	8-97383-066-0	04	1	0803-
86	BOLT; CONNROD EXC. ENGINE MADE IN THAILAND<6ZP> M11X44.5	8-98048-538-0	08	1	0803-
87	PIN; CONNROD BIG END ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA	9-08160-508-0	08	1	1109-
87	PIN; CONNROD BIG END EXC. ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA	9-08160-508-0	08	1	0803-
126	RING; SNAP,PISTON PIN EXC. ENGINE MADE IN THAILAND<6ZP> OD=37.5	8-94460-687-0	08	1	0803-
172	ROTOR; CRANK SENSOR ENGINE MADE IN THAILAND<6ZP> THA	8-97312-337-0	01	1	1109-
172	ROTOR; CRANK SENSOR EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97312-337-0	01	1	0803-1101
172	ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-1104
172	ROTOR; CRANK SENSOR EXC. ENGINE MADE IN THAILAND<6ZP>	8-98163-693-0	01	1	1105-
203	PIN; ROTOR ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA	9-08160-508-0	01	1	1109-
203	PIN; ROTOR EXC. ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA	9-08160-508-0	01	1	0803-
204	BOLT; ROTOR ENGINE MADE IN THAILAND<6ZP> THA	8-97944-142-1	03	1	1109-
204	BOLT; ROTOR EXC. ENGINE MADE IN THAILAND<6ZP>	8-97213-333-0	03	1	0803-0805
204	BOLT; ROTOR EXC. ENGINE MADE IN THAILAND<6ZP> M6X10	8-98038-343-0	03	1	0806-

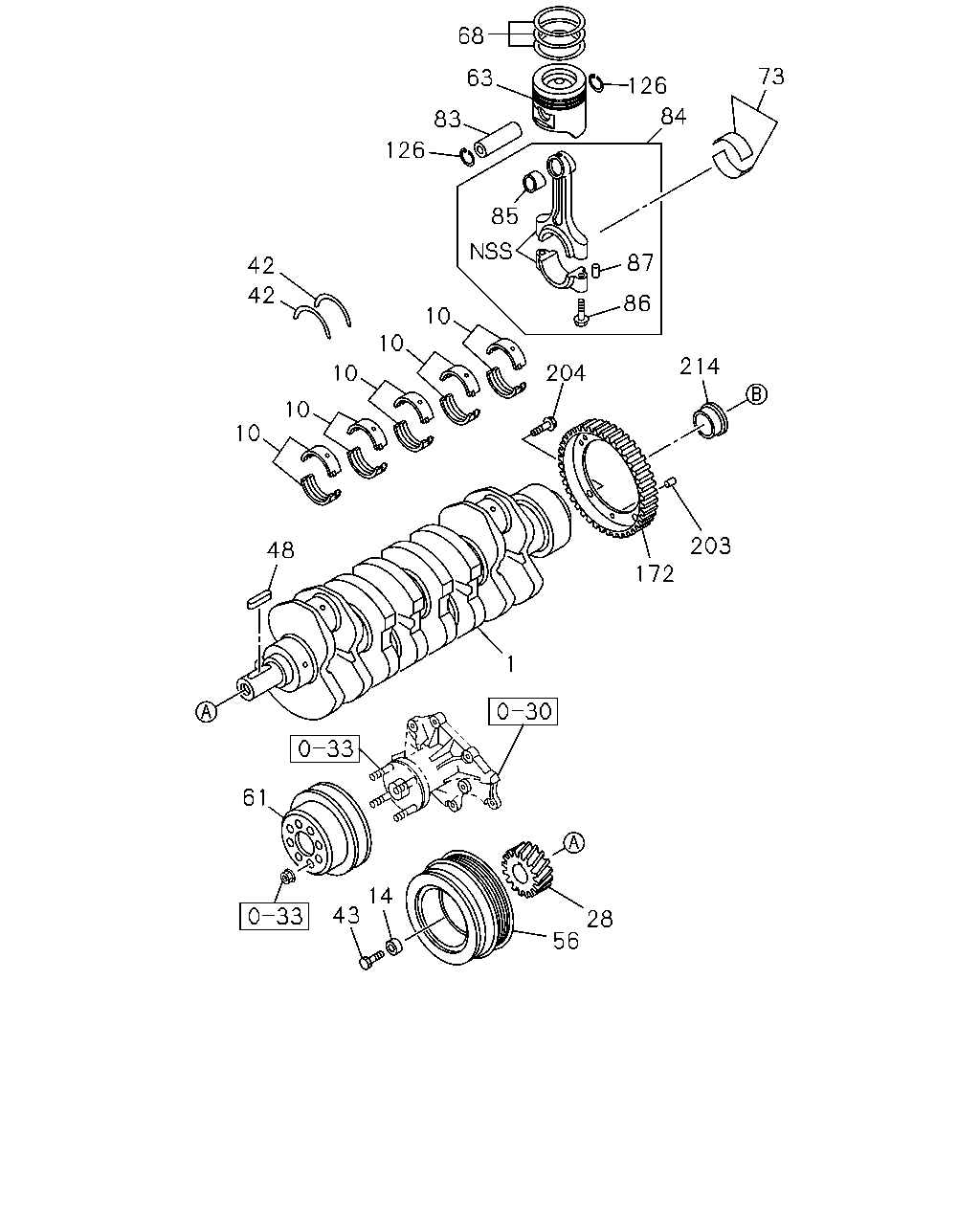

42 42 10 10 10 10 10 85 126 83 63 68 126 84 73 87 86 214 204 203 172 28 56 43 14 61 48 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT ENGINE MADE IN THAILAND<6ZP> THA	8-98182-878-1	01	1	1109-
1	CRANKSHAFT EXC. ENGINE MADE IN THAILAND<6ZP>	8-97388-828-4	01	1	0803-1007
1	CRANKSHAFT EXC. ENGINE MADE IN THAILAND<6ZP>	8-98154-950-2	01	1	1008-1409
1	CRANKSHAFT EXC. ENGINE MADE IN THAILAND<6ZP>	8-98273-590-0	01	1	1410-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> GRADE 1	8-97387-964-0	05	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> GRADE 2	8-97387-965-0	05	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> GRADE 3	8-97387-966-0	05	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> CRANK 3 GRADE 9	8-98053-576-0	01	1	0803-
10	METAL SET; CRANKSHAFT,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP> CRANK 3 GRADE 0	8-98053-578-0	01	1	0803-
14	WASHER; PULLEY DAMPER ENGINE MADE IN THAILAND<6ZP> ID=23 OD=72 T=3	8-98165-125-0	01	1	1109-
14	WASHER; PULLEY DAMPER EXC. ENGINE MADE IN THAILAND<6ZP> ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0803-1007
14	WASHER; PULLEY DAMPER EXC. ENGINE MADE IN THAILAND<6ZP> ID=23 OD=72 T=3	8-98165-125-0	01	1	1008-
28	GEAR; CR/SHF ENGINE MADE IN THAILAND<6ZP> Z=44	8-98154-945-1	01	1	1109-
28	GEAR; CR/SHF EXC. ENGINE MADE IN THAILAND<6ZP> Z=44	8-97386-232-1	01	1	0803-1007
28	GEAR; CR/SHF EXC. ENGINE MADE IN THAILAND<6ZP> Z=44	8-98154-945-1	01	1	1008-
42	WASHER; THRUST,CR/SHF ENGINE MADE IN THAILAND<6ZP> THA	8-97354-055-1	02	1	1109-
42	WASHER; THRUST,CR/SHF EXC. ENGINE MADE IN THAILAND<6ZP>	8-98040-704-0	02	1	0803-
43	BOLT; CR/SHF PULLEY ENGINE MADE IN THAILAND<6ZP> M10X90	8-98165-234-1	06	1	1109-
43	BOLT; CR/SHF PULLEY EXC. ENGINE MADE IN THAILAND<6ZP> M16X43	5-09000-273-2	01	1	0803-1007
43	BOLT; CR/SHF PULLEY EXC. ENGINE MADE IN THAILAND<6ZP> M10X90	8-98165-234-1	06	1	1008-
48	KEY; WOODRUFF,CR/SHF ENGINE MADE IN THAILAND<6ZP>	8-94201-641-0	01	1	1109-
48	KEY; WOODRUFF,CR/SHF EXC. ENGINE MADE IN THAILAND<6ZP>	8-94201-641-0	01	1	0803-
56	PULLEY; CR/SHF DAMPER ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-98154-943-1	01	1	1109-
56	PULLEY; CR/SHF DAMPER EXC. ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-97361-562-1	01	1	0803-1007
56	PULLEY; CR/SHF DAMPER EXC. ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-98154-943-1	01	1	1008-
61	PULLEY; FAN DRIVE ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-97362-215-2	01	1	1109-
61	PULLEY; FAN DRIVE EXC. ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA	8-97362-215-2	01	1	0803-
63	PISTON ENGINE MADE IN THAILAND<6ZP> GRADE=A THA	8-98043-703-0	04	1	1109-
63	PISTON ENGINE MADE IN THAILAND<6ZP> GRADE=B THA	8-98043-704-0	04	1	1109-
63	PISTON ENGINE MADE IN THAILAND<6ZP> GRADE=C THA	8-98043-705-0	04	1	1109-
63	PISTON EXC. ENGINE MADE IN THAILAND<6ZP> GRADE=A THA	8-98043-703-0	04	1	0803-
63	PISTON EXC. ENGINE MADE IN THAILAND<6ZP> GRADE=B THA	8-98043-704-0	04	1	0803-
63	PISTON EXC. ENGINE MADE IN THAILAND<6ZP> GRADE=C THA	8-98043-705-0	04	1	0803-
68	RING SET; PISTON,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP>	8-98053-579-0	04	1	0803-1105
68	RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1106-
73	METAL SET; CONN ROD,STANDARD EXC. ENGINE MADE IN THAILAND<6ZP>	8-97358-234-0	04	1	0803-
83	PIN; PISTON ENGINE MADE IN THAILAND<6ZP> THA	8-98150-333-0	04	1	1109-
83	PIN; PISTON EXC. ENGINE MADE IN THAILAND<6ZP>	8-98015-193-1	04	1	0803-
84	ROD ASM; CONN ENGINE MADE IN THAILAND<6ZP> THA	8-97357-716-3	04	1	1207-
84	ROD ASM; CONN EXC. ENGINE MADE IN THAILAND<6ZP>	8-97388-921-2	04	1	0803-
85	BUSHING; CONNROD EXC. ENGINE MADE IN THAILAND<6ZP> AFTER PRESS FITTING,SHAPE THE BUSHING. THA	8-97383-066-0	04	1	0803-
86	BOLT; CONNROD EXC. ENGINE MADE IN THAILAND<6ZP> M11X44.5	8-98048-538-0	08	1	0803-
87	PIN; CONNROD BIG END ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA	9-08160-508-0	08	1	1109-
87	PIN; CONNROD BIG END EXC. ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA	9-08160-508-0	08	1	0803-
126	RING; SNAP,PISTON PIN EXC. ENGINE MADE IN THAILAND<6ZP> OD=37.5	8-94460-687-0	08	1	0803-
172	ROTOR; CRANK SENSOR ENGINE MADE IN THAILAND<6ZP> THA	8-97312-337-0	01	1	1109-
172	ROTOR; CRANK SENSOR EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97312-337-0	01	1	0803-1101
172	ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-1104
172	ROTOR; CRANK SENSOR EXC. ENGINE MADE IN THAILAND<6ZP>	8-98163-693-0	01	1	1105-
203	PIN; ROTOR ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA	9-08160-508-0	01	1	1109-
203	PIN; ROTOR EXC. ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA	9-08160-508-0	01	1	0803-
204	BOLT; ROTOR ENGINE MADE IN THAILAND<6ZP> THA	8-97944-142-1	03	1	1109-
204	BOLT; ROTOR EXC. ENGINE MADE IN THAILAND<6ZP>	8-97213-333-0	03	1	0803-0805
204	BOLT; ROTOR EXC. ENGINE MADE IN THAILAND<6ZP> M6X10	8-98038-343-0	03	1	0806-
214	STOPPER; BEARING EXC. ENGINE MADE IN THAILAND<6ZP>	8-97316-560-0	01	1	0803-0911

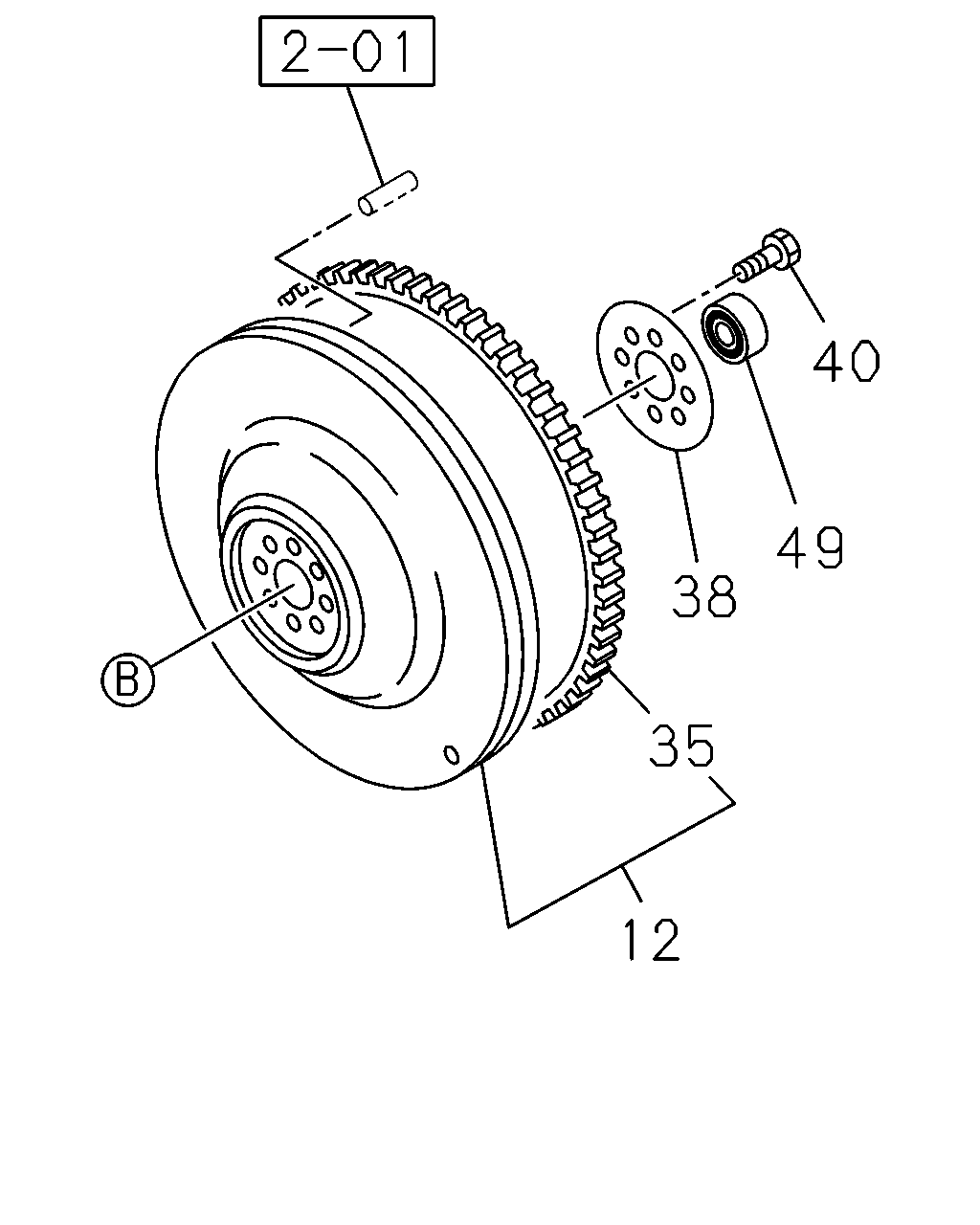

40 49 38 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	FLYWHEEL ENGINE MADE IN THAILAND<6ZP>	8-98148-063-1	01	1	1109-
12	FLYWHEEL EXC. ENGINE MADE IN THAILAND<6ZP>	8-98012-825-2	01	1	0803-0911
12	FLYWHEEL EXC. ENGINE MADE IN THAILAND<6ZP>	8-98148-063-1	01	1	0912-
35	GEAR; RING ENGINE MADE IN THAILAND<6ZP> Z=138	8-97046-366-1	01	1	1109-
35	GEAR; RING EXC. ENGINE MADE IN THAILAND<6ZP> Z=138	8-97046-366-1	01	1	0803-
38	WASHER; FLYWHEEL ENGINE MADE IN THAILAND<6ZP> THA	8-94133-970-1	01	1	1109-
38	WASHER; FLYWHEEL EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-94133-970-1	01	1	0803-1005
38	WASHER; FLYWHEEL EXC. ENGINE MADE IN THAILAND<6ZP>	8-98171-700-0	01	1	1006-
40	BOLT; FLYWHEEL ENGINE MADE IN THAILAND<6ZP> M13X36 THA	8-97941-069-0	08	1	1109-1202
40	BOLT; FLYWHEEL EXC. ENGINE MADE IN THAILAND<6ZP> M13X45	8-94418-050-0	08	1	0803-1202
40	BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1203-
49	BEARING; PILOT EXC. ENGINE MADE IN THAILAND<6ZP>	8-97325-153-0	01	1	0803-
49	BEARING; PILOT EXC. ENGINE MADE IN THAILAND<6ZP> BEST VALUE PARTS	5-87610-166-0	01	1	0803-
49	BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	0803-1006
49	BEARING; PILOT ENGINE MADE IN THAILAND<6ZP> BEST VALUE PARTS	5-87610-166-0	01	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
