Sayfa 0-14 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶

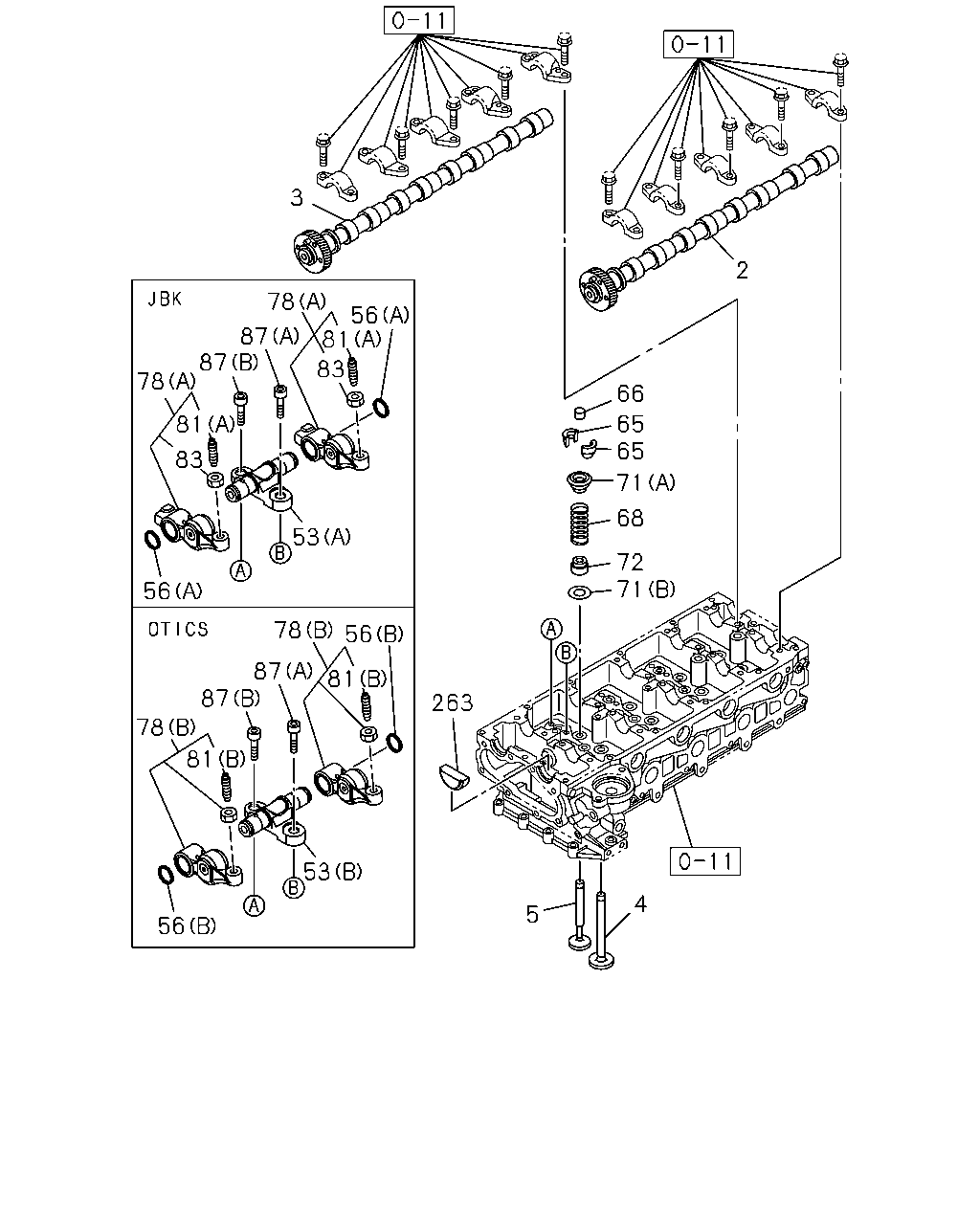

0-14 — CAMSHAFT AND VALVE (#74375) — 109 parça

3 2 78 56 81 87 87 83 78 66 65 65 81 83 71 68 53 72 71 56 78 56 87 87 81 263 78 81 53 4 5 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CAMSHAFT; INL ENGINE MADE IN THAILAND<6ZP> THA	8-98182-902-0	01	1	1207-
2	CAMSHAFT; INL ENGINE MADE IN THAILAND<6ZP> THA	8-98186-004-0	01	1	1207-
2	CAMSHAFT; INL EXC. ENGINE MADE IN THAILAND<6ZP>	8-98003-129-4	01	1	0803-
3	CAMSHAFT; EXH ENGINE MADE IN THAILAND<6ZP> THA	8-98182-903-0	01	1	1207-
3	CAMSHAFT; EXH ENGINE MADE IN THAILAND<6ZP> THA	8-98186-005-0	01	1	1207-
3	CAMSHAFT; EXH EXC. ENGINE MADE IN THAILAND<6ZP>	8-98003-130-4	01	1	0803-
4	VALVE; INL ENGINE MADE IN THAILAND<6ZP> THA	8-97309-675-1	08	1	1109-
4	VALVE; INL ENGINE MADE IN THAILAND<6ZP>	8-98016-973-0	08	1	1502-
4	VALVE; INL EXC. ENGINE MADE IN THAILAND<6ZP>	8-98016-973-0	08	1	0803-
5	VALVE; EXH ENGINE MADE IN THAILAND<6ZP> THA	8-97309-677-1	08	1	1109-
5	VALVE; EXH EXC. ENGINE MADE IN THAILAND<6ZP>	8-98016-974-1	08	1	0803-
53	SHAFT; ROCKER ARM ENGINE MADE IN THAILAND<6ZP> (B) INLET OTICS	8-97364-809-2	04	1	1310-
53	SHAFT; ROCKER ARM ENGINE MADE IN THAILAND<6ZP> (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-
53	SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1001-1309
53	SHAFT; ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (B) INLET OTICS	8-97364-809-2	04	1	1310-
53	SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1001-1309
53	SHAFT; ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-
53	SHAFT; ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (A) INLET JBK	8-98025-071-1	04	1	0803-
53	SHAFT; ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (A) EXHAUST JBK	8-98025-074-1	04	1	0803-
53	SHAFT; ROCKER ARM ENGINE MADE IN THAILAND<6ZP> (B) INLET	8-97364-809-2	04	1	1105-1309
53	SHAFT; ROCKER ARM ENGINE MADE IN THAILAND<6ZP> (B) EXHAUST	8-97364-811-2	04	1	1105-1309
56	RING; SNAP,ROCKER ARM ENGINE MADE IN THAILAND<6ZP> (B)	8-98109-470-0	16	1	1310-
56	RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1001-1309
56	RING; SNAP,ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (B)	8-98109-470-0	16	1	1310-
56	RING; SNAP,ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98025-496-0	16	1	0803-
65	COLLAR; SPLIT EXC. ENGINE MADE IN THAILAND<6ZP>	8-94239-501-0	32	1	0803-
66	CAP; VLV STEM END ENGINE MADE IN THAILAND<6ZP> THA	8-98147-945-0	16	1	1109-
66	CAP; VLV STEM END EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98029-870-1	16	1	0803-0910
66	CAP; VLV STEM END EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98147-945-0	16	1	0911-
68	SPRING; VLV ENGINE MADE IN THAILAND<6ZP> INLET H=49 NATURAL THA	8-97311-669-0	08	1	1109-
68	SPRING; VLV ENGINE MADE IN THAILAND<6ZP> EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1109-
68	SPRING; VLV EXC. ENGINE MADE IN THAILAND<6ZP> INLET H=49 NATURAL THA	8-97311-669-0	08	1	0803-
68	SPRING; VLV EXC. ENGINE MADE IN THAILAND<6ZP> EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	0803-
71	SEAT; SPR ENGINE MADE IN THAILAND<6ZP> (B) OD=31 THA	8-97144-584-0	16	1	1109-
71	SEAT; SPR ENGINE MADE IN THAILAND<6ZP> (A) OD=29.5 THA	8-97311-668-0	16	1	1109-
71	SEAT; SPR EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=31 THA	8-97144-584-0	16	1	0803-
71	SEAT; SPR EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98017-067-0	16	1	0803-
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA	8-97328-647-0	16	1	1109-
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97328-647-0	16	1	0803-
78	ARM; ROCKER (B) OTICS	8-98029-537-5	16	1	1001-1309
78	ARM; ROCKER EXC. ENGINE MADE IN THAILAND<6ZP> (B) OTICS	8-98029-537-6	16	1	1310-
78	ARM; ROCKER EXC. ENGINE MADE IN THAILAND<6ZP> (A) JBK	8-98025-059-4	16	1	0803-
78	ARM; ROCKER ENGINE MADE IN THAILAND<6ZP> (B) OTICS	8-98029-537-6	16	1	1310-
81	SCREW; ADJ,ROCKER ARM ENGINE MADE IN THAILAND<6ZP> (B) M8 L=22	8-98029-893-0	16	1	1310-
81	SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1001-1309
81	SCREW; ADJ,ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8 L=22	8-98029-893-0	16	1	1310-
81	SCREW; ADJ,ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8 L=22	8-98025-497-0	16	1	0803-
83	NUT; ADJ SCREW,LK EXC. ENGINE MADE IN THAILAND<6ZP> M8 FLANGE	9-09844-574-0	16	1	0803-
87	BOLT; ROCKER SHAFT ENGINE MADE IN THAILAND<6ZP> (A) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	1109-
87	BOLT; ROCKER SHAFT ENGINE MADE IN THAILAND<6ZP> (B) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	1109-
87	BOLT; ROCKER SHAFT EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0803-
87	BOLT; ROCKER SHAFT EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0803-
196	RING; SNAP ENGINE MADE IN THAILAND<6ZP> ID=27.9	9-09180-030-0	02	1	1109-
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA	8-97947-079-0	04	1	1109-
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP>	8-98101-472-0	04	1	0803-1204
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP>	8-98216-269-0	04	1	1205-

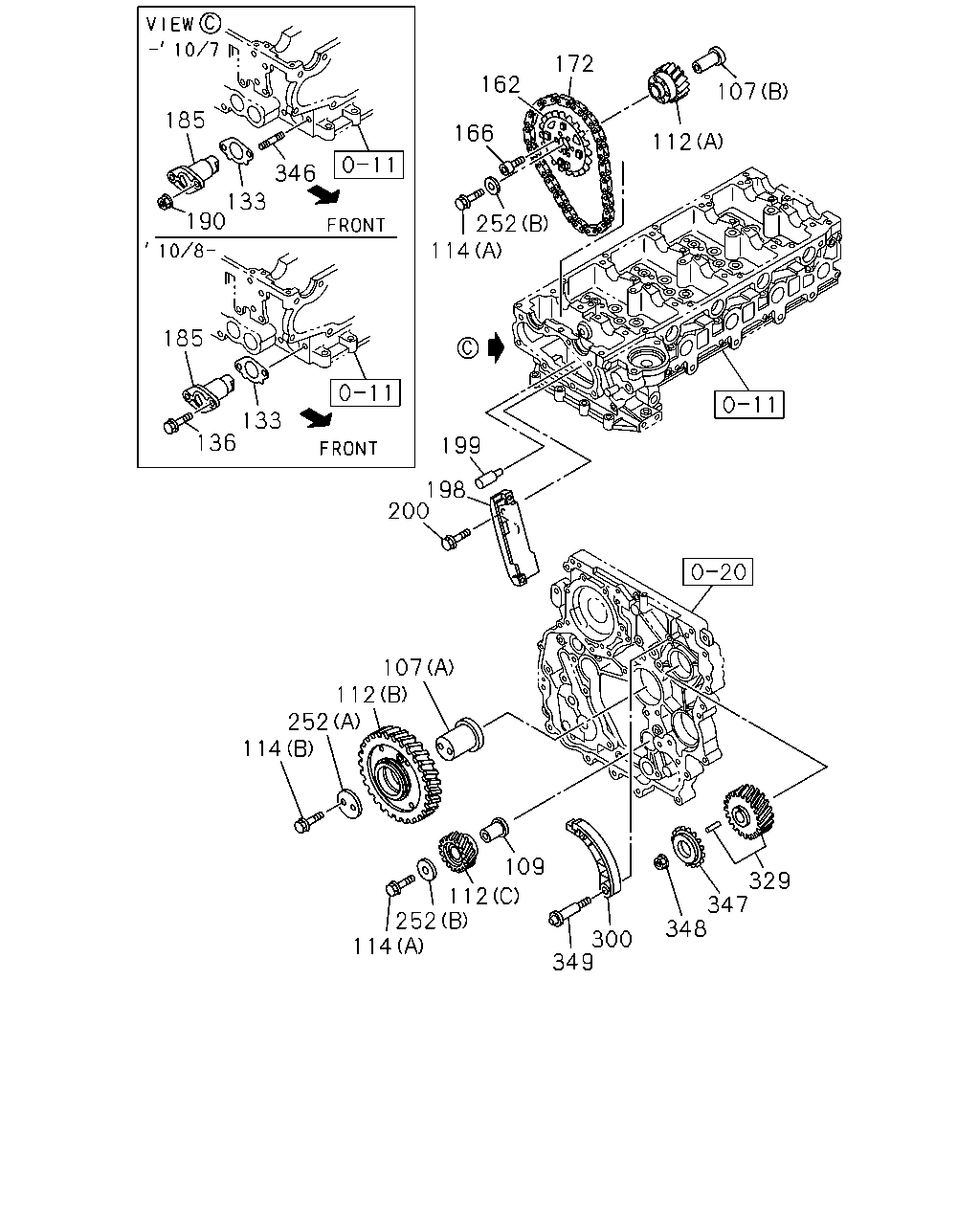

185 346 185 133 136 133 199 200 198 162 166 252 114 172 112 107 114 112 252 114 349 300 112 252 109 348 347 329 190 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	SHAFT; IDLE GEAR ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97312-315-2	01	1	1109-
107	SHAFT; IDLE GEAR ENGINE MADE IN THAILAND<6ZP> (B) THA	8-97312-322-1	01	1	1109-
107	SHAFT; IDLE GEAR EXC. ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97312-315-2	01	1	0803-
107	SHAFT; IDLE GEAR EXC. ENGINE MADE IN THAILAND<6ZP> (B) THA	8-97312-322-1	01	1	0803-
109	SHAFT; IDLE GEAR ENGINE MADE IN THAILAND<6ZP> THA	8-97312-319-1	01	1	1109-
109	SHAFT; IDLE GEAR EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97312-319-1	01	1	0803-
112	GEAR; IDLE ENGINE MADE IN THAILAND<6ZP> (B) Z=80 THA	8-98021-050-2	01	1	1109-
112	GEAR; IDLE ENGINE MADE IN THAILAND<6ZP> (C) Z=34 THA	8-98021-052-1	01	1	1109-
112	GEAR; IDLE EXC. ENGINE MADE IN THAILAND<6ZP> (B) Z=80	8-97381-516-1	01	1	0803-1311
112	GEAR; IDLE EXC. ENGINE MADE IN THAILAND<6ZP> (B) Z=80	8-98232-105-1	01	1	1312-
112	GEAR; IDLE EXC. ENGINE MADE IN THAILAND<6ZP> (C) Z=34	8-97381-518-0	01	1	0803-
112	GEAR; IDLE EXC. ENGINE MADE IN THAILAND<6ZP> (A) Z=35	8-97381-520-3	01	1	0803-
114	BOLT; IDLE GEAR ENGINE MADE IN THAILAND<6ZP> (B) M10X60 FLANGE THA	0-28061-060-0	02	1	1109-
114	BOLT; IDLE GEAR ENGINE MADE IN THAILAND<6ZP> (A) M12X60 FLANGE THA	0-28161-260-0	02	1	1109-
114	BOLT; IDLE GEAR EXC. ENGINE MADE IN THAILAND<6ZP> (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0803-
114	BOLT; IDLE GEAR EXC. ENGINE MADE IN THAILAND<6ZP> (A) M12X60 FLANGE THA	0-28161-260-0	02	1	0803-
133	GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA	8-97312-336-0	01	1	1109-
133	GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97312-336-0	01	1	0803-
136	BOLT; TENSIONER ENGINE MADE IN THAILAND<6ZP> M6X16 FLANGE THA	0-28050-616-0	02	1	1109-
136	BOLT; TENSIONER EXC. ENGINE MADE IN THAILAND<6ZP> M6X16 FLANGE THA	0-28050-616-0	02	1	1008-
162	SPROCKET; IDLE ENGINE MADE IN THAILAND<6ZP> THA	8-97312-331-1	01	1	1109-
162	SPROCKET; IDLE EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97312-331-1	01	1	0803-1109
162	SPROCKET; IDLE EXC. ENGINE MADE IN THAILAND<6ZP>	8-98193-179-0	01	1	1110-
166	BOLT; SPROCKET TO LAYSHAFT ENGINE MADE IN THAILAND<6ZP> M6X16 HEX SOCKET THA	0-58330-616-0	06	1	1109-
166	BOLT; SPROCKET TO LAYSHAFT EXC. ENGINE MADE IN THAILAND<6ZP> M6X16 HEX SOCKET THA	0-58330-616-0	06	1	0803-
172	CHAIN; TIMING,CM/SHF ENGINE MADE IN THAILAND<6ZP> THA	8-98119-279-1	01	1	1109-
172	CHAIN; TIMING,CM/SHF EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97945-067-0	01	1	0803-
185	TENSIONER; CHAIN EXC. ENGINE MADE IN THAILAND<6ZP>	8-98039-754-1	01	1	0803-
190	NUT; CHAIN TENSIONER EXC. ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA	0-91180-206-0	02	1	0803-1007
196	RING; SNAP ENGINE MADE IN THAILAND<6ZP> ID=27.9	9-09180-030-0	02	1	1109-
198	GUIDE; TIMING CHAIN ENGINE MADE IN THAILAND<6ZP> THA	8-97945-069-0	01	1	1109-1112
198	GUIDE; TIMING CHAIN ENGINE MADE IN THAILAND<6ZP> THA	8-98173-188-0	01	1	1201-
198	GUIDE; TIMING CHAIN EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97945-069-0	01	1	0803-
199	JET; OIL,TIMING CHAIN ENGINE MADE IN THAILAND<6ZP> THA	8-97356-061-1	01	1	1109-
199	JET; OIL,TIMING CHAIN EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97356-061-1	01	1	0803-
200	BOLT; CHAIN GUIDE,LWR ENGINE MADE IN THAILAND<6ZP> M8X20 THA	1-09070-120-1	02	1	1109-
200	BOLT; CHAIN GUIDE,LWR EXC. ENGINE MADE IN THAILAND<6ZP> M8X20 THA	1-09070-120-1	02	1	0803-
252	FLANGE; IDLE SHAFT ENGINE MADE IN THAILAND<6ZP> (B) THA	8-97312-316-1	01	1	1109-
252	FLANGE; IDLE SHAFT ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97312-323-1	02	1	1109-
252	FLANGE; IDLE SHAFT EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98016-892-0	01	1	0803-
252	FLANGE; IDLE SHAFT EXC. ENGINE MADE IN THAILAND<6ZP> (B)	8-98016-893-0	02	1	0803-
300	LEVER; TENSION,TIMING CHAIN ENGINE MADE IN THAILAND<6ZP> THA	8-98119-278-1	01	1	1109-
300	LEVER; TENSION,TIMING CHAIN EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97945-070-0	01	1	0803-
329	GEAR; INJ PUMP ENGINE MADE IN THAILAND<6ZP> Z=44 THA	8-97312-298-3	01	1	1109-
329	GEAR; INJ PUMP EXC. ENGINE MADE IN THAILAND<6ZP> Z=44	8-98017-539-1	01	1	0803-
346	STUD; CHAIN EXC. ENGINE MADE IN THAILAND<6ZP> M6X18 L=27 THA	0-41010-618-0	02	1	0803-1007
347	SPROCKET; I/PUMP ENGINE MADE IN THAILAND<6ZP> THA	8-97312-330-1	01	1	1109-
347	SPROCKET; I/PUMP THA	8-97312-330-1	01	1	0803-1207
347	SPROCKET; I/PUMP EXC. ENGINE MADE IN THAILAND<6ZP>	8-98210-266-0	01	1	1208-
348	NUT; SPROCKET ENGINE MADE IN THAILAND<6ZP> M14 FLANGE THA	8-97312-423-2	01	1	1109-
348	NUT; SPROCKET EXC. ENGINE MADE IN THAILAND<6ZP> M14 FLANGE THA	8-97312-423-2	01	1	0803-
349	PIVOT; CHAIN LEVER ENGINE MADE IN THAILAND<6ZP> THA	8-97312-328-0	01	1	1109-
349	PIVOT; CHAIN LEVER EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97312-328-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
